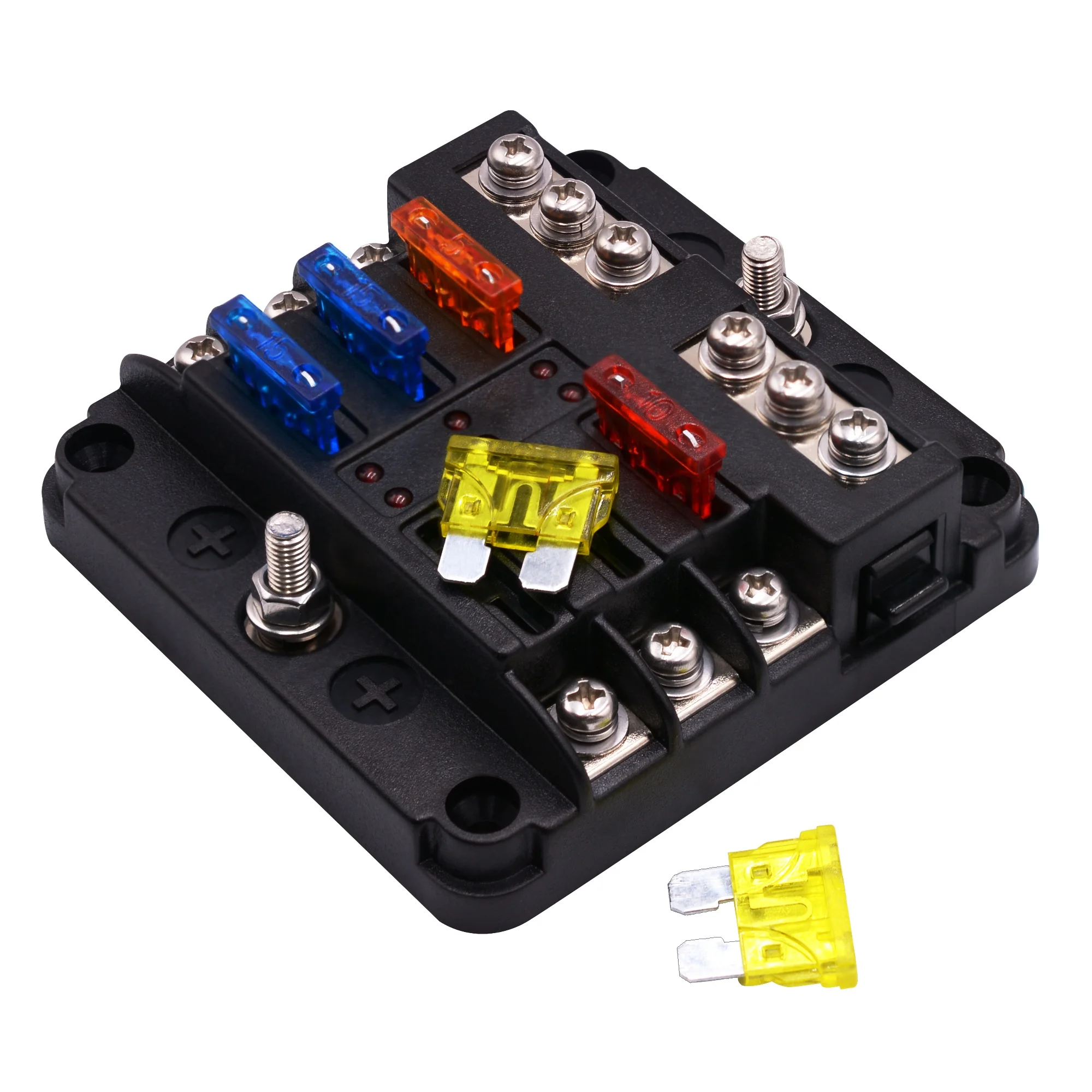

Waterproof Car Boat 12V 6 Way Blade Fuse Block Box With Warning Indicator
- Category: Fuse Components >>>
- Supplier: Hangzhou Yancheng Technology Co. Ltd.
Share on (62422944201):
Product Overview
Description
Products Description
Product Name | |
Product Model | CS-1469A1 |
Net Weight | 176g |
Gross Weight | 183g |
Product Size | 87.75 * 85 * 36.5mm |
Product Material | PBT body, PC waterproof and dustproof cover, nickel plated copper connection terminal, ppx40 sticker |
Input Rated Voltage | 32V |
Input Rated Current | 100A |
Maximum Output Current | 30A for each circuit |
Indicator Color | Red |
Main Line Terminal | M5 threaded stud |
Main Wire | #4-6 |
Single Wire Terminal | M4 threaded stud |
Single Wire | #12-16 |
Function Of Indicator Light | When the red led light is on, it indicates that the fuse has been disconnected and needs to be replaced in time to continue operation |

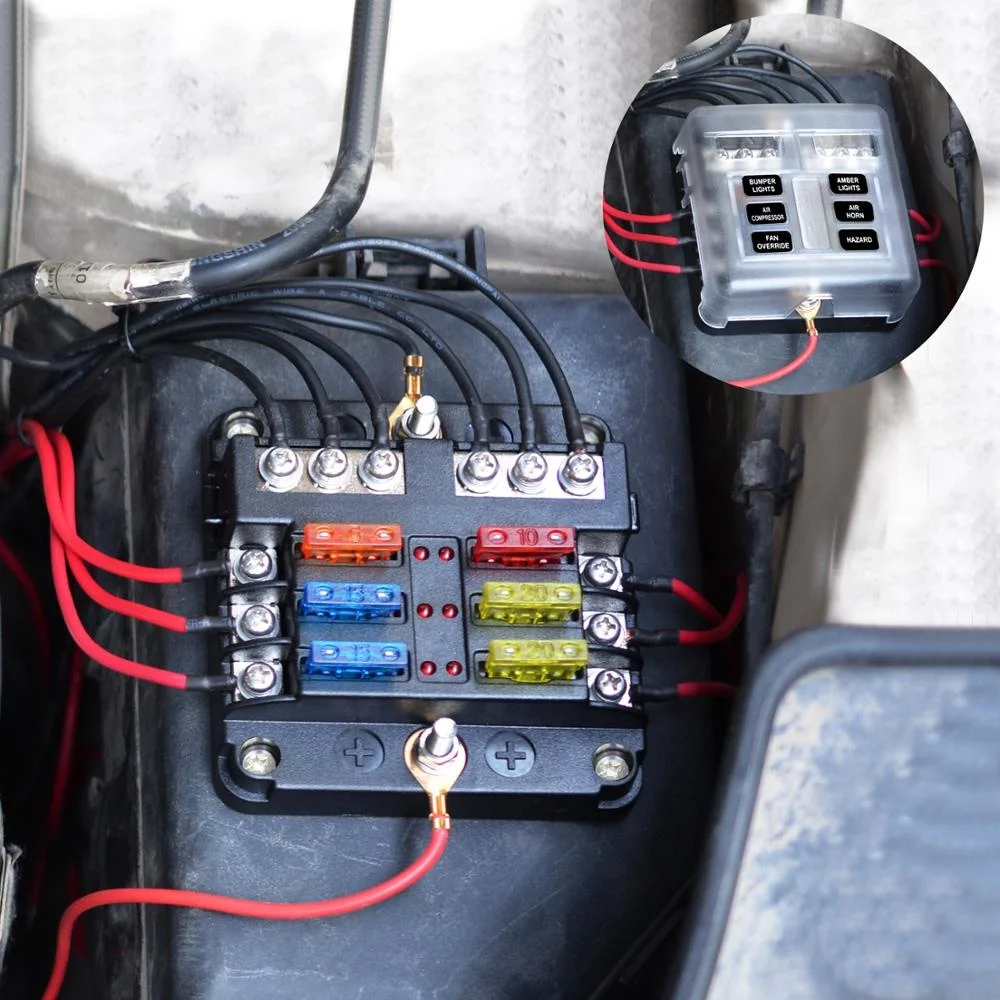

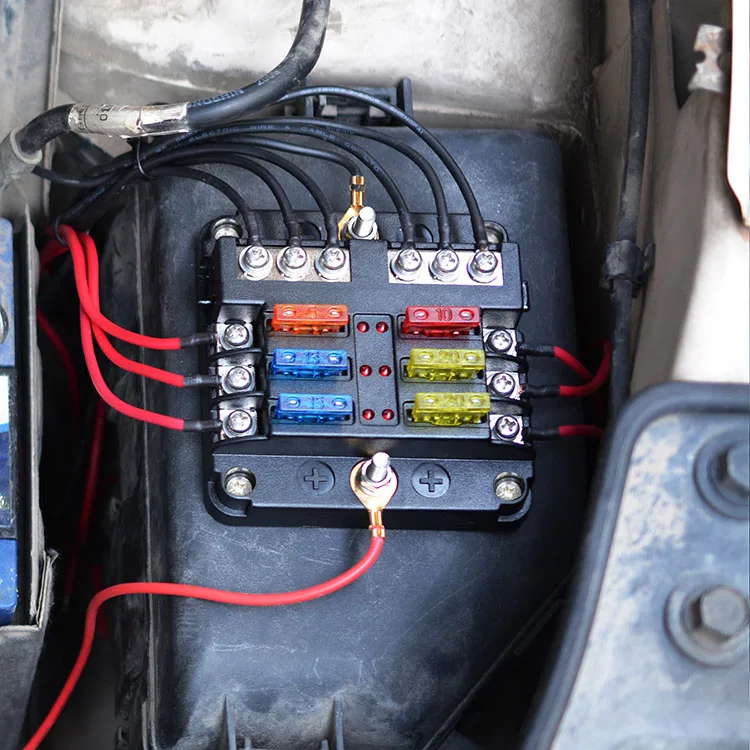

Product Installation Scope | It can be installed on cars, yueshu, rv, buses, yachts, boats, etc |
Product Application Scope | It can be directly connected to the line of any electrical appliance on the vehicle / ship [such as: roof lamp, car headlamp, visual width lamp, fog lamp, warning lamp, on-board refrigerator, on-board charger, on-board fan, on-board tv, etc.] |

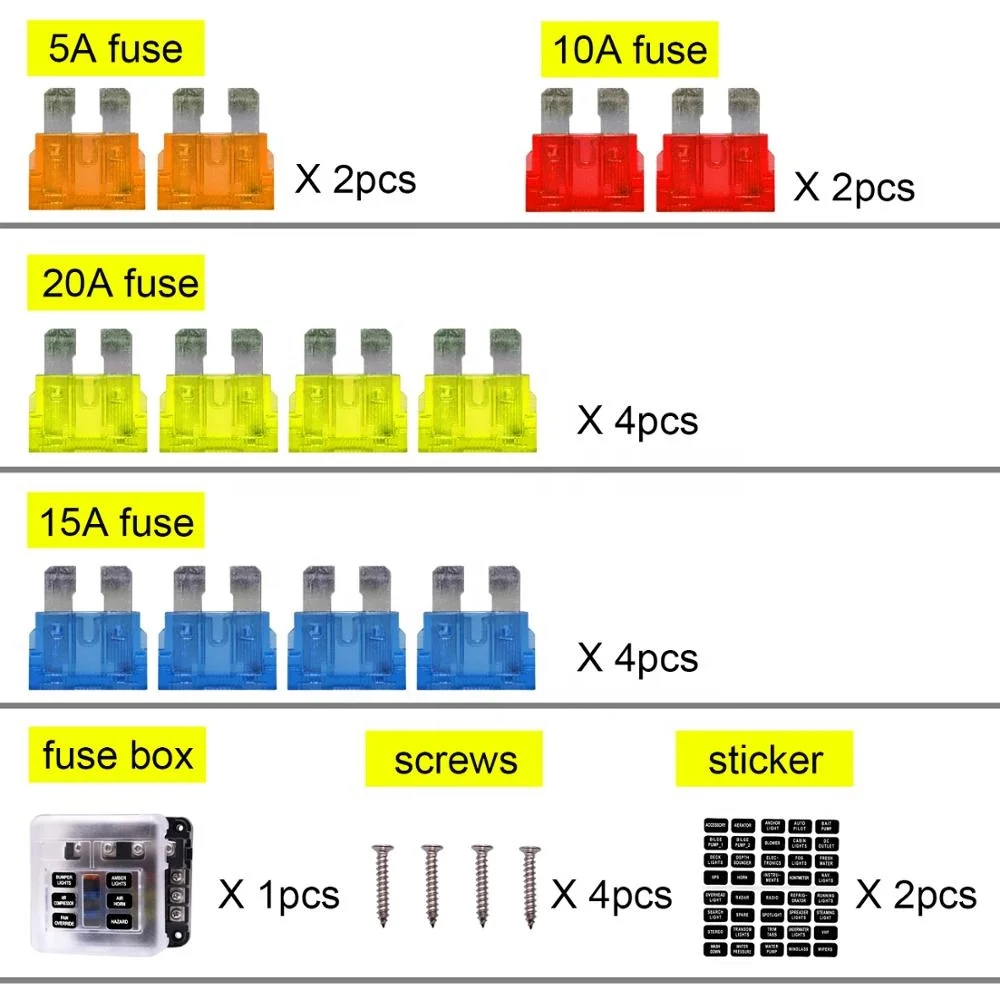

Product Accessories | Sticker x1; self tapping screw x4; 20a fuse x4; 15a fuse x4; 10a fuse x2; 5a fuse x2 |
Fuse Function | In case of circuit failure or abnormality, with the continuous increase of current, and the increased current may damage some important or valuable devices in the circuit, burn the circuit or even cause fire. The fuse protects the electronic equipment from current damage and can also avoid serious injury caused by internal failure of the electronic equipment. Therefore, each fuse has a rated specification. When the current exceeds the rated specification, the fuse will blow. If the fuse is correctly placed in the circuit, the fuse will fuse and cut off the current when the current abnormally rises to a certain height and temperature, so as to protect the safe operation of the circuit. |
Product advantages：
[1] The product is made of PBT flame-retardant resistant high and low temperature environmental protection material, which fully meets the requirements of [The fuse holder must have good mechanical strength, insulation, heat resistance and flame retardancy, and should not be broken, deformed, burned or burned during use. Short circuit and other phenomena] conditions.
[2] All bus bars and fuse clips are nickel-plated copper, which has corrosion resistance and best conductivity.
[3] All fasteners are made of stainless steel. The input of the fuse box and the output end are fixed with tightening screws, which can be installed more quickly. The fuse box is fixed with self-tapping screws, which is easier and safer to install.

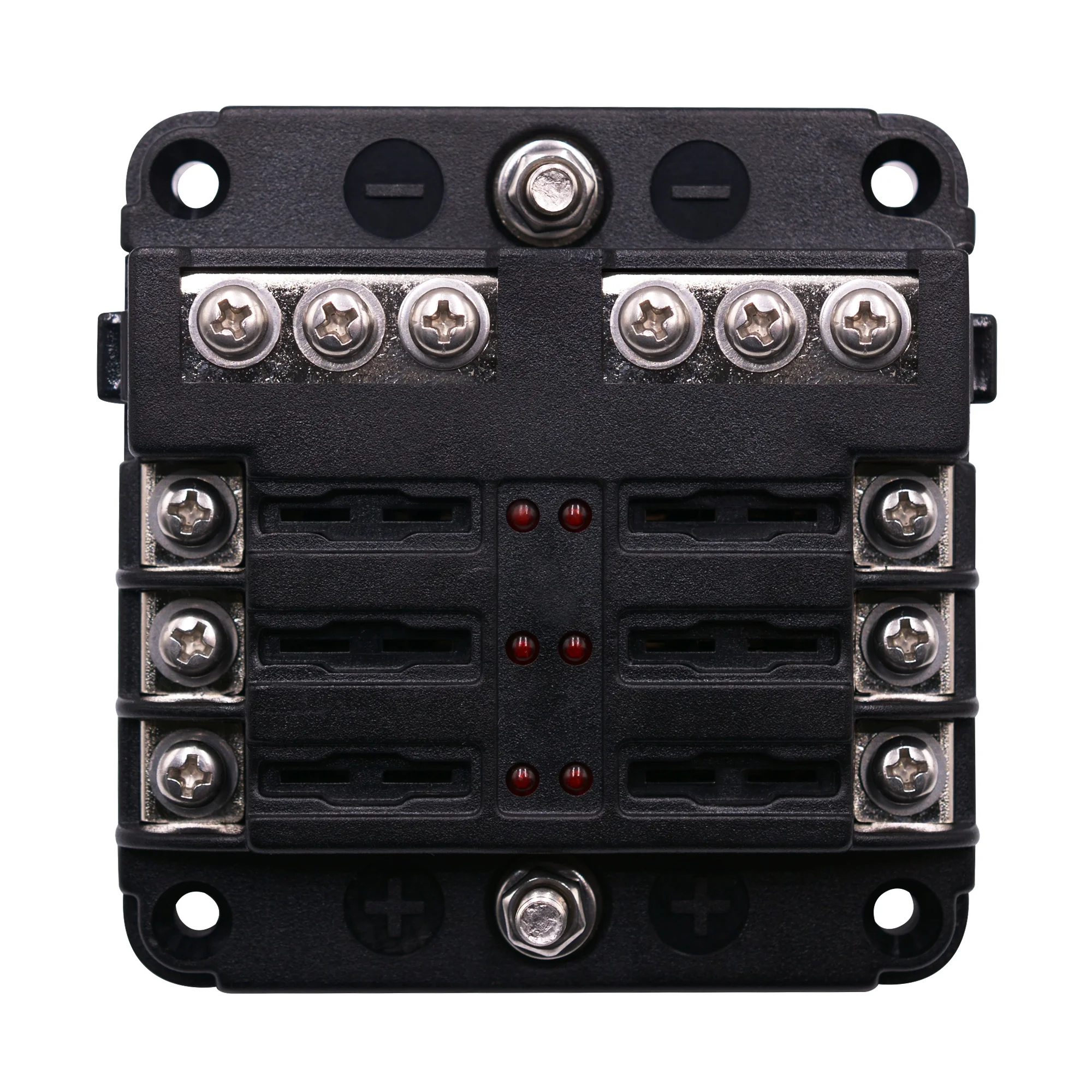

[4] The product has a red LED indicator design, which corresponds to each electrical appliance connected to the fuse. When the fuse is disconnected, the red light will be on, and you can immediately know which fuse is broken, which is convenient for timely processing.
[2] All bus bars and fuse clips are nickel-plated copper, which has corrosion resistance and best conductivity.
[3] All fasteners are made of stainless steel. The input of the fuse box and the output end are fixed with tightening screws, which can be installed more quickly. The fuse box is fixed with self-tapping screws, which is easier and safer to install.
[4] The product has a red LED indicator design, which corresponds to each electrical appliance connected to the fuse. When the fuse is disconnected, the red light will be on, and you can immediately know which fuse is broken, which is convenient for timely processing.

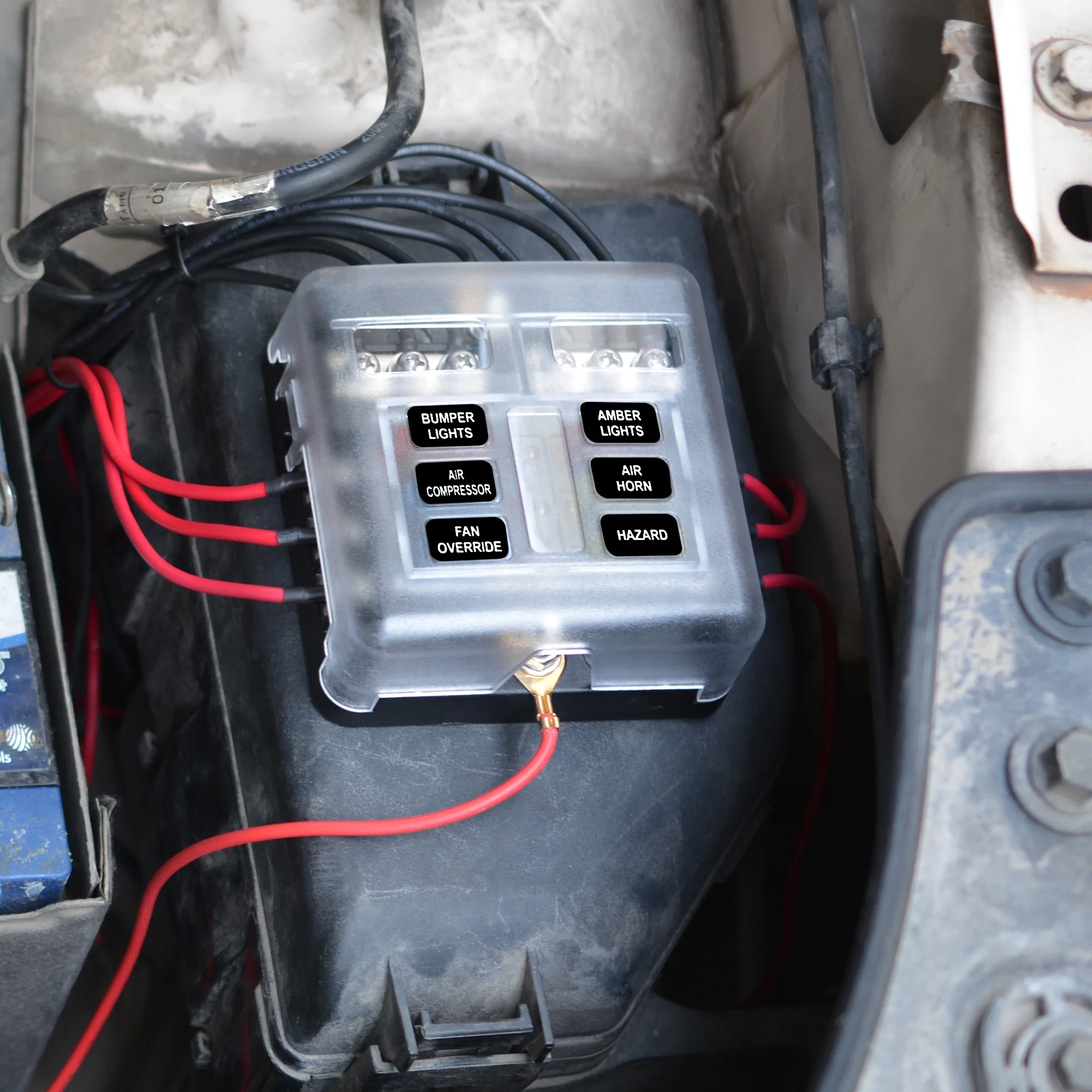

[5] The product is given a sticker, which can be affixed to the electrical appliances we are connected to according to the name on the sticker. When the fuse is broken and the red light is on, we can immediately distinguish which electrical appliance has the problem. save time and energy.
[6] The product is delivered with double fuses. When applied, the fuse is burned out and can be replaced from the spare fuse immediately, and the fuse has been delivered with multiple Abes. You can choose the Abe fuse according to the current electrical appliances.
[6] The product is delivered with double fuses. When applied, the fuse is burned out and can be replaced from the spare fuse immediately, and the fuse has been delivered with multiple Abes. You can choose the Abe fuse according to the current electrical appliances.
