Product Overview

Description

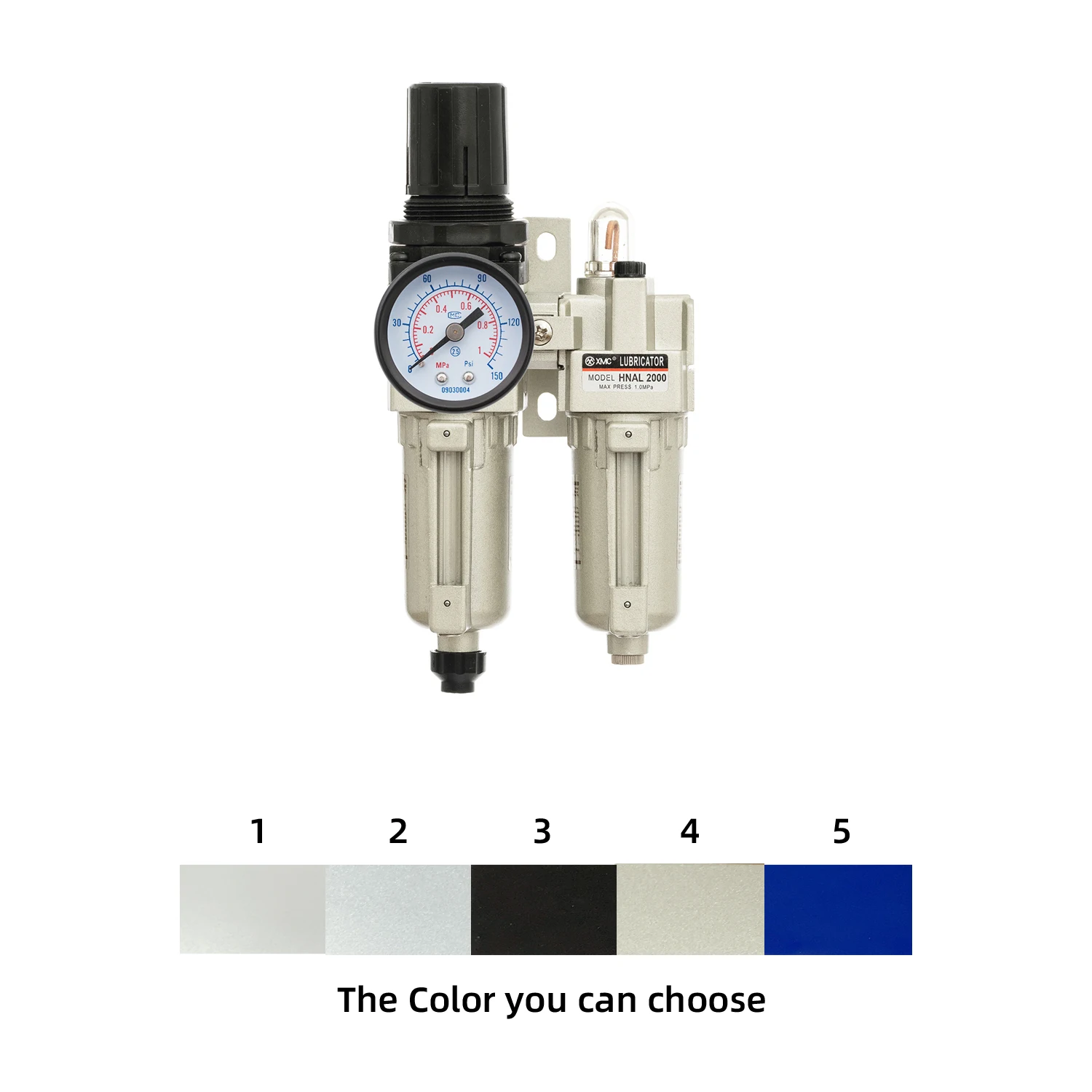

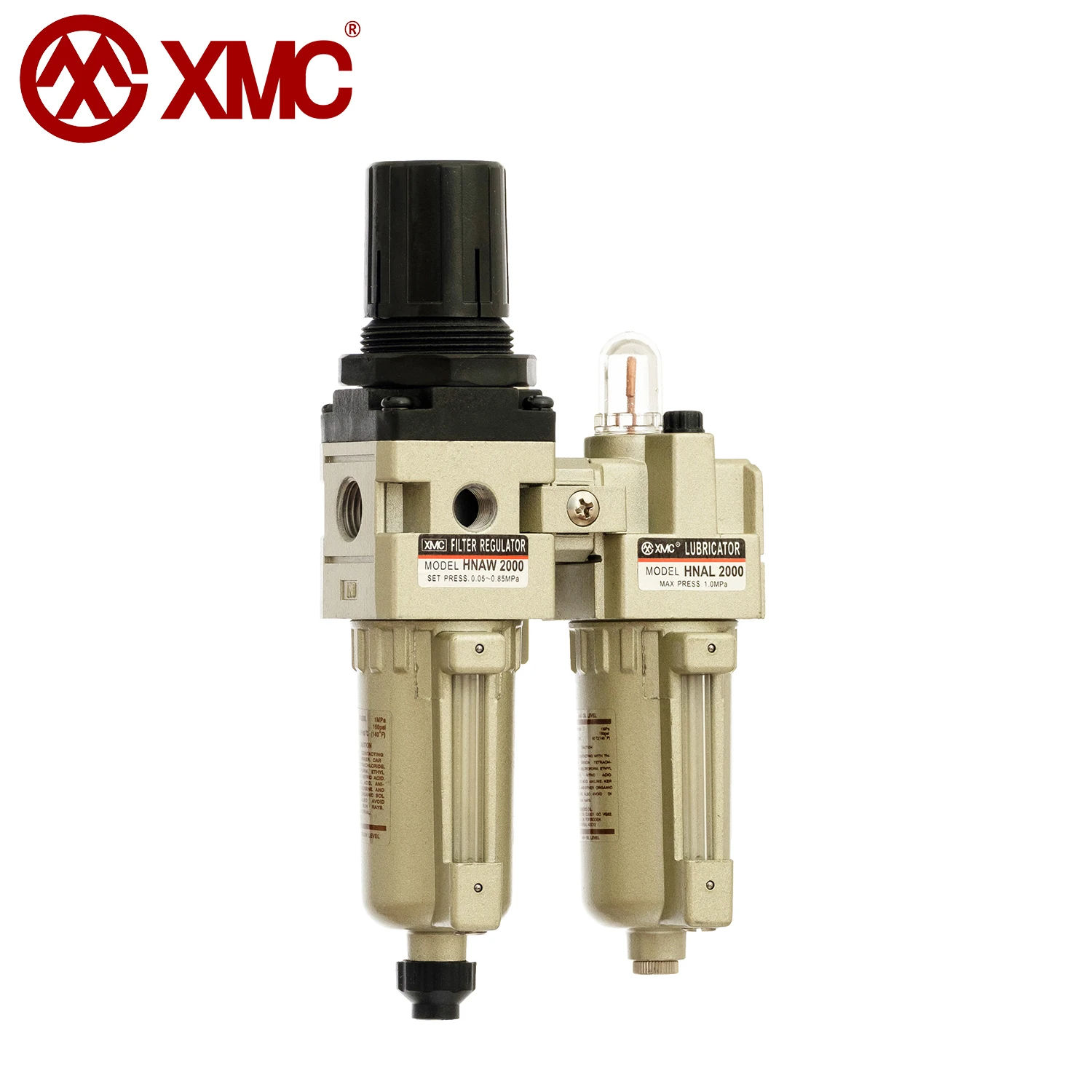

XMC HNAC2010-02 G1/4'' frl pneumatic air filter regulator lubrication for Construction machinery truck production equipment





Model Code





Specification



Order No.
HNAC2010-02
Ensured Pressure Resistance
1.5MPa (15kgf/cm2)
Highest Working Pressure
1.0MPa (10kgf/cm2)
Ambient and Fluid Temperature
5~60℃
*Filter Precision
25μm
Recommended Oil Use
Turbine No.1 Oil ISOVG32

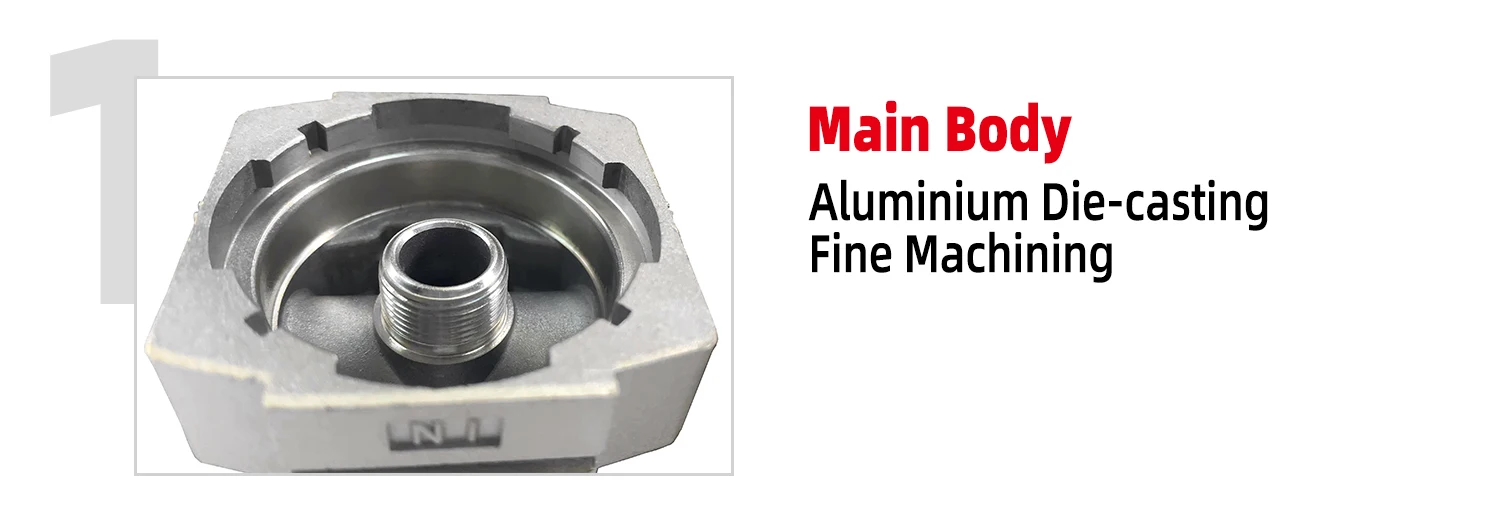

Container Material
Aluminum Die Casting
Protective Cover
Available
Pressure Regulating Range
0.05~0.85MPa (0.5~8.5kgf/cm2)
Valve Type
With Overflow

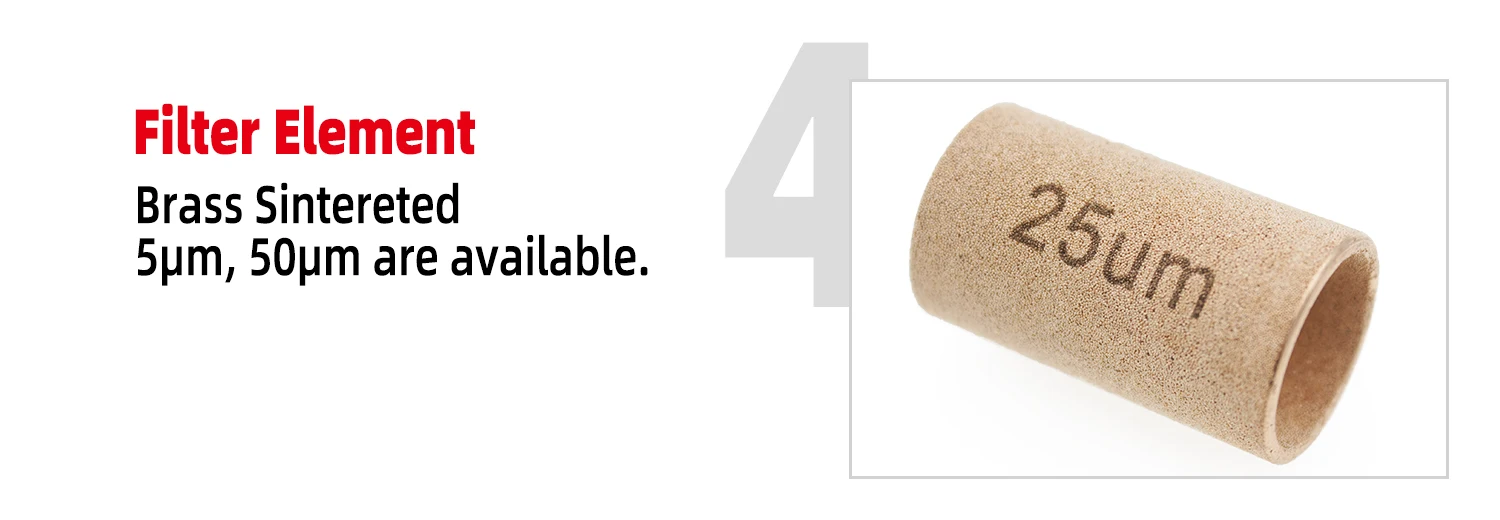

*5μm, 50μm available in addition (Optional)



Model Table

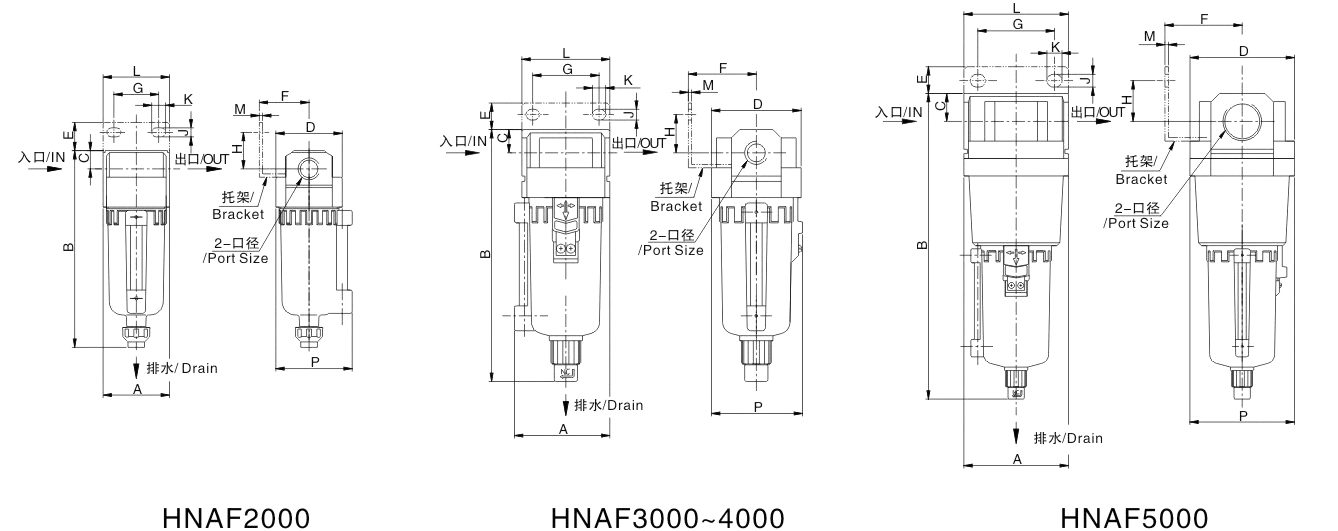

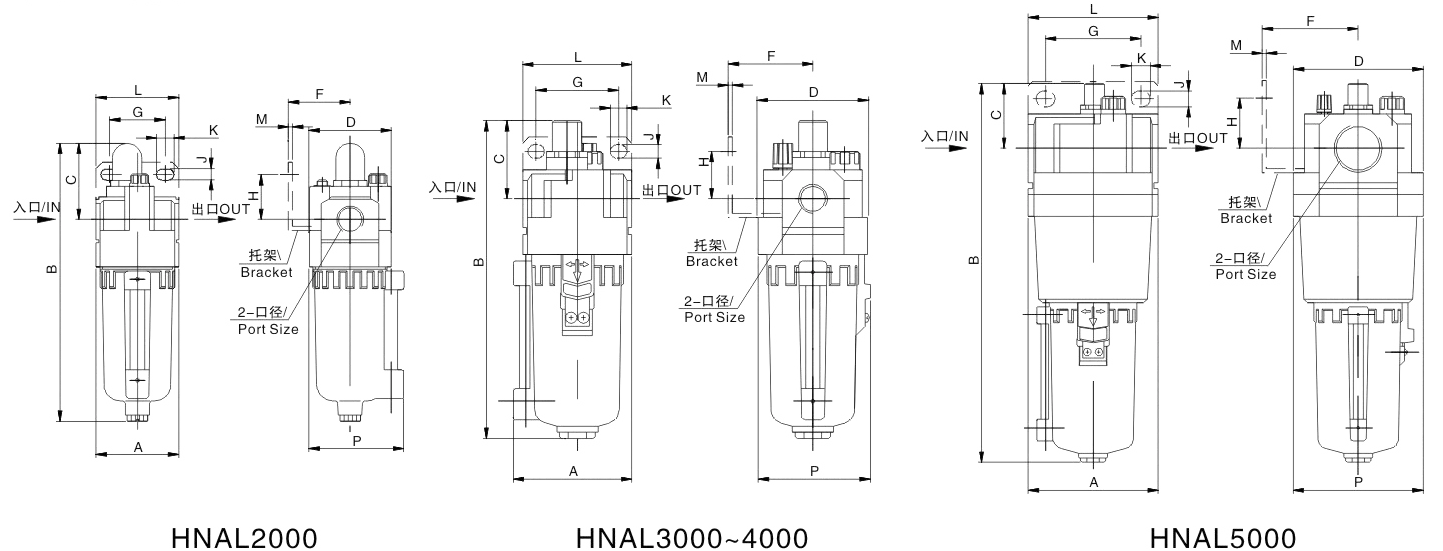

Overall Dimension Drawing (mm)







Overall Dimension Drawing (mm)
