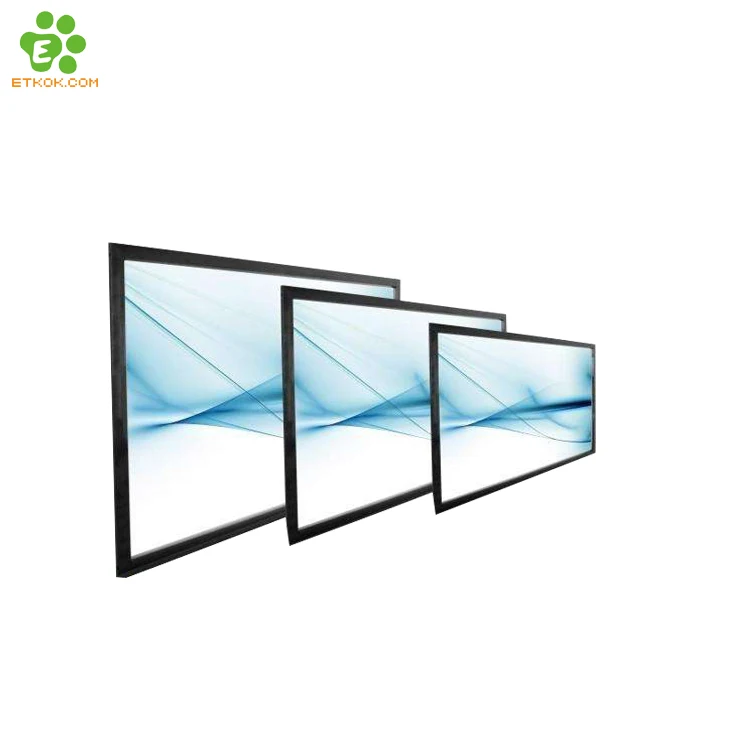

17 inch waterproof IR touch screen frame panel for gambling machine
- Category: >>>
- Supplier: Shenzhen Etk Technology Co. Limited
Share on (62423146151):
Product Overview
Description
Product Description
What is IR infrared touch screen?
Infrared IR touch screens are one of the most reliable touch technologies on the market now.

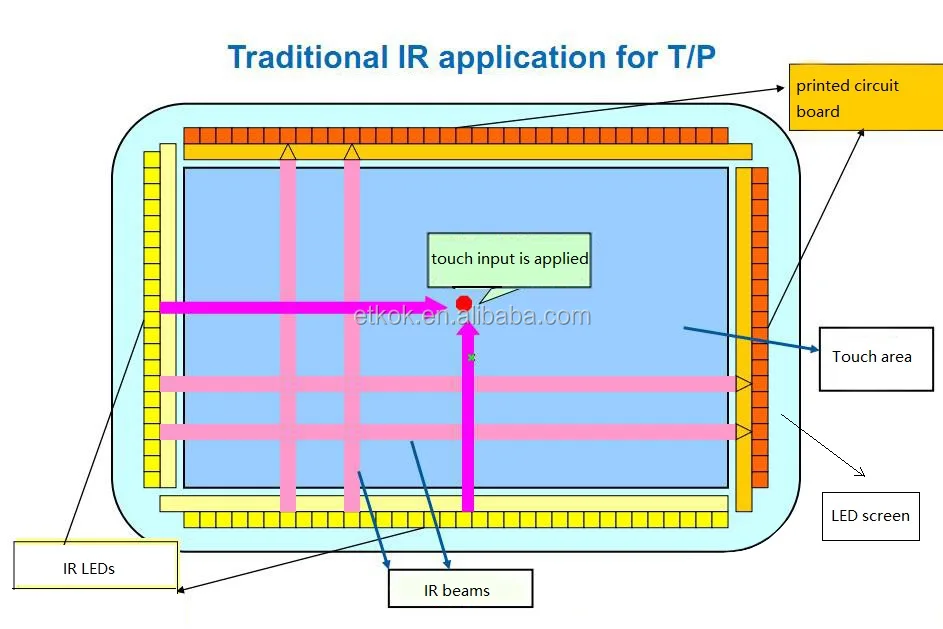

Our infrared touch screens consists of a touch frame which is installed in front of the display. The frame is integrated with a printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame. The bezel shields the parts from the operation environment while allowing the IR beams to pass through, so you are left with a grid of invisible beams in front of the display.
How does IR infrared touch screen works.

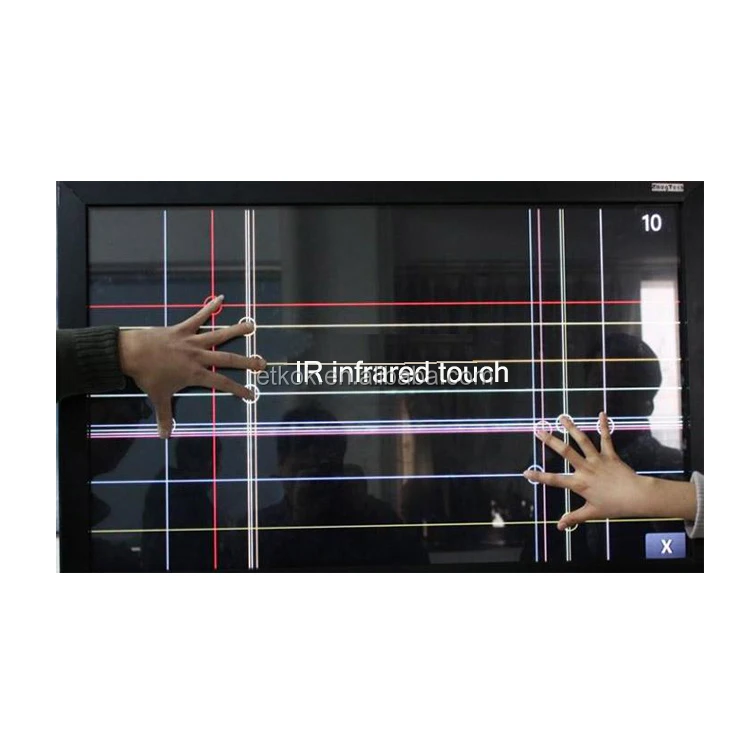

When a touch input is applied, it interrupts the IR light beams. The Photo transistors from X & Y axes detect the IR light beams which have been interrupted and transmit exact signals that identify the X & Y axes coordinates to the PC or computer host.
Feature
Changes in the time or environment will not cause any drift.
2. High light transmittance
The touch screen has no intermediate touch overlay, enabling light transmittance to reach as high as 100%.
3. Long service life
Extremely durable, scratch resistant
4. Easy activation
Touch pressure is not required; no special material is required for touch activation. An activating stylus can be used whether soft or hard – conductor or nonconductor.
1. High stability
Changes in the time or environment will not cause any drift.
2. High light transmittance
The touch screen has no intermediate touch overlay, enabling light transmittance to reach as high as 100%.
3. Long service life
Extremely durable, scratch resistant
4. Easy activation
Touch pressure is not required; no special material is required for touch activation. An activating stylus can be used whether soft or hard – conductor or nonconductor.
Detailed Images

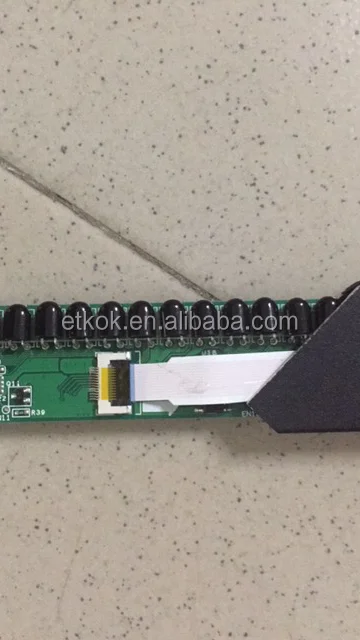

You can see IR LEDs from this picture.We used imported IR LEDs,Experience is better

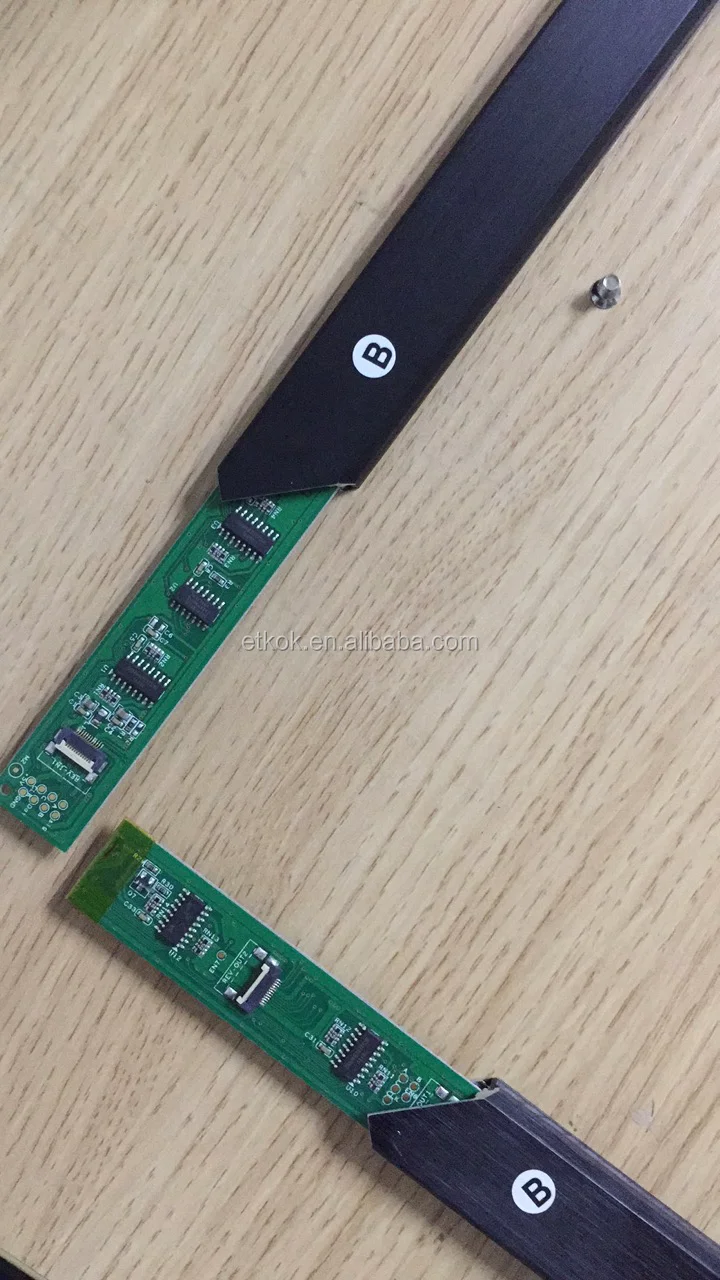

IC in the back on printed circuit board which contains a line of IR-LEDs

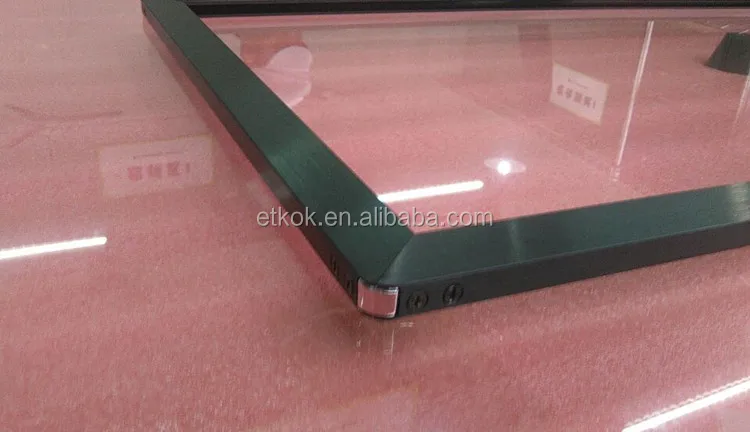

Corner of each IR touch frame
IR touch screen with tempered glass
If you don't want to customized tempered glass in your company for IR touch screen,You can buy IR touch screen with glass from our company.When you get it,it is plug and play if you connect it to computer in USB 2.0 port.

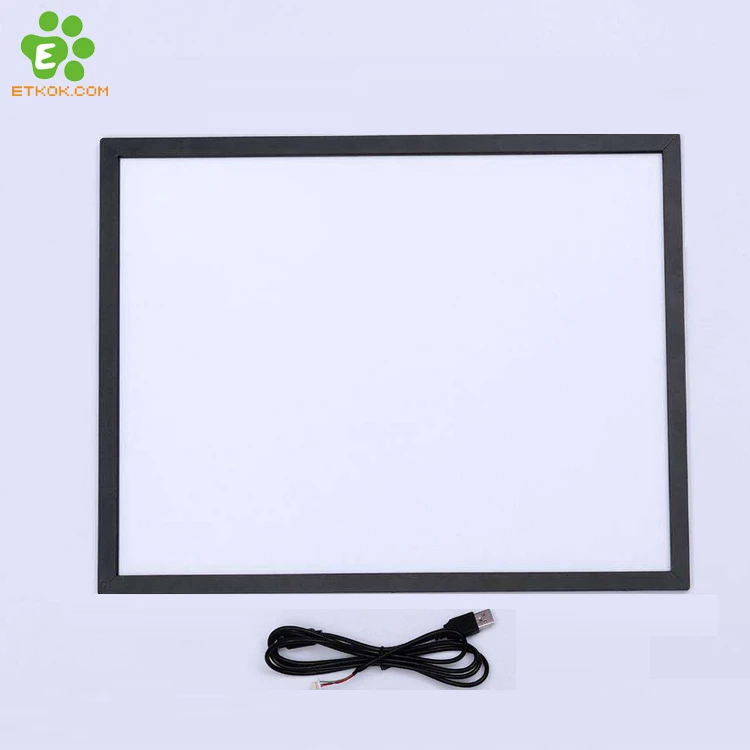

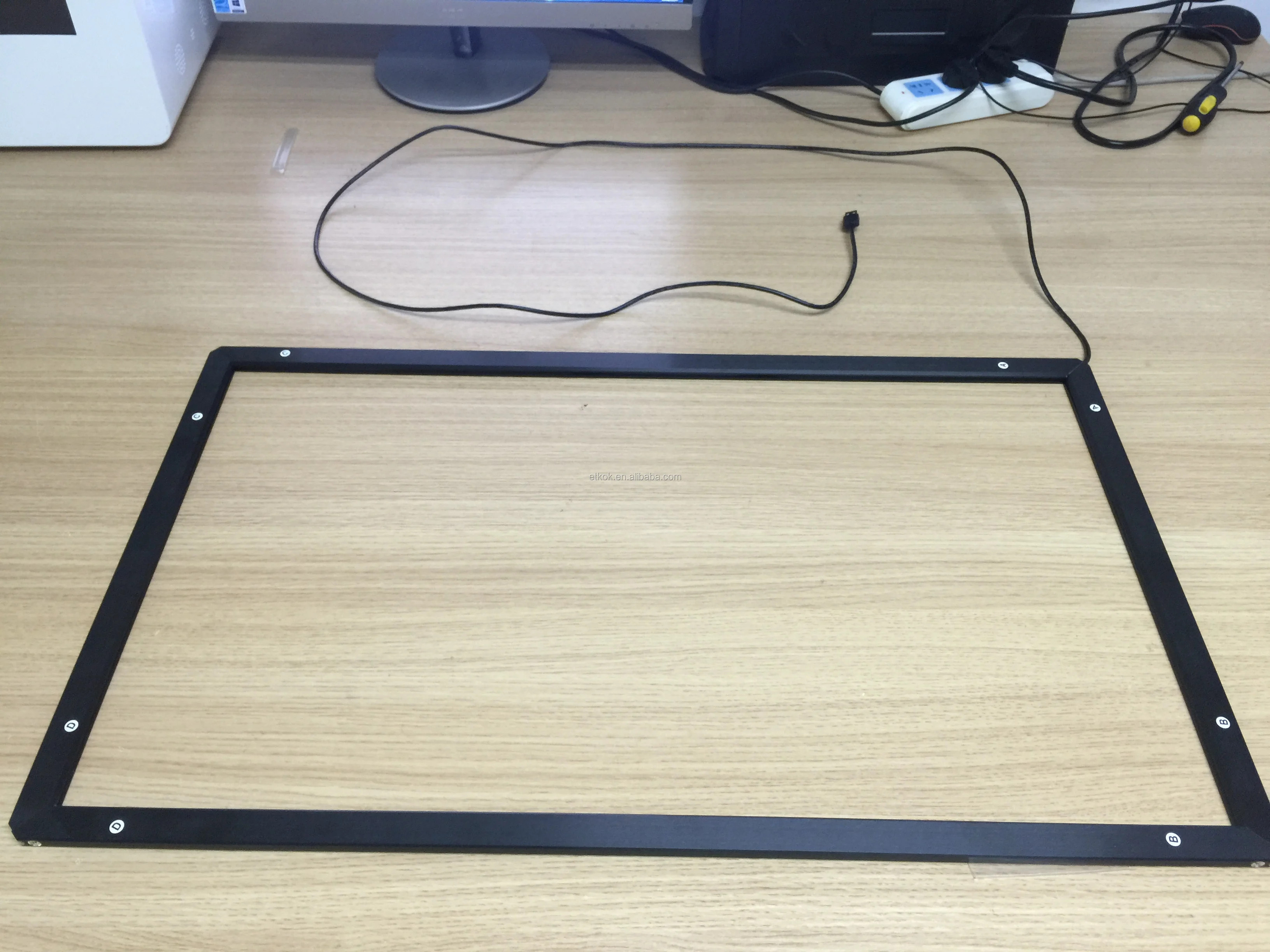

IR touch frame without glass

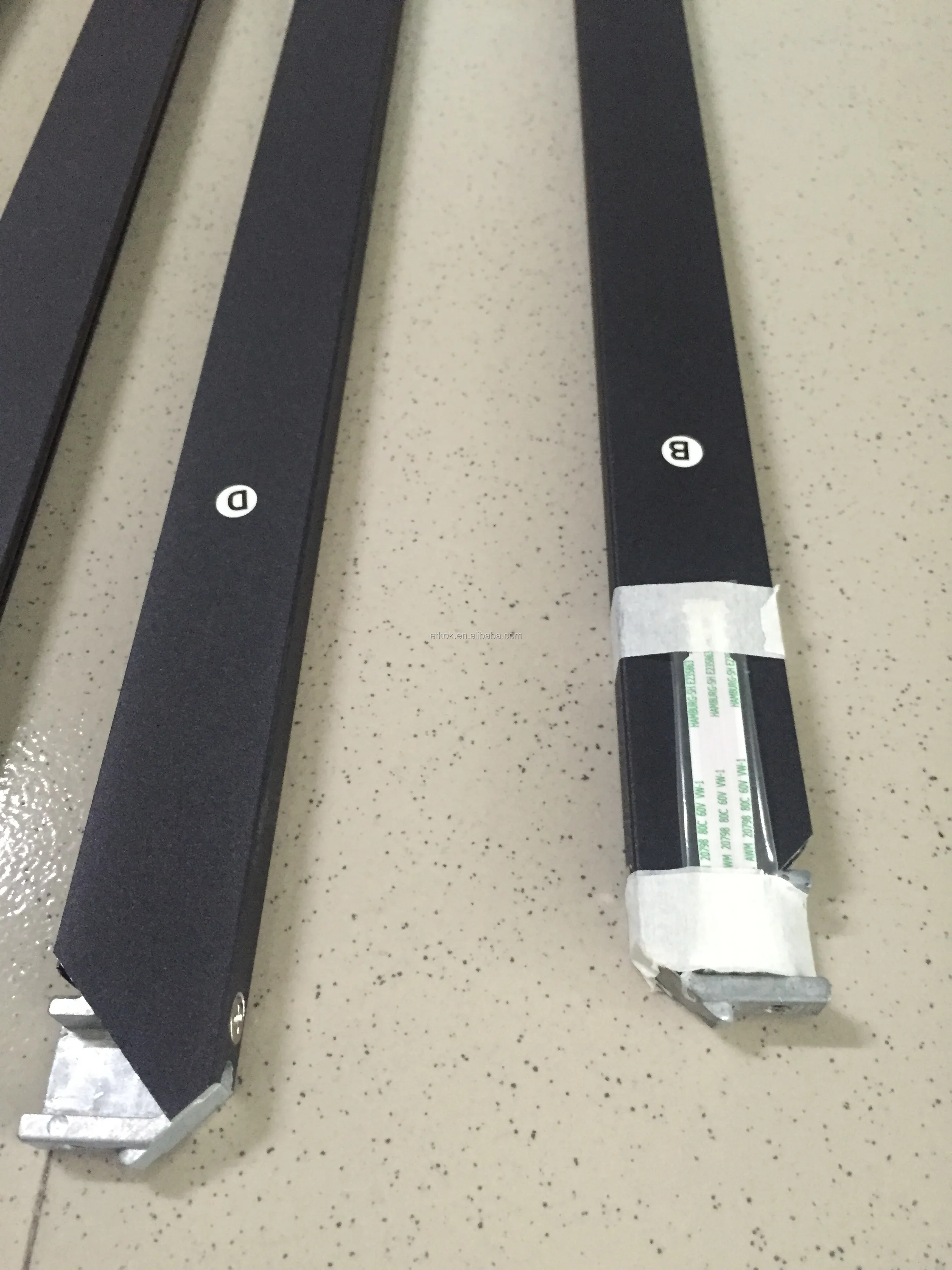

You can buy IR touch frame without glass,you prepare tempered glass in your company.It save shipping price for you.You need to assemble four strips together,It is easy do to,Don't worried,We can provide you instruction and teach you how to assemble it in video.
Product Paramenters
Best Selling
Available sizes | 17″~86(Custom sizes available upon request) | ||||||
Touch Input Method | Pen, Finger, Gloved hand or any other pointer | ||||||
Minimum Touch Object | 5~7mm(depends on each model and size) | ||||||
Touch Response time | 5-8ms | ||||||
Material | Aluminum, Black | ||||||
Glass | Option(Custom versions available upon request) | ||||||
Operating Voltage | USB power up 5V | ||||||
Power consumption | USB : < 2W | ||||||
Temperature | Operating : -10℃ ~ +60℃ | ||||||
Storage : -40℃ ~ +85℃(8hr still) | |||||||
Interface | USB2.0 Full speed, HID Compliant Plug & Play | ||||||
Company Introduction

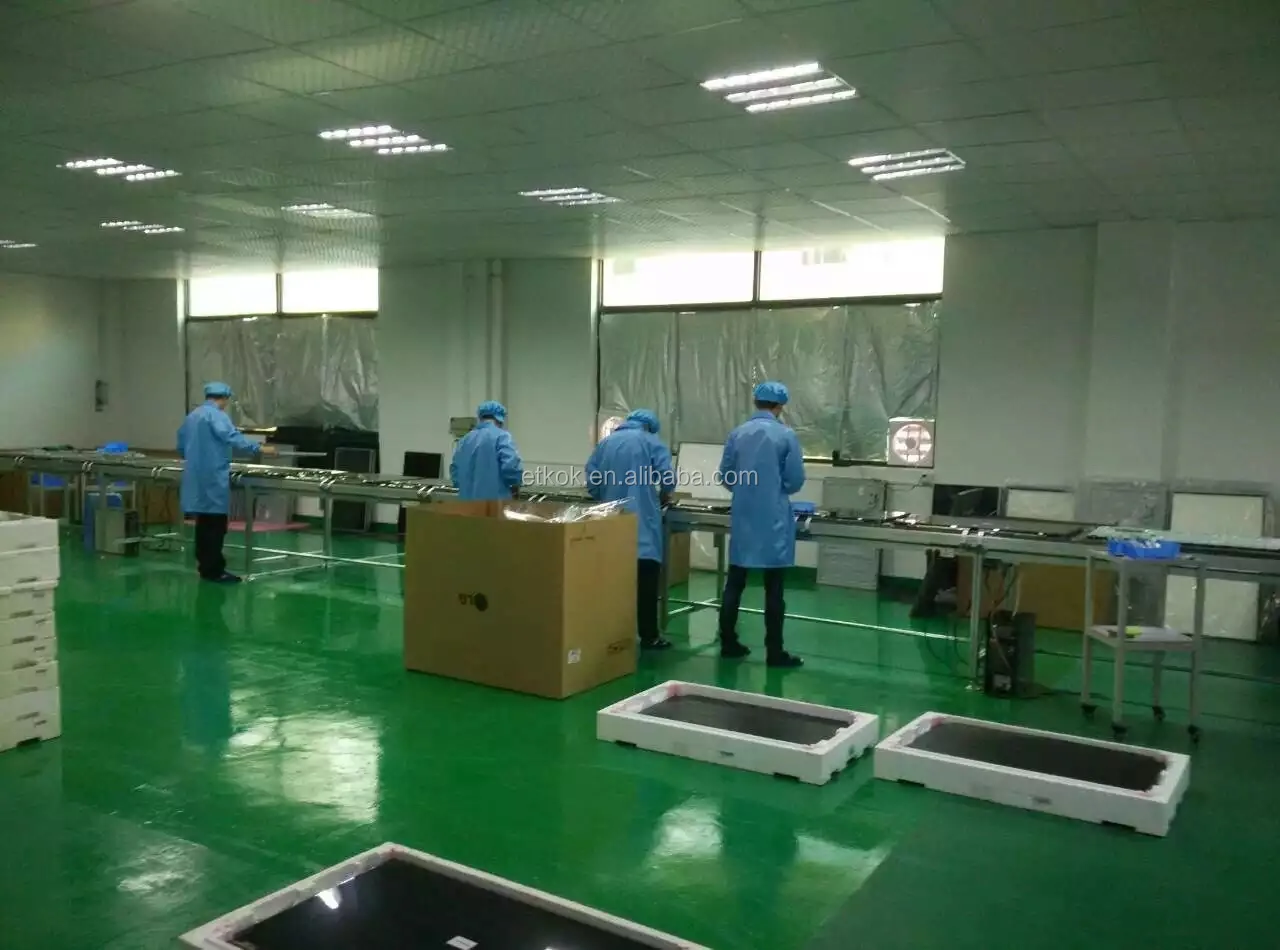

Shenzhen ETK technology Co.,Limited company is founded in 2017 in Shenzhen.Our factory focus on China 's domestic market before,but now we would like to provide quality product to client all over the world.We are manufacturer of digital signage,touch screen panel,transparent lcd display,transparent lcd box,open frame touch screen monitor.We have our own metal housing workshop.We can customized all types of digital signage as your drawing.With totally 150sqm workshop coverage in metal housing workshop.We have 10 skilled assemble workers in Assembly production workshop.With totally 100 sqm workshop coverage.We offer both potential and long-standing clients a complete supply solution, like we can do OEM-ODM service, OEM service included the Packing design,Brand/LOGO printing, Manual customize, ODM service included the PCBA motherboard amend, housing design or amend,Software customization etc. We also can arrange the logistic forwarder service for our client. In order to best meet client's needs,We cooperated with DHL,Fedex,UPS,TNT,EMS for long time.Sea transportation is accepted for bulk order.Our quality control department will check product one by one before shipment to ensure each product is qualified products.We warmly welcome customers visit our company,our factory in the future.We look forward to having the opportunity of working with companies around the world for joint
growth and mutual success. Please feel free to contact us at any time.We offer all day online service on Alibaba.
growth and mutual success. Please feel free to contact us at any time.We offer all day online service on Alibaba.
FAQ
Q:If I don't want IR touch screen,do you have other multi touch screen?
A:Yes,we have capacitive touch screen,resistive touch screen,touch foil for your optional.
Q:Can you customized IR touch frame as our request?
Q:Can you customized IR touch frame as our request?
A:Yes,we can customized IR touch frame for you,Please send inquiry for our salesman from Alibaba.
Q:What payment do you support?
Q:What payment do you support?
A:We have Paypal,Western Union,T/T bank transfer and Alibaba trade assurance
Q:What OS does the infrared touch screen support?It is plug and play?
Q:What OS does the infrared touch screen support?It is plug and play?
A:Windows7/8/10,Linux and Android supported,it is plug and play for those OS,if you want to use it for Macbook,Please tell us in advance,we need to send you calibration software.
