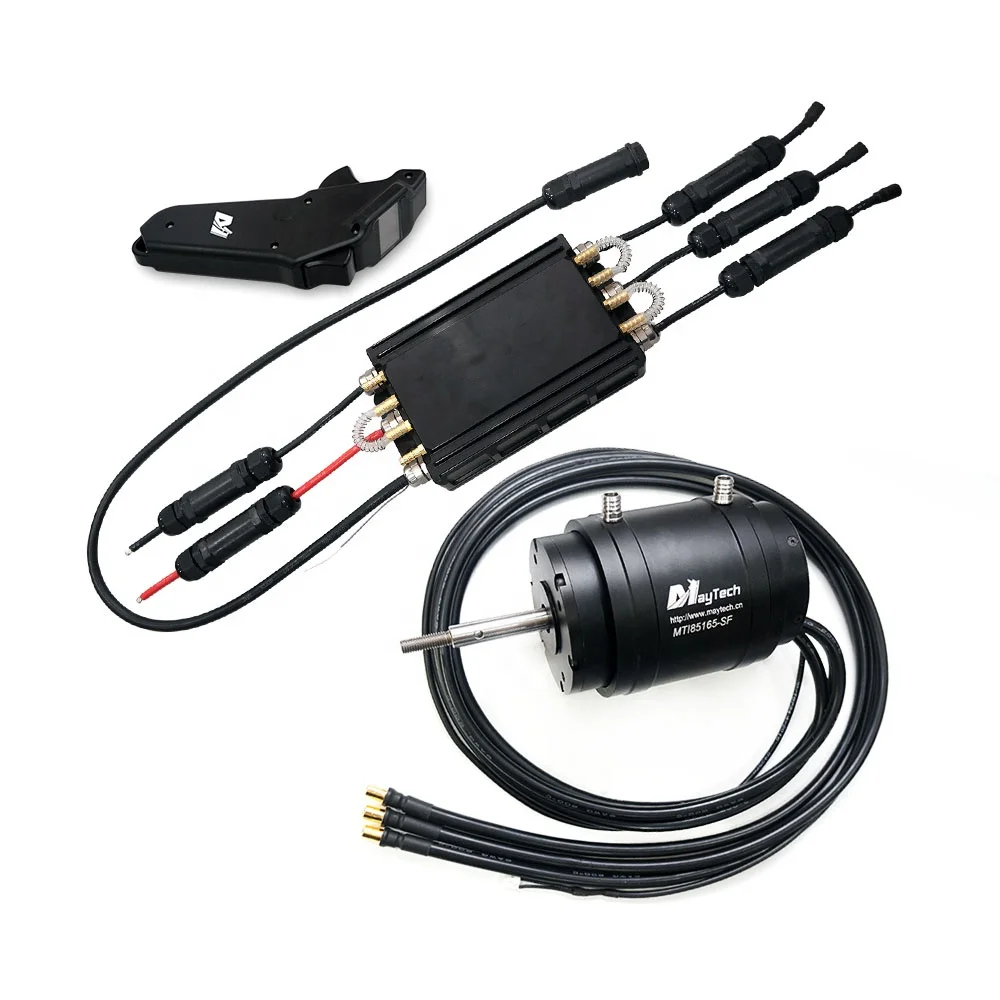

Maytech Esurf Jetsurf Kit 85165 Motor Waterproof Remote 300A ESC for Motorized Surfboard Jetski Electric Hydrofoil
- Category: >>>
- Supplier: Shanghai Maytech Electronics Co. Ltd.
Share on (62423158367):
Product Overview
Description
Products Description

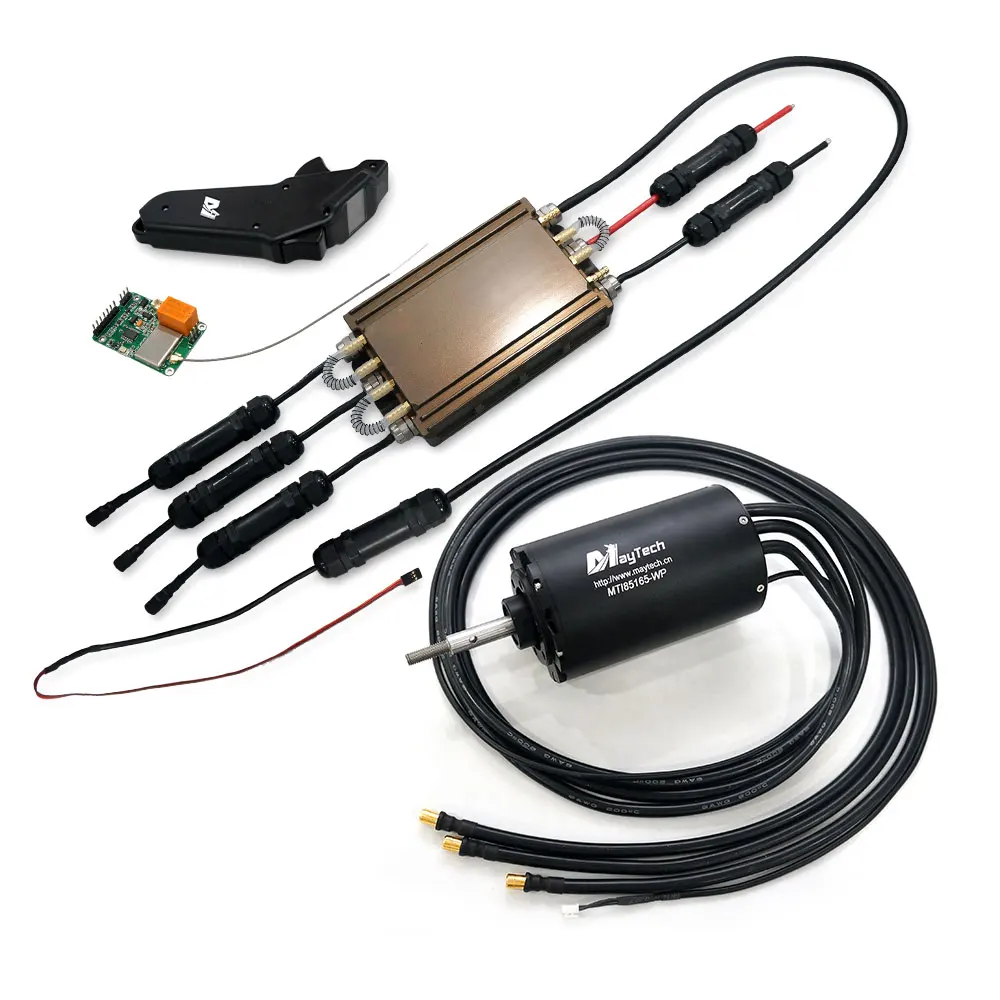

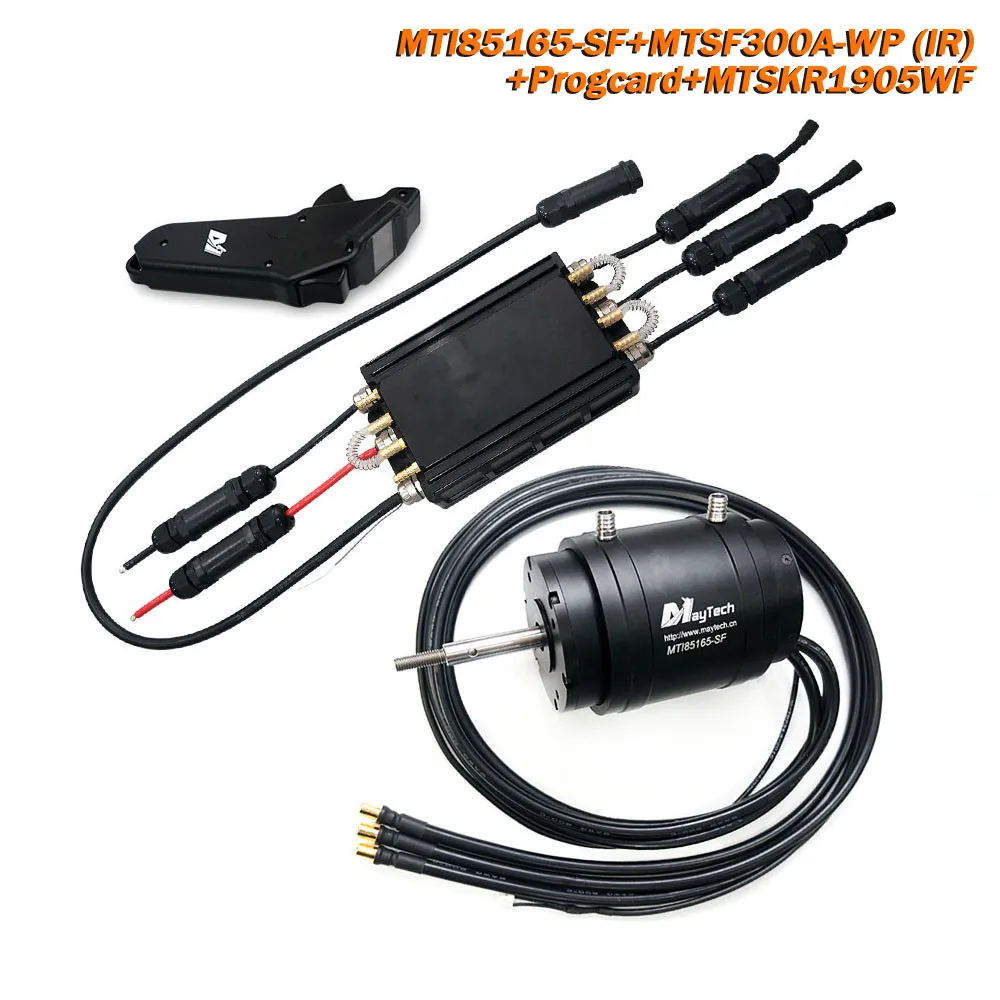

Maytech Fully Waterproof Esurf/Boat Kit Splash Waterproof Water-cooled MTI85165 Motor + MTSKR1905WF + MTSF300A-WP for Efoil/Jetski /Jetboard /Motorized Surfboard Set
Fully Waterproof Efoil Kit:
1x MTI85165-200-SF Splash Waterproof Water-cooled motor
1x MTSF300A-WP Fully Waterproof
1x MTSKR1905WF IP67 Waterproof
ESC and remote are fully waterproof, motor is splash waterproof with water-cooling.

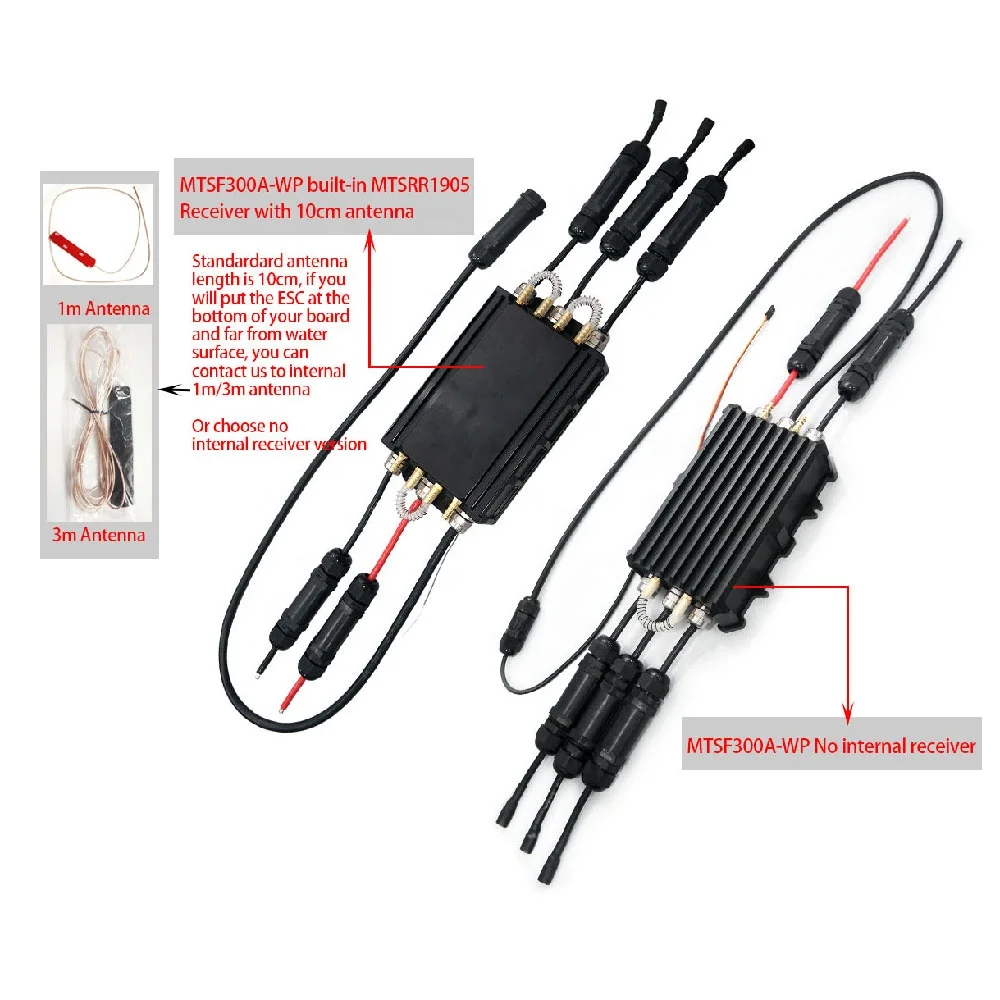

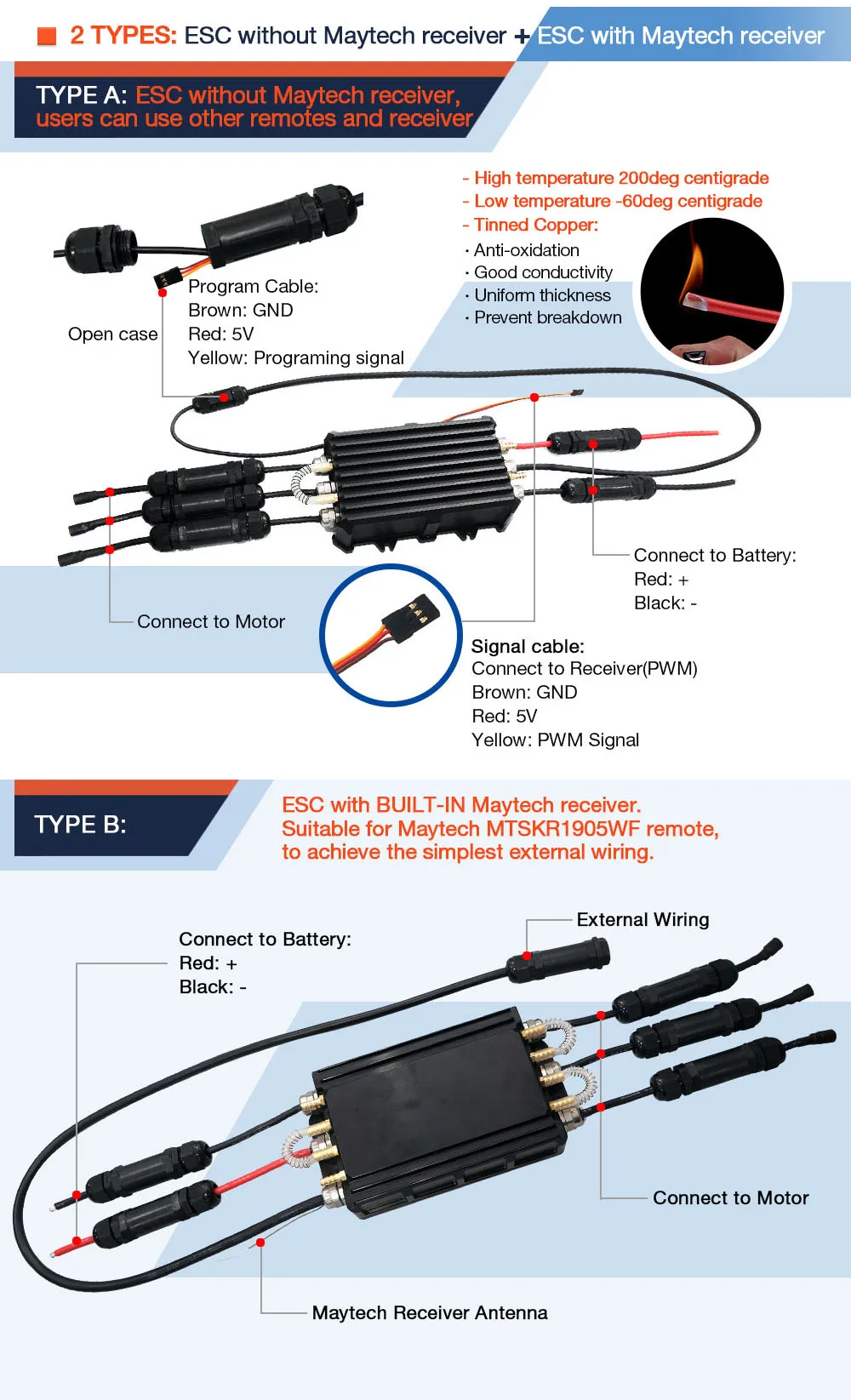

2 Types ESC:
A. Internal Receiver
B. No Receiver
A. Internal Receiver
B. No Receiver

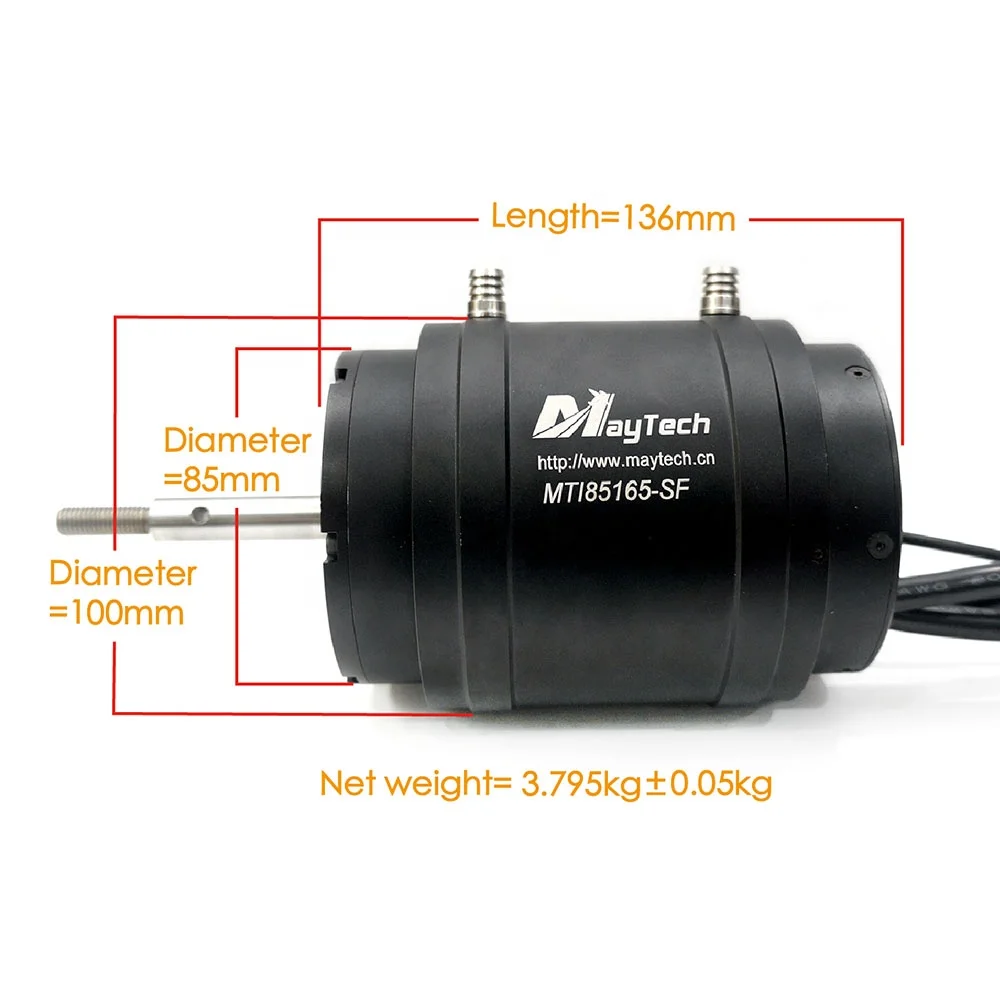

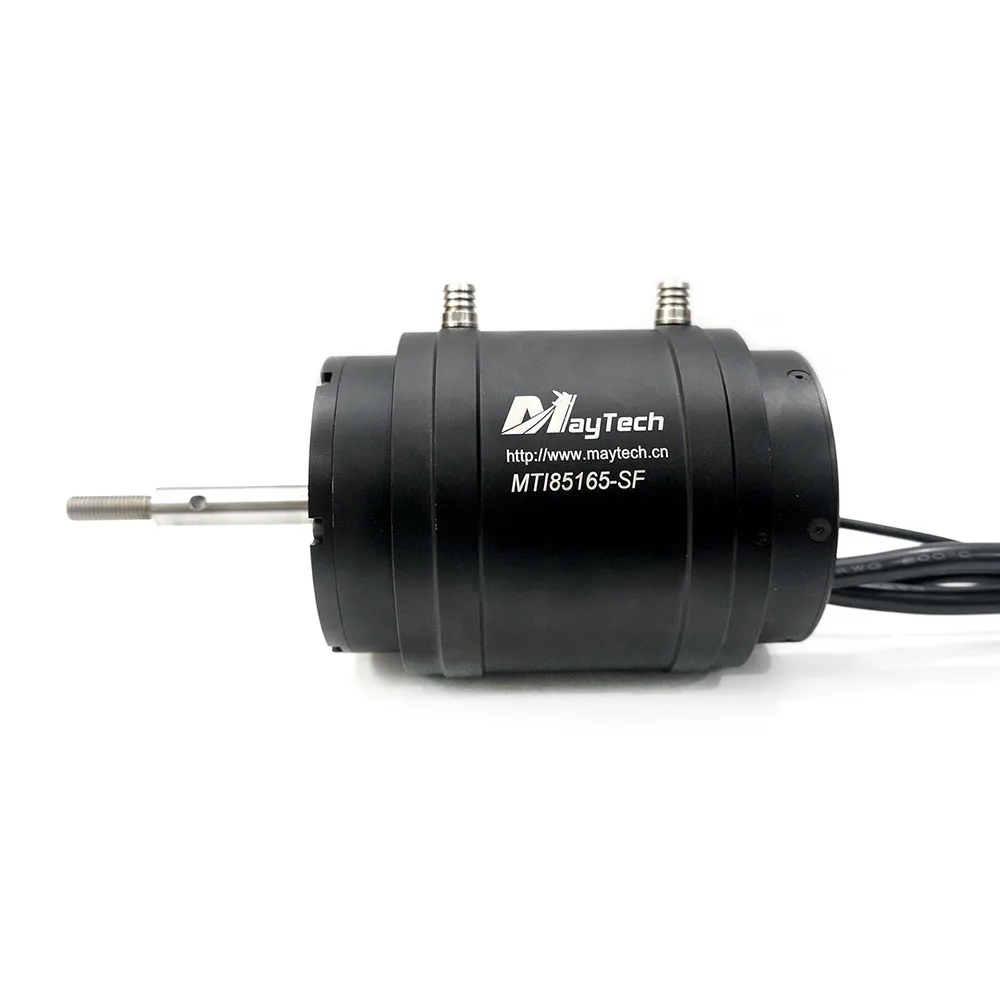

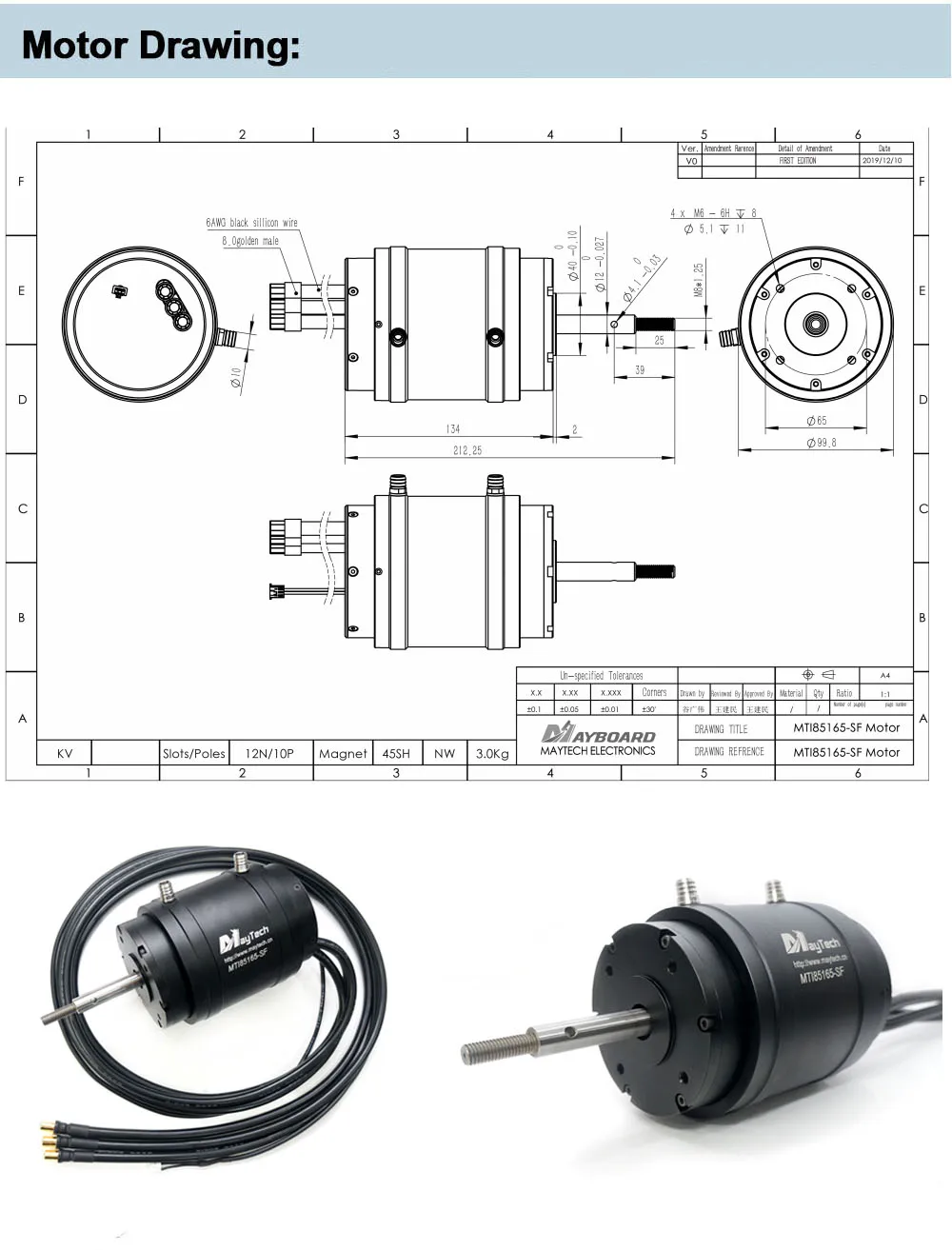

1. MTI85165-SF Watercooled Bruhless Inrunner Motor

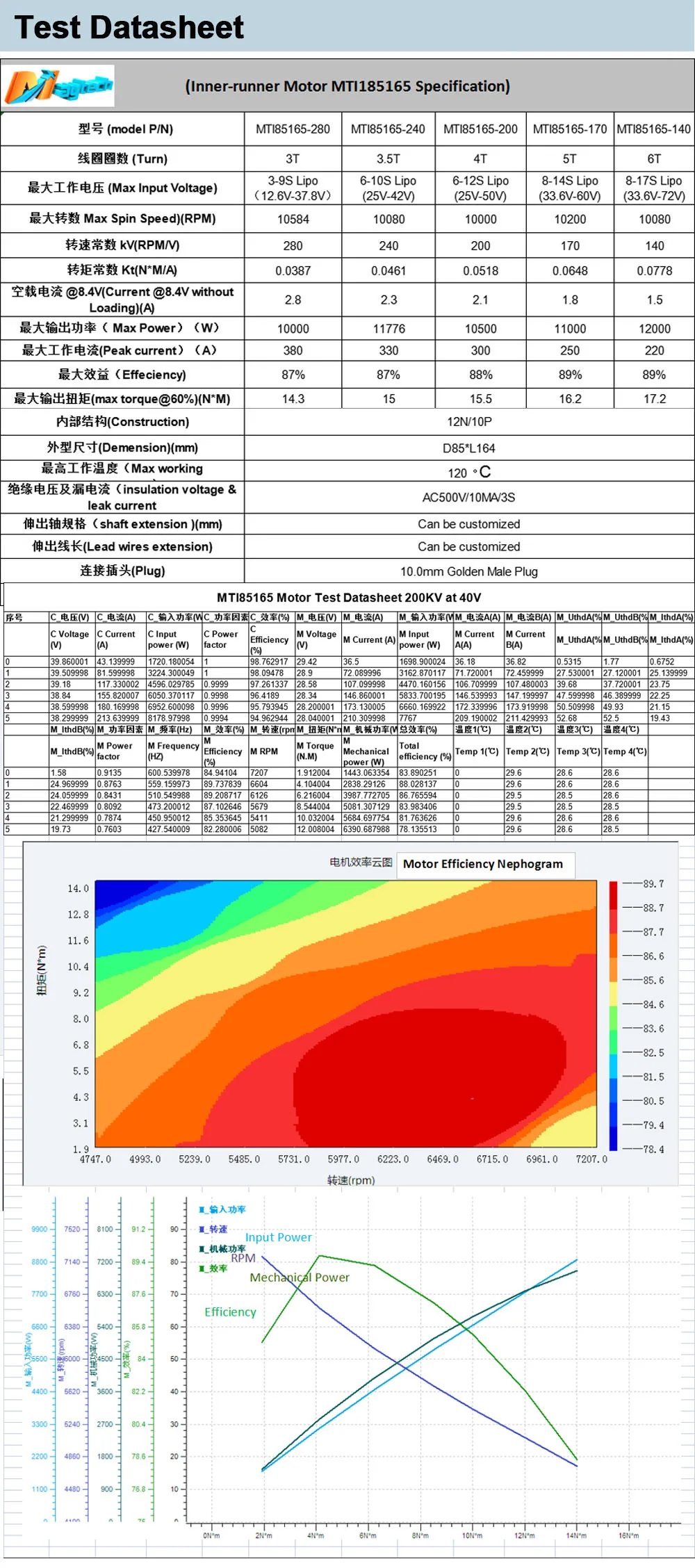

Model No | MTI85165-200-SF | KV | 200 | ||
Internal Resistance | 0.0322Ω | Max Current | 300A | ||
Input Volt | 6-12S Lipo (25-50V) | Max Output Watt | 10.5KW | ||
Max Pull | 15.5N.m | Max Torque @ 60% | 15.5N.m | ||
Shaft | Screw shaft | Motor Size | 85*167.2mm | ||
Construction | 12N10P | Type | Sensorless | ||
Waterproof Rank | Splash proof | Water-cooling | With | ||
Application | Efoil, Electric surfboard, Electric Hydrofoil, Foilsurf, Surffoil, RC Boat, Esurf, Jetski, Jetboard, etc., | ||||

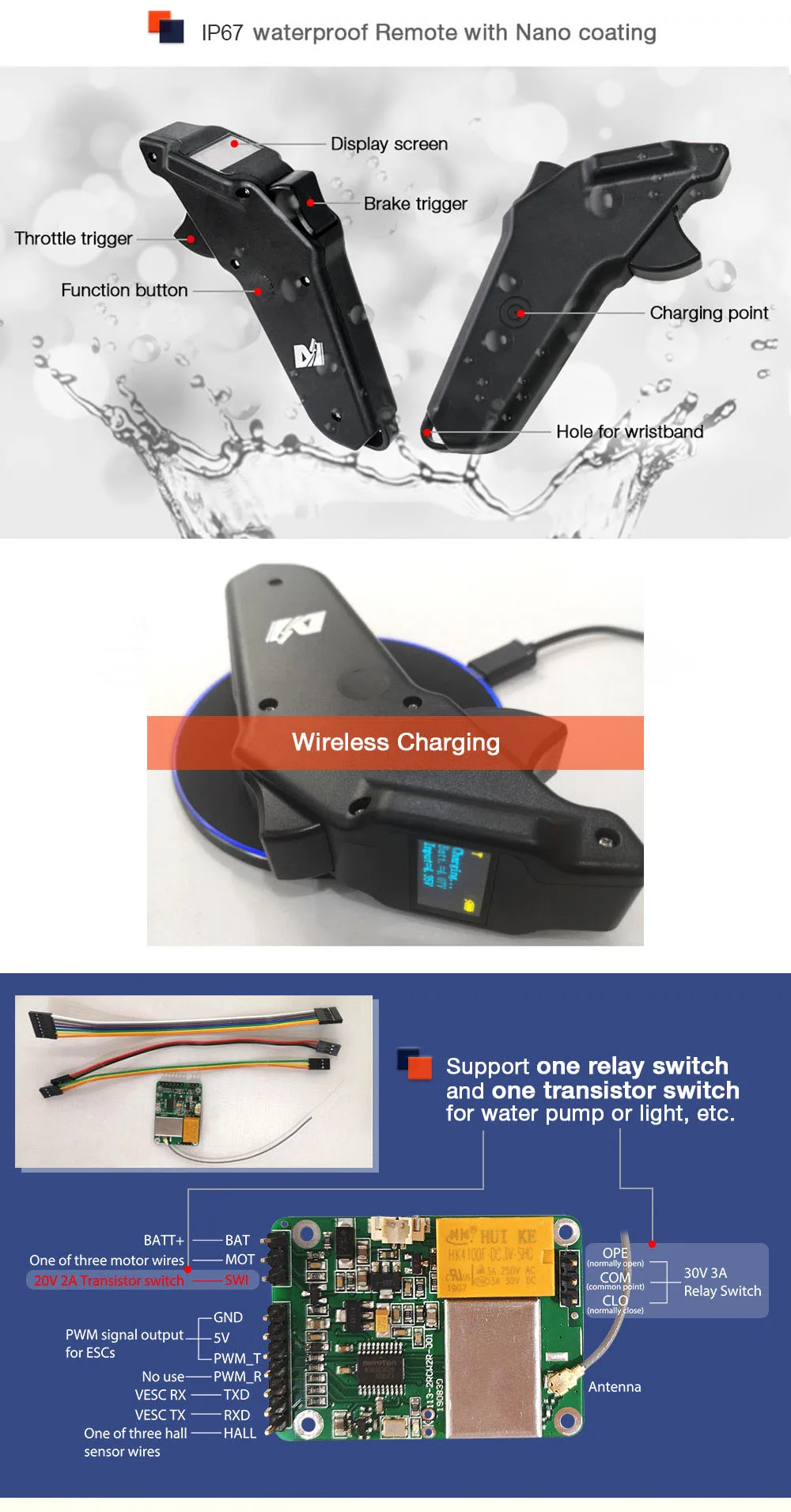

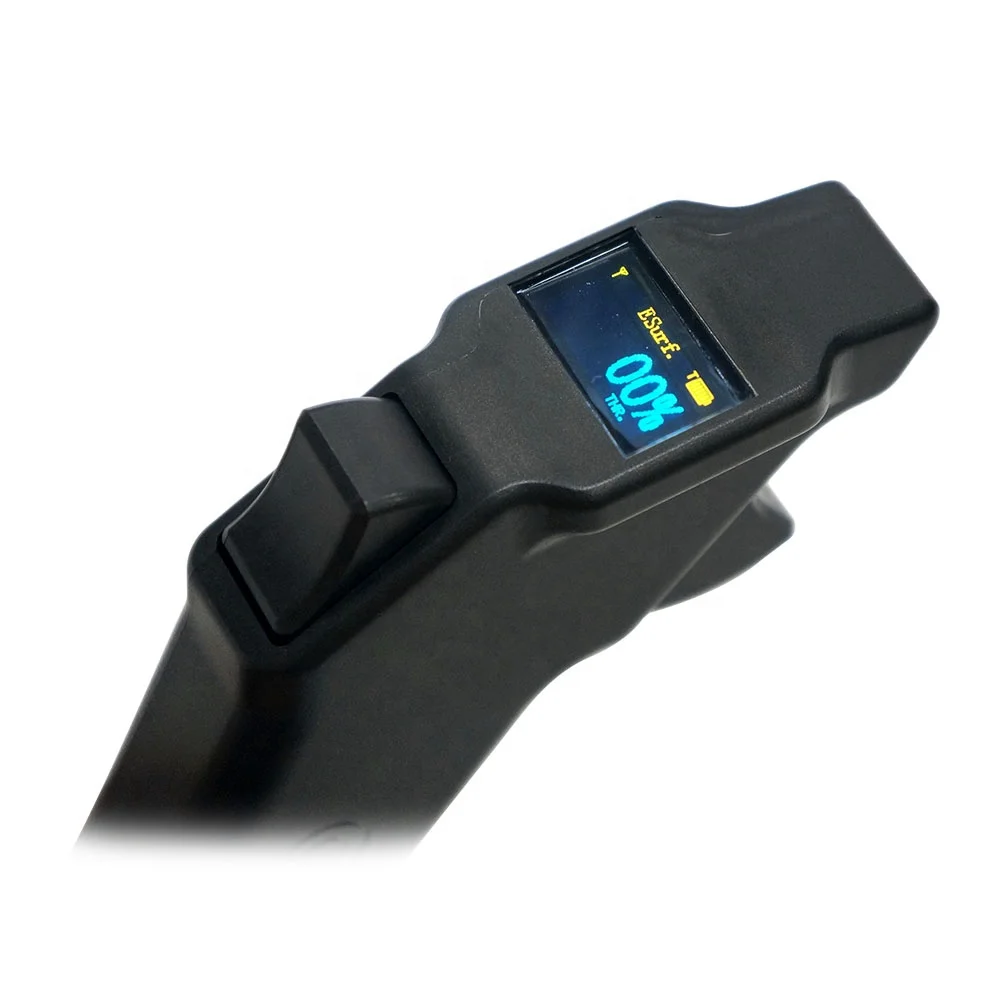

2. MTSKR1905WF IP67 Waterproof Remote
Model No. | MTSKR1905WF (V2) | Fully Waterproof | Yes, with 2 layers Nanometer coating |

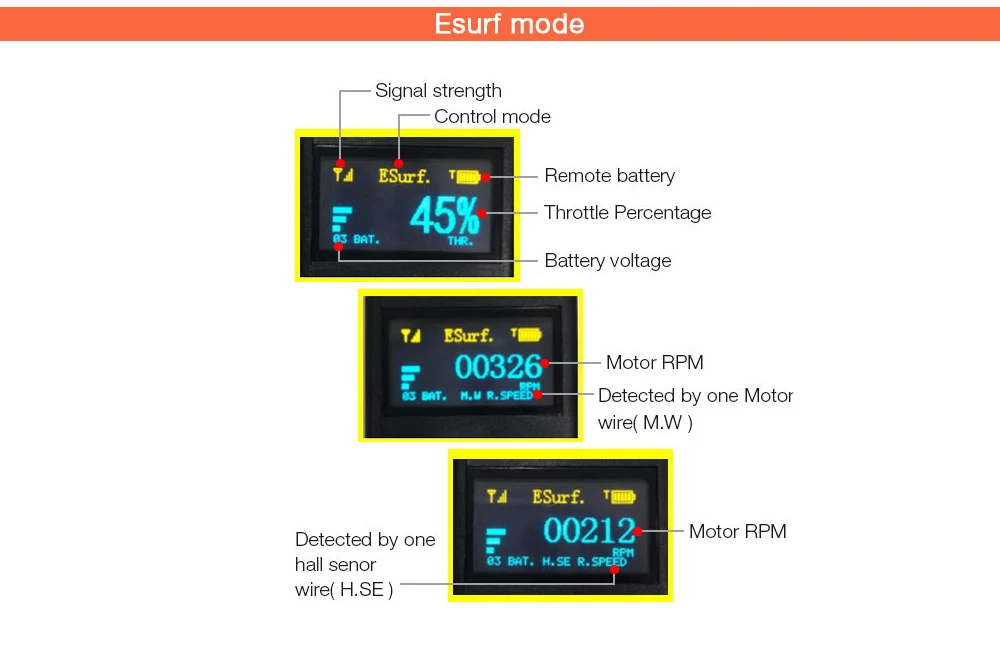

Mode | Esk8/Esurf | Display Parameters | Remote & Battery Power; Throttle Percentage; Signal Strength; RPM. Current; Temp; Volt; Speed; ; Distance(When work with VESC) |
Signal | PWM (PPM) | Double Source Power Supply | Accept 5V power by ESC built in BEC or extra 5V power |
Firmware Updatable | Yes | Control Pump | Yes |
Set Safety Button | Yes | Control Light | Yes |
Brake Button | Yes | Cruise Control | Yes |
Wireless Charging | Yes | Accessories | Charging Pad; Receiver; 3pcs Dubang Cables |

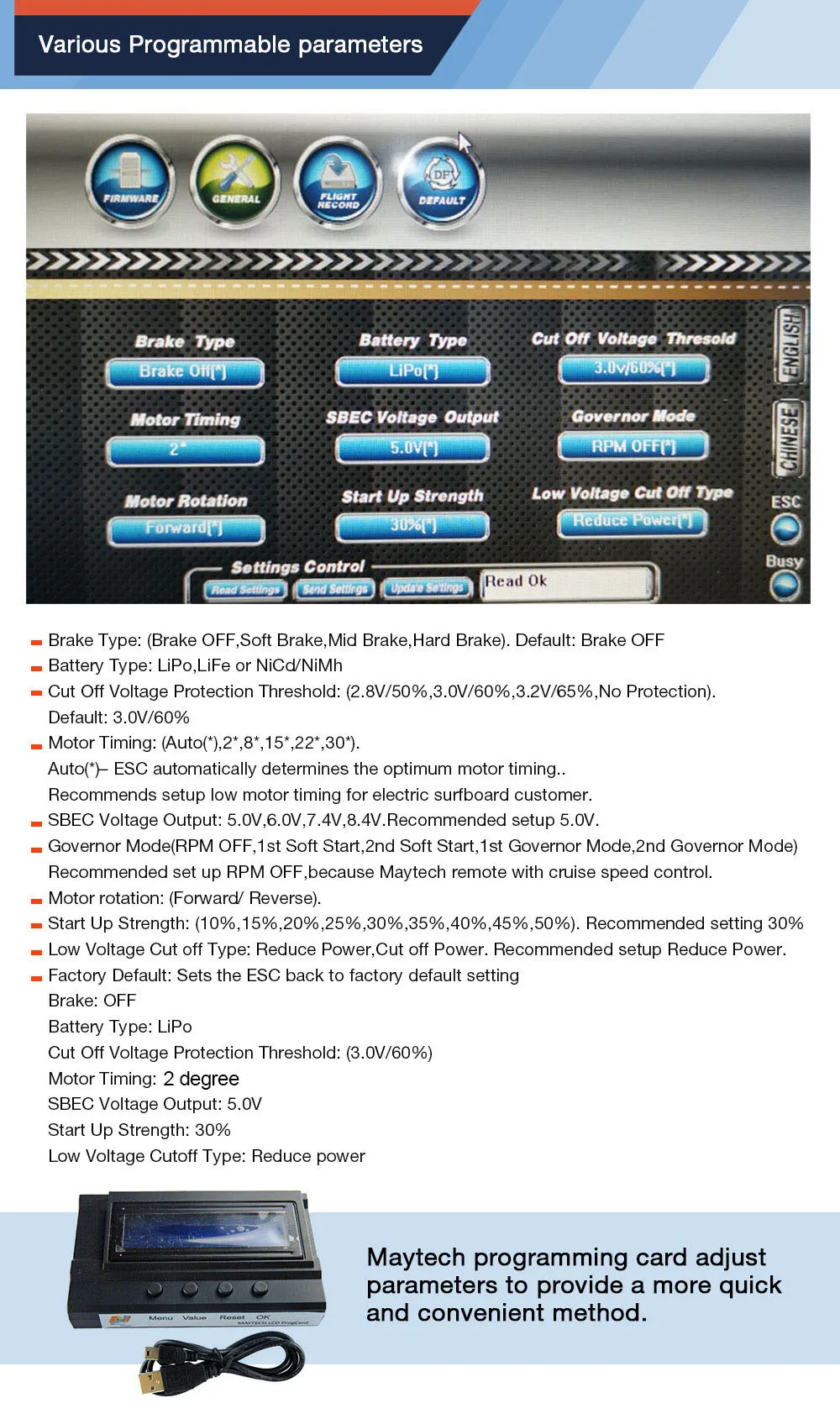

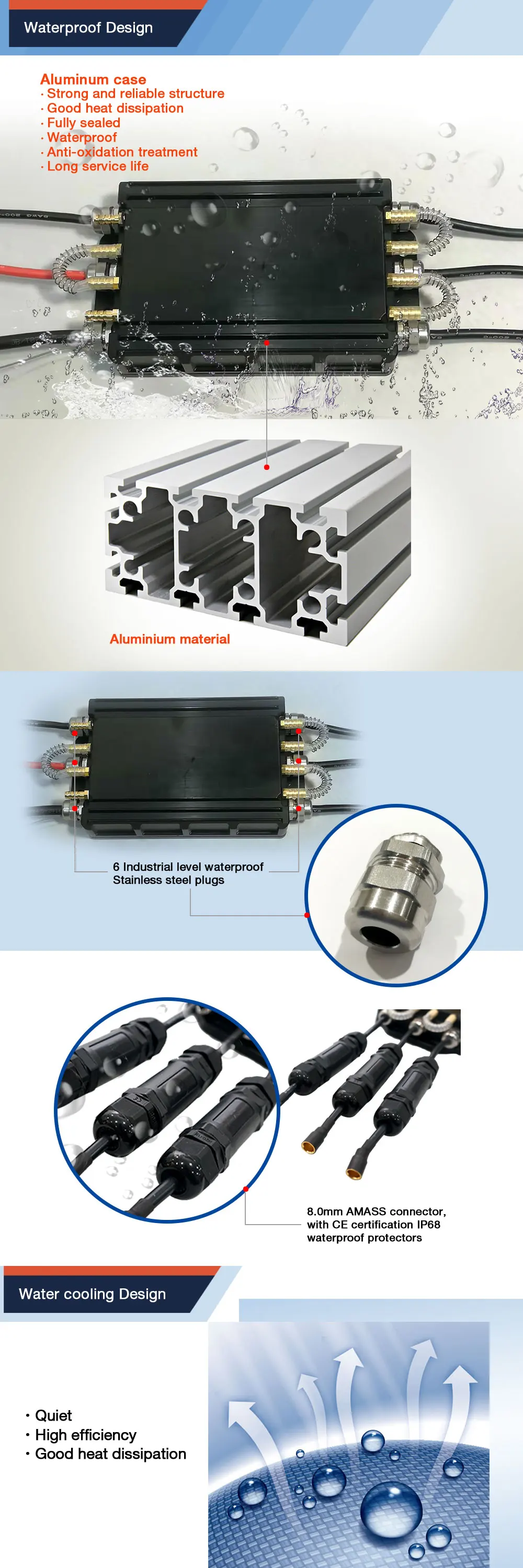

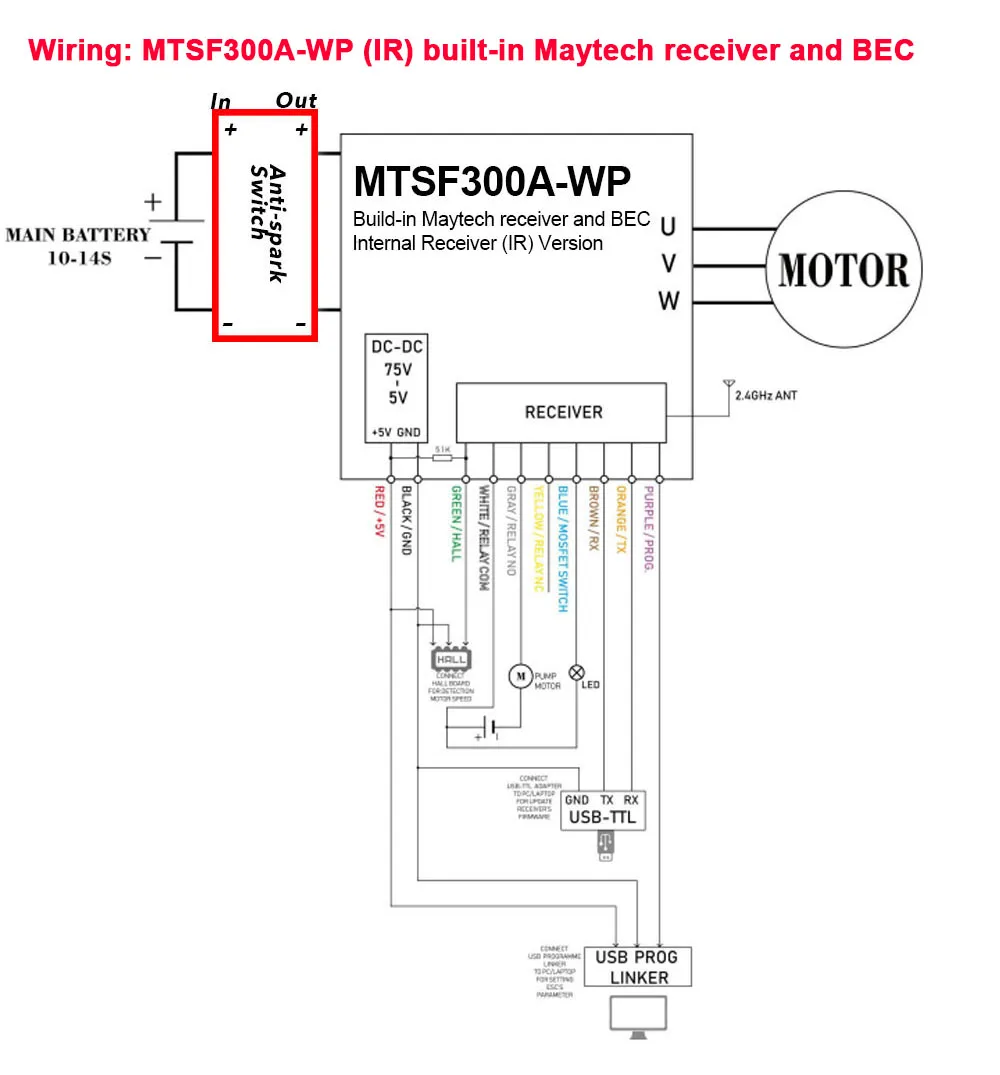

3. MTSF300A-WP Fully Waterproof Water-cooled 300A ESC with Progcard
2 Types, please choose the one you need, if you need help, please feel free to contact us.
And the ESC has 3 different colors, we will ship randomly.
You can check colors in the ESC page description.
2 Types, please choose the one you need, if you need help, please feel free to contact us.
And the ESC has 3 different colors, we will ship randomly.
You can check colors in the ESC page description.
Model No. | MTSF300A-WP | Cont Current | 300A |
Input Voltage | 6-14S Lipo (25-58.8V) | Burst Current | 1000A |

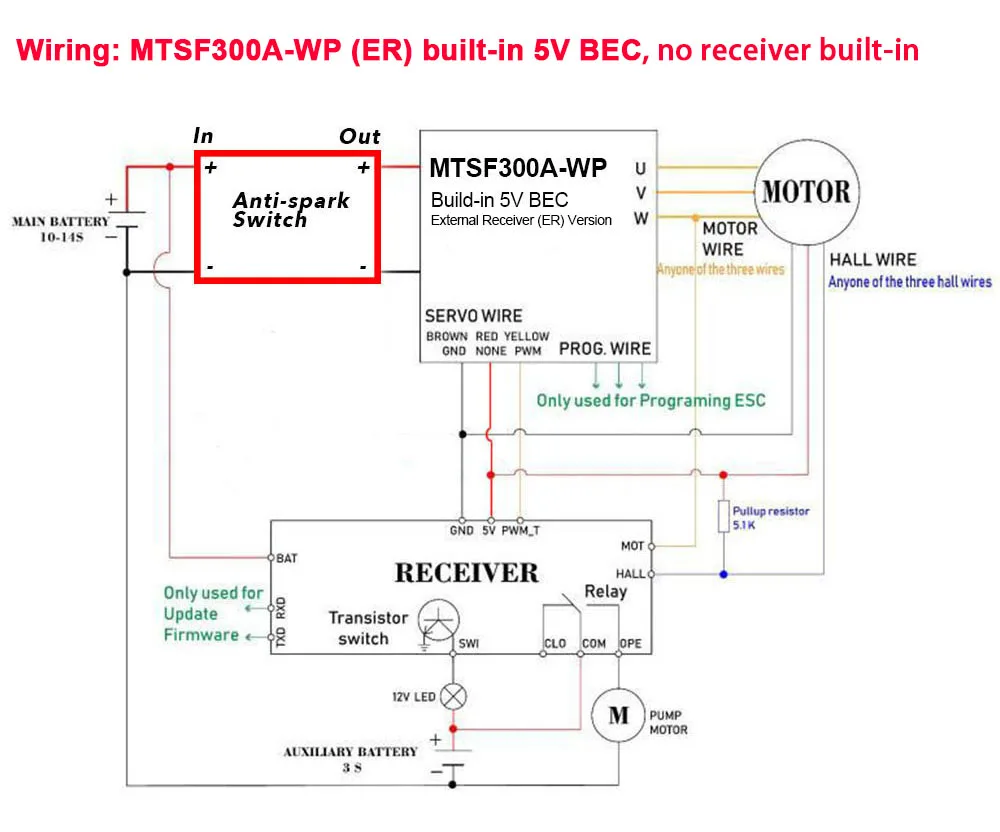

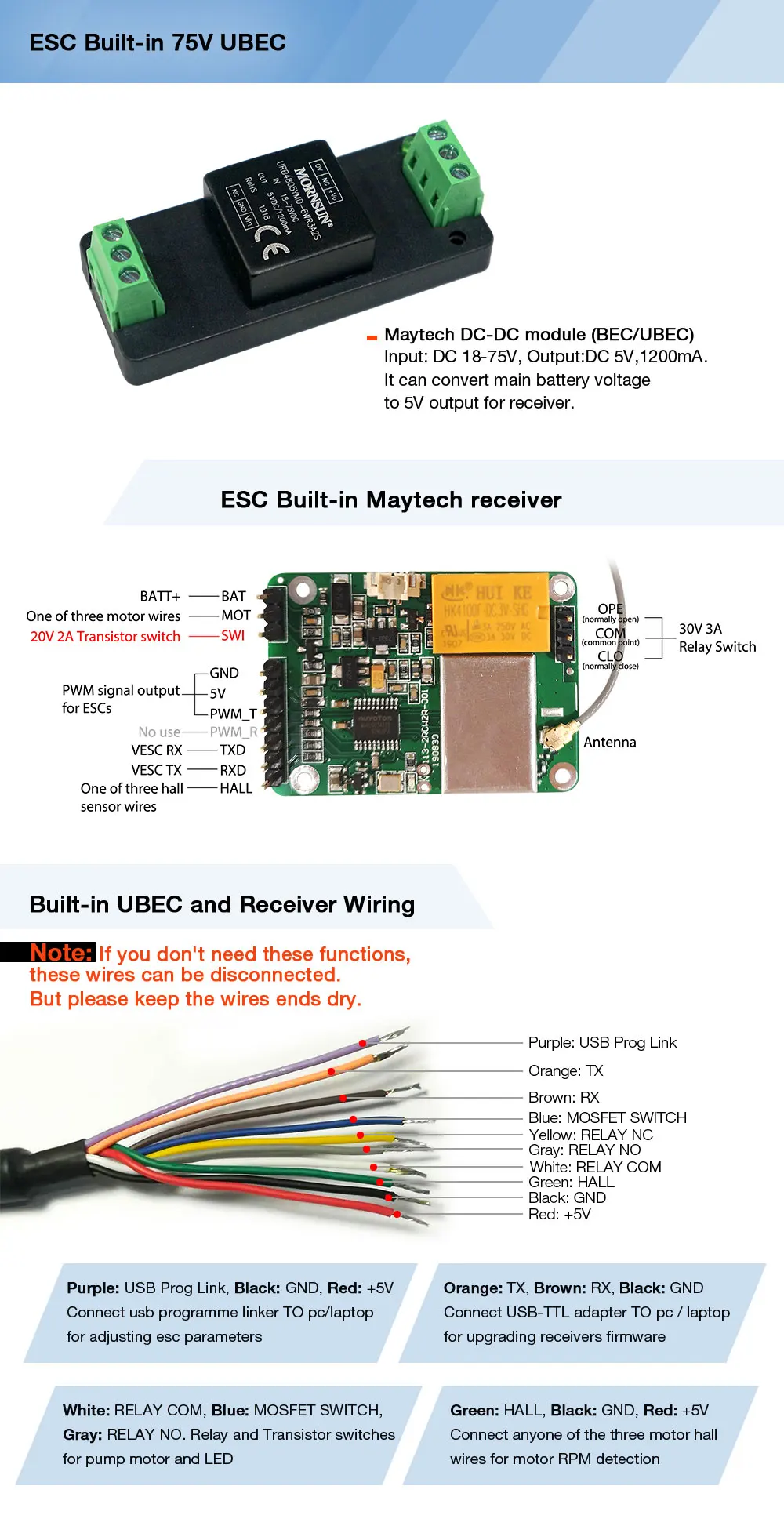

Receiver | 2 Types | BEC | With built in the case |
Size | 216*126*43mm | Water-cooling | With |
Fully Waterproof | Yes | Certificate | CE, ROHS |
Programmable | Yes | Application | Electric Surfboard /Efoil /Jetski /Jetboard /Jetsurf/RC Boat/Foil Boat, etc., |

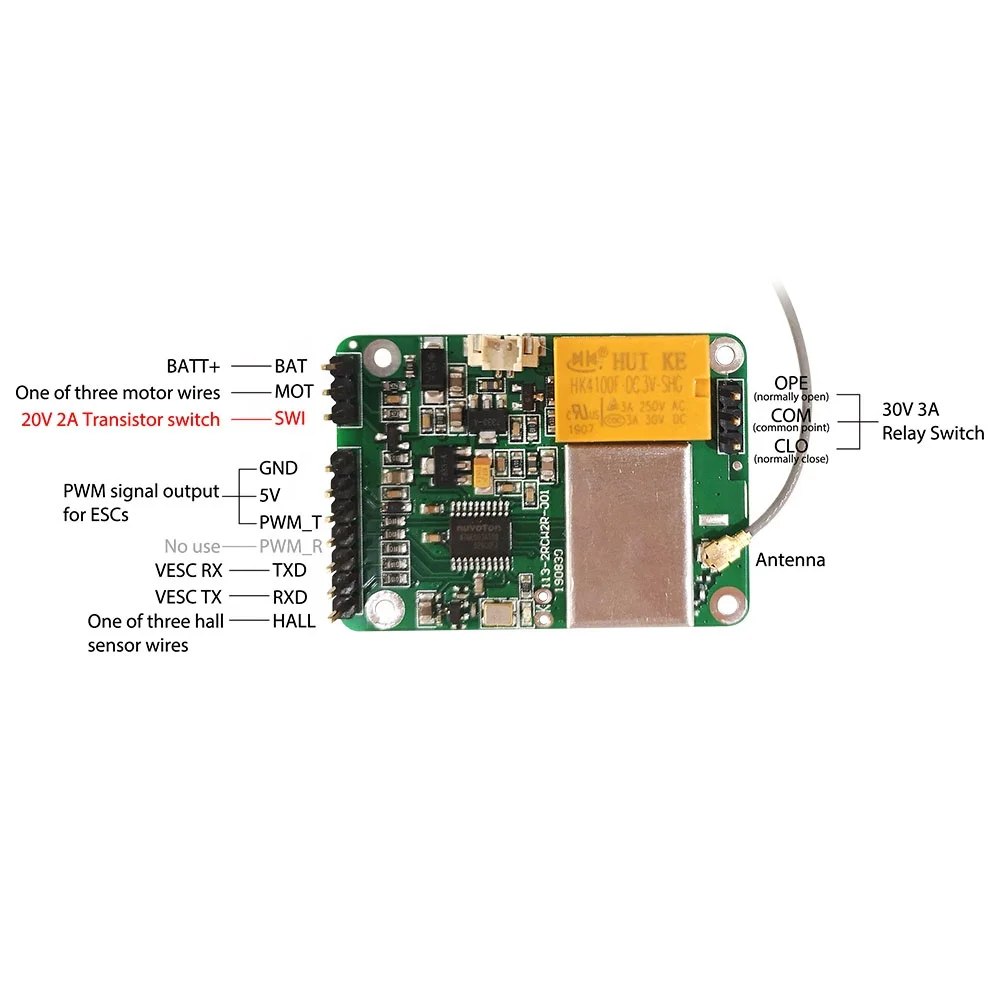

Type A: Internal Receiver
Customers don't need to solder cables on receiver by themselves, more convenient to use;
Can only work with Maytech V2 Waterproof Remote MTSKR1905WF
Can only work with Maytech V2 Waterproof Remote MTSKR1905WF
If you need Fully Waterproof Esurf kit, please click the following picture to order.

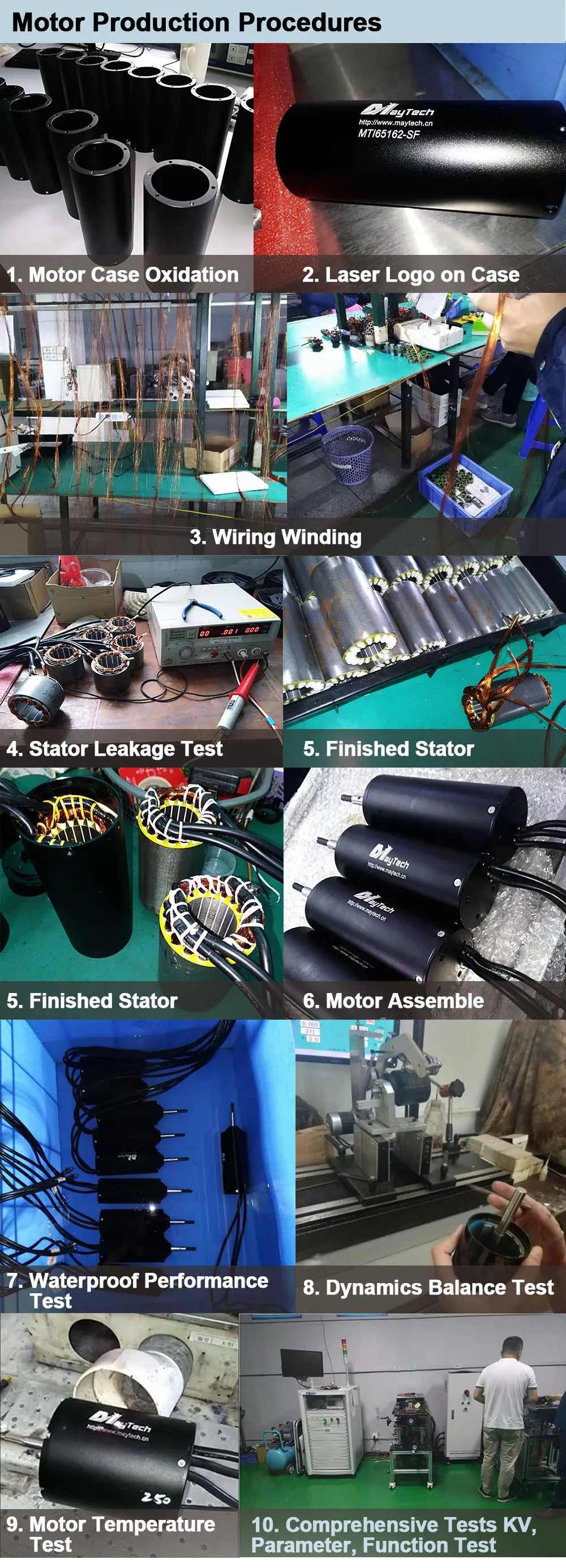

Production
