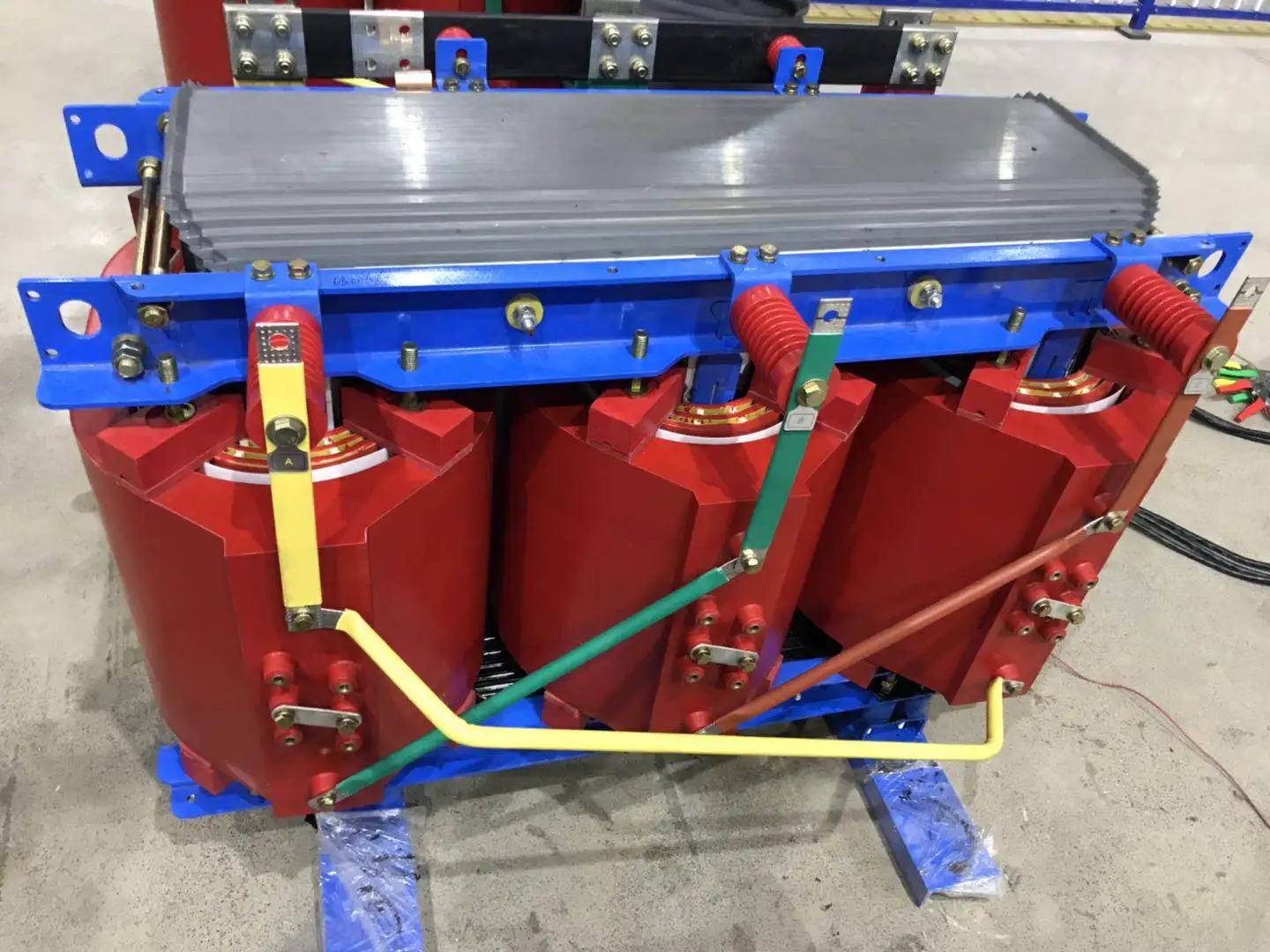

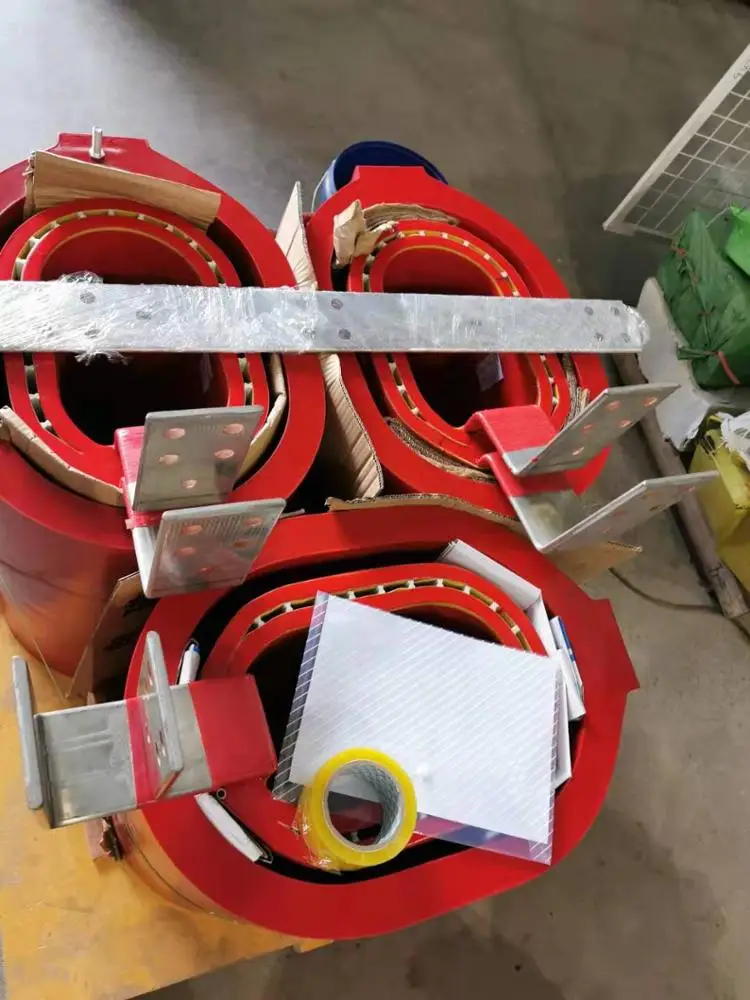

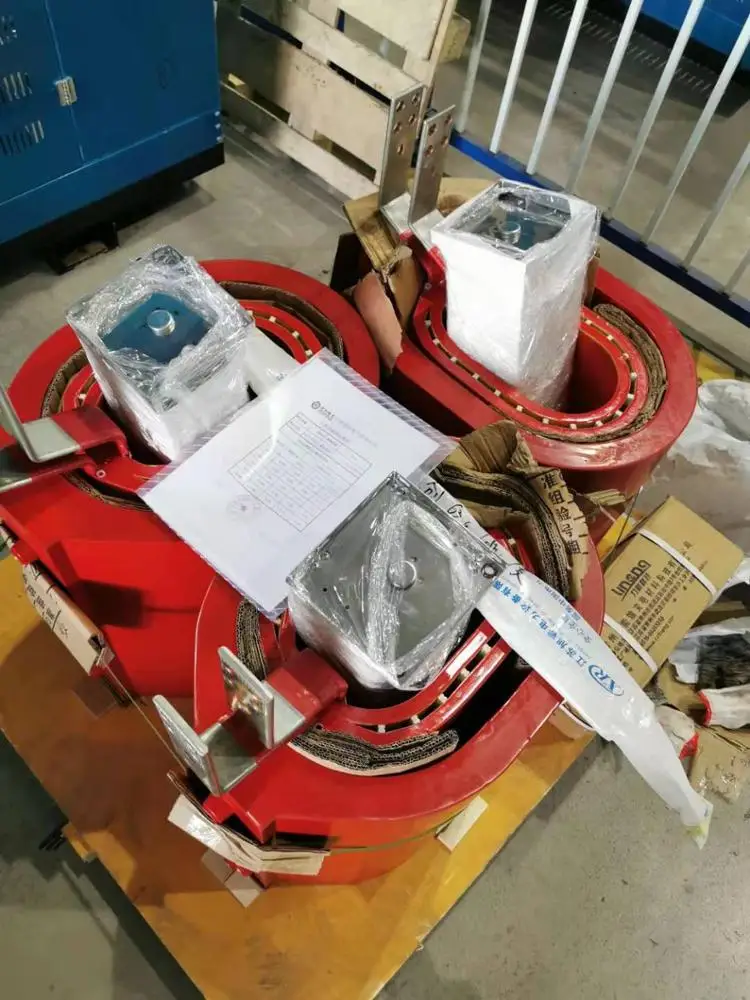

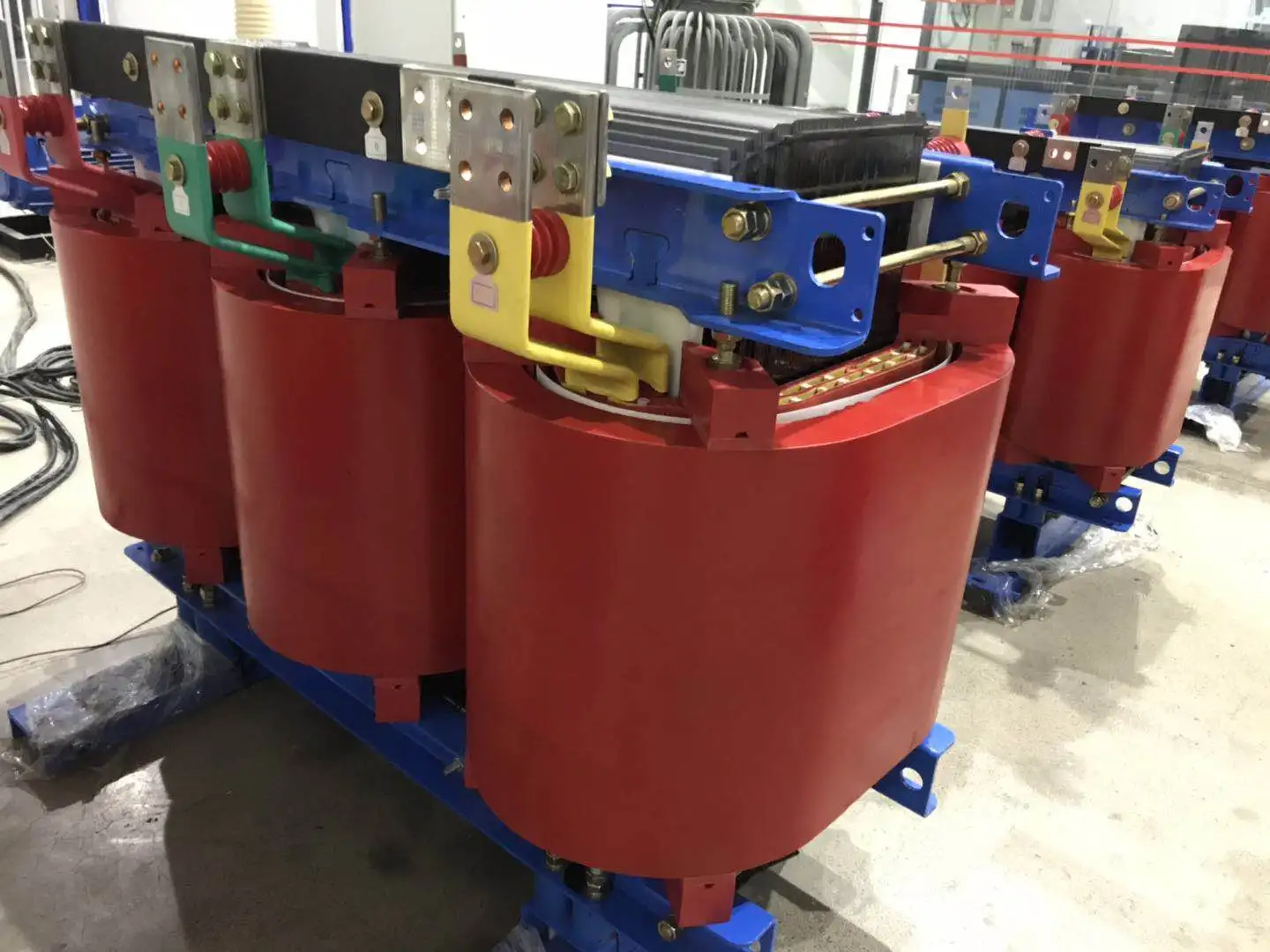

Катушки из литой смолы для трансформаторов сухого типа 11 кВ, 15 кВ, 33 кВ, 5000 кВА

Product Overview

Description



Cast resin insulation guarantees secure performance of the transformer with no need for complicatedand costly maintenance. Preventive maintenance of cast resin transformers consists in a simple visualcheck. Low operating costs Low losses in the magnetic core and in the windings reduce the costs ofoperation.  The coils are made with pure copper wire /foil, and encapsulated by high quality epoxy resin.





Main specifications:



Dry-type transformer type	Cast resin
Manufacturing standards	IEC, ANSI, NFC52, etc
Rated capacity	up to 5MVA
Rated Voltage	up to 36KV
Phases	single or three phase
Tapping	With tapping links or on-load tap changer
Impedance	As per request
Vector groups	Dy, Yy, Yd as standard. Other on request
Class insulation	According to IEC 60085, Class F or Class H
Temperature rise	With the ambient temperature in accordance with IEC 60076-11
Type of cooling	AN/AF
