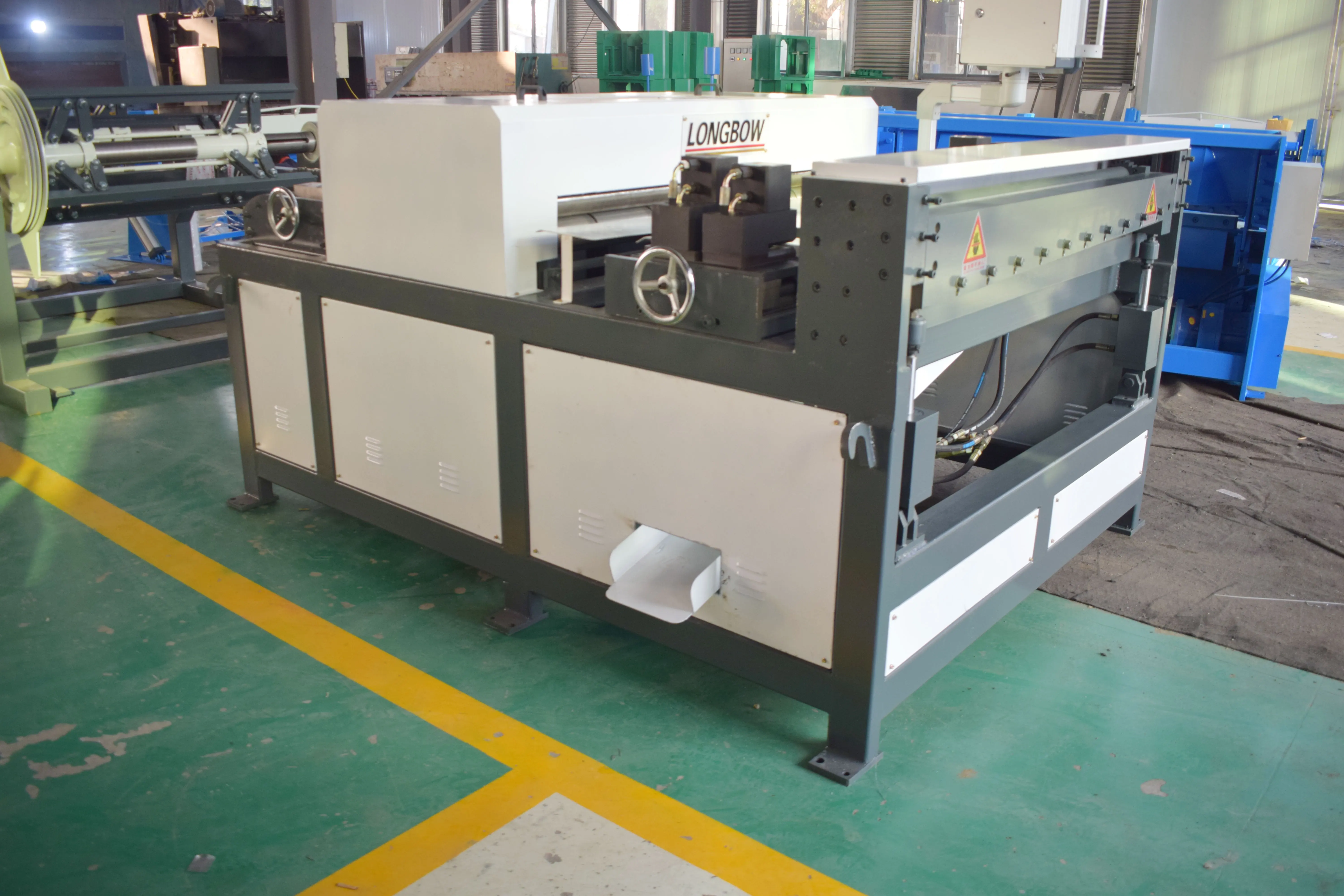

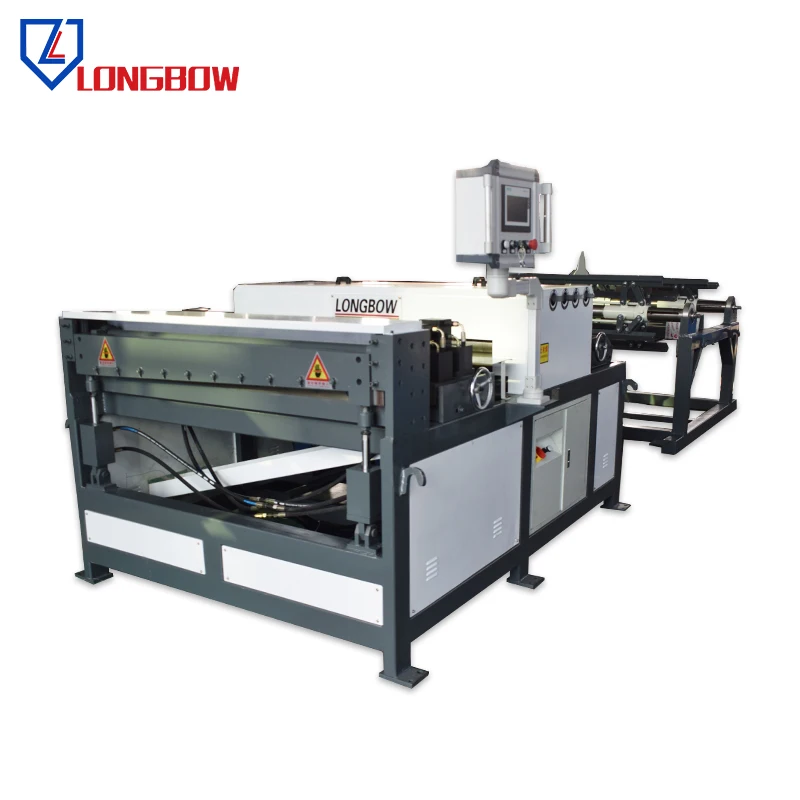

LONGBOW brand 1300 1500 havc air duct making machine
- Category: >>>
- Supplier: Maanshan Longbow Machinery Manufacturing Co. Ltd.
Share on (62423350130):
Product Overview
Description
Product Application
I. Advantage of Products:
1. The latest design can resolve the problems like getting struck, too many repairs form roll-shearing displacements lock machine.
2. The three-line bending function can crimp narrow edges and stably process 0.5-1.2mm galvanized sheet to avoid wasting.

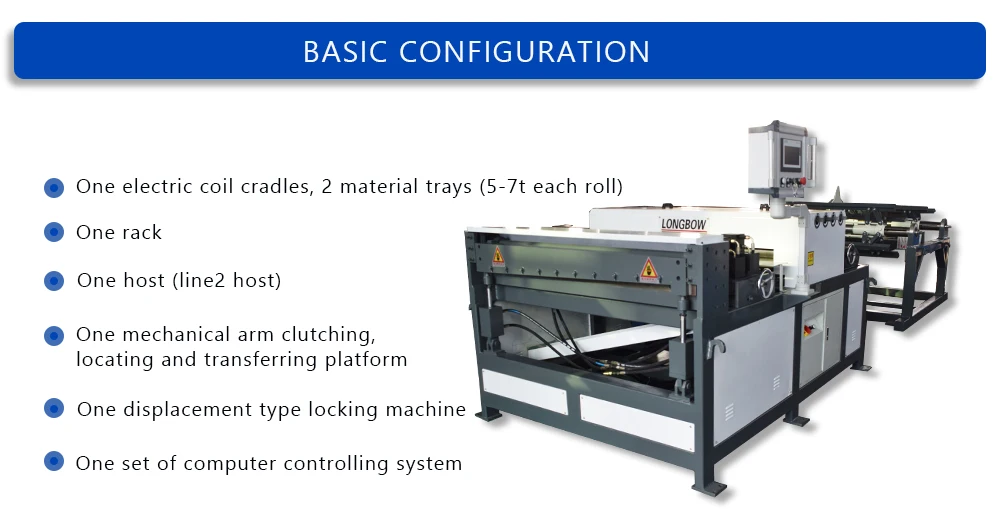

· Mechanical arm clutching, locating and transferring platform
· Displacement lock machine
II. Function:

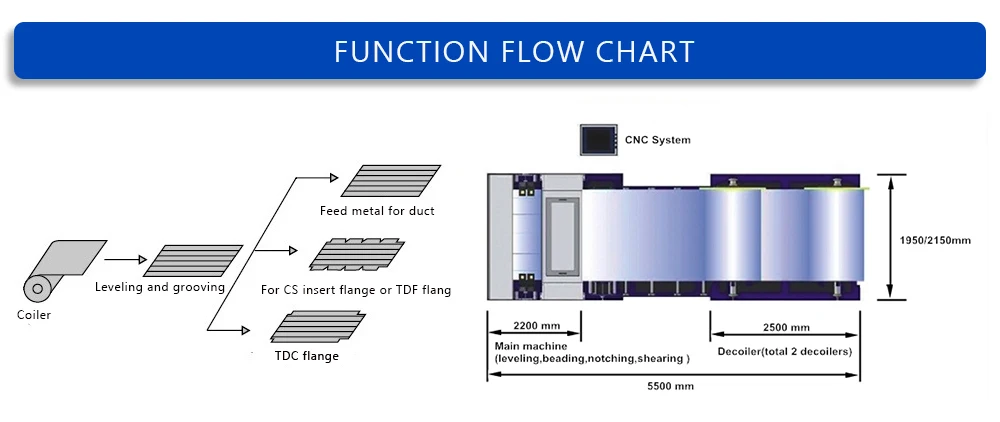

It's mainly for uncoiling, leveling, beading, punching, locking. Because of its small space requirement and easy to install and
operate the machine can upgrade to "super line 4".
III. Performance Features:
· All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
- Under the material-saving mode of CNC system, machine can withdraw material automatically after finishing tasks.

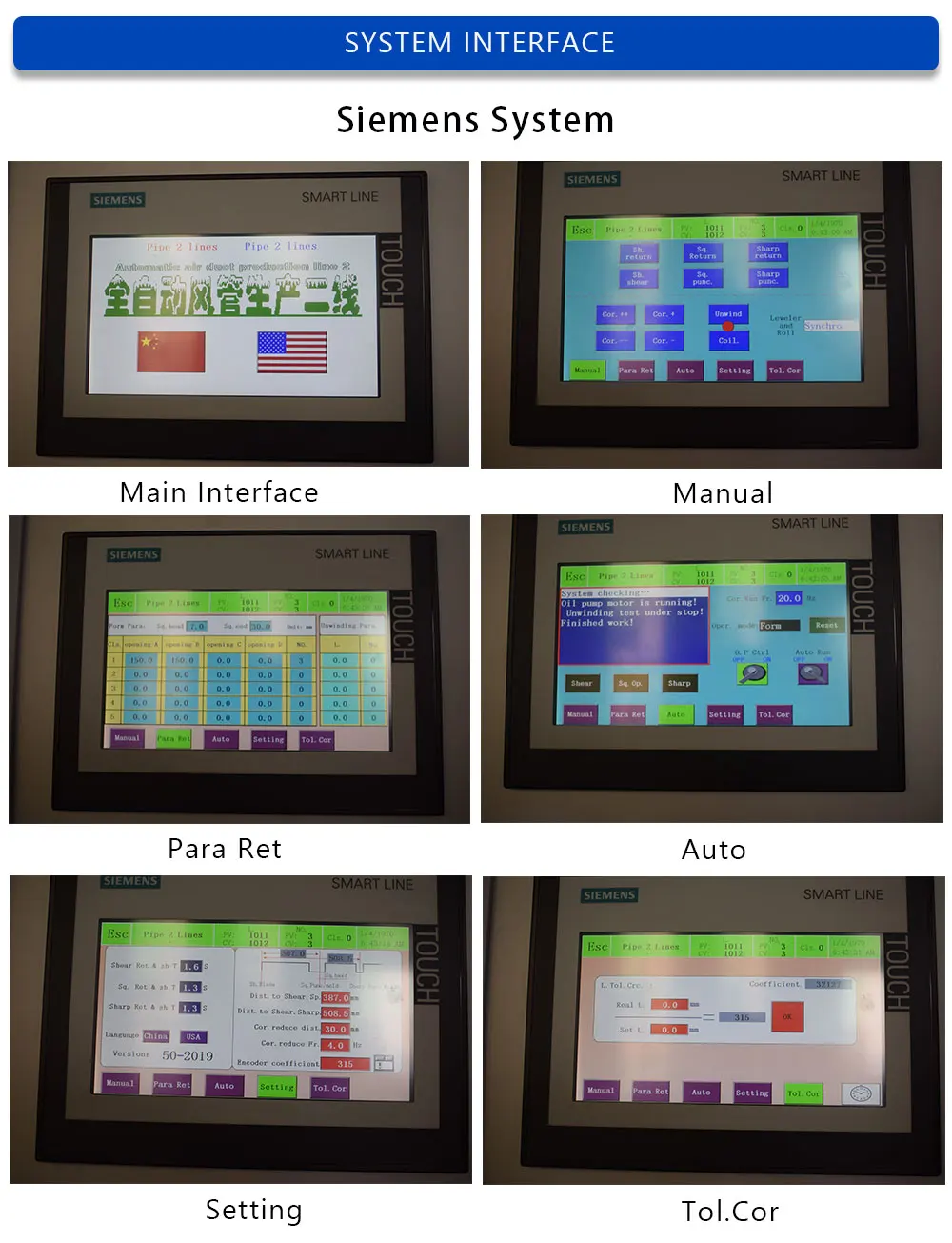

· With production memory functions, the production orders can be tracked and checked.
1. The latest design can resolve the problems like getting struck, too many repairs form roll-shearing displacements lock machine.
2. The three-line bending function can crimp narrow edges and stably process 0.5-1.2mm galvanized sheet to avoid wasting.
· Mechanical arm clutching, locating and transferring platform
· Displacement lock machine
II. Function:
It's mainly for uncoiling, leveling, beading, punching, locking. Because of its small space requirement and easy to install and
operate the machine can upgrade to "super line 4".
III. Performance Features:
· All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
- Under the material-saving mode of CNC system, machine can withdraw material automatically after finishing tasks.
· With production memory functions, the production orders can be tracked and checked.
Model | Sheeting thickness (mm) | Max width (mm) | Max working speed (m/min) | Max weight of sending coil (T) | Dimension L*W*H (mm) | Power (kw) | Weight (T) |
ADL-2-1300 | 0.5-1.2 | 1300 | 15 | 7 | 5500*1950*1350 | 7.5 | 3.2 |
ADL-2-1500 | 0.5-1.2 | 1500 | 15 | 7 | 5500*2150*1350 | 7.5 | 3.7 |
Our Campany
Certifications
Cooperative partner

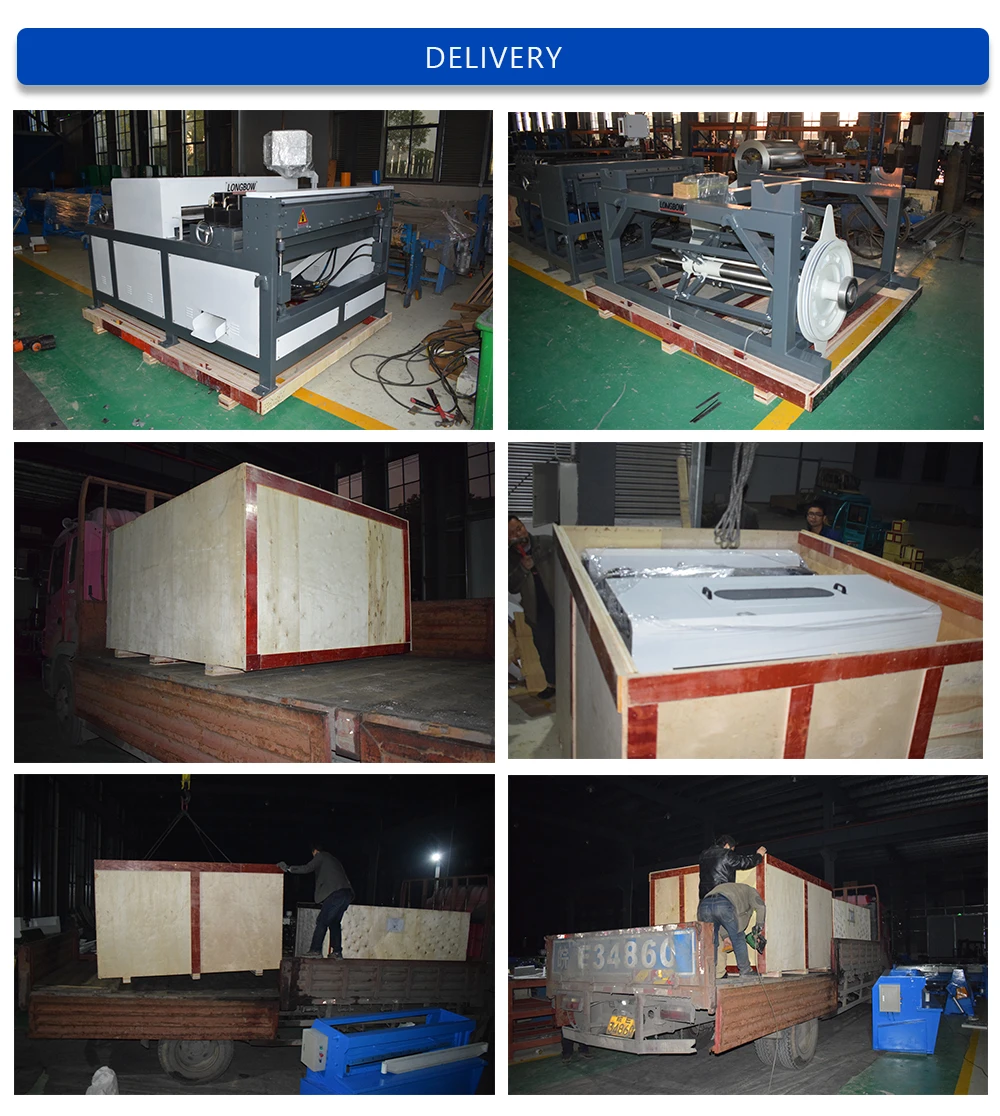

Packing & Delivery
Packaging | ||
Dimensions (mm) | 5580(L)*2030(W)*1430(H) | |
Weight | 3400kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Dimensions (mm) | 5580(L)*2030(W)*1430(H) | |
Weight | 3400kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Related Products
FAQ
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
