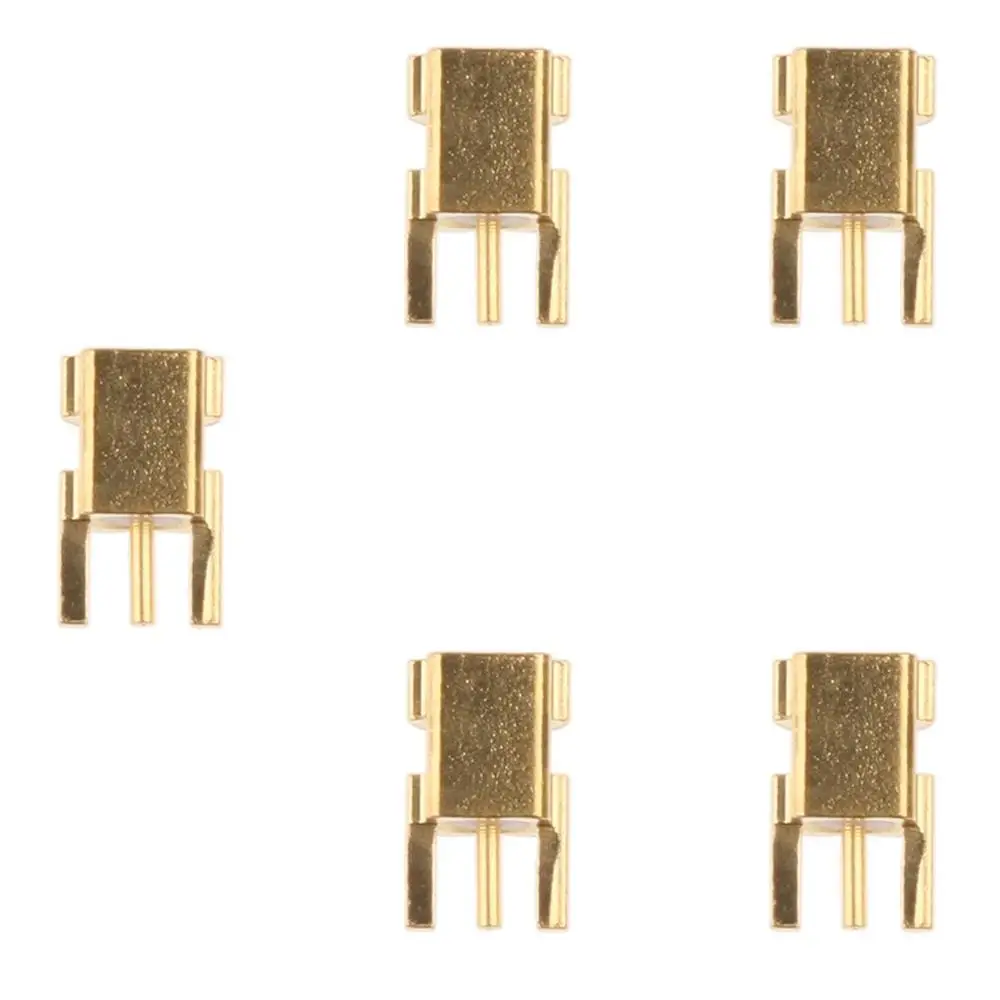

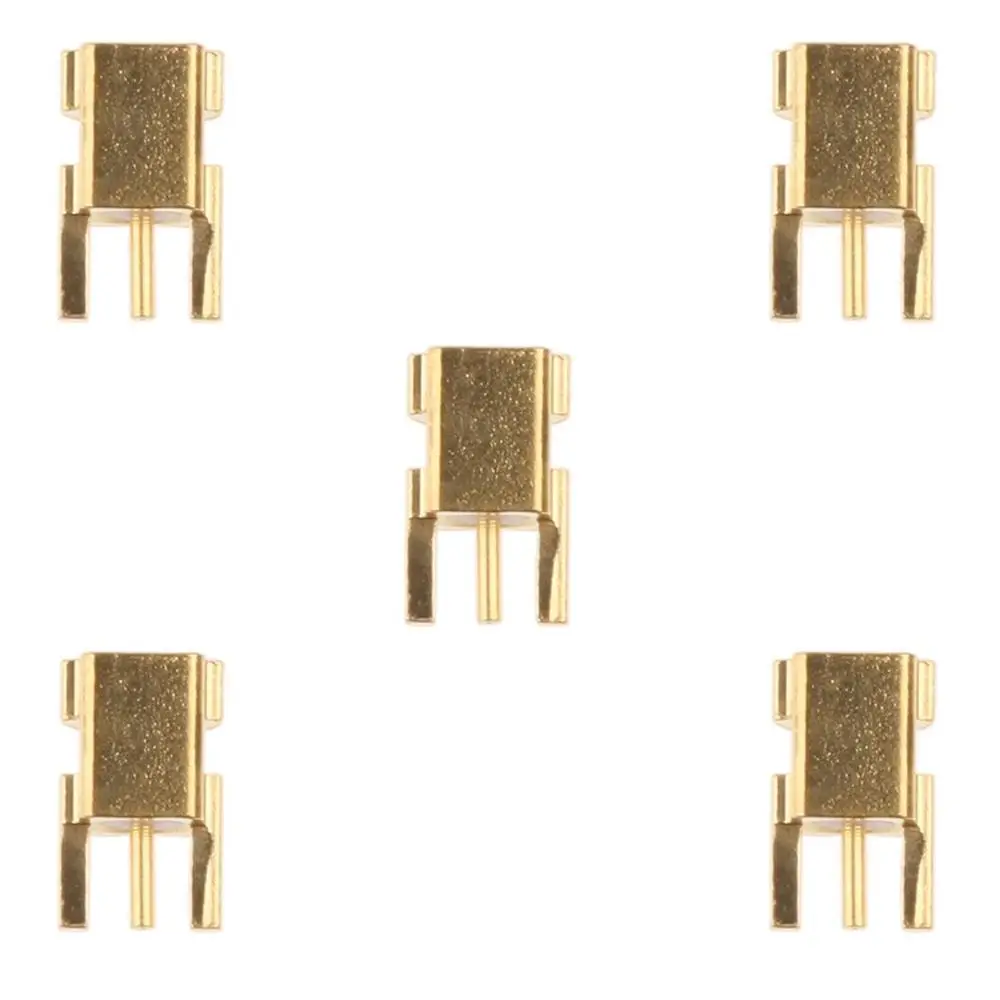

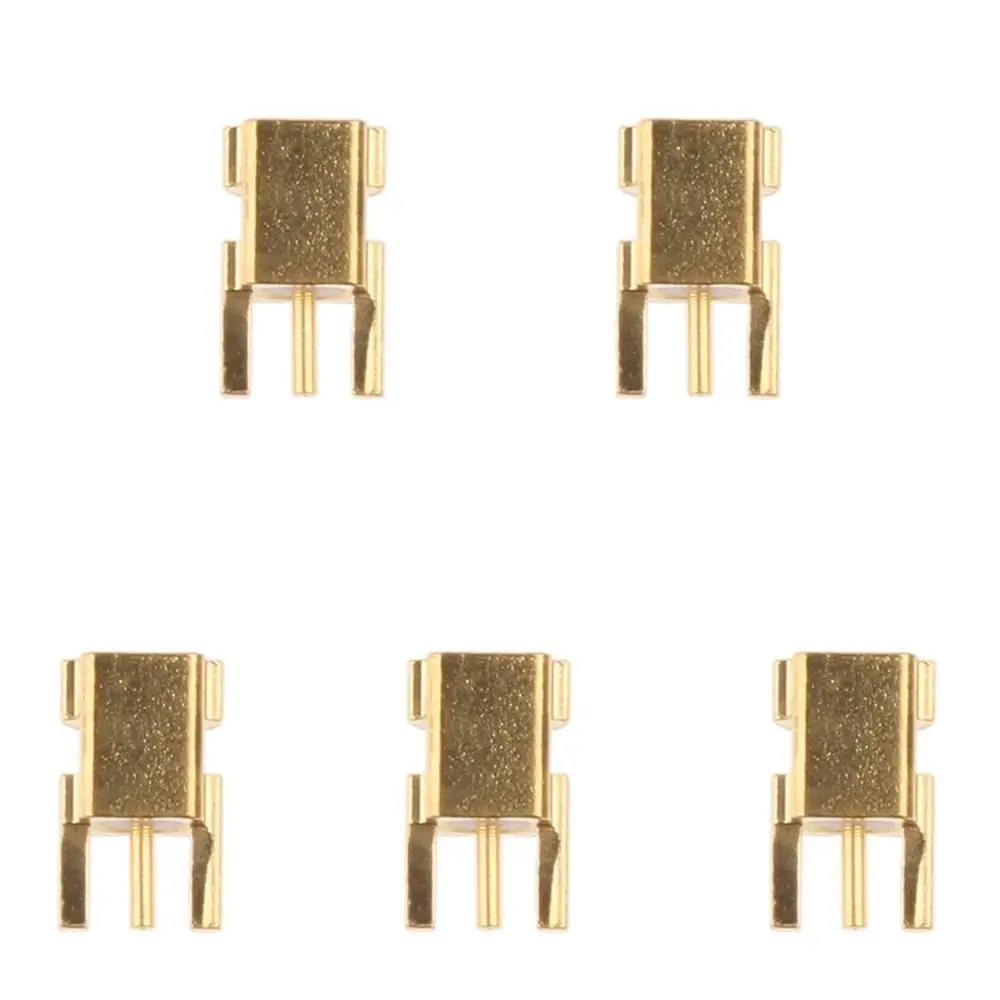

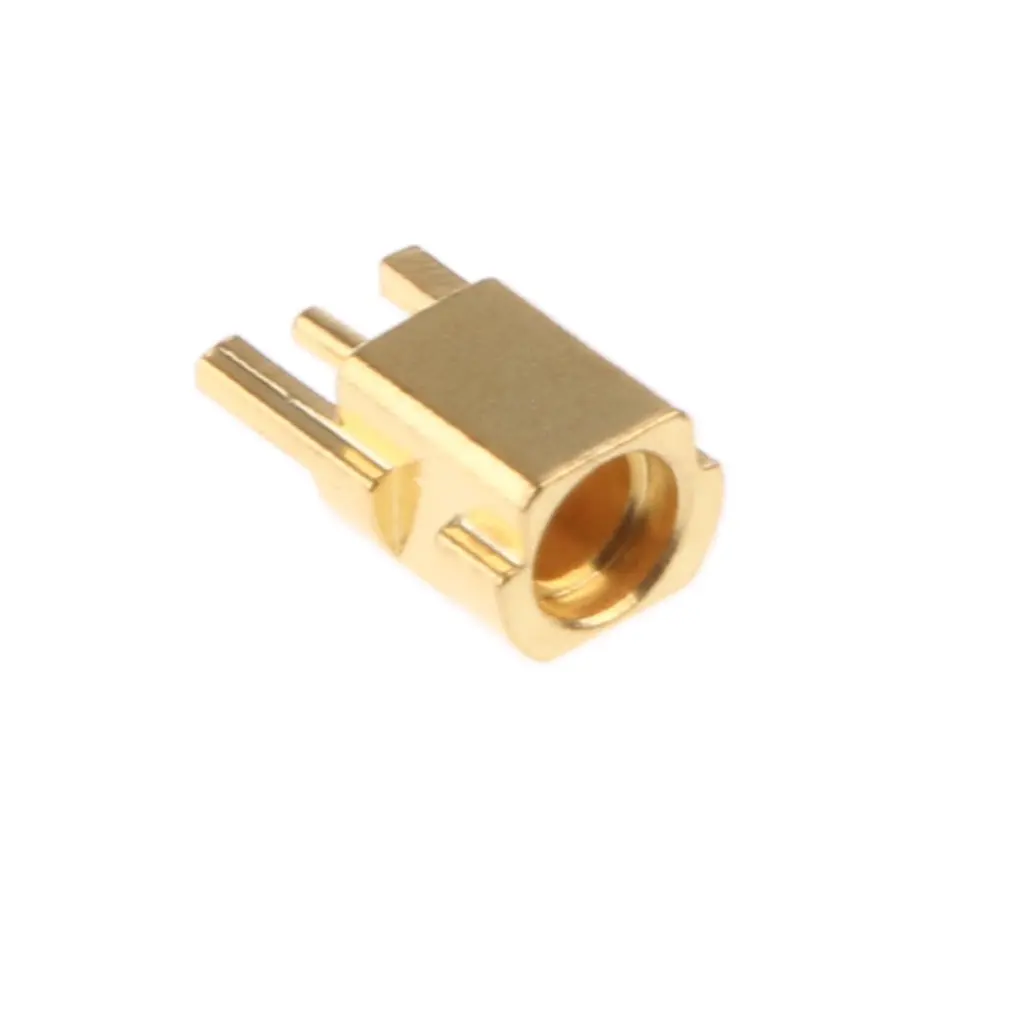

PCB Mount Right Angle Gold Plated MMCX Female Connector
- Category: >>>
- Supplier: Dongguan Xieao Industry Co. Ltd.
Share on (62423515876):
Product Overview
Description
MMCX (micro-miniature coaxial) connectors are coaxial RF connectors similar to MCX but smaller. They conform to the European CECC 22000 specification. MMCX connectors are rated to 500 pairing cycles.
The connectors have a lock-snap mechanism allowing 360-degree rotation and usually have a 50 Ω impedance. They offer broadband capability from DC to 6 GHz.
MMCX connectors are most commonly seen on Wi-Fi PCMCIA cards as antenna connectors or as connectors for external GPS antennas on small devices like PDAs or GPS receivers. They are also used by various brands of in-ear monitors to connect the cable to the individual earpieces. This allows for the cables to be replaced or swapped.
MMCX is also used in some video transmitters for First-Person View (FPV) radio control piloting. This makes swapping antennas and repairing easier than the U.FL connectors.
BNC 50 OHM SPECIFICATIONS
| Electrical | |
| Impedance | 50 Ohm |
| Frequency Range | 0-4 GHz with low reflection |
| VSWR | |
| M30912 Straight Connectors 0-4 GHz | 1.30 Max |
| M30912 Right Angle Connectors 0-4 GHz | 1.35 Max |
| Dielectric Withstanding Voltage | 1500 VRMS |
| Voltage Rating | 500V rms |
| Insulation Resistance | 5000 M Ohm min |
| Contact Resistance | |
| Center Contact | 1.5 m Ohm |
| Outer Contact | 0.2 m Ohm |
| Braid to Body | 0.1 m Ohm |
| RF Leakage | 55 dB min @ 3GHz |
| Insertion Loss | 0.2 dB max @ 3 GHz |
