single cartridge Stainless Steel liquid Filter Housings water sanitary filter housing for wine vodka beer coconut oil etc
- Category: >>>
- Supplier: Anping Zhehan Filter Equipment Co. Ltd.
Share on (62423530284):
Product Overview
Description
Product Description

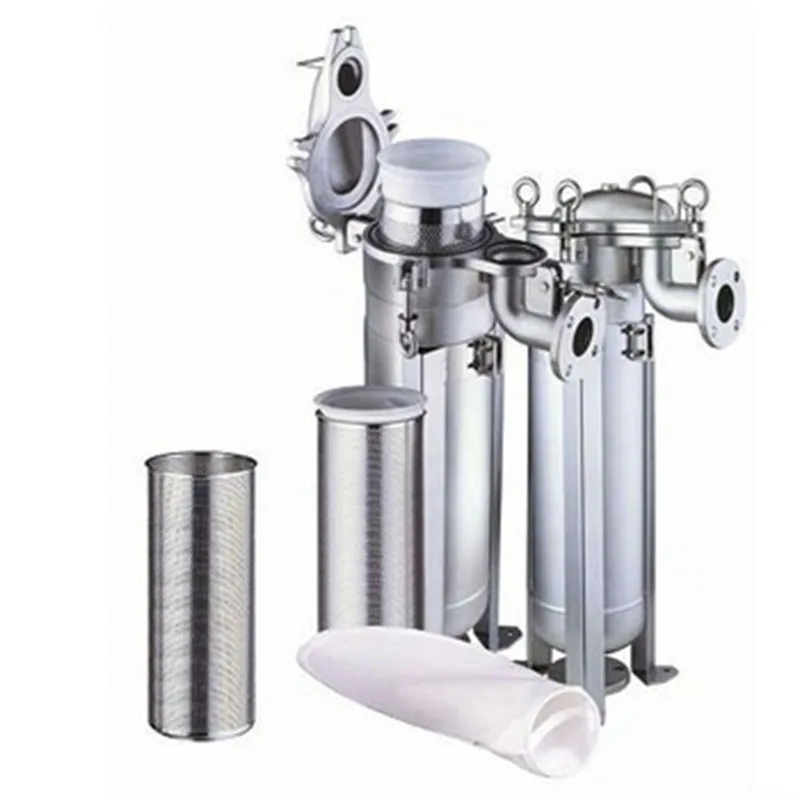

Bag type filter (bag cartridge)
1.Bag filter types: single bag filter, multi bag filter. There insulation jacket with filters, duplex filters,filter carts move for selected customers.
2.Single bag filter model: the 1st filter, the 2nd filter, the filter on the 3rd, the 4th filters, the 5th
filter.
3.Single bag filter forms: side-, top-in, little traffic.
2.Single bag filter model: the 1st filter, the 2nd filter, the filter on the 3rd, the 4th filters, the 5th
filter.
3.Single bag filter forms: side-, top-in, little traffic.

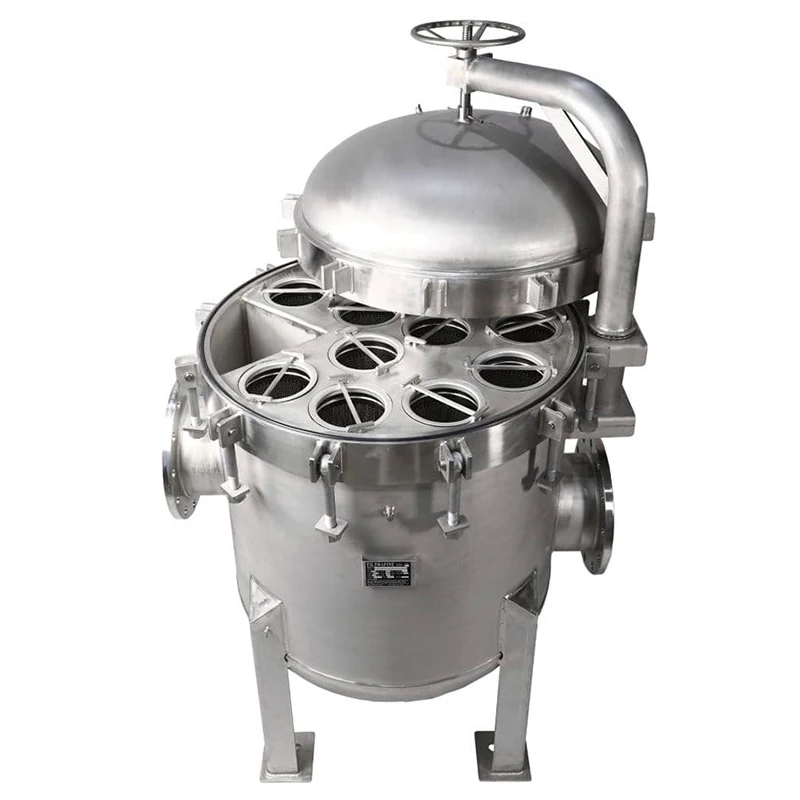

4.Multi-bag filter Model: 2,3,4,5,6bag.
5.Multi-bag filter forms: boom-style, low boom, horizontal, double-intrusive
6.Material: Stainless steel SUS304, SUS316
6.Material: Stainless steel SUS304, SUS316
Features
1. High capacity, small size
2. Easy to replace the filter bag, no need clean and labor saving
3. After cleaning the filter bag can be used repeatedly to save cost
4. Filter precision reached 0.5μm
5. Lower leakage risk ensures high quality
6. High working pressure, low pressure loss, low operation cost and energy saving
7. Wide application, flexible use, various installation model for choice
2. Easy to replace the filter bag, no need clean and labor saving
3. After cleaning the filter bag can be used repeatedly to save cost
4. Filter precision reached 0.5μm
5. Lower leakage risk ensures high quality
6. High working pressure, low pressure loss, low operation cost and energy saving
7. Wide application, flexible use, various installation model for choice
Wording Principle

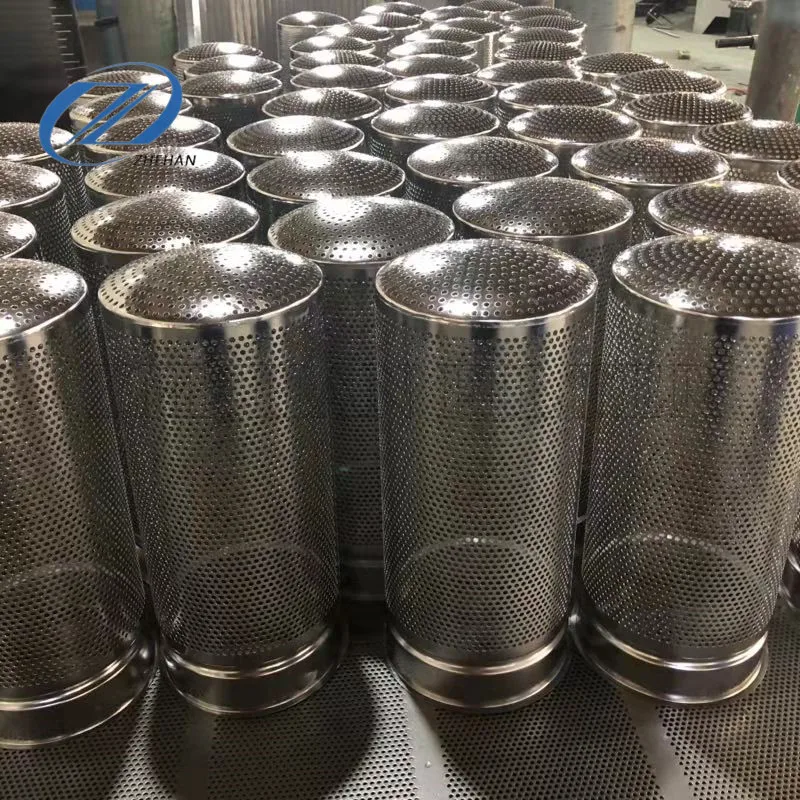

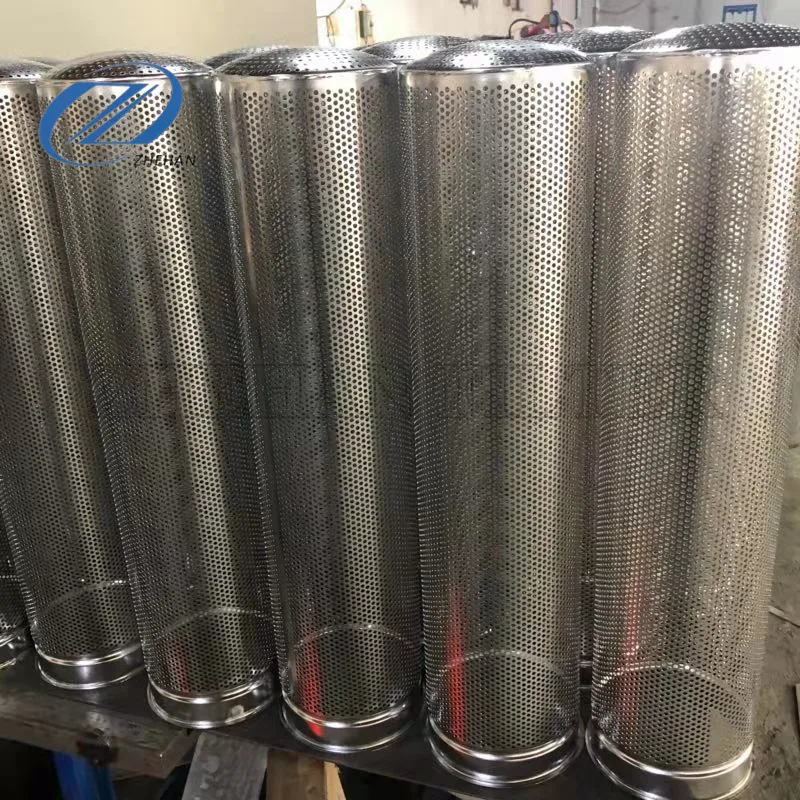

The bag filte is supported by the stainless steel mesh inside. The liquid flows into the chamber via inlet and go through the filter bag. The impurities will be blocked in th filter bag. The filter bag can be reused repeatedly after washing or cleaning. And also the filter bag is easy to change. With no material consumption, this filter has low operation cost.
Detailed Images

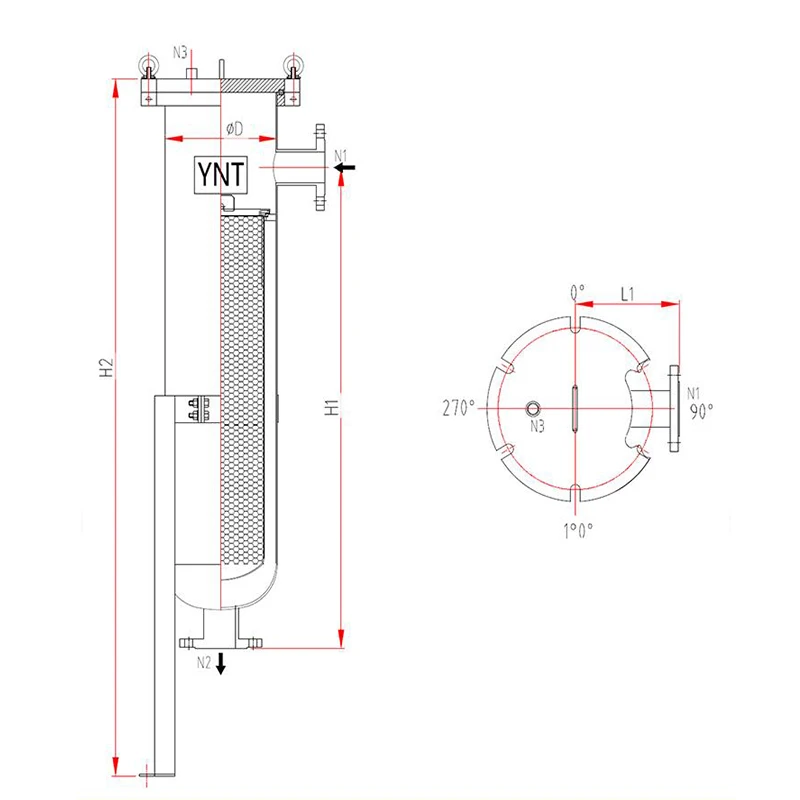

Size Information
Technical parameters of stainless steel bag filters:
| Model | Flow rate (T/H) | Inlet and outlet diameter(mm) | Size | Specification | Bag specification (mm) | Filter area (m2) |
| ZH-1-219 | 20 | DN50 | 219*410 | Single bag | 180*410 | 0.23 |
| ZH-2-219 | 40 | DN65 | 219*810 | Single bag | 180*810 | 0.46 |
| ZH-2-400 | 50-80 | DN80 | 400*810 | Two bags | 180*810 | 0.92 |
| ZH-2-500 | 120 | DN100 | 500*810 | Three bags | 180*810 | 1.38 |
| ZH-2-600 | 150 | DN125 | 600*810 | Four bags | 180*810 | 1.8 |
| ZH-2-650 | 160 | DN125 | 650*810 | Five bags | 180*810 | 1.84 |
| ZH-2-750 | 200 | DN150 | 750*810 | Six bags | 180*810 | 2.3 |
| ZH-2-800 | 220 | DN150 | 800*810 | Eight bags | 180*810 | 2.5 |
| ZH-2-850 | 240 | DN200 | 850*810 | Nine bags | 180*810 | 2.76 |
Application
1. Food and beverage industry: beer, wine, wine, sake, liquor, wine, fruit juice, bottled water, tea drinks, soy milk, syrup, dairy products, food additives, water filtration to clarify the process and CIP.
2. Petrochemical industry: all kinds of lubricants and oil, glue, chemical fiber manufacturing process of various solution was filtered.
3. Oil and gas industry: amine desulfurization, dehydration flux filter, oil field water, completion fluid filtration.
4. Car paint, painting industry: paint, electrophoretic paint, pre-treatment fluid, paint and paint raw materials and solvent filtration
5. Textile, printing and dyeing, paper making industry: spinning liquid, dyes, flux, water, additives, adhesives filter.
6. Edible oils and soap industry: polishing purification of edible oil, soap raw materials and water filtration.
7. Pharmaceutical industry: a variety of pharmaceutical intermediates, pharmaceutical raw materials, solvent filtration.
8. The electronic and electroplating industry: a variety of plating solution and water filtration.
9. Machining industry: a variety of cutting fluid, coolant and cleaning liquid filtration.
2. Petrochemical industry: all kinds of lubricants and oil, glue, chemical fiber manufacturing process of various solution was filtered.
3. Oil and gas industry: amine desulfurization, dehydration flux filter, oil field water, completion fluid filtration.
4. Car paint, painting industry: paint, electrophoretic paint, pre-treatment fluid, paint and paint raw materials and solvent filtration
5. Textile, printing and dyeing, paper making industry: spinning liquid, dyes, flux, water, additives, adhesives filter.
6. Edible oils and soap industry: polishing purification of edible oil, soap raw materials and water filtration.
7. Pharmaceutical industry: a variety of pharmaceutical intermediates, pharmaceutical raw materials, solvent filtration.
8. The electronic and electroplating industry: a variety of plating solution and water filtration.
9. Machining industry: a variety of cutting fluid, coolant and cleaning liquid filtration.
