4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2 HDMI Extender upto 150m with Bi-directional IR
1. Introduction
This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embeded audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

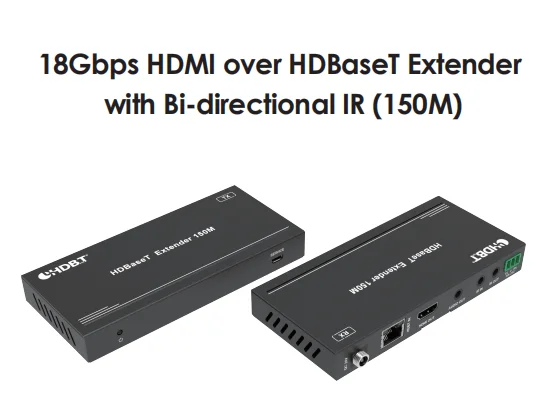

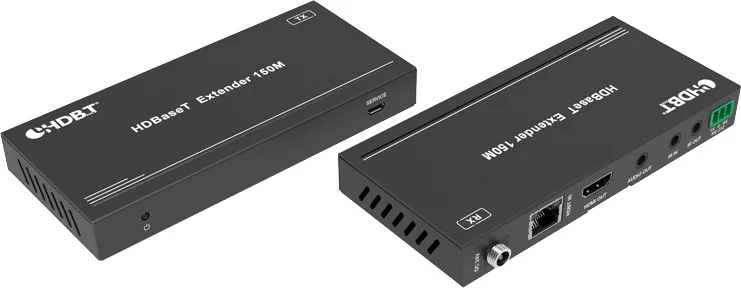

This HDMI extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carries the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting / emitting IR control signal.
The extender offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability, and is the perfect solution for any application.
2. Features
1)HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
2)Supports 18Gbps bandwidth
3)Input and output extends distance up to 394ft / 120 meters when 4K2K signal and 492ft / 150 meters when 1080P signal
4)Supports one HDMI loop output on transmitter
6)De-embeded audio to analog stereo output on receiver
7)With bi-directional IR, RS-232 and CEC pass-through
8)HDR, HDR10+, Dolby Vision and HLG function supported
10)Supports PoC (Power over Cable)
11)Compact design for easy and flexible installation.
3. Package Contents
1 x HDMI Extender Transmitter
1 x HDMI Extender Receiver
2 x Wideband IR TX
2 x Wideband IR RX
2X3-pin Phoenix connectors
1 x 24V1A DC Power Supply
4 x Mounting ears
1 x User Manual
4. Specifications
| Technical | |
| HDMI Compliance | HDMI2.0 |
| HDCP Complance | HDCP2.2/HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 |
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)8-bit (4K60Hz 4:4:4 ) |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| L/R Audio Formats | PCM 2.0 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) |
| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x SERVICE [Mini-USB, Update port] Outputs: 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] |
| Receiver | Inputs: 1x HDBT IN [RJ45, 8-pin female] 1x SERVICE [Mini-USB, Update port] Outputs: 1x HDMI Type A [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver:140mm [W] x 65mm [D] x 18mm [H] |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 24V/1A (Locking connector) |
| Power Consumption | 9.36W |
| Operating Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Resolution / Distance | |
| 4K2K | 394ft/120M |
| 1080P | 492ft/150M |
5. Operation Controls and Functions

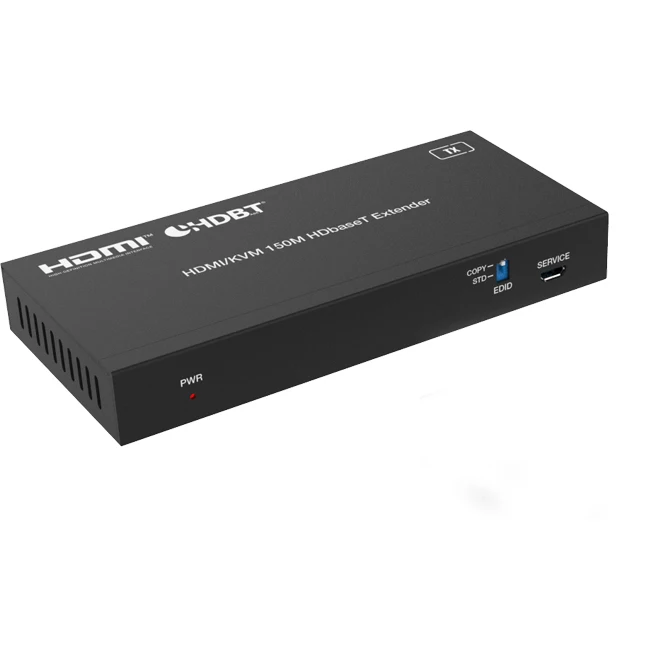

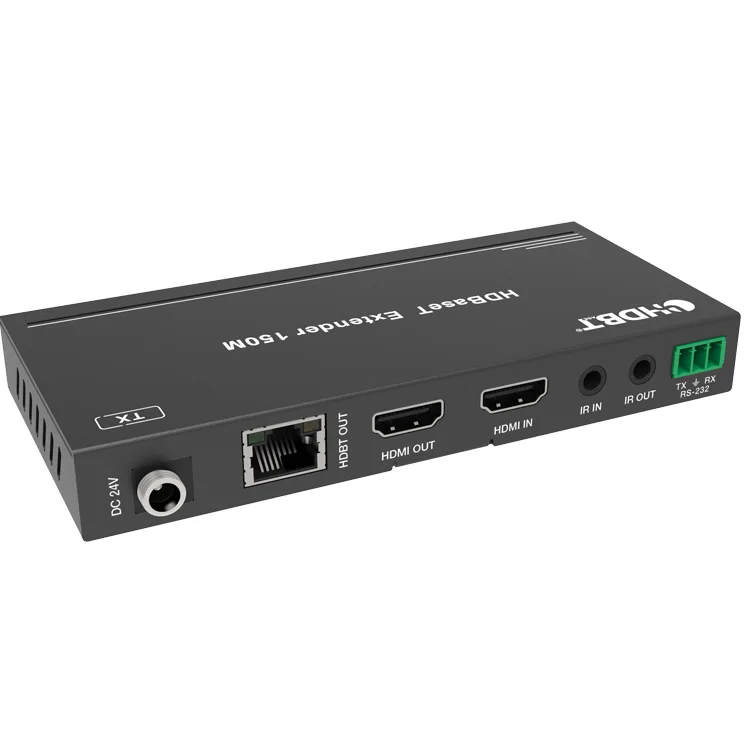

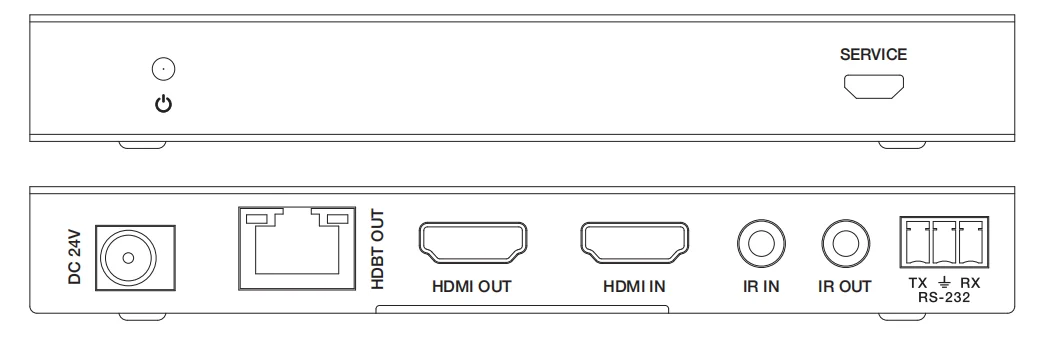

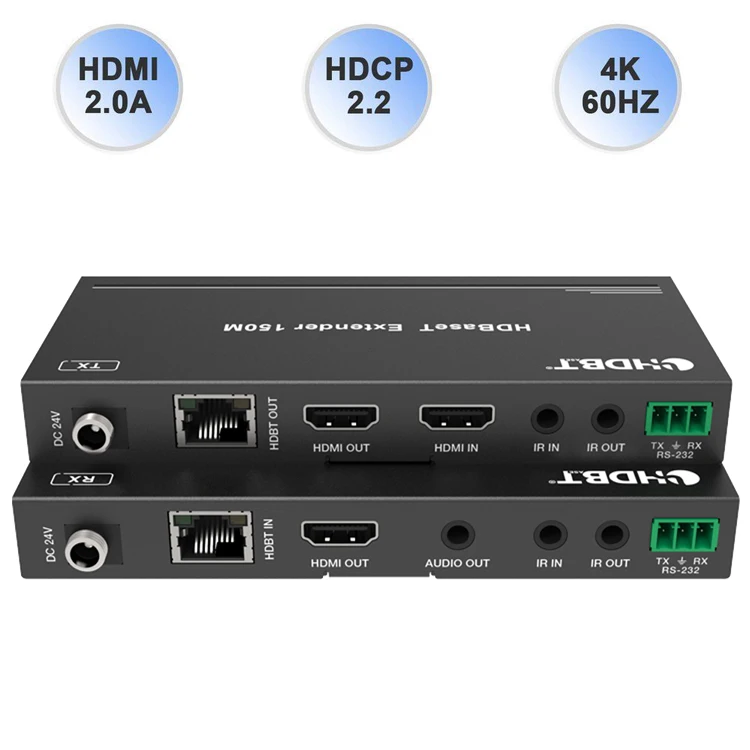

5.1 Transmitter Front and Rear Panel
Name | Function description |
Power LED | Red LED indicates when the transmitter is powered. |
SERVICE port | Firmware update port. |
| DC24V | DC 24V input for 24V 1A power adapter. Note that the extender supports PoC function, it means that either transmitter or receiver is powered supply by 24V/1A power adapter, the other doesn’t need power supply. |
HDBT OUT | RJ45 connector for connecting the HDBT IN port of receiver with CAT 5e/6 cable. |
| Connection Signal Indicator lamp (on the left side of the HDBT OUT port) | Illuminate: Transmitter and Receiver are in good connection status. Flashing: Transmitter and Receiver are in poor connection status. Dark: Transmitter and Receiver are not connected. |
Data Signal Indicator lamp (on the right side of the HDBT OUT port) | Illuminate: HDMI signal with HDCP. Flashing: HDMI signal without HDCP. Dark: No HDMI signal. |
HDMI OUT | HDMI loop output for display. |
HDMI IN | HDMI source input. |
IR IN | IR port input for receiving the signal of IR remote. |
IR OUT | IR port output for control of source device. This IR output signal is from IR IN port of receiver. |

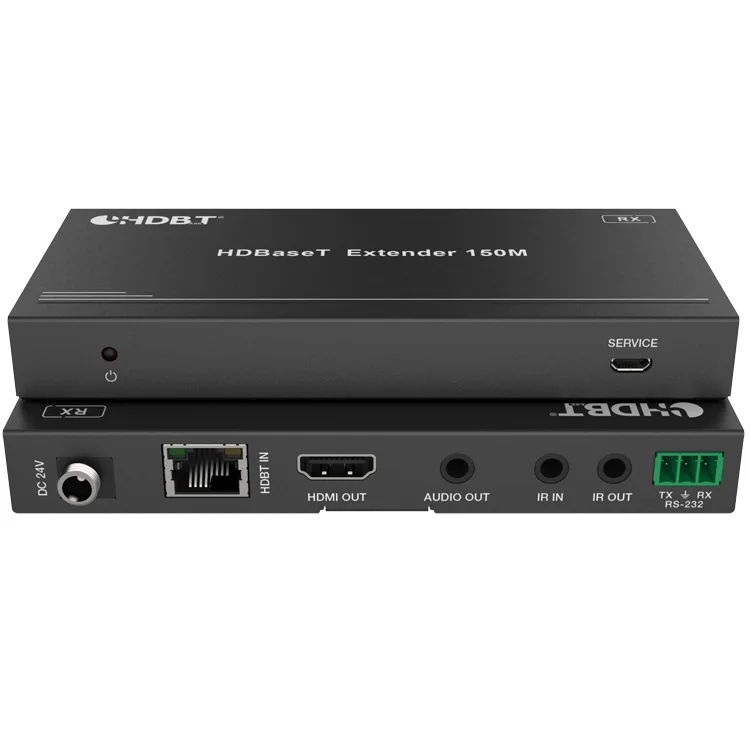

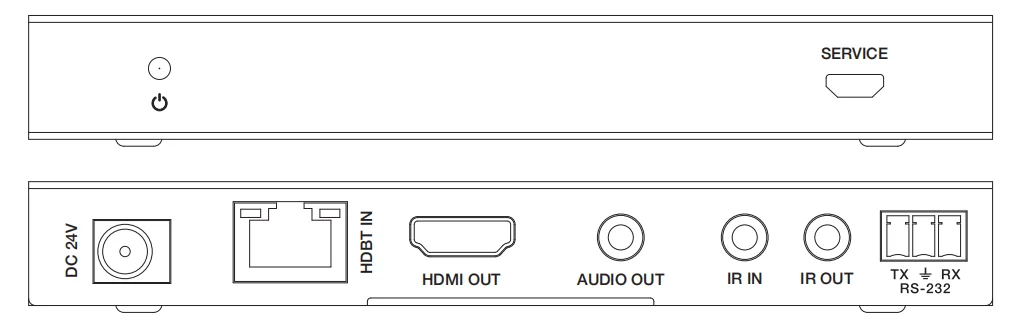

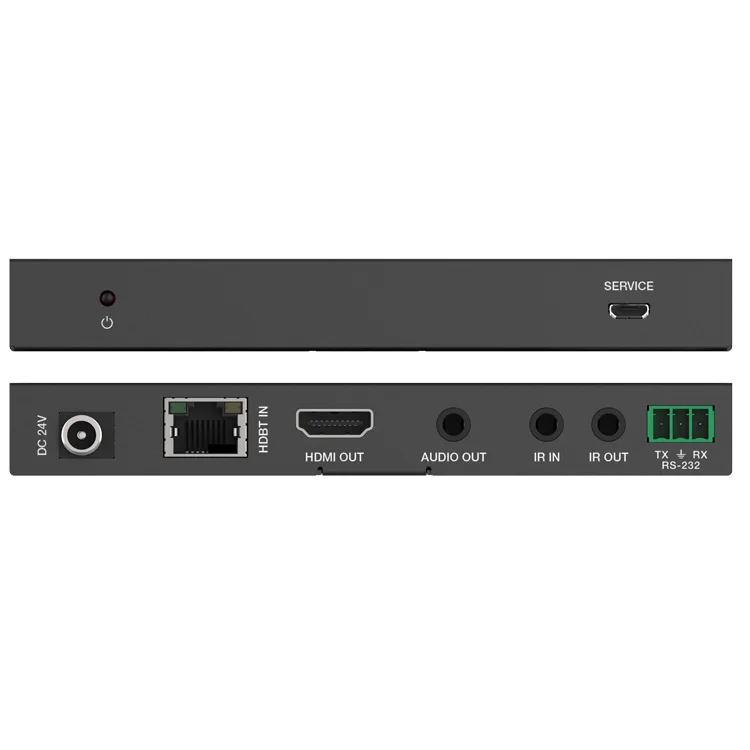

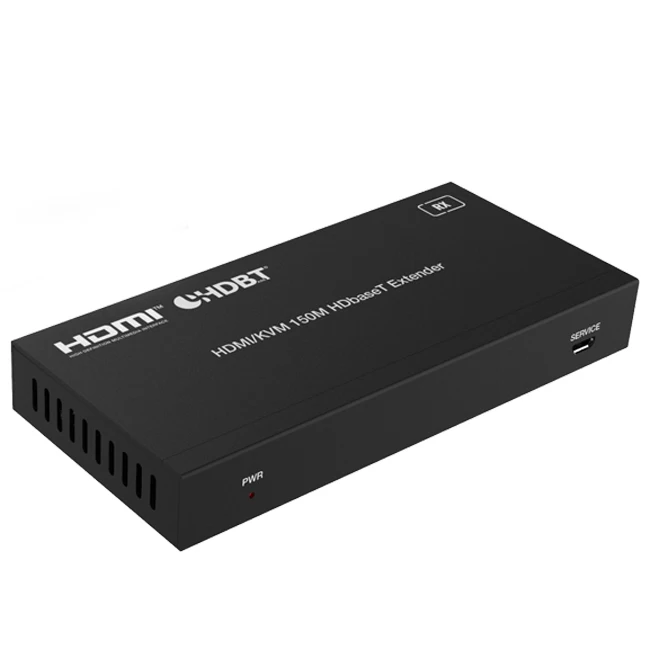

5.2Receiver Front and Rear Panel
Name | Function description |
Power LED | Red LED indicates when the receiver is powered. |
SERVICE port | Firmware update port. |
DC24V | DC 24V input for 24V 1A power adapter. |
HDBT OUT | RJ45 connector for connecting the HDBT OUT port of transmitter with CAT 5e/6 cable. |
| Connection Signal Indicator lamp (on the left side of the HDBT OUT port) | Illuminate :Transmitter and Receiver are in good connection status. Flashing:Transmitter and Receiver are in poor connection status. |
Data Signal Indicator (on the right side of the HDBT OUT port) | Illuminate: HDMI signal with HDCP. Flashing: HDMI signal without HDCP. Dark: No HDMI signal. |
HDMI OUT | HDMI output for display. |
AUDIO OUT | 3.5mm stereo connector for analog audio output. |
6.Connection Diagram

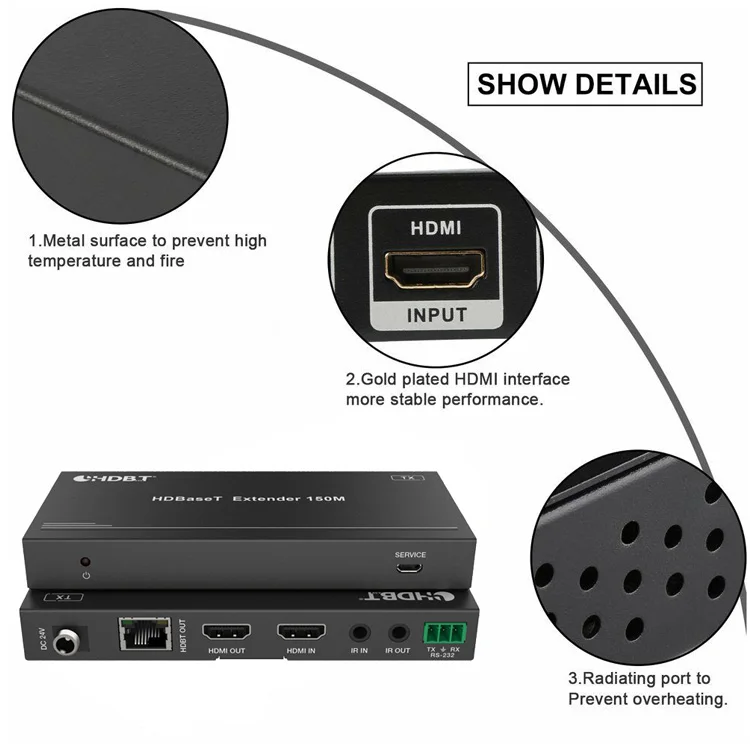

Detailed Images
Packaging & Shipping
Our Services
Company Information
FAQ
Q1: What about the lead time?
A1:Sample needs 3-5 days,mass production time needs 1-2 weeks for order quantity more than 100 PC.
Q2:How about the payment terms?
A2:We accept T/T, paypal or cash as payment .
Q3:What are your strengths?
A3:Our biggest advantage is the ODM service.
Q4:If we I am not clear about the how to use the products, what should I do?
A4:Each of our products has a manual, you can read it or you may contact with us.
