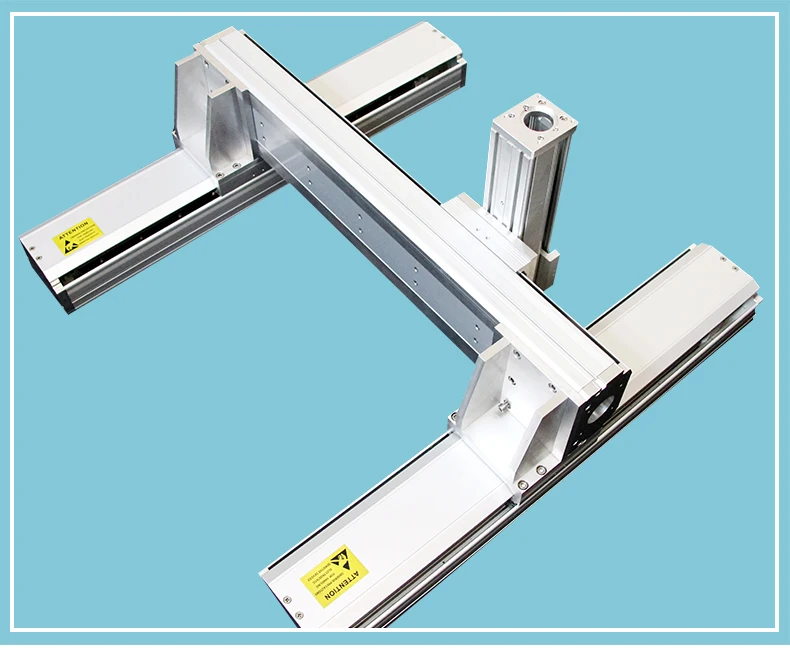

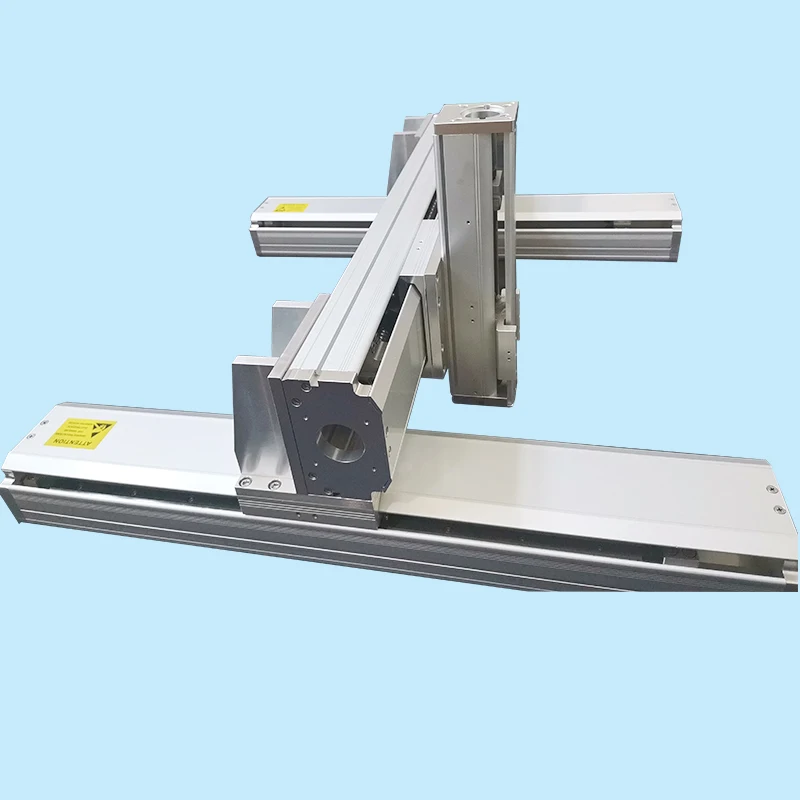

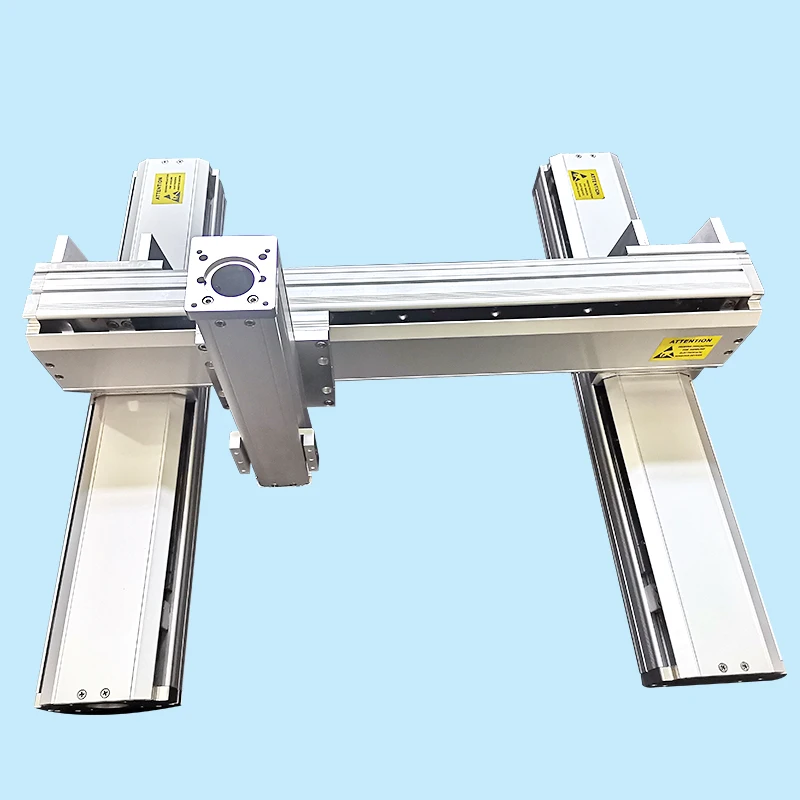

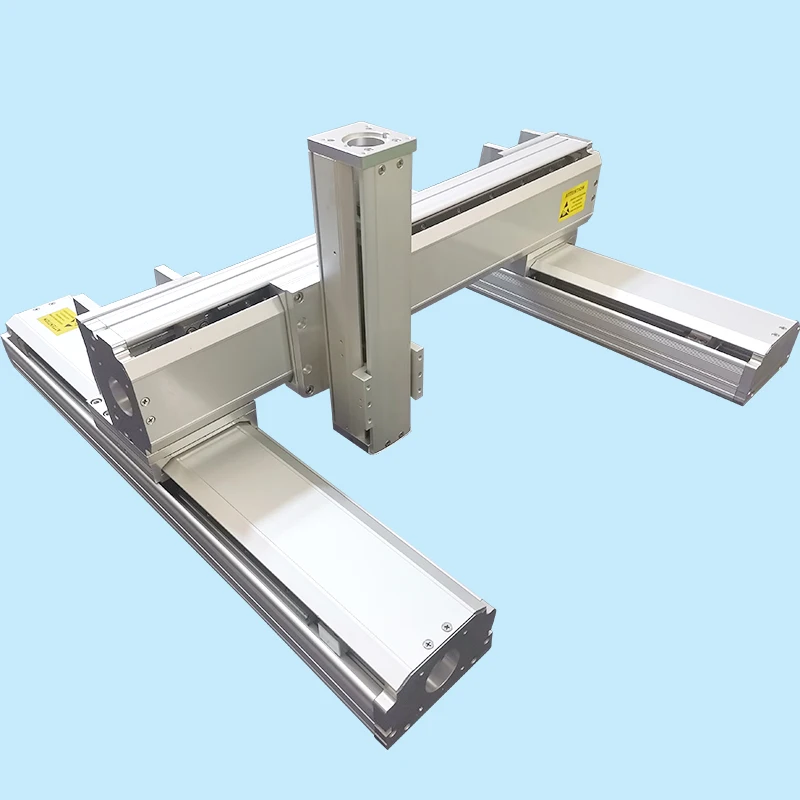

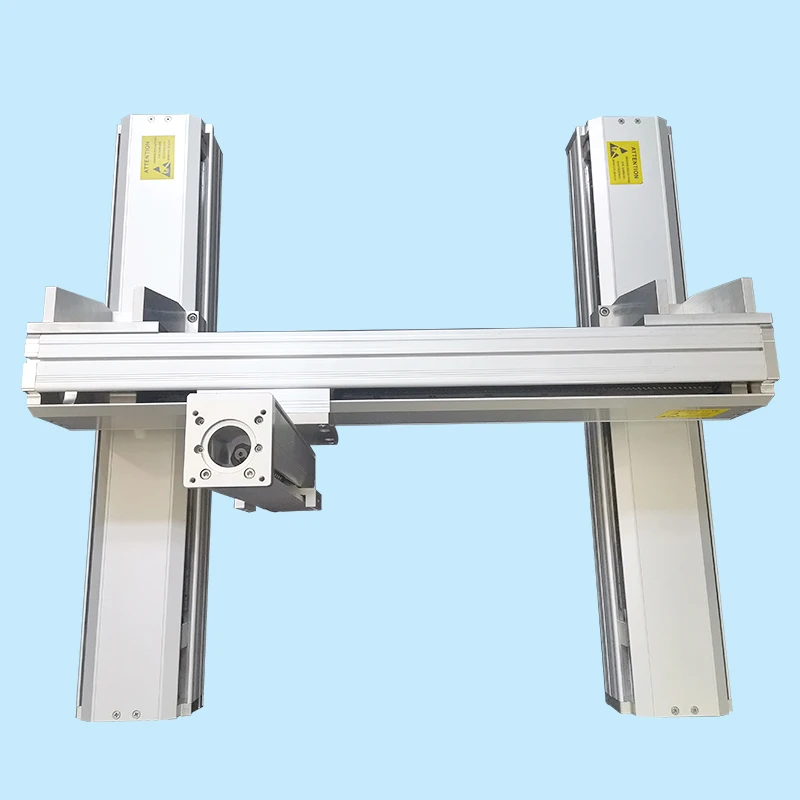

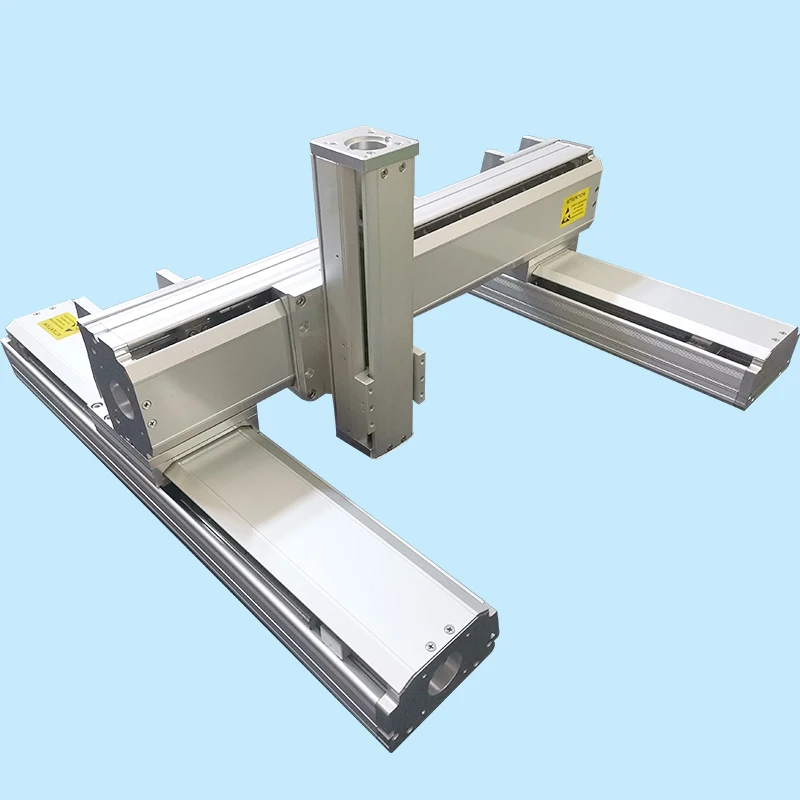

Low price multi axis ball screw 1605 2005 2020 linear motion gantry robot systems xyz gantry robot

Product Overview

Description



Product Name	Low price multi-axis ball screw 1605 2005 2020 linear motion gantry robot systems xyz gantry robot
Material	Aluminum, Aluminum+stainless steel
Advantage	High Precision, Large Load Capacity, Low Noise, High Rigidity
Delivery Details	5-15 Days After Order
Applications	It is an important hardware equipment for industrial automation machinery, which can accurately control the accuracy and speed of moving parts of mechanical equipment, and is suitable for industrial automation fields such as chip mount equipment, laser cutting equipment, spray equipment, medical equipment, battery equipment and so on.

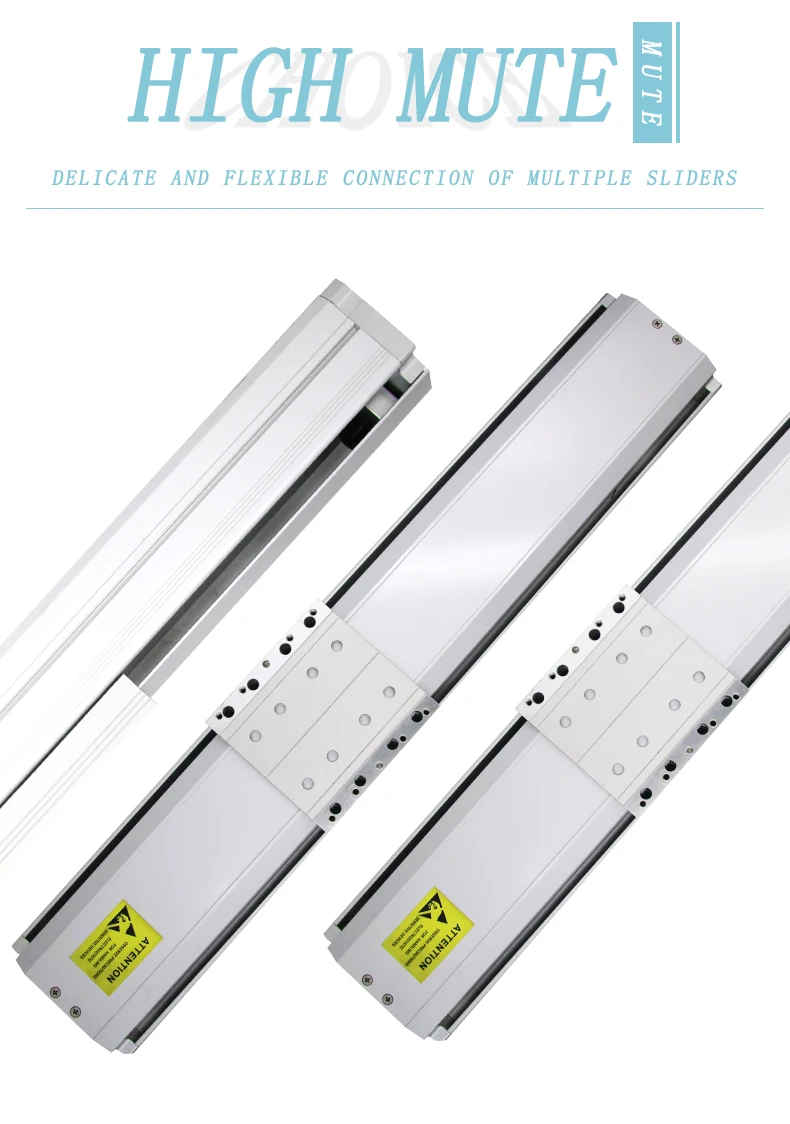

Ball screw linear motion guide

KXS40 linear guide is semi-sealer structure, body width 40mm, high stability, compact structure, versatility feature. The stroke length can be customized according to the needs of buyers, 50mm-2000mm, and OEM services can be provided. suitable for normal working environment, it is convenient to use single axis or multi-axis to assemble easy functional usage robotic arms for kinds of industries.



Need to pay attention to using the sliding table
POINTS TO NOTE
1.Screw specifications: 1204-100mm / 1605- 100mm / 1610-100mm, the first two
12/16 represents the diameter of the screw 12mm / 16mm, the last two represent the lead of the screw (screw
(Distance) 4mm / 5mm / 10mm (distance of the slider when the motor rotates a circle), the last
100mm indicates the effective stroke of the slide table (the distance that the slider can move does not include the length of the slider
), The length of the sliding table can be customized, and the length not in the options can be customized by contacting customer service.
2. If you use servo, AC or other self-provisioned motors, you need to provide
Detailed dimensions of the motor, we can customize the flange of the sliding table according to the size of your motor
Piece (motor connection piece).

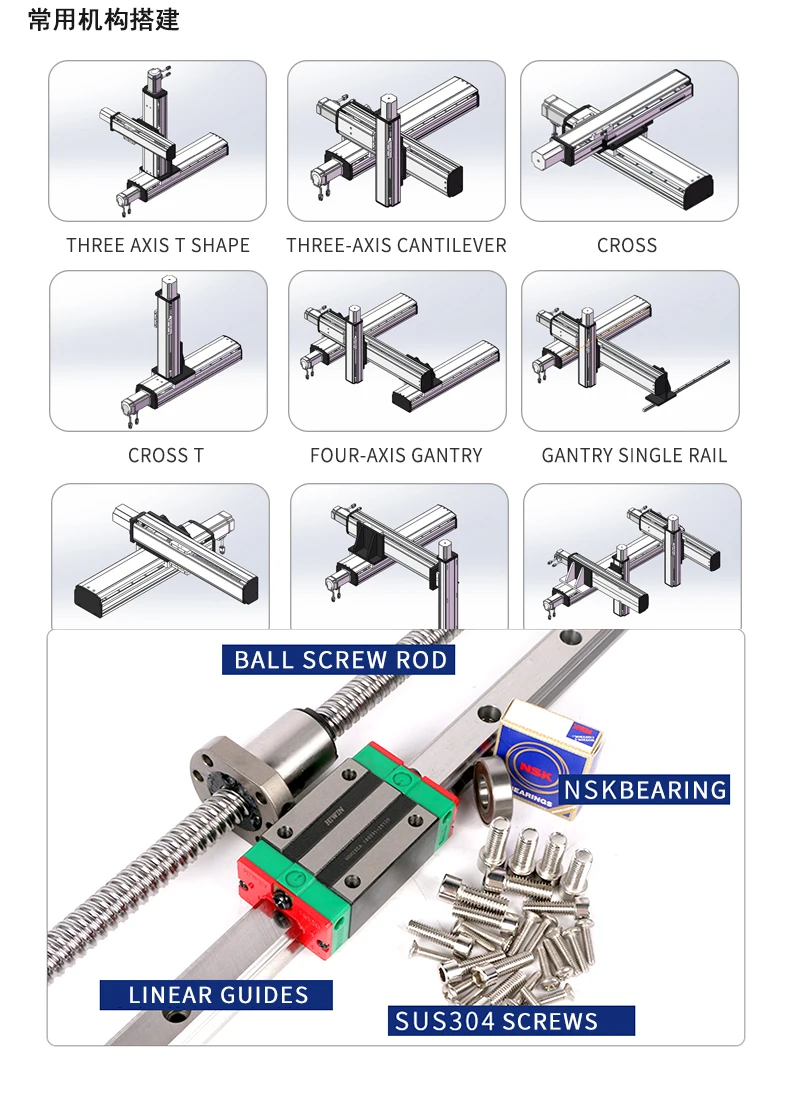

Third, stacking method: you can stack a variety of stacking methods of horizontal cross, gantry type, three axis type, four axis type.
