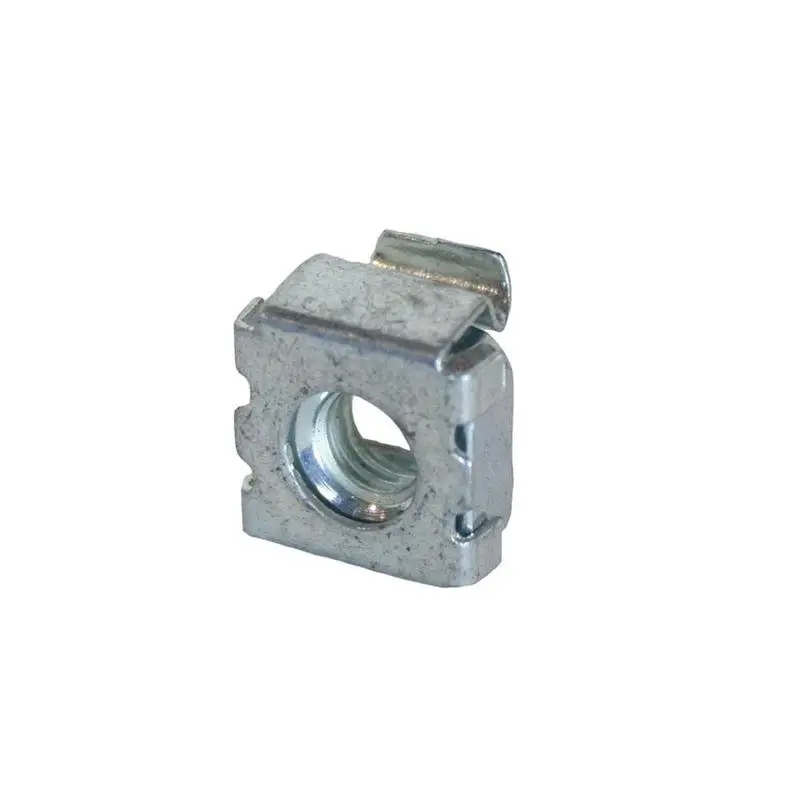

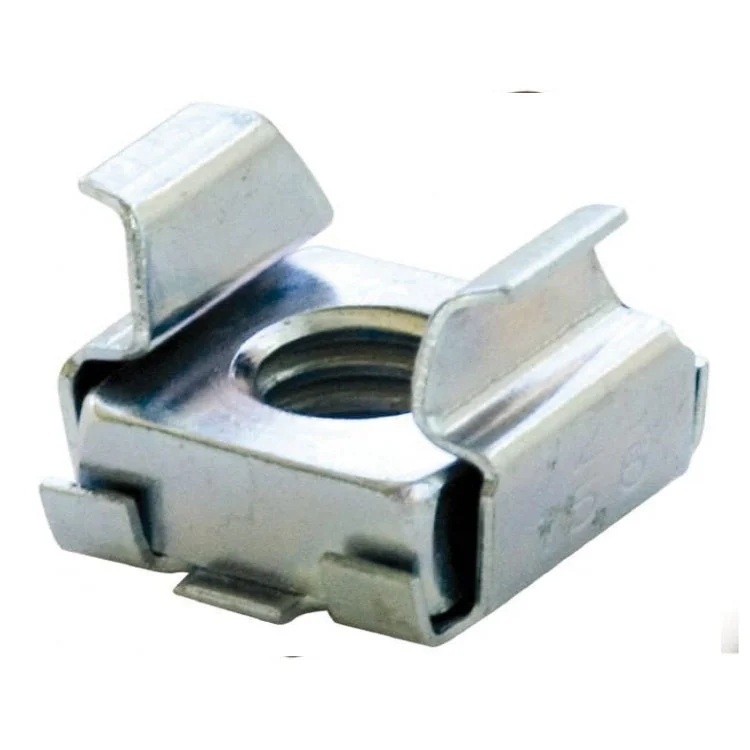

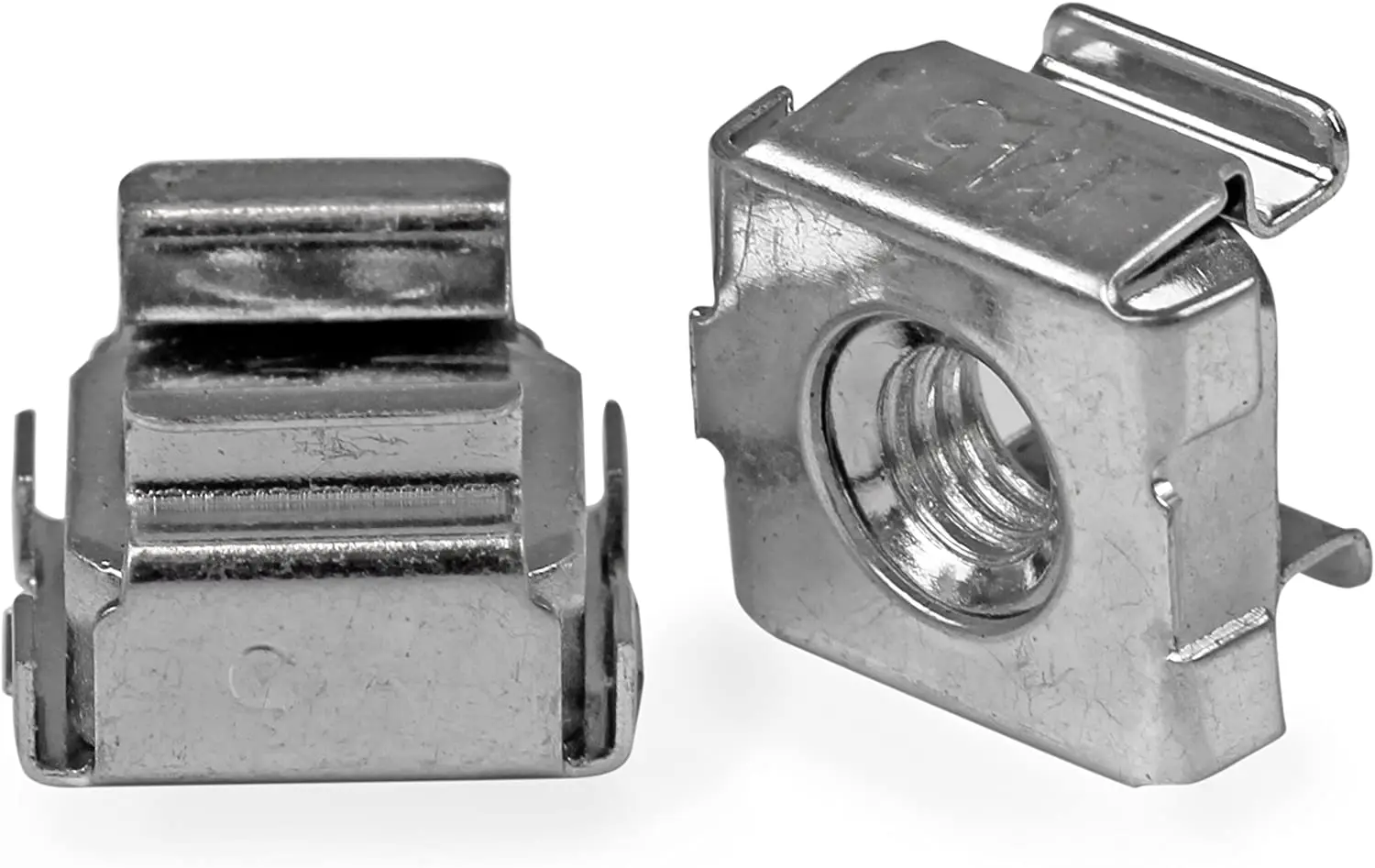

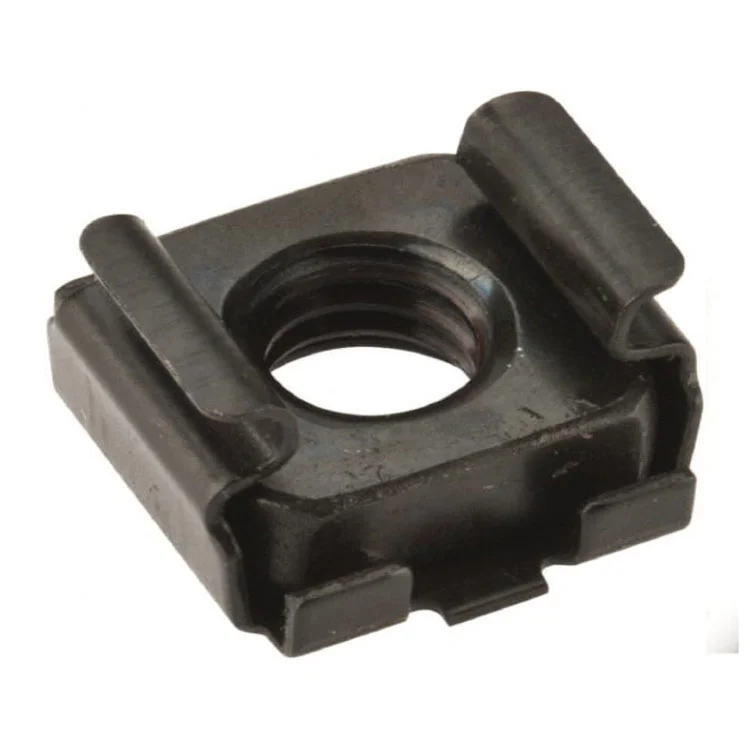

Steel Mounting Cage Nuts Floating cage nuts for Server Rack Cabinets
- Category: >>>
- Supplier: Jiaxing Rock Industry Imp And Exp Co. Ltd.
Share on (62423995701):
Product Overview
Description
Product Description
Description
These can be used for snapping onto panels for a tight hold during blind assembly. These are reusable nuts.
Because the RETMA rails have square holes, you might need to use cage nuts to secure the equipment into the rack.
These can be used for snapping onto panels for a tight hold during blind assembly. These are reusable nuts.
Features
- Color: Black, white zinc plated, yellow zinc plated, nickel plated
- Color: Black, white zinc plated, yellow zinc plated, nickel plated
- Panel Range: 1.8MM-3.2MM
- Material thickness: 0.5mm
- Material: Spring steel
- Size: M5 M6 M8 M10 USUALLY
- Material: Spring steel
- Size: M5 M6 M8 M10 USUALLY
- For both indoor and outdoor use.

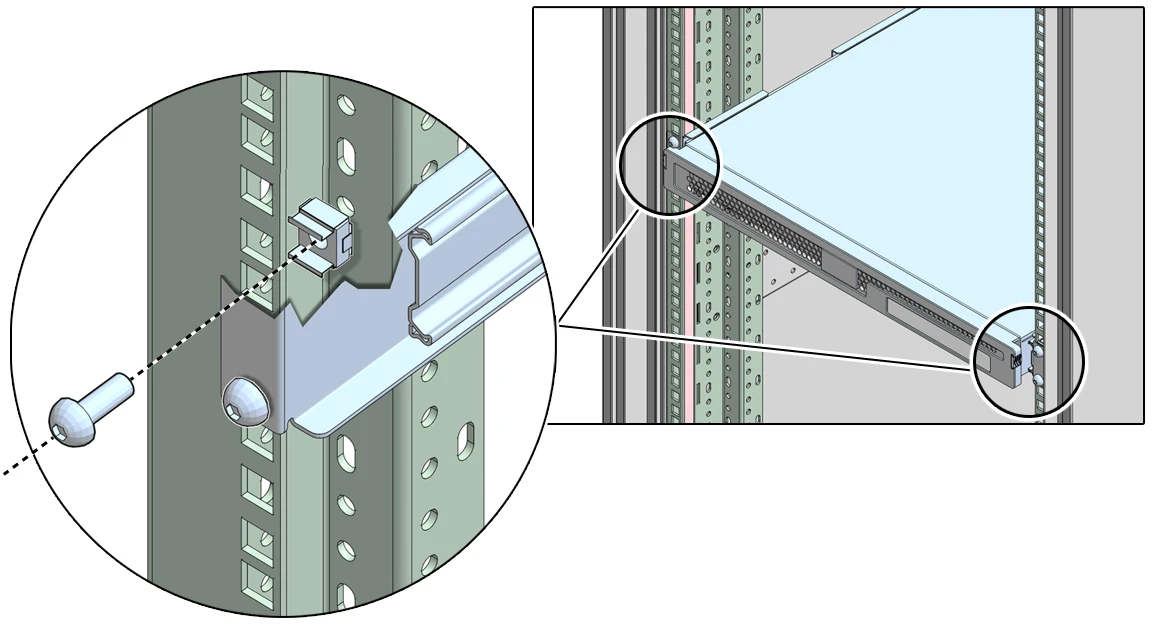

Using your equipment's rack alignment template, or other equipment documentation, locate the rail holes you are using to install
the equipment.
the equipment.

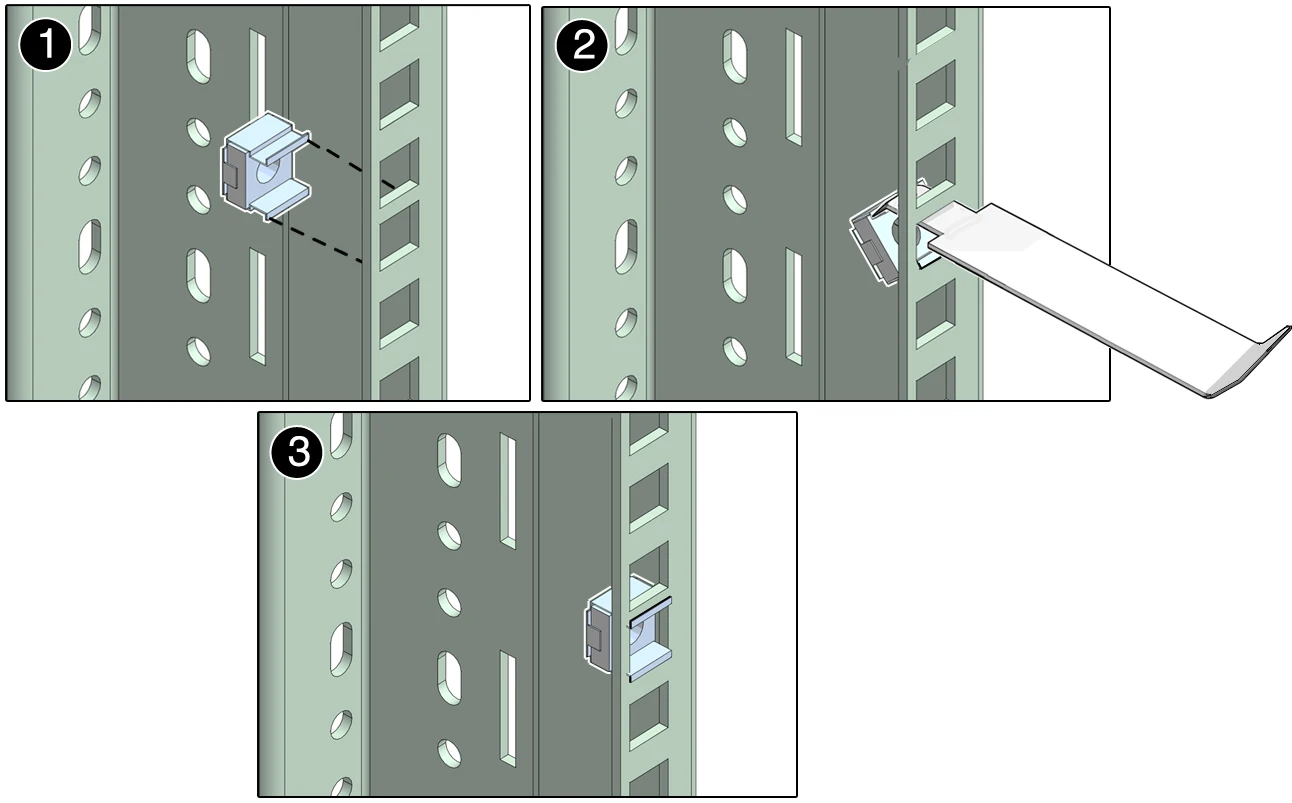

-Retrieve a cage nut and hook the bottom lip of the nut in the square rail hole.
-Insert the tip of the cage nut insertion tool through the rail hole and hook the top lip of the cage nut.
-Insert the tip of the cage nut insertion tool through the rail hole and hook the top lip of the cage nut.
-Using the insertion tool, pull the cage nut through the hole until the top lip snaps into place.
