UHV 645 transformer oil dissolved gas analysis device chromatography
- Category: >>>
- Supplier: Wuhan Huatian Electric Power Automation Co. Ltd.
Share on (62424014668):
Product Overview
Description
Product Paramenters
Key Technical Indexes | ||||
Operating display | 192×64 lattice sinicized liquid crystal | |||
Temperature control domain district | 6 route | |||
Temp Range | indoor temperature＋5℃～400℃， increment ：1℃，precision：±0.1℃ | |||
Temperature program order | 16steps | |||
Cheng Sheng rate | 0.1～40℃/min | |||
Pneumatic control | mechanical valve control mode electronic pressure flow control mode any optional | |||
External event | 4 route | |||
Sample injector species | fill column, capillary, six way valve gas injection, automatic headspace injection, etc, optional | |||
Detectionconfigured | 5Entries，FID、TCD、ECD、FPD、NPD（optional） | |||
Start the sample | manual self-motion any select | |||
Communicationport | ethernet：IEEE802.3 | |||

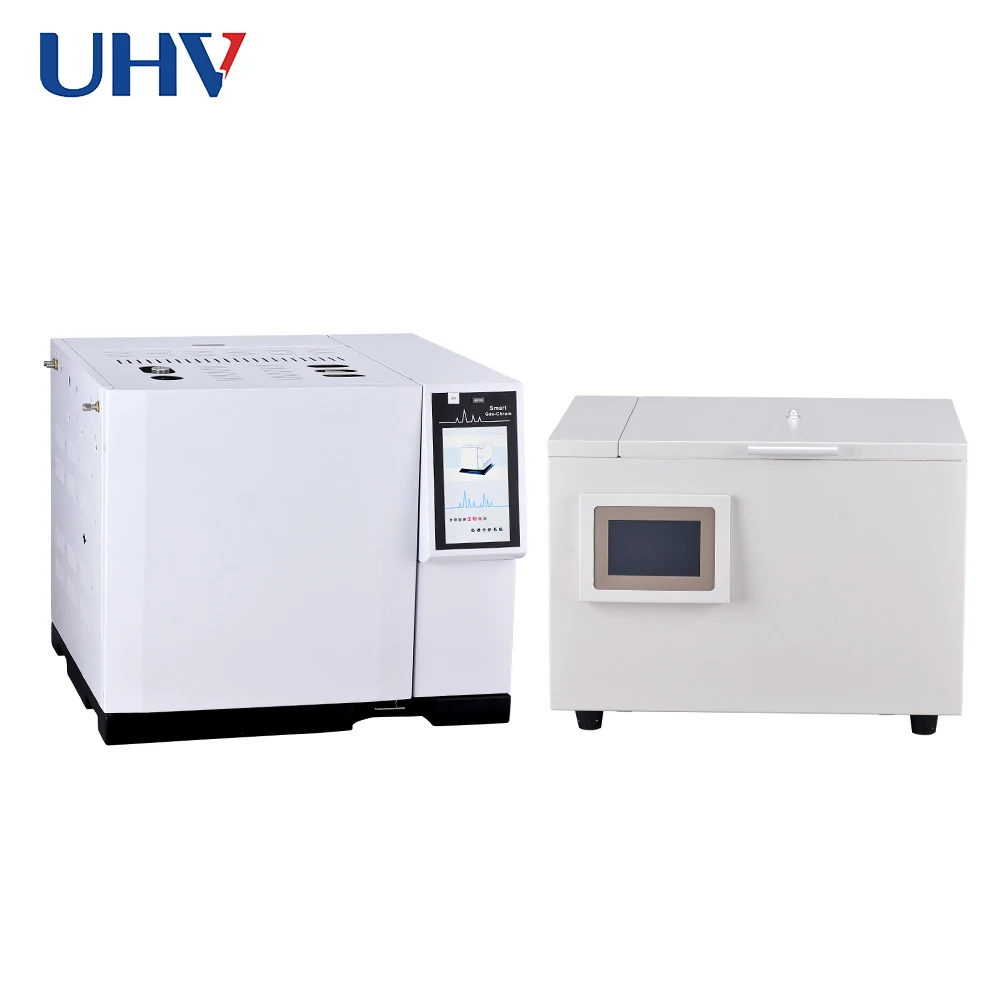

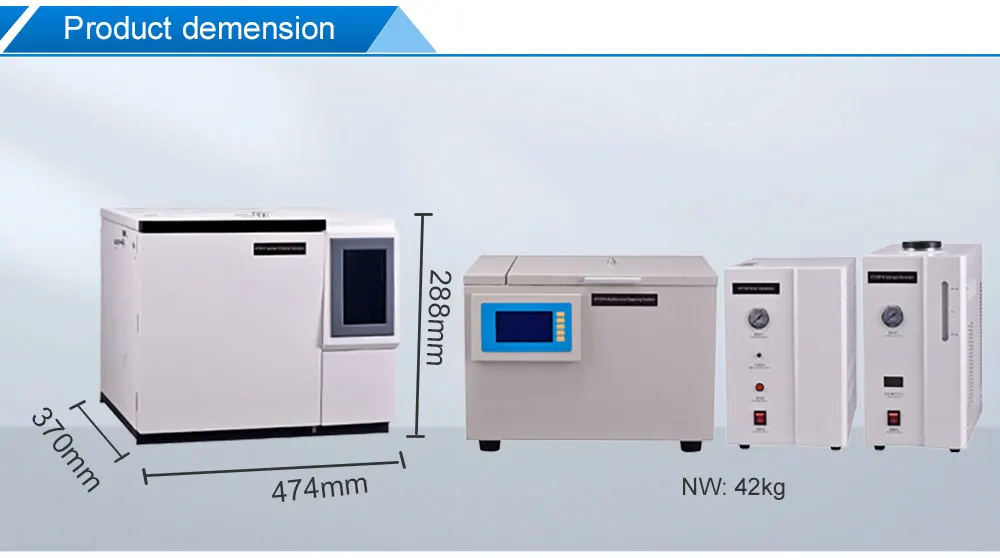

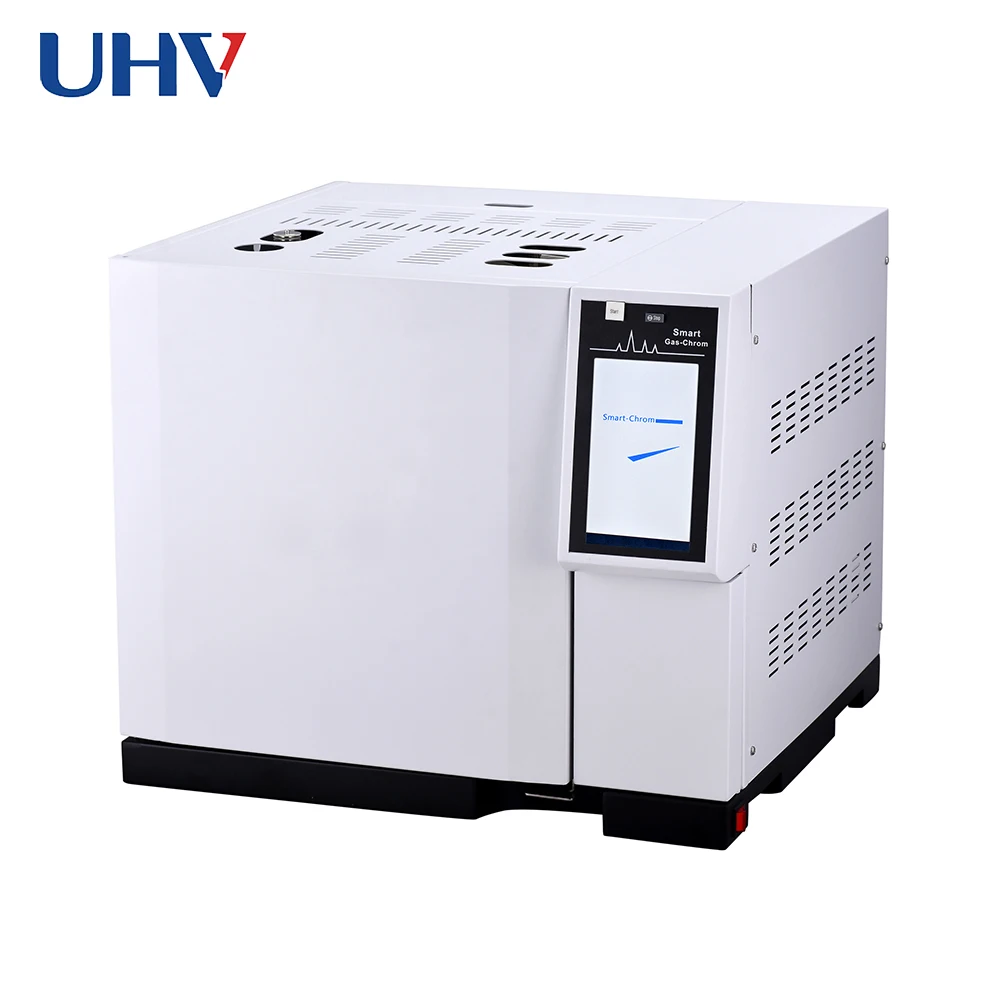

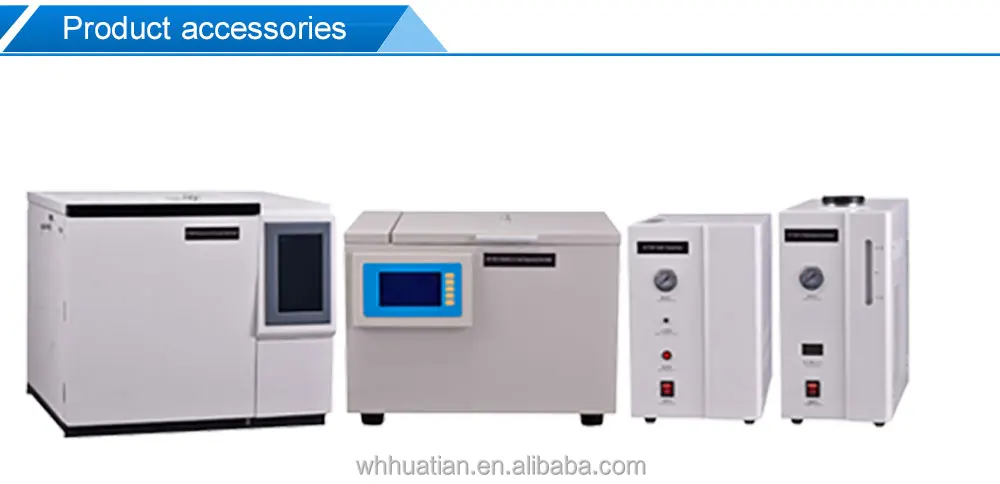

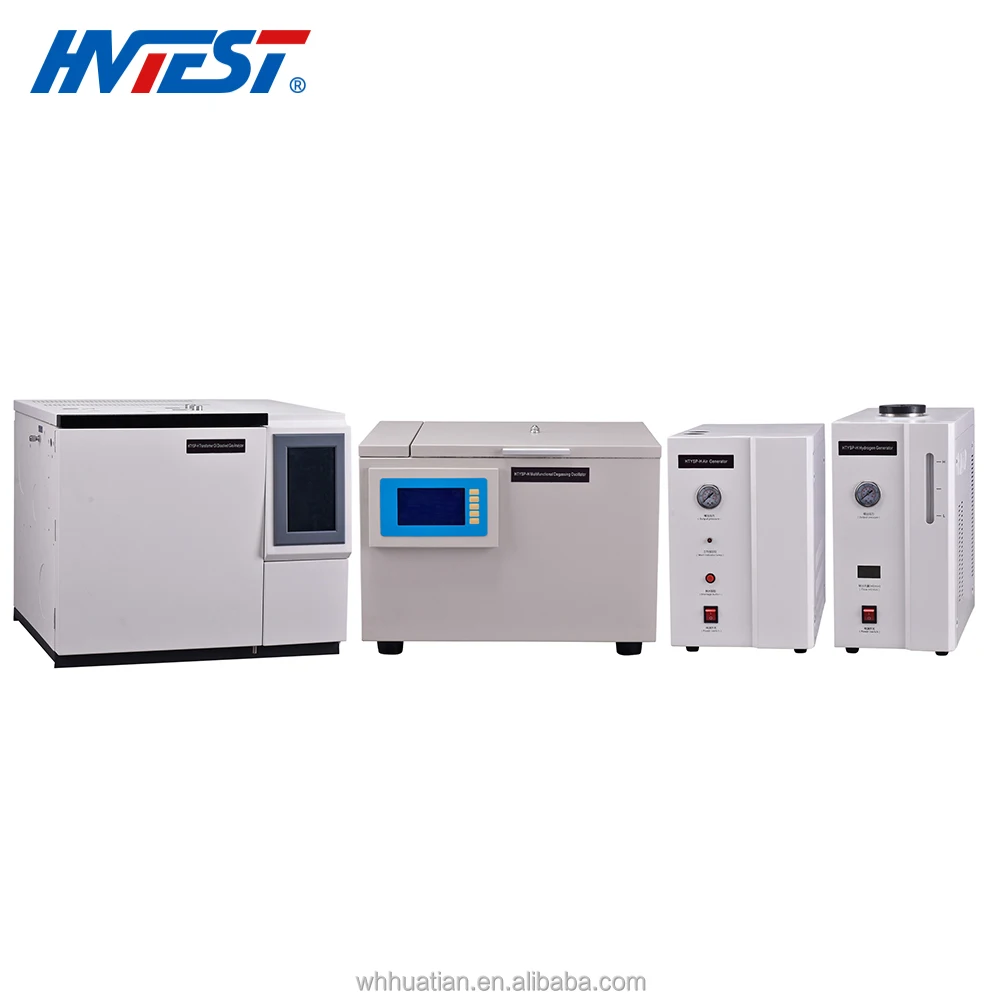

The host | Gross weight | 59kg | ||
volume | 70*60*65cm3 | |||
Oscillation device | Gross weight | 42kg | ||
volume | 61*46*57cm3 | |||

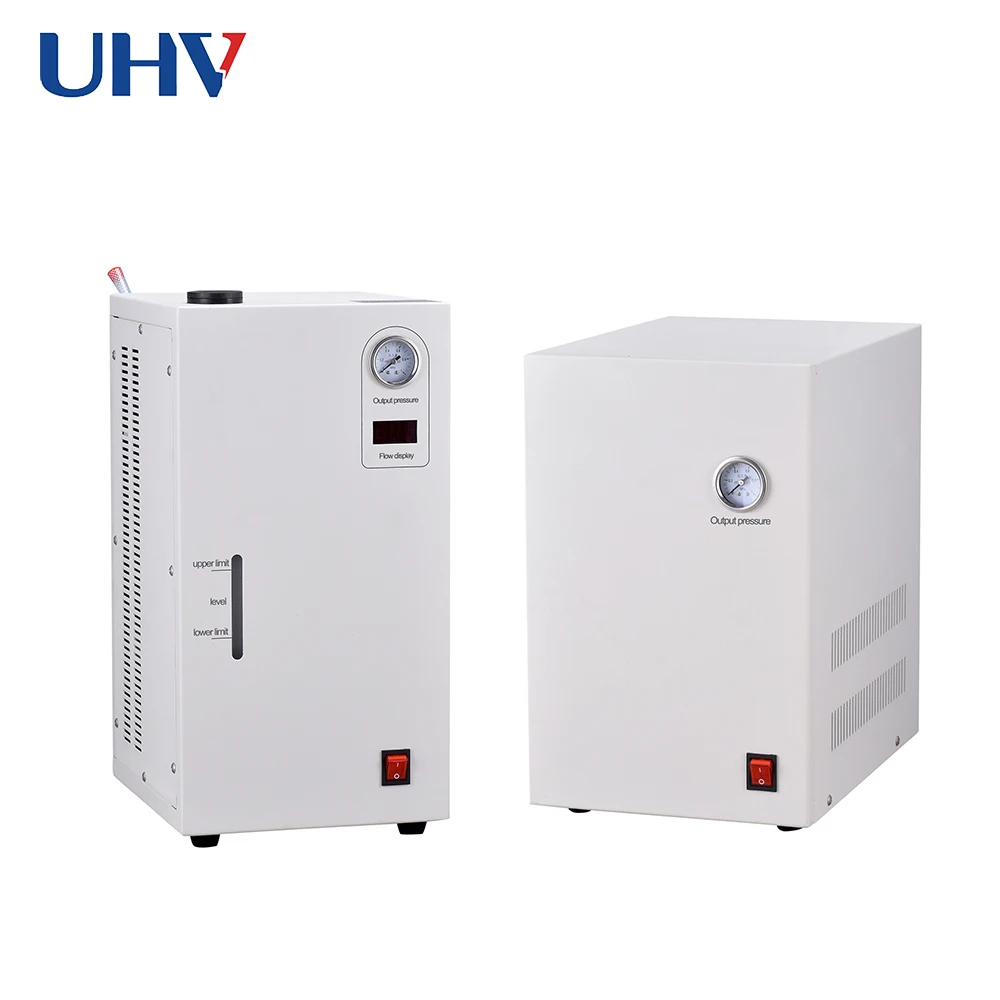

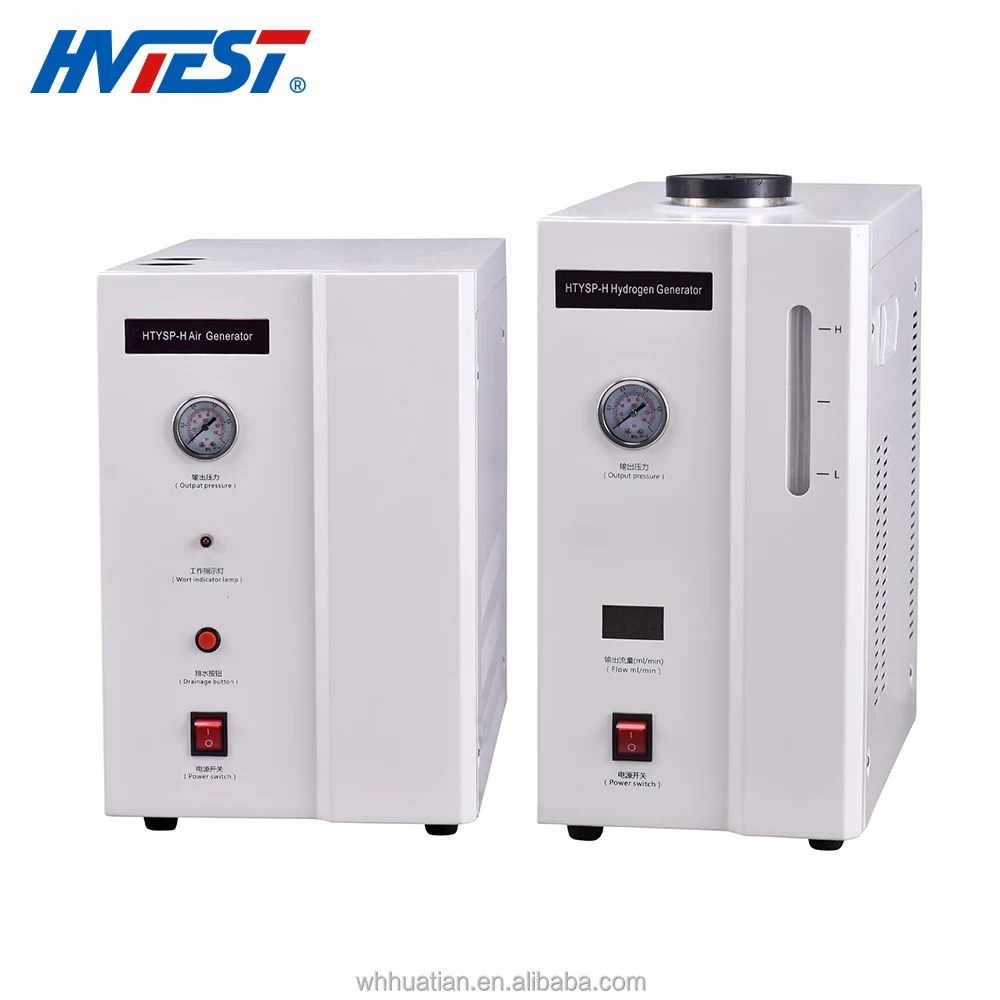

Air gas generator | Gross weight | 42kg | ||
volume | 65*40*77cm3 | |||

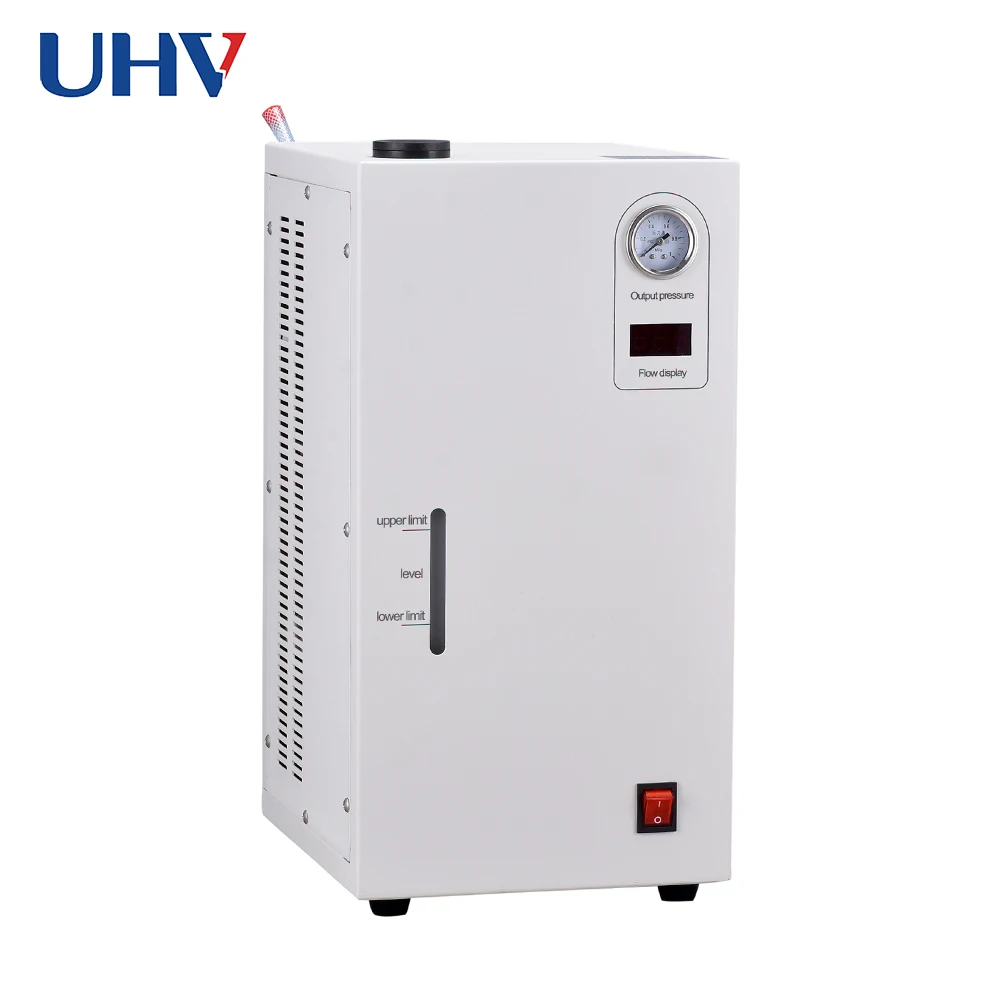

Hydrogen generator | Gross weight | 21kg | ||
volume | 53*36*55cm3 | |||
Gas cylinders | Gross weight | 17kg | ||
volume | 96*21.5*21.5cm3 | |||
Detector specification | ||
Hydrogen flame ionization detector (FID) | ||
Detection limit | ≤3×10-12g/s （n-hexadecane/isooctane） | |
Baseline noise | ≤5×10-14A | |
Baseline drift | ≤1×10-13A/30min | |
Linear range | ≥107 | |
Thermal conductivity detector（TCD） | ||
Sensitivity | s≥10000mV.ml/mg(benzene/toluene)（magnification 1, 2, 4, 8 times optional） | |
Detector number | five，FID、TCD、ECD、FPD、NPD（optional） | |
Baseline noise | ≤20μV | |
Baseline drift | ≤30μV/30min | |
Linear range | ≥105 | |
Electron capture detector(ECD) | ||
Detection limit | ≤1×10-14g/ml（propane-h66/isooctane） | |
Baseline noise | ≤0.03mV | |
Baseline drift | ≤0.2mV/30min | |
Linear range | ≥104 | |
Source | ni63 | |
Detection limit | (S)≤2×10-11g/s 、(P)≤1×10-12g/s(methyl parathion/anhydrous ethanol） | |
Baseline noise | ≤3×10-13A | |
Baseline drift | ≤2×10-12A/30min | |
Linear range | sulfur≥103、in p≥104 | |
Function&Characteristics
1.Adopt the technologically advanced 10/100m adaptive Ethernet communication interface and built-in IP protocol stack, so that the instrument can easily realize long-distance data transmission through enterprise Intranet and Internet; It is convenient to set up the laboratory, simplify the configuration of the laboratory and facilitate the management of the analysis data.
2.Chromatograph internal design process of three separate connection, can connect to the local processing site (laboratory), unit director (such as quality inspection section chief, production factory director, etc.), and supervisor (e.g., environmental protection bureau, bureau of technical supervision, etc.), you can easily make unit director and supervisor real-time monitoring instrument is running and analysis data.
3.The NetChromTM workstation can support multiple chromatographs at the same time, realizing data processing and control, simplifying document management, and effectively reducing the laboratory investment and operating costs of users.
4.The system has Chinese and English operating systems, users can switch according to the need.
5.The temperature control area can be named freely by the user for convenience.
6.The chromatograph adopts multi-processor parallel operation, which makes the instrument more stable and reliable. It can meet the requirements of complex sample analysis. It can be equipped with a variety of high-performance detectors, such as FID, TCD, ECD, FPD and NPD. Up to four detectors can be installed at the same time. The detector can also be added, after the purchase of the instrument is very convenient to choose and install other detectors.
7.The chromatograph adopts modular structure, clear design, easy to replace and upgrade, protecting the effectiveness of the investment.
9.The chromatograph can be matched with advanced electronic flow controller (EFC) and electronic pressure controller (EPC) to realize digital control, which can greatly improve the reproducibility of qualitative and quantitative results.
10.The chromatograph is designed with timing and self-starting program, which can easily complete the on-line analysis of gas samples (equipped with on-line automatic sample injection unit).
11.The operation system of keyboard controlled by microcomputer is simple and convenient. And design detector automatic identification technology. With the function of fault diagnosis and power off data protection, it can set parameters automatically by memory
12.The chromatograph has built-in low noise, high resolution 24-bit AD circuit, and has the function of baseline storage and baseline deduction.
13.Collect chromatographic signal and data processing, suitable for Windows xp, Windows 2000, Windows7 and other operating systems. Sample data is read into CDF files that conform to A/A (American analytical society) standards, so they are compatible with chromatography workstations such as Agilent and Waters.
14.Chromatography system with full intellectual property rights, MODBUS/TCP standard interface, and DCS can be easily connected.
15.Chromatographs and a number of manufacturers at home and abroad to produce automatic injector docking; Such as aoc-20i of jimazu, HT series of high speed liquid and gas automatic sampler of Italian HTA company.
2.Chromatograph internal design process of three separate connection, can connect to the local processing site (laboratory), unit director (such as quality inspection section chief, production factory director, etc.), and supervisor (e.g., environmental protection bureau, bureau of technical supervision, etc.), you can easily make unit director and supervisor real-time monitoring instrument is running and analysis data.
3.The NetChromTM workstation can support multiple chromatographs at the same time, realizing data processing and control, simplifying document management, and effectively reducing the laboratory investment and operating costs of users.
4.The system has Chinese and English operating systems, users can switch according to the need.
5.The temperature control area can be named freely by the user for convenience.
6.The chromatograph adopts multi-processor parallel operation, which makes the instrument more stable and reliable. It can meet the requirements of complex sample analysis. It can be equipped with a variety of high-performance detectors, such as FID, TCD, ECD, FPD and NPD. Up to four detectors can be installed at the same time. The detector can also be added, after the purchase of the instrument is very convenient to choose and install other detectors.
7.The chromatograph adopts modular structure, clear design, easy to replace and upgrade, protecting the effectiveness of the investment.
8.New microcomputer temperature control system, high temperature control accuracy, reliability and anti-interference performance; With a six-way completely independent temperature control system, it can realize 16 steps of programmed temperature rise, so that the equipment can be competent for a wider range of sample analysis; With the automatic rear door system of the column box, the low temperature control precision can be improved and the rise/drop speed is faster.
9.The chromatograph can be matched with advanced electronic flow controller (EFC) and electronic pressure controller (EPC) to realize digital control, which can greatly improve the reproducibility of qualitative and quantitative results.
10.The chromatograph is designed with timing and self-starting program, which can easily complete the on-line analysis of gas samples (equipped with on-line automatic sample injection unit).
11.The operation system of keyboard controlled by microcomputer is simple and convenient. And design detector automatic identification technology. With the function of fault diagnosis and power off data protection, it can set parameters automatically by memory
12.The chromatograph has built-in low noise, high resolution 24-bit AD circuit, and has the function of baseline storage and baseline deduction.
13.Collect chromatographic signal and data processing, suitable for Windows xp, Windows 2000, Windows7 and other operating systems. Sample data is read into CDF files that conform to A/A (American analytical society) standards, so they are compatible with chromatography workstations such as Agilent and Waters.
14.Chromatography system with full intellectual property rights, MODBUS/TCP standard interface, and DCS can be easily connected.
15.Chromatographs and a number of manufacturers at home and abroad to produce automatic injector docking; Such as aoc-20i of jimazu, HT series of high speed liquid and gas automatic sampler of Italian HTA company.
