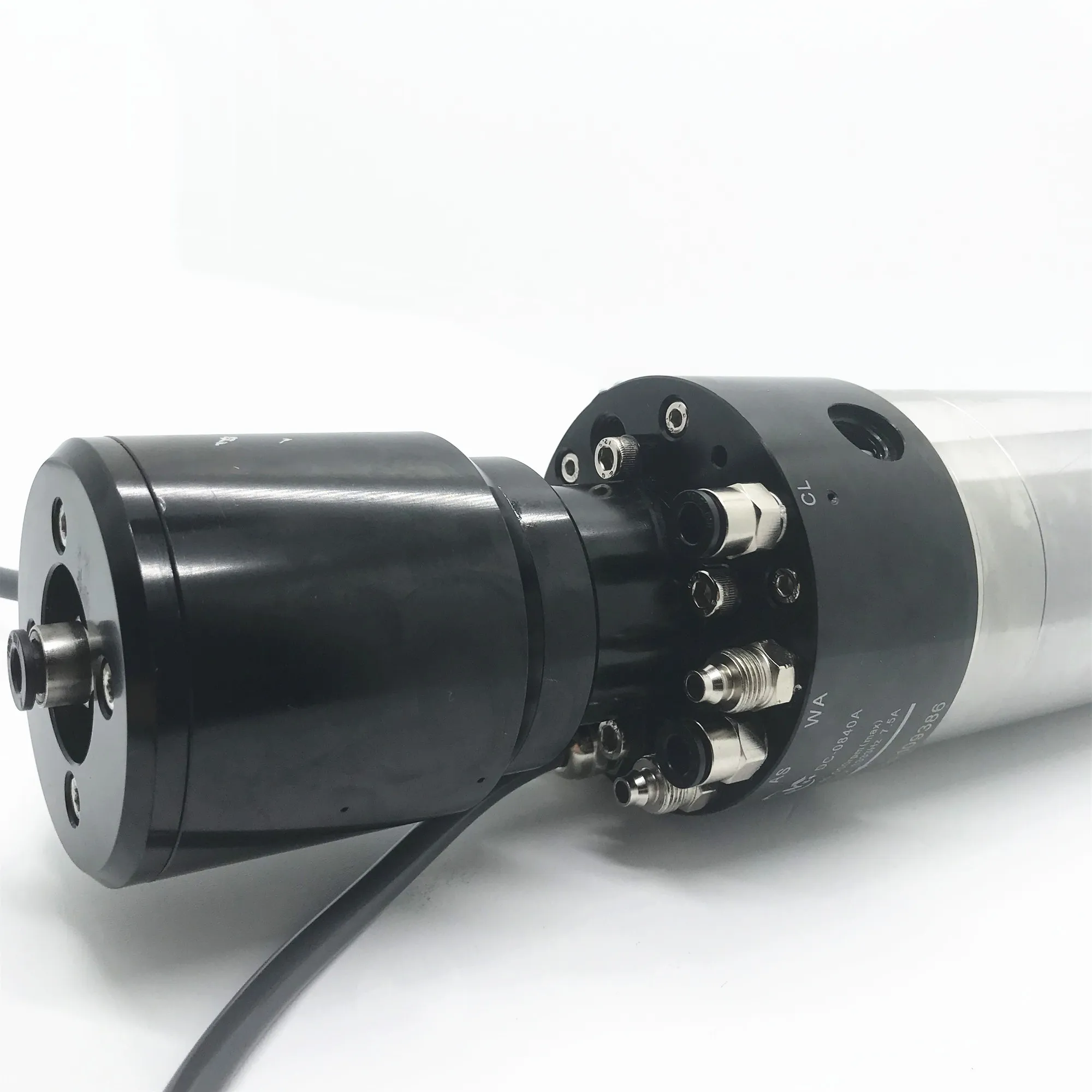

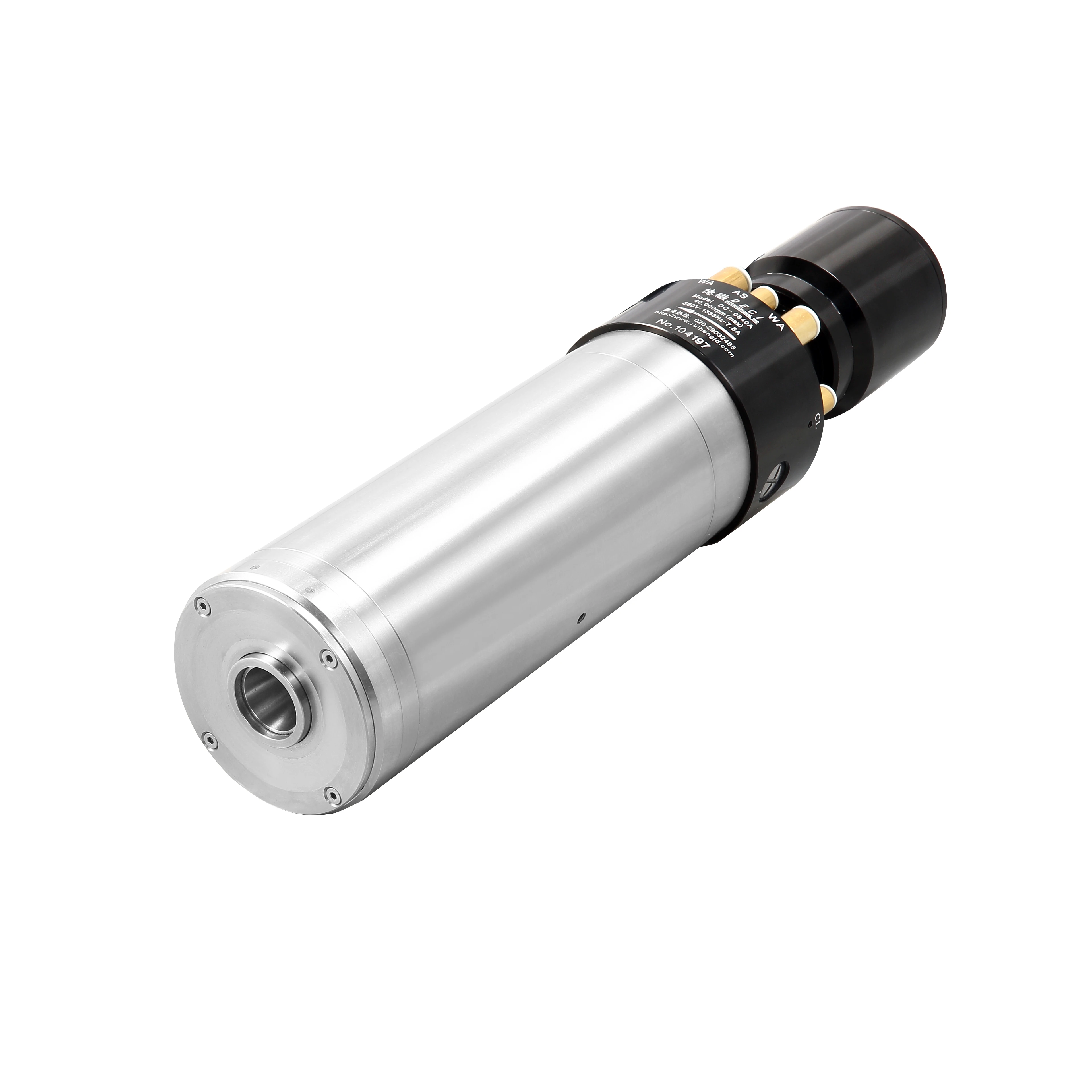

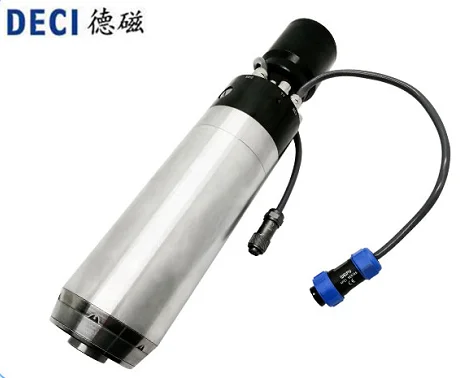

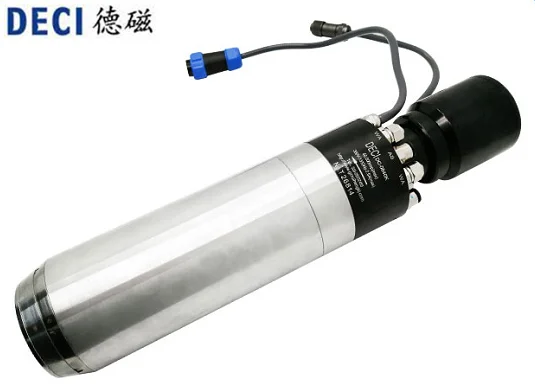

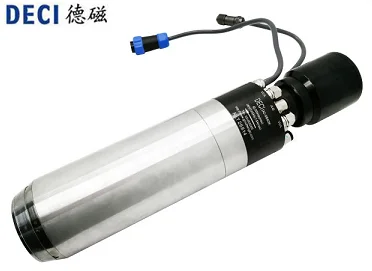

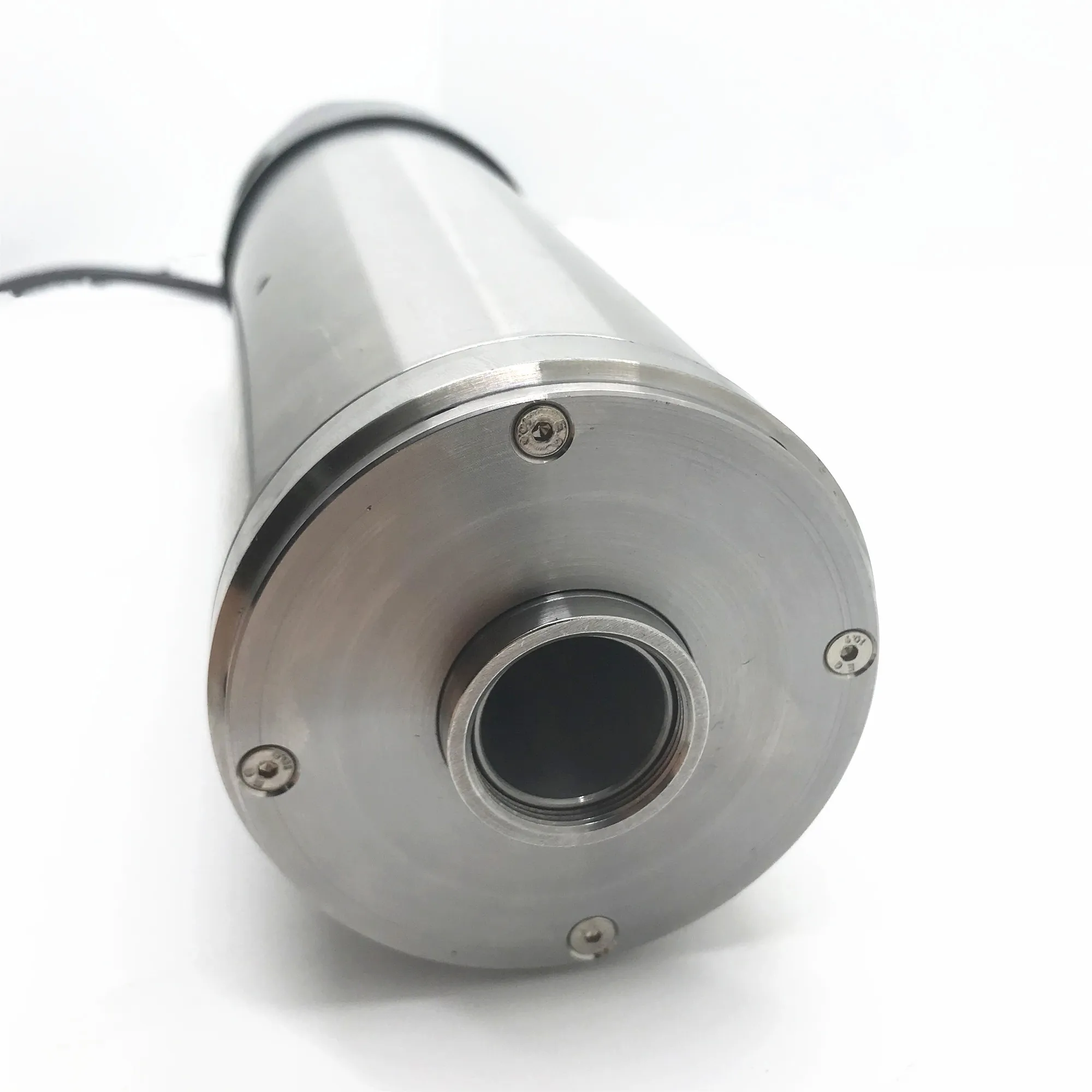

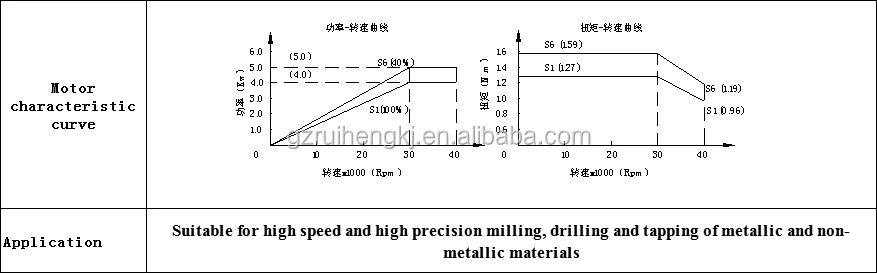

This product is a metal cutting high speed electric spindle with a maximum speed of 40000 rpm and a rated power of 4/3.7/2.5 kW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.
spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
Specificiations

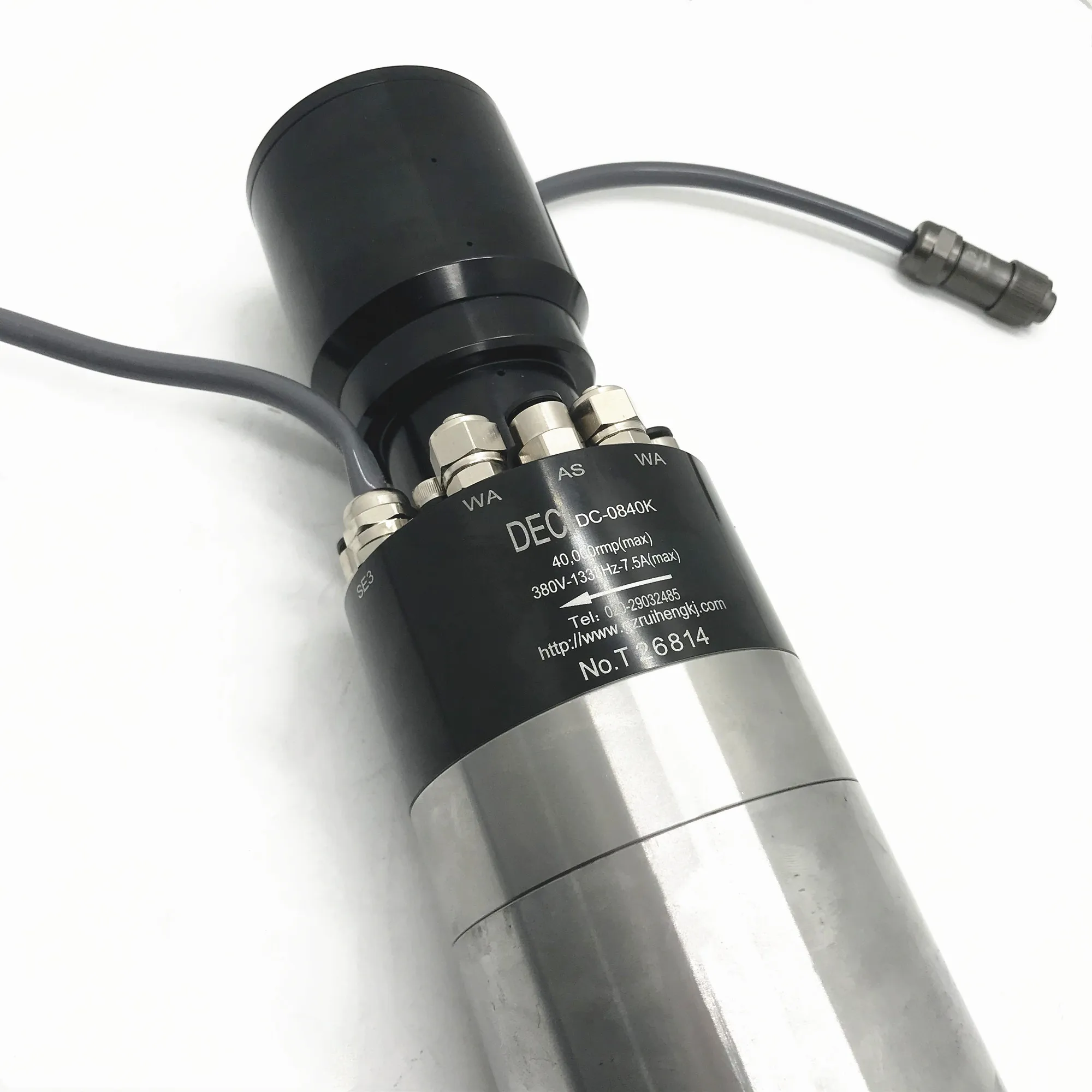

DC-0840K
Parameters
Motor Power:
4/3.7/2.5KW
Rated voltage:
380/200V(3~)
Max rotate speed :
40000Rpm/min
Max currency:
7.5/7.1/4.8A
Max Frequency:
1333Hz
Torque:
1.27/0.88/0.6N.M
Specification
Shaft-end Cone Run-out:
≤0.001mm
Tooling Releasing Air Pressure:
5.6-6.0Kgf/cm²
Tooling Exchange Method:
ATC
Air curtain pressure at front end:
2.5~3.0 Kgf/cm²
Tooling Pulling Force:
≥1100
Tooling Back Air Pressure:
5.6-6.0 Kgf/cm²
Tooling Connection:
ISO20 Shank-ER16
Cooling:
water cooling
Encoder:
Square wave TTL (optional)
Coolant Pressure:
≥2.5 Kgf/cm²
Approach Switch:
PNP ON
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
Mechanical holding
Vibration Value:
≤0.8
Weight:
7.65kg
Applicable industry
Packaging & Shipping
Why choose us
Company Information
Certifications
FAQ
