Guanfeng I3 10110U I5 10210U I7 10510U 2*DDR4 RAM Slots In tel i211 Network Cards Mini Brother PC
- Category: >>>
- Supplier: Guanfeng Network Technology (Shenzhen) Co. Ltd.
Share on (62424166226):
Product Overview
Description
Products Description
Brand | Guanfeng | ||||||

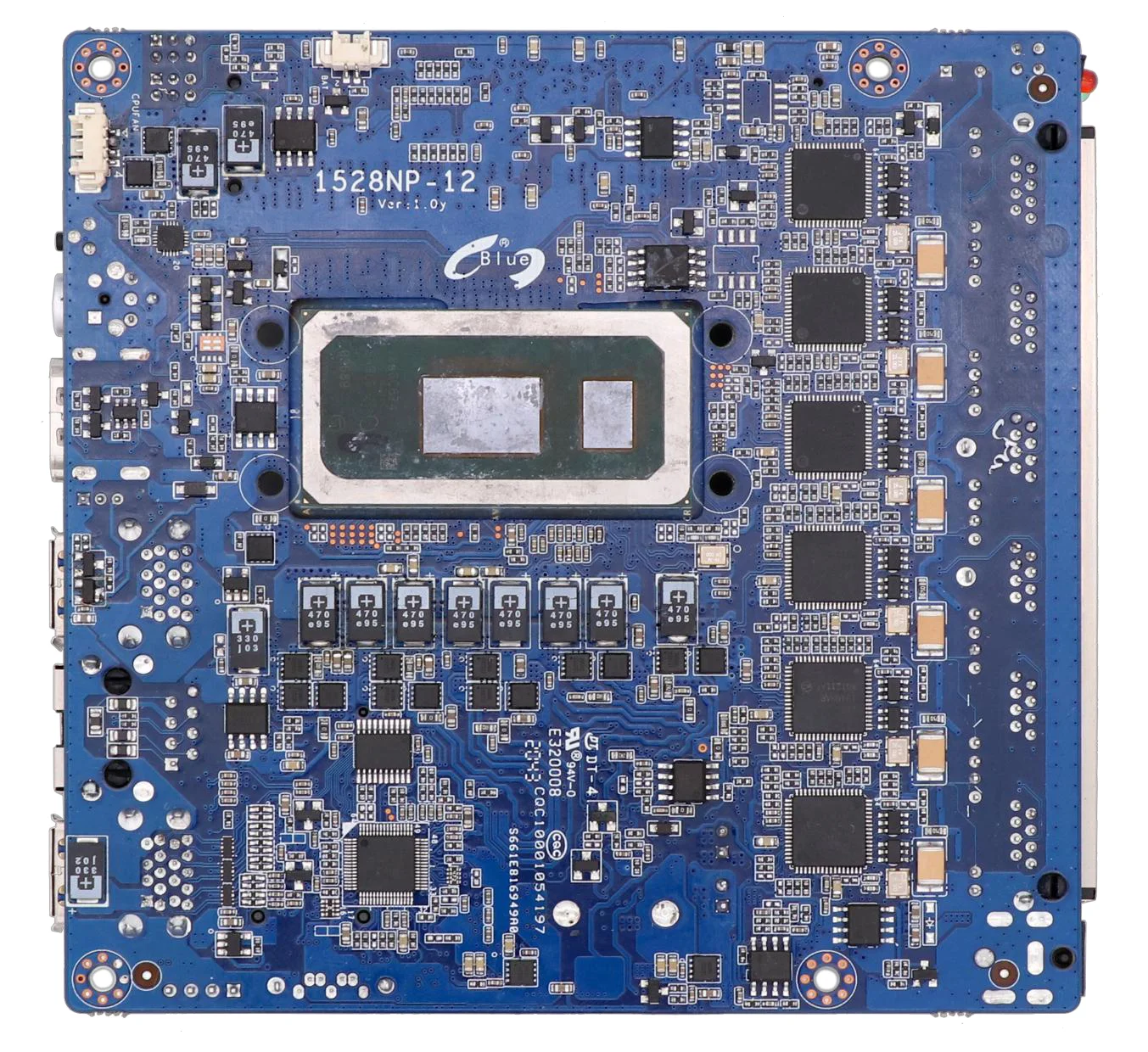

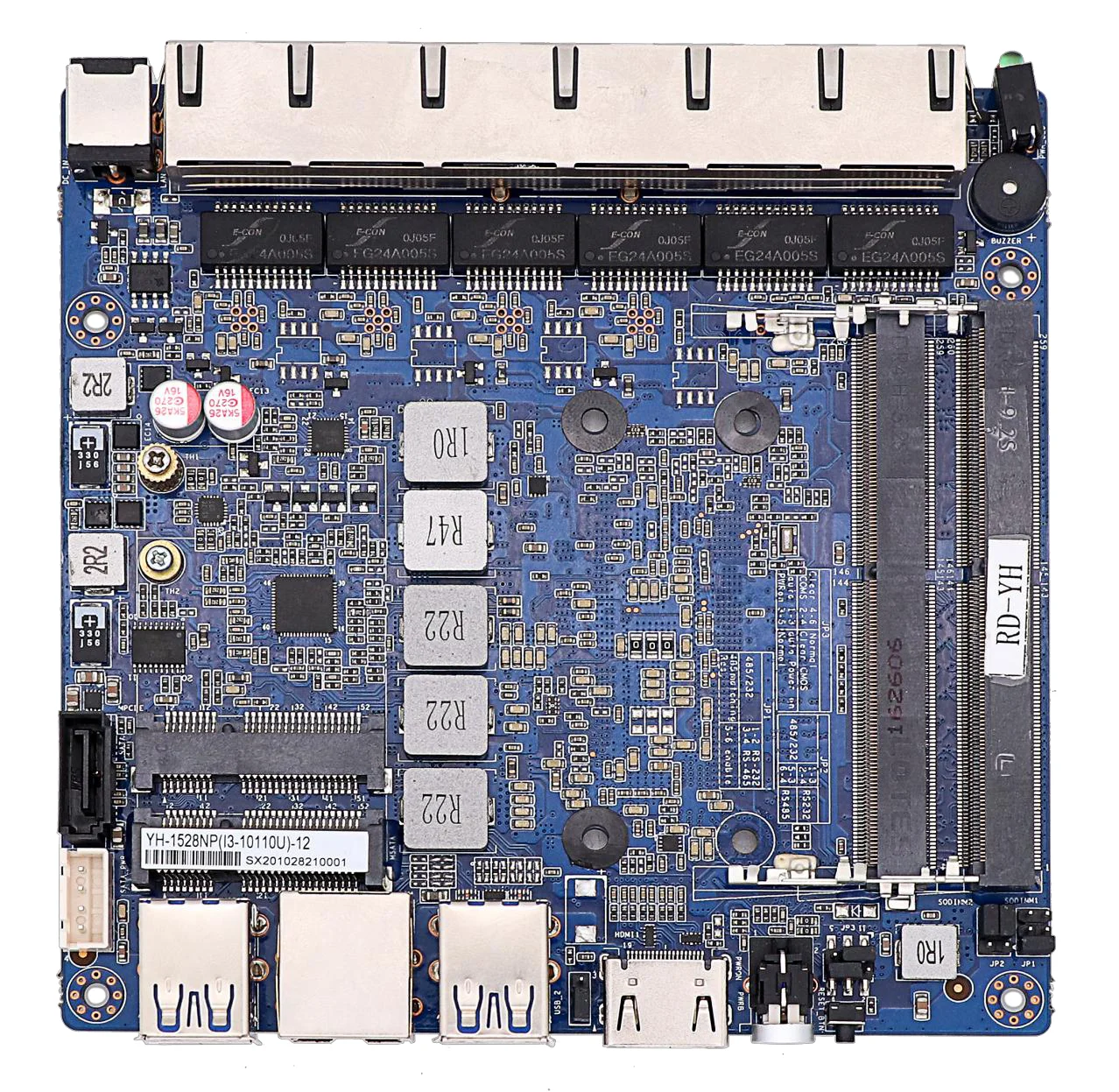

Motherboard | G31 | ||||||
CPU | Intel Core I5-10210U Processor, FC-BGA1528, 4 Core 8 Threads, 1.60GHz Base Frequency, maximum Burst Frequency 4.20GHz, 6MB Smart Cache, TDP 15W (optional) Intel Celeron 3855U/5205U; Intel Core i3-10110U/i5-10210U/i7-10510U; i3-7130U/I5-7360U/I7-7660U; I3-8130U/I5-8250U/I7-8550U | ||||||
Memory | 2 x DDR4 260 PIN SO-DIMM slots (RAM support: 1.2V) RAM type: DDR4-2666MHz Maximum 64GB | ||||||

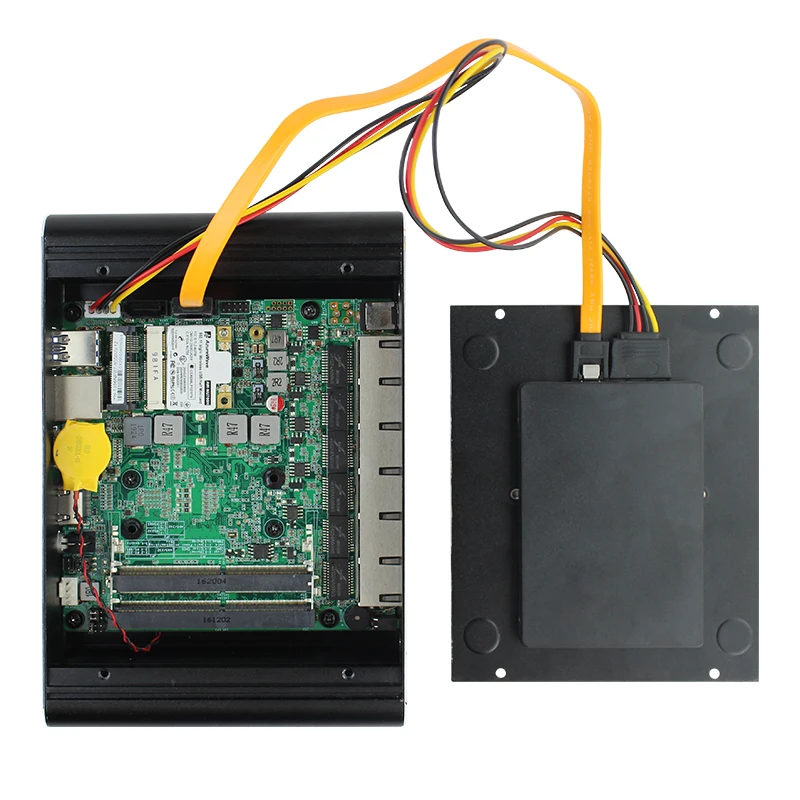

Storage | 1× SATA 1×MINI PCI-E connector supporting M-SATA SSD connector | ||||||
Display Chip | Intel HD Graphics | ||||||
Network Cards | Intel i211 Network Cards | ||||||

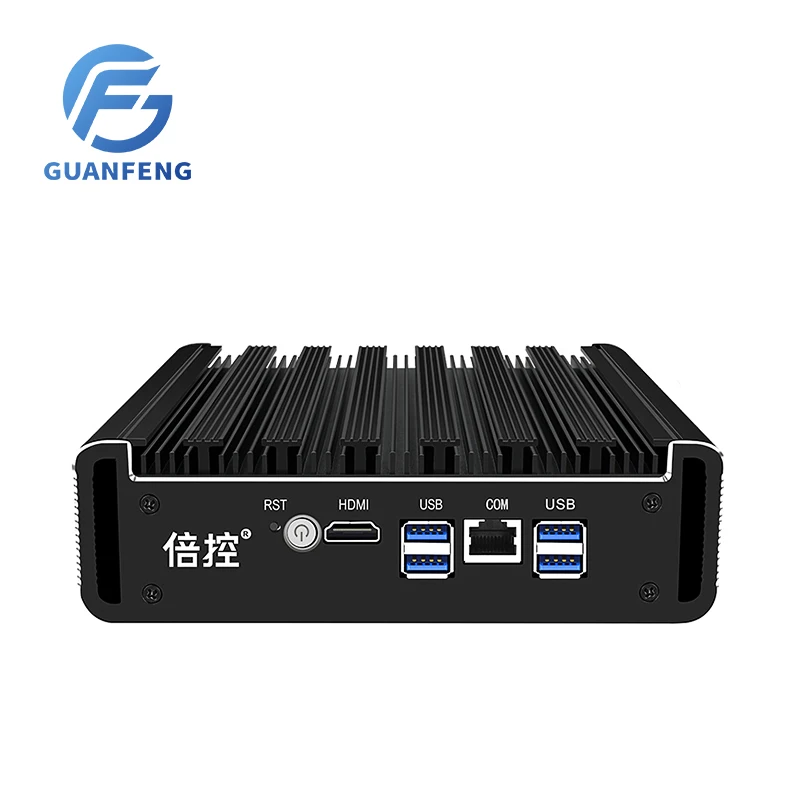

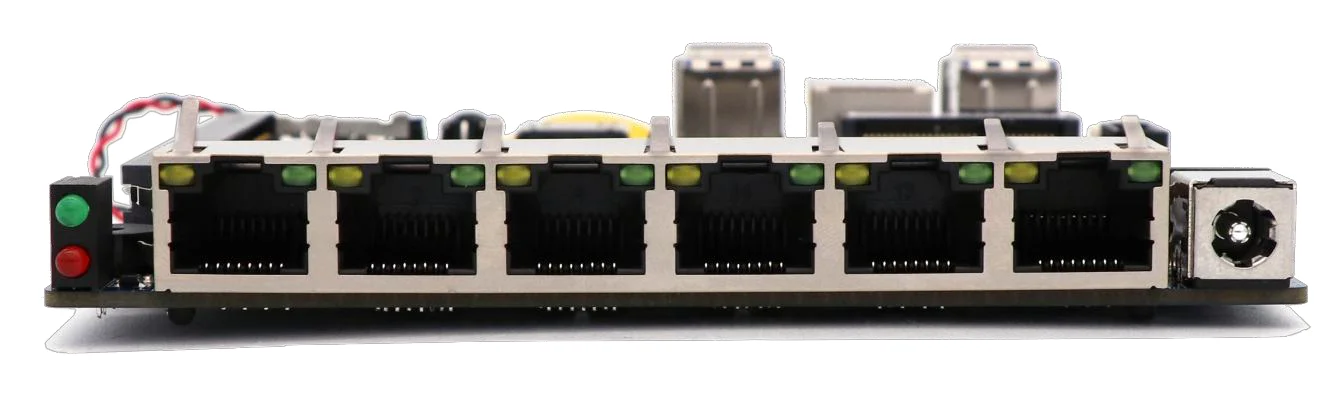

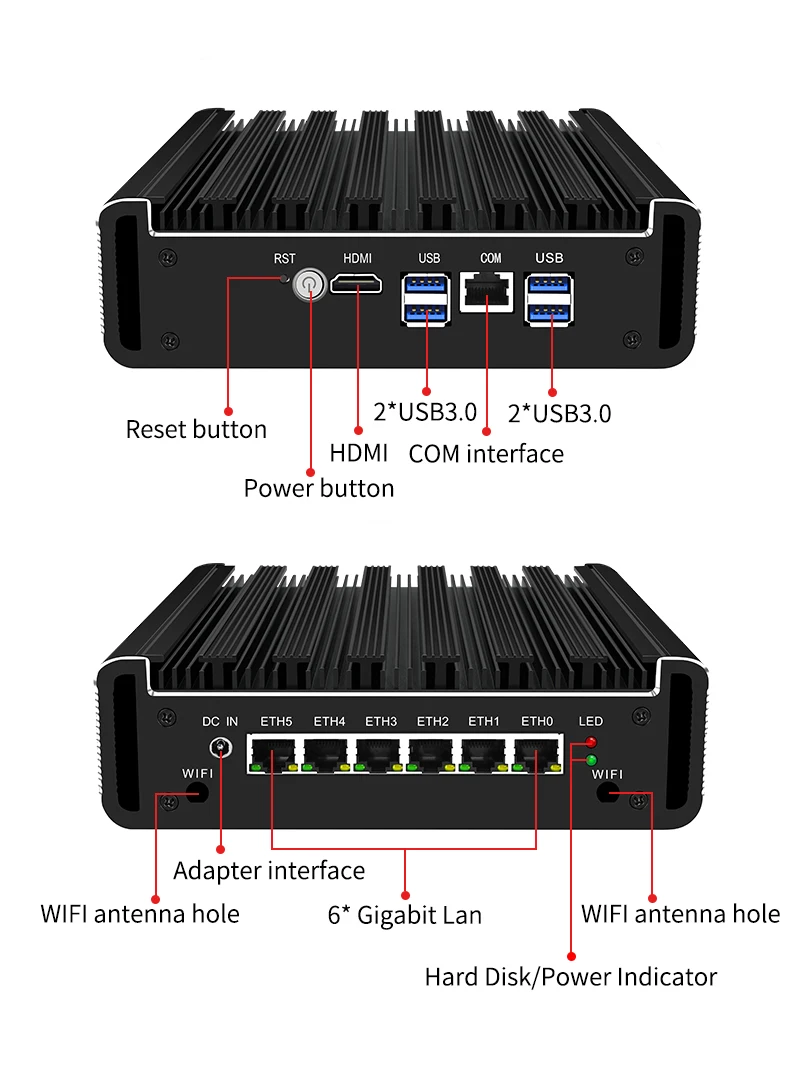

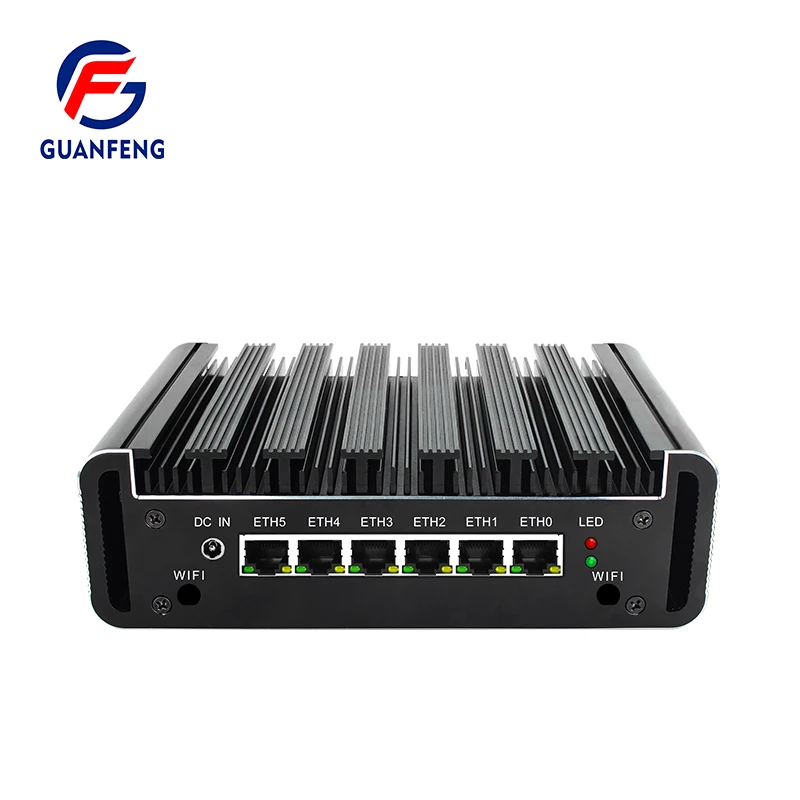

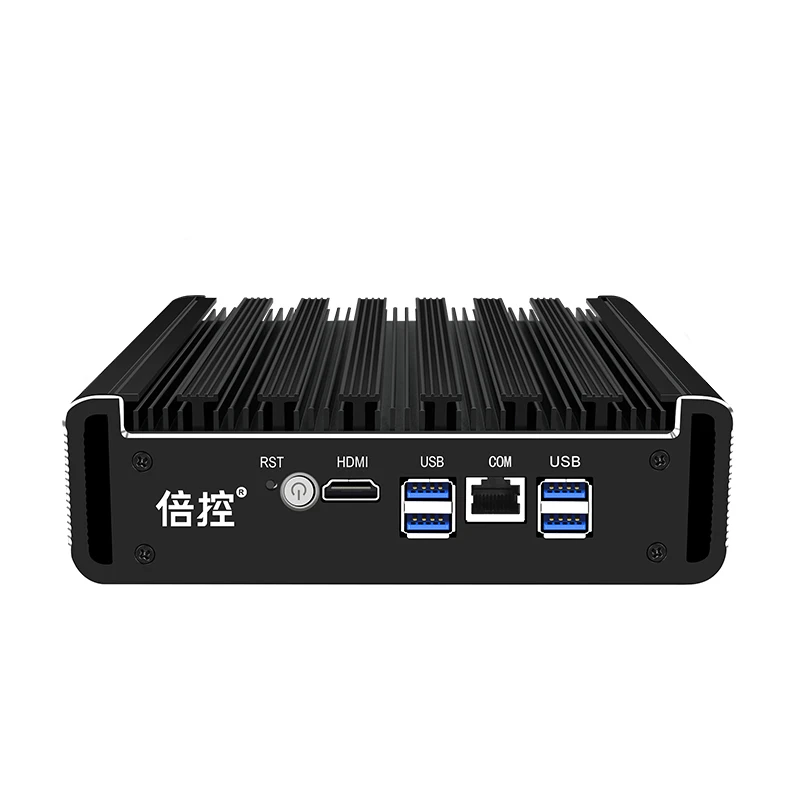

I/O | 1× power button 1× reset button 1× DC_IN port 4× USB3.0 ports 6× LAN ports 1× HDMI port 1× RJ45_COM port 1× SATA port 1× 7-pin SATA 2.0 1× CPU fan POE slot | ||||||
CPU Fan | Passive Heat Dissipation | ||||||
Power | External power 12V 6ADC5.5*2.5（optional） | ||||||
Operating Systems | Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx | ||||||

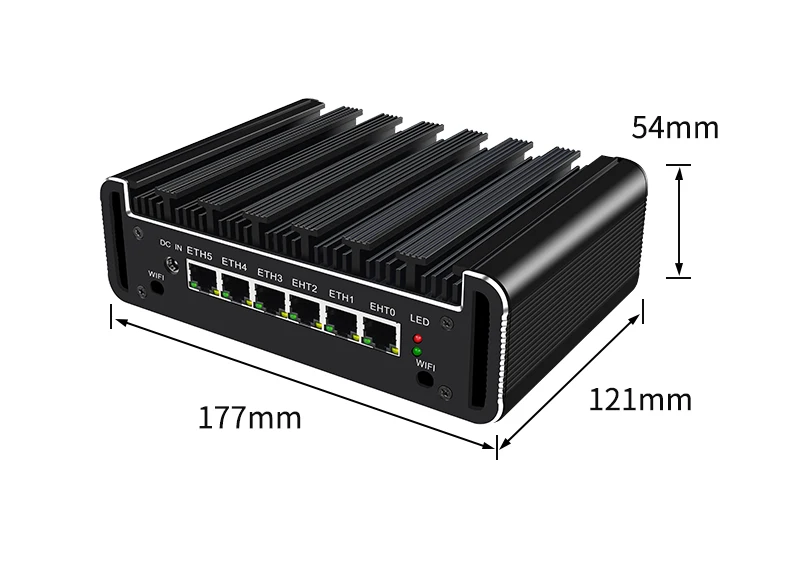

Dimensions | 177*121*54mm L*W*H(Internal dust protector) | ||||||

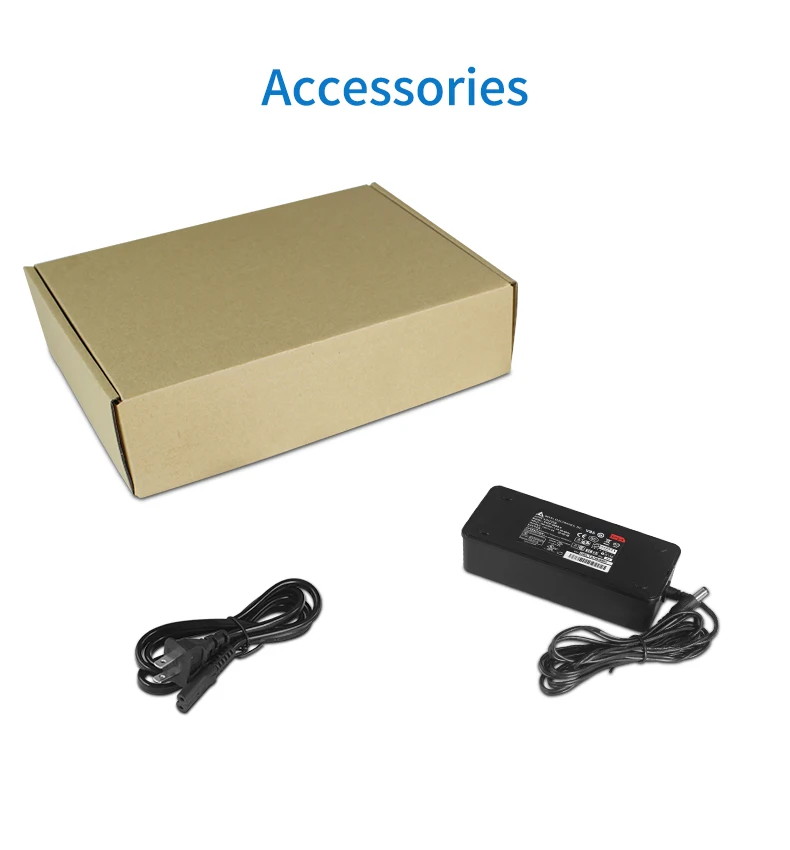

Accessories | OPS, a power cord, a set of warranty cards | ||||||
Using
Packing and Delivery
Certifications
Why Choose Us
After Sales
* We provide 7 days refund to make sure your purchasing is perfect! If you want to return our products for any reasons, we are glad to refund.
* But damage after use or artificially damage is not acceptable by the company. *The recipients or purchasers will be responsible for all charges caused by return the products.
About Us
Shenzhen Guanfeng, CO.Ltd is located in the most booming areas of China. We HAVE BEEN professional manufacture of Mini PC in China over the last 10 years.
We are specializing on manufacturing Mini PC. Skillful craftsman team with over 15 years of experience with advance high-tech modern machines which guarantees the consistent output and high quality.
We have our own direct factory and an experienced team to designing, producing and sales the Mini PC, with a large online store in the market, and a compete working line in the factory located in Shenzhen. Our products are produced and sold by ourselves to guarantee the lowest price and best service for every customers.
We warmly welcome OEM and ODM service for every special needs. We are willing to do the product customization according to your requirements, regarding to outside chassis, motherboard and so forth.
FAQ
Q: How long would the warranty period be?
A: We supported 1 year warranty, and provide free repair in the second and three years after sales. However, we will charge for the small parts in the machines that need to be change.
Q: Why do you choose us?
A We are manufacturer of Mini PC with over 15 years of experience in the market, we have strict quality control non our factory to make sure every products we sell are in line with the strict global standards.
Q: Is logo customization available?
A: We have two choices for you: laser print and silk screen. Normally speaking, laser print is free. The cost of silk screen depends on the complexity of logo.
Q: What is the minimum order quantity (MOQ)？
A: 1 pieces.
