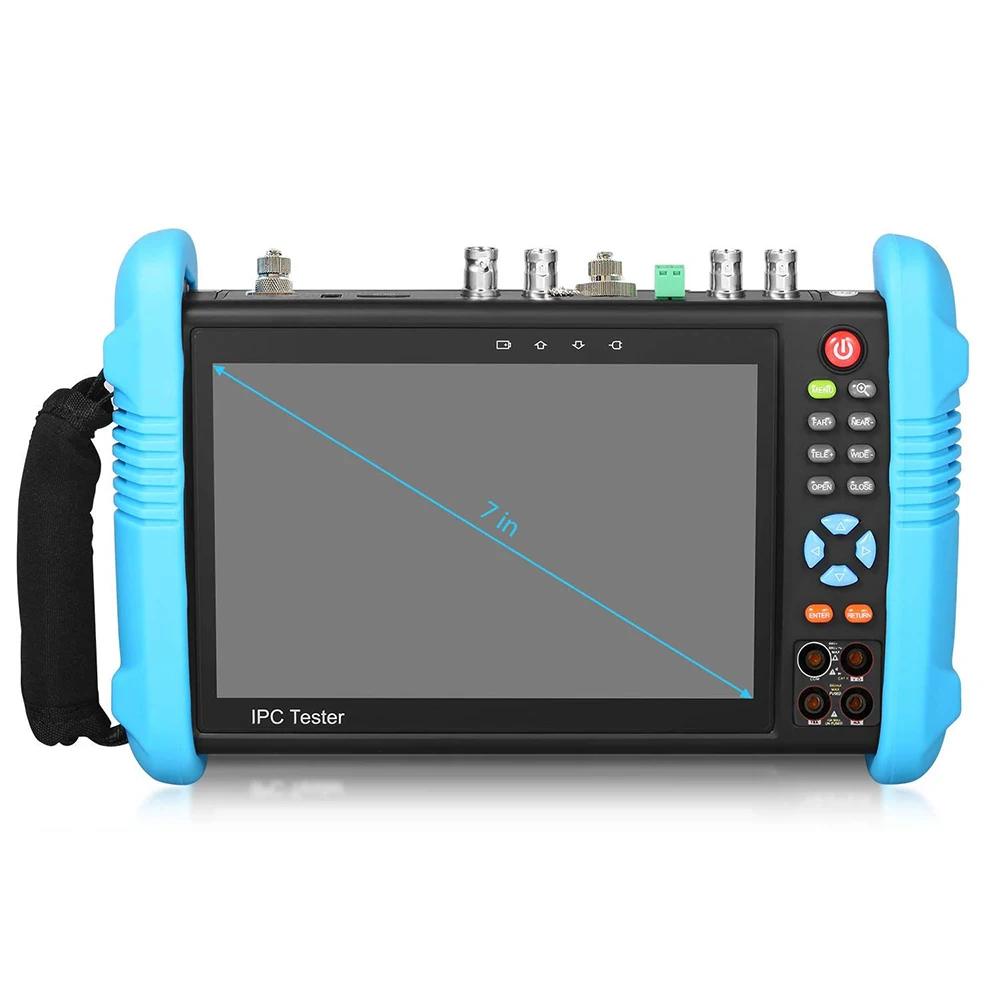

Тестер видеонаблюдения IPC, 7 дюймов, 4K, IP камеры, мультиметр, оптический измеритель мощности, красный источник света
- Category: CCTV Monitor >>>
- Supplier: Shenzhen Tisan Security Technology Co. Ltd.
Share on (62424201844):
Product Overview
Description
Product Description

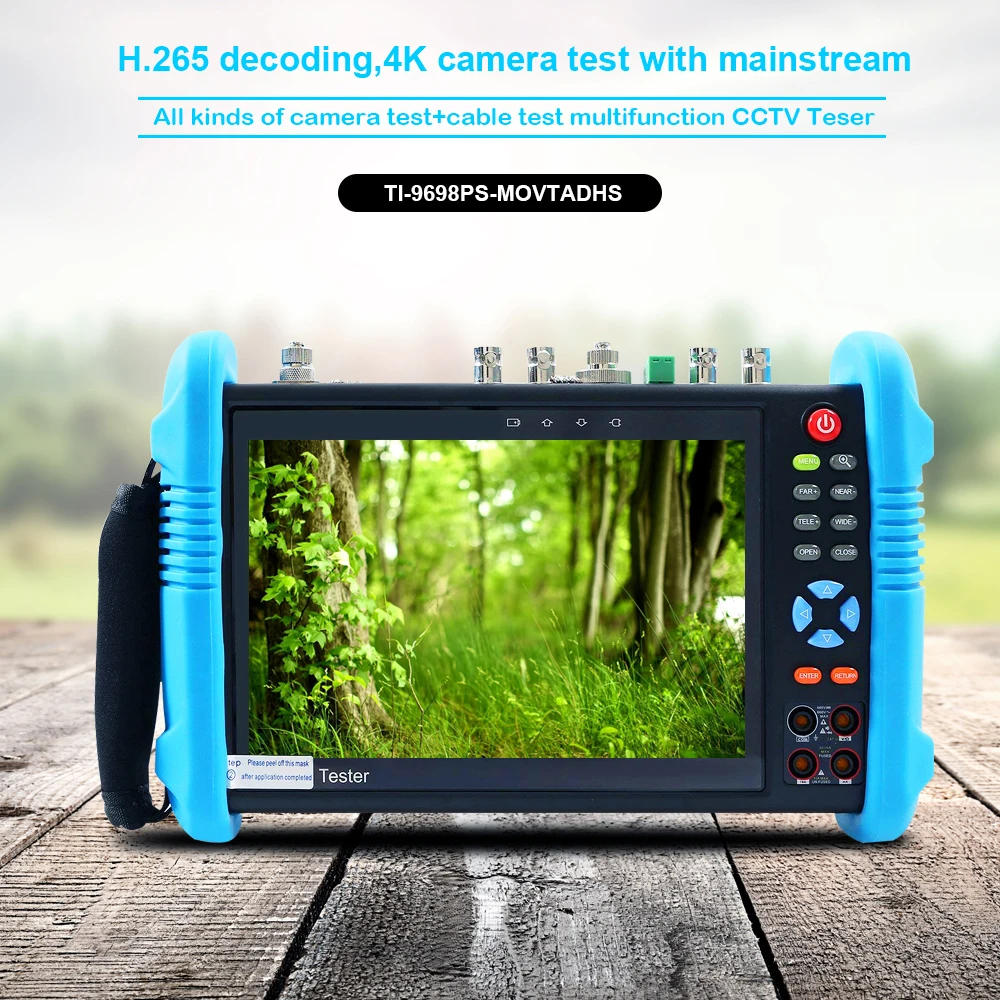

7 inch 4K CCTV tester IPC cctv camera testers IP Camera tester for HDMI input/output multimeter optical power meter red light source
Feature
TI-9698PS-MOVTADHS：For 8MP TVI / CVI 5MP AHD 1080P SDI for HDMI in/output cable tracer+
Multimeter + optical power + TDR cable tester +red laser soucer
1)7 inch IPS touch screen, 1280*800 resolution
2)4K H.265 H.264 video display via mainstream.4K IP Camera test;
3)RJ45 cable TDR test, cable quality test.
4)POE, DC 12V power voltage test, with HDMI input,1080P.
5)TesterPlay:Tester, android version mobile phone, PC display at the same time.
6)Batch activate Hik camera.
7) Language support: English, Chinese, Korean, Russian, Italian , Polish ,Spanish, French or Japanese;
Multimeter + optical power + TDR cable tester +red laser soucer
1)7 inch IPS touch screen, 1280*800 resolution
2)4K H.265 H.264 video display via mainstream.4K IP Camera test;
3)RJ45 cable TDR test, cable quality test.
4)POE, DC 12V power voltage test, with HDMI input,1080P.
5)TesterPlay:Tester, android version mobile phone, PC display at the same time.
6)Batch activate Hik camera.
7) Language support: English, Chinese, Korean, Russian, Italian , Polish ,Spanish, French or Japanese;
Product Specs
TI-9698PS-MOVTADHS Specification | ||||||||
Display | 7 inch touch screen with retina display ,1920*1200 resolution | |||||||
TVI Test | 8MP TVI camera test,2560x1944P12.5FPS, UTC control/ call OSD menu | |||||||
AHD Test | 5MP AHD test, 2560x1440P 15F/25F/30F, UTC control d call OSD menu | |||||||
CVI Test | 8MP CVI camera test: 2560x1440P 25F/30F,UTC control d call OSD menu | |||||||
SDI Test | HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS. | |||||||
CVBS Test | (1) 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt), (2) Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement; (3) PTZ control,RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc; (4) CVBS loop test: the tester send and receive color bar generator signal, check BNC cable | |||||||
IP Camera test | (1) IPC test /IPC viewer /Rapid Video/RTSP /ONVIF; (2) Rapid Video: can create testing report; (3) Hik test tool: pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters; (4) Dahua test tool: Dahua camera test, modify the user name, password and IP parameters; | |||||||
H.265 4K Camera test | H.264 & H .265 ,4K video display via mainstream | |||||||
IP &CVBS test | IP& CVBS test at the same time ,converter test from analog to digital with dual test window | |||||||

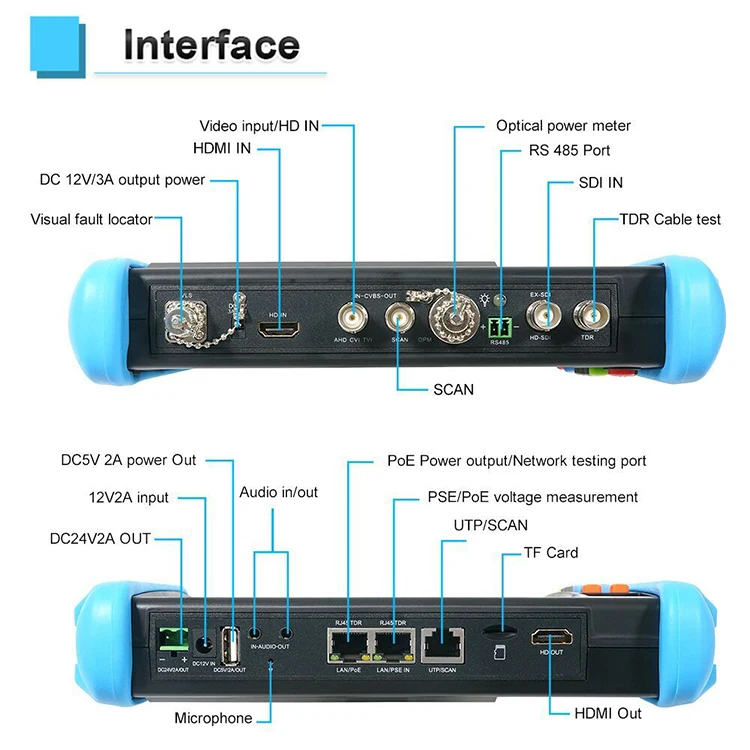

With HDMI input/Output | 1 channel For HDMI input support 1080P, 1 channel for HDMI output,support 1080P | |||||||
WIFI | Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot | |||||||
IP camera type | Customized camera protocols welcome. ACTi,Dahua IPC-HFW2100P,Hikvision, DS-2CD864-E13,Samsung SNZ-5200,Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T, IPC,FSJ BY-1080Q,WEISKY IPC camera etc. | |||||||
Audio in /out | Support record and save the audio/LED lamp, calculators, music players and other application tools | |||||||
Video Level Test | PEAK ,SYNC signal level, color burst chroma level measurement | |||||||
Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back | |||||||
Power output | (1) Output DC12V/2A power out ,supply temporarily power for the camera (2) 48V PoE power output, max power 24W (3) USB 5V 2A power output, as a power bank | |||||||
Cable test | (1) Cable tracer: search BNC cable, network cable and telephone cable from the mess cables; (2) UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen; (3) RJ45 cable TDR test: test cable pair status, length, attenuation, reflectivity, impedance, skew etc | |||||||
Testerplay | screen projection: tester, android version mobile phone and PC display at the same time | |||||||
Network test | Trace route, Link monitor , DHCP server, port flashing , Ping test | |||||||
PoE power output | 48V PoE power output,Max power 24W | |||||||
Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone; | |||||||
Rapid Onvif | Auto log in and display image from the camera, activate Hikvision camera, and also can create testing report | |||||||
Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable. (red, green ,blue, white and black color ) | |||||||
Memory | 8GB SD card including | |||||||
Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal | |||||||
Software | Customers self update software ,you can install apps with android version ,such as Skype, wechat etc | |||||||
PoE test | Measurement POE switch or PSE power supply voltage and cable connection status | |||||||
POWER | ||||||||
External power supply | DC 12V 2A | |||||||
Battery | Built-in 7.4V Lithium polymer battery ,5000mAh | |||||||
Rechargeable | After charging 6~7 hours, normal working time 10 hours | |||||||
Parameter | ||||||||
Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish etc | |||||||
Auto off | 1-30 (mins) | |||||||
General | ||||||||
Working Temperature | -10°C~+50°C | |||||||
Working Humidity | 30%-90% | |||||||
Dimension/Weight | 231mm x 172mm x 52mm / 2.46Kg | |||||||

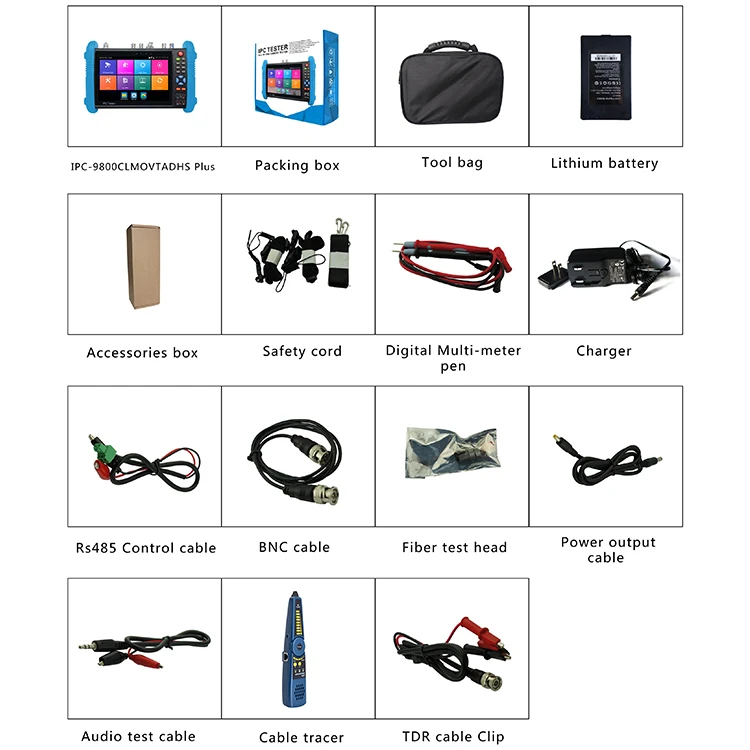

Package Contents
Packing list
1).Tester
2). Packing box
3) Tool bag
4) Lithium battery
5). Accessories box
6). Safety cord
7). Digital Multi-meter pen
8). Charger
9). Rs485 Control cable
10). BNC cable
11).Fiber test head
12). Power output cable
1).Tester
2). Packing box
3) Tool bag
4) Lithium battery
5). Accessories box
6). Safety cord
7). Digital Multi-meter pen
8). Charger
9). Rs485 Control cable
10). BNC cable
11).Fiber test head
12). Power output cable
13).Audio test cable
14).Cable tracer
15).TDR cable Clip
About us
Shenzhen TISAN Security Technology Co.,Ltd.(hereinafter referred to as "TISAN"),Tisan security Limited was established in 2008,as China professional surveillance products developer and manufacturer, OEM & ODM provider, we are specialized in designing and manufacturing Analog camera,HD SDI camera,AHD camera,Mega Pixle Network camera,AHD DVR,NVR ets.
We can provide professional OEM and ODM customize service for global customer.During its existence,Tisan security has succeeded in adopting international practices for surveillance products and reduced their cost as much as possible. Nowadays,we achieved remarkable progress in R&D team-building, production management.And provide reliable and competitiveness products for our partners. As a consequence,our company has gained reputation for being a reliable supply partner for surveillance products to distribution companies and trading firms. TISAN products have sold to more than 50 countries,like The united states, The Unite kingdom,Russian,Italy,Saudi Arabia,Turky,Soth African,German,France etc.

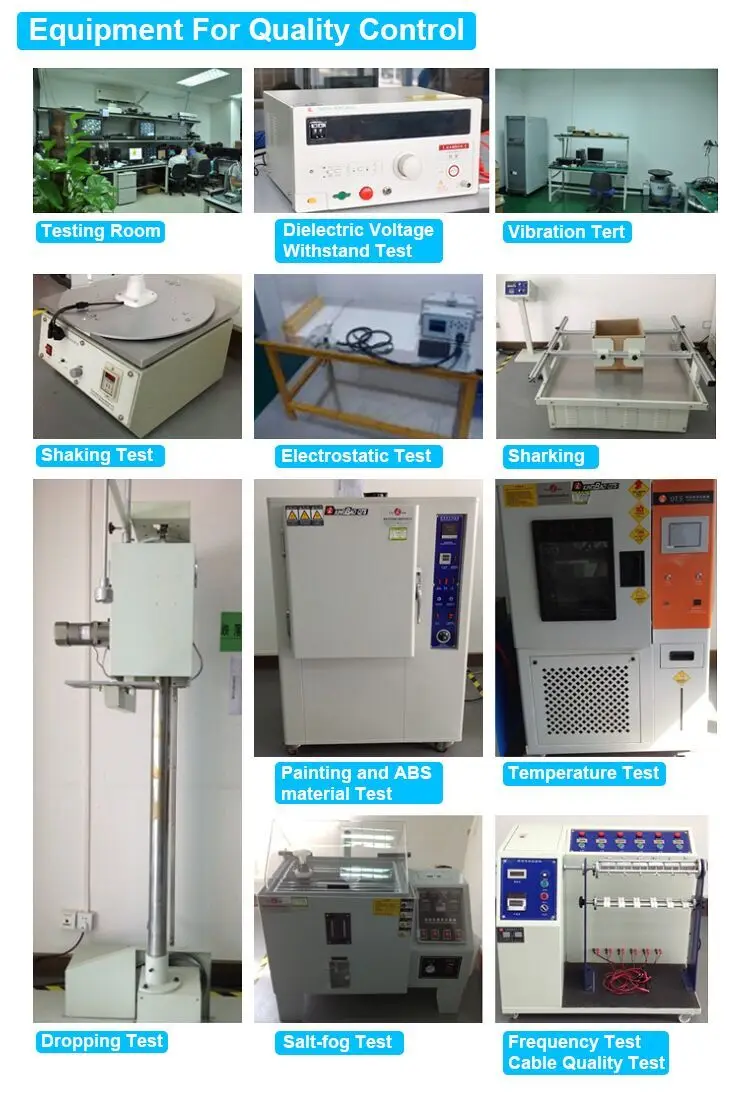

Certifications and QC
