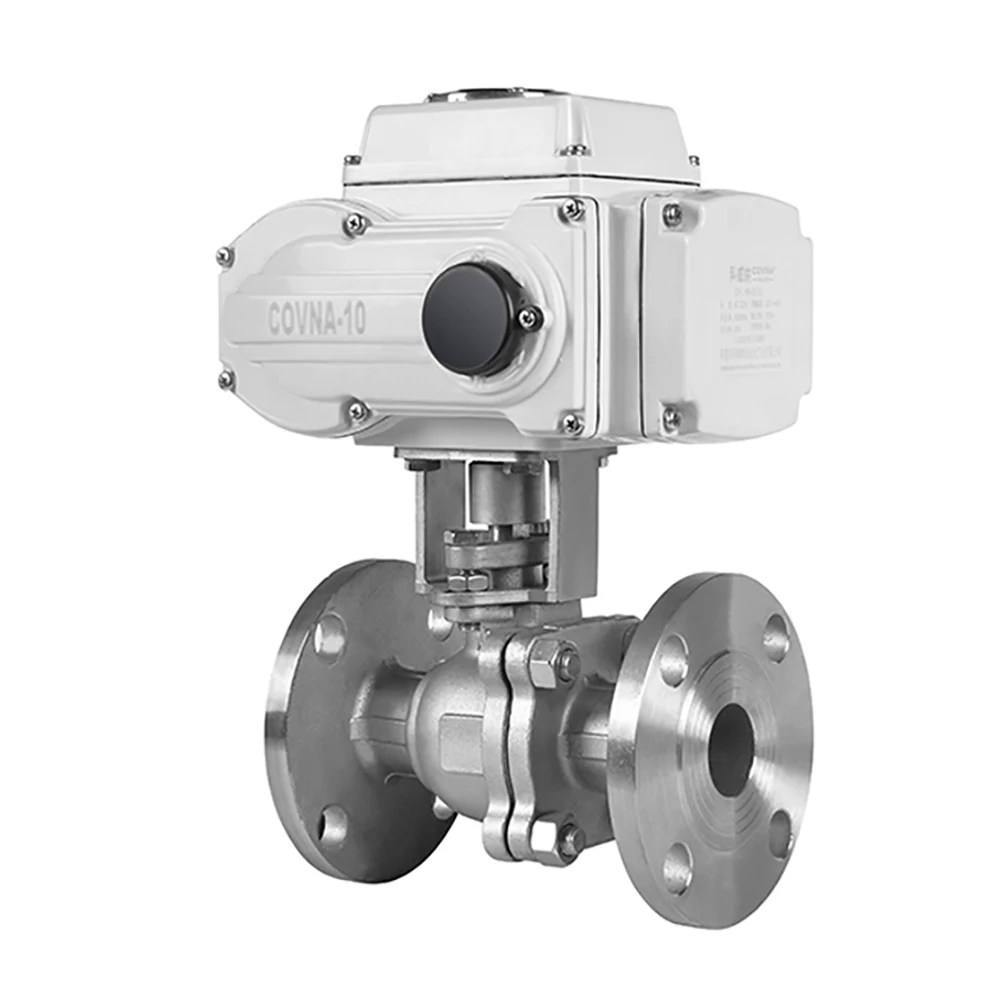

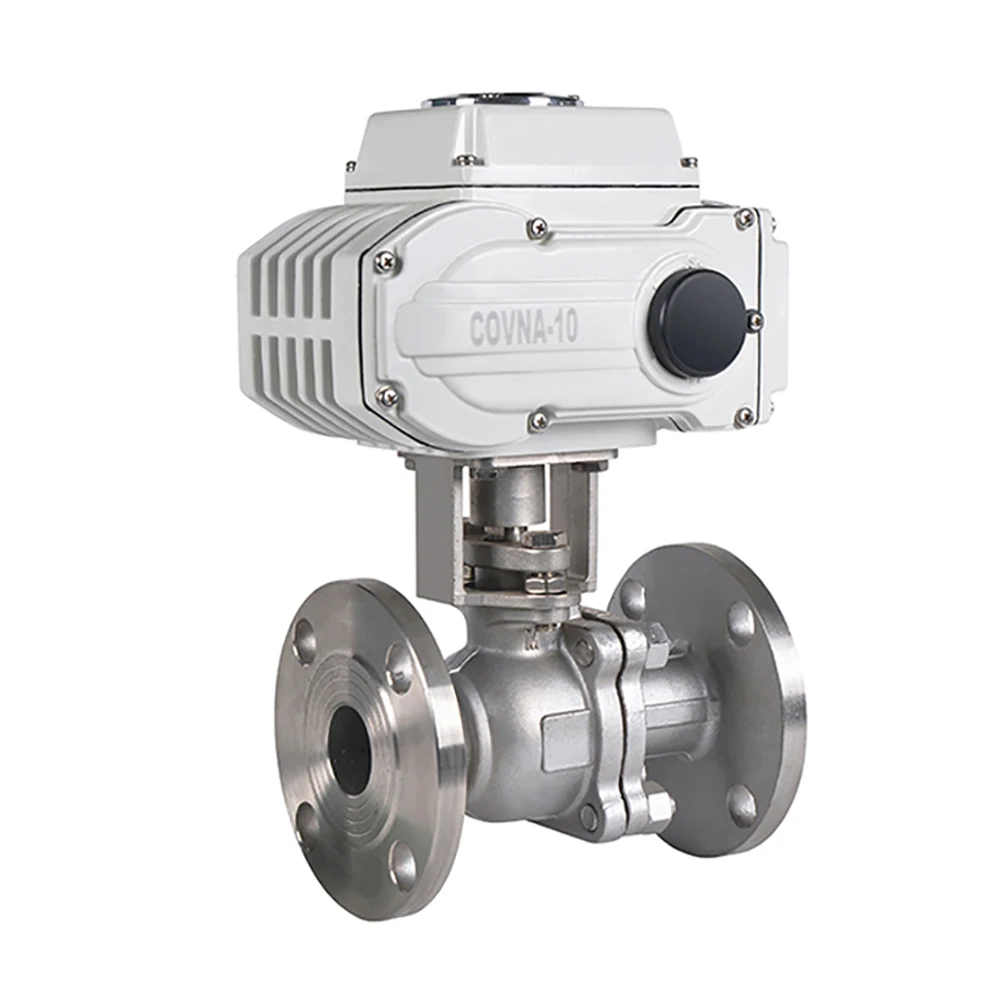

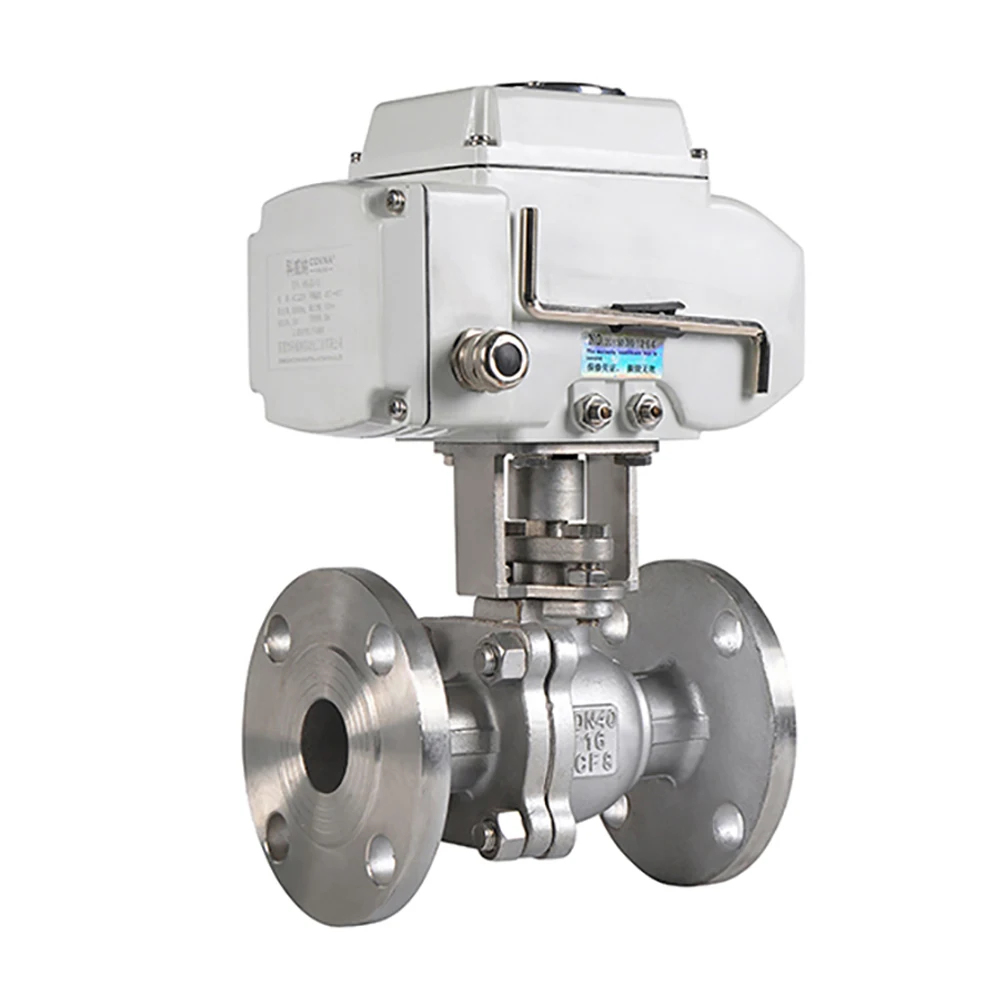

Motorized Valve 240 Volt DN50/100 2 Way AC220V Regulating Electric Actuator Water Flange Ball Valve
- Category: >>>
- Supplier: Dongguan Chuancheng Pneumatic Components Co. Ltd.
Share on (62424278964):
Product Overview
Description
Specification
Item | Motorized Valve 240 Volt DN50/100 2 Way AC220V Regulating Electric Actuator Water Flange Ball Valve | ||||
End Connection | Flange (ANSI, JIS, DIN, GB) | ||||

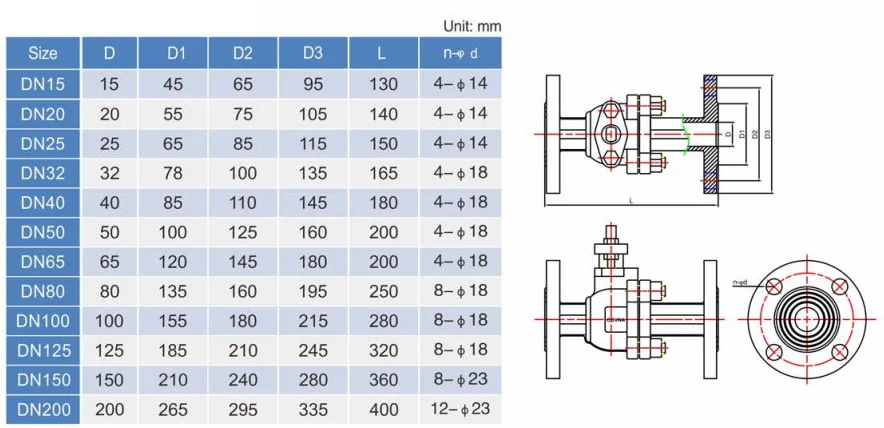

Size Range | DN15-DN200 | ||||
Operating Pressure | 10/16/25/40/64 bar | ||||
Body Material | Stainless Steel 304/316/316L | ||||
Ball Material | Stainless Steel 304/316/316L | ||||
Sealing Material | NBR, EPDM, PTFE | ||||
Structure | 2 Way Straight Through Flow Path | ||||
Suitable Media | Water, Oil, Air, Gas, Wastewater, and other mediums | ||||
Temp. of Media | Range from -10 to +180°C | ||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||
Technical Parameter for Actuator | ||||||
Control Mode | Function | ||||
ON-OFF Type | Feedback: the Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA | ||||
Regulation Type | Input & Output Signal: DC 4-20mA, DC 0-10V, DC 1-5V | ||||
Field Operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus | ||||

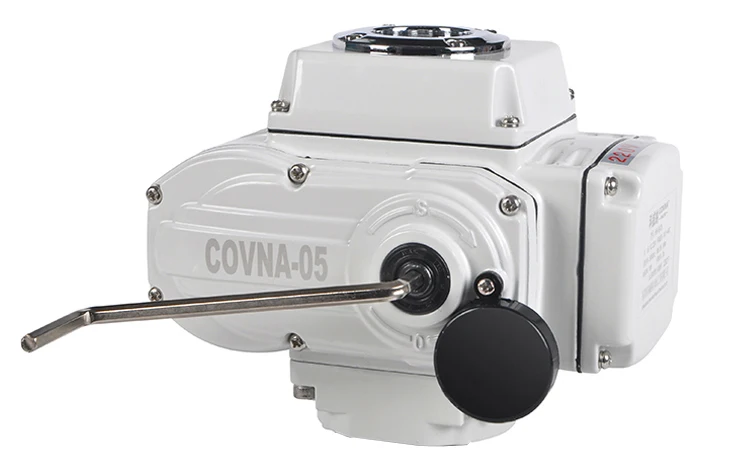

COVNA Quarter Turn Electric Actuator
● Operating temperature range:-40℃~+95℃
● ISO5211 mounting for ball and butterfly valve
● AC/DC power supply, signal control and manual override
● IP65 weather-proof for outdoor use
● High torque up to 4000Nm
● ON/OFF type, modulating type and intelligent tyoe
● ISO5211 mounting for ball and butterfly valve
● AC/DC power supply, signal control and manual override
● IP65 weather-proof for outdoor use
● High torque up to 4000Nm
● ON/OFF type, modulating type and intelligent tyoe
● AC380V AC220V AC110V AC24V, DC24V DC12V
Features Of COVNA Quarter-Turn Electric Actuator:
● 90 degree rotation
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● AC/DC power supply, signal control and manual override
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
Series | 05 | 10 | 16 | 30 | 60 | 125 | 250 | 400 | |||||||
Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm | |||||||
90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S | |||||||
Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | |||||||
Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A | |||||||
Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W | |||||||
Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | ||||||||||||||
Input Signal | 4-20mA, 1-5VDC, 0-10VDC | ||||||||||||||
Output Signal | 4-20mA, 1-5VDC, 0-10VDC | ||||||||||||||
Protection Class | IP65 protection class | ||||||||||||||
Ambient Temp | -20 to +60°C | ||||||||||||||
Wiring Diagram | A: ON/OFF type with light indicator signal feedback B: ON/OFF type with passive contact signal feedback C: ON/OFF type with resisance potentiometer signal feedback D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback E: Regulation type with servo control module F: DC24/DC12V direct ON/OFF type G: AC380V 3-phase power supply with passive signal feedback H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback | ||||||||||||||
Hot Sale Products
About COVNA
Company Profile
COVNA Group Co.,Ltd is a manufaturer of solenoid valve, electric actuator valve, pneumatic actuator valve, ball valve, butterfly valve, check valve, gate valve, globe valve and so on. As you see, we are a one-stop valve solution provider. We have offer automation solution for more than 2,000 companies.

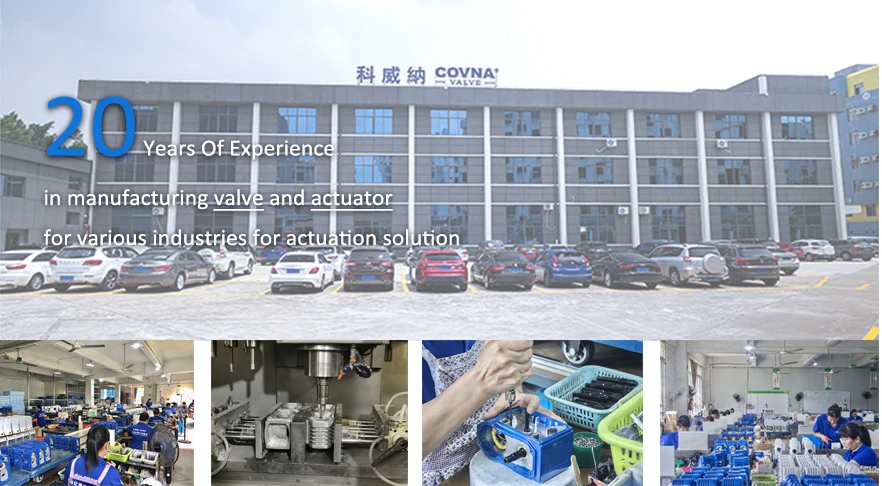

20 Years experience in valve manufacture and automation solution. We are confident that we could offer the suitable valve and cost-effective solution for you.
