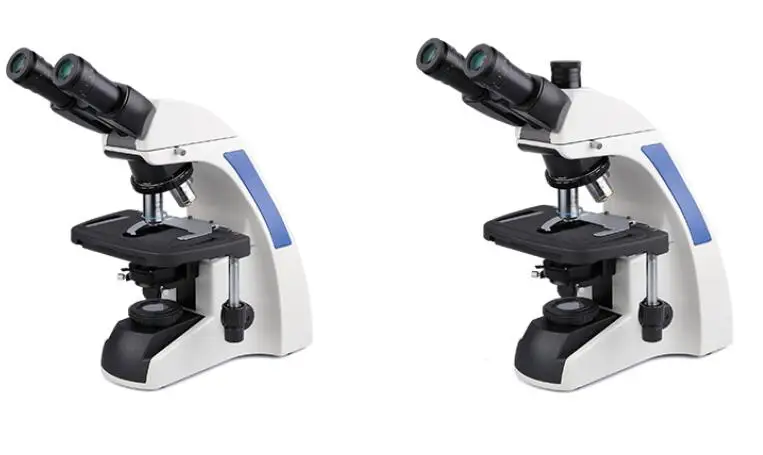

Infinite Plan Optical Binocular Biological Life Science ,Medical Microscope ,1000 x , wf 10x/22mm , 3W LED Kohler illumination
- Category: >>>
- Supplier: Ningbo Henglan Optics Instrument Co. Ltd.
Share on (62424797332):
Product Overview
Description

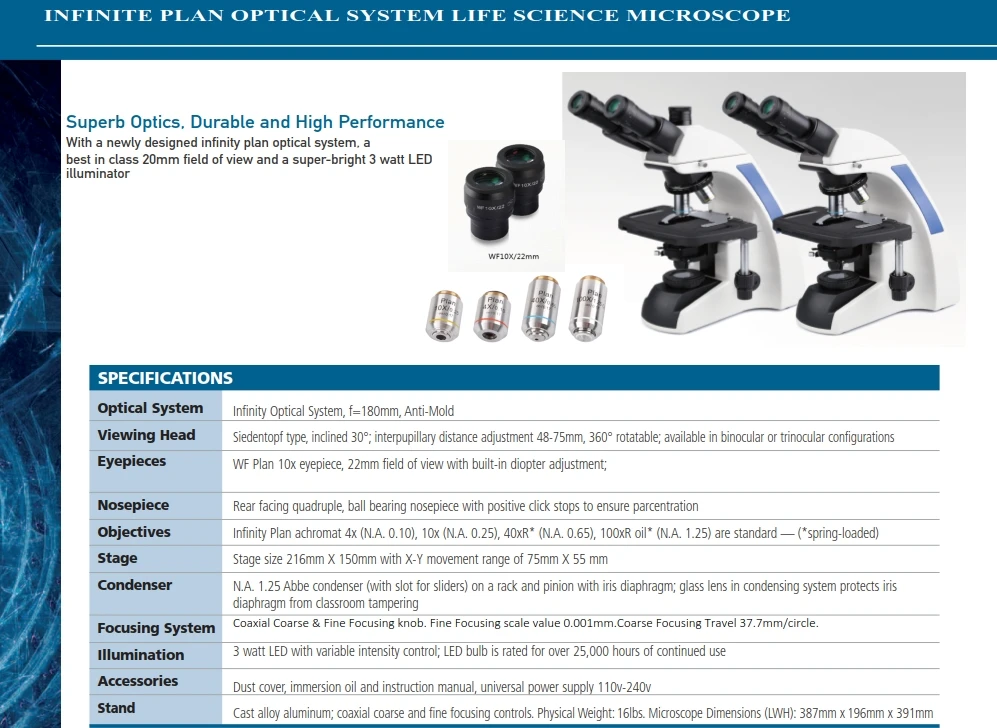

Optical Syetem | Infinity Optical Syetem | LM1220Z |
Observation Head | Gemel Binocular Head, 30°inclined, Interpupillary Distance 48mm-75mm | / |
Gemel Trinocular Head, 30°inclined, Interpupillary Distance 48mm-75mm | * | |
Eyepiece | WF10X/22mm | * |
WF16X/15mm | / | |
WF20X/12mm | / | |
Nosepiece | Backward Quadruple Nosepiece | * |
Backward Quintuple Nosepiece | / | |
Objective | High Contrast Infinity Plan objectives 4X, 10X, 40X(S), 100X(S, OIL) | * |
Condenser | N.A=1.25 Abbe Condenser with iris diaphragm & filter | * |
Focusing | Coaxial Coarse & Fine Focusing knob. Fine Focusing scale value 0.001mm. Coarse Focusing Travel 37.7mm/circle. Fine Focusing Travel 0.1mm/circle, Focusing Range 24mm. | * |

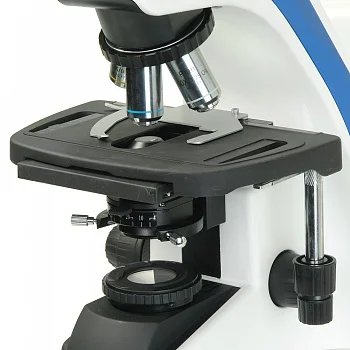

Mechanical Stage | Double Layer Mechanical Stage. Graphite-Processed Surface. Stage Size, 216mm*150mm. Moving Range, 75mm*55mm. | * |
Illumination | Kohler Illumination System. 3W LED Illumination. Brightness Adjustable. | * |
Other Optional Accessories | 0.5X C-Mount Darkfield Attachment Phase Contrast Attachment | / |
