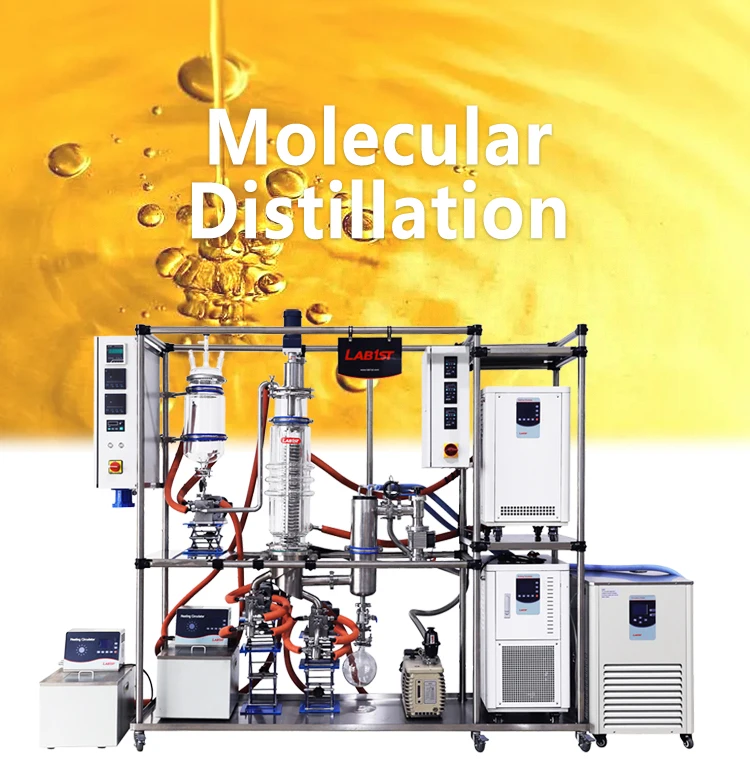

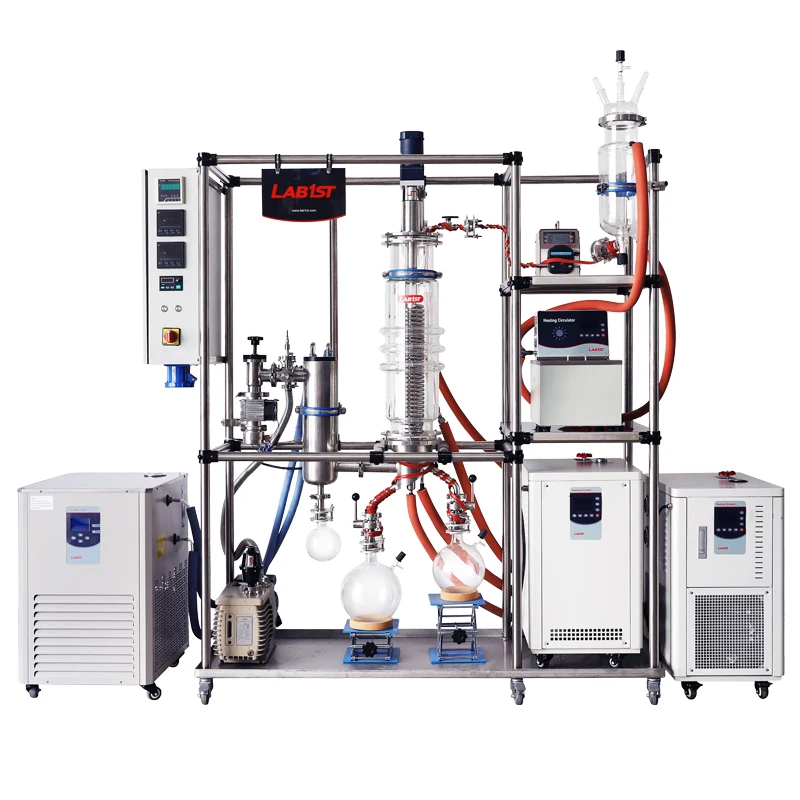

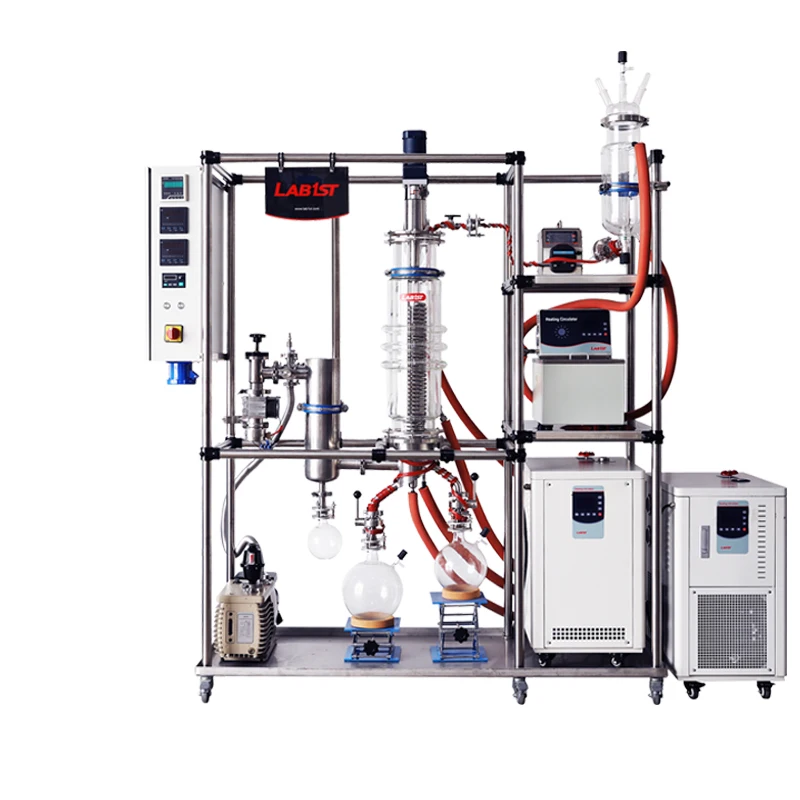

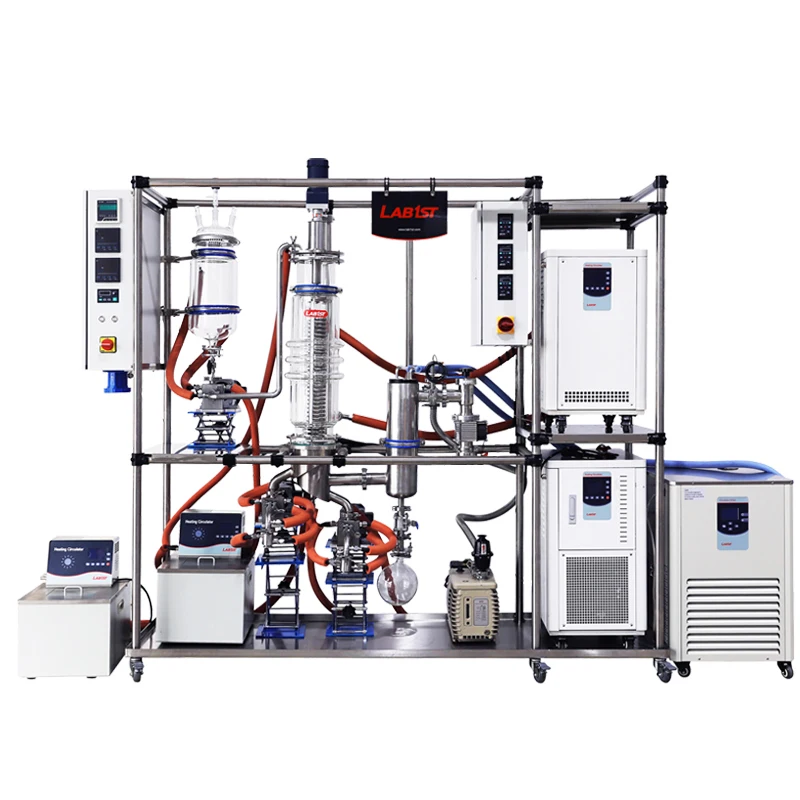

Wiped Film Evaporator Molecular Vacuum Essential Oil Distillation Machine Unit
- Category: >>>
- Supplier: Labfirst Scientific Instruments (Shanghai) Co. Ltd.
Share on (62424922177):
Product Overview
Description
Labfirst Scientific (LAB1ST) Was Founded and Based in Shanghai, Committed to Providing First-class Equipment for Customers in the Chemical and Pharmaceutical Industry. Our Product Lines Range from Laboratory & Pilot Scale to Industrial Scale and Mainly Focus on the Fine Chemicals, Biological Fermentation, Plant Extraction and Other Related Fields, to Provide All Kinds of Equipment and Turnkey Solutions.
Our Team
Our Office
Warehouse in USA
Warehouse in China
Clients Cases
Products Description
Model | HMD-150 | HMD-200 | |
General Feeding Rate (kg/h) | 1.25~12.5 | 1.75~17.5 | |
Throughput - Crude Herb Oil (kg/h) | 2.5 ~ 5 | 3.5 ~ 7 | |
Material | Boro Glass 3.3 (evaporator) / SS316L (other wet parts) / PTFE (wiper) / SS304 (frame) | ||
Effective Evaporationn Area (㎡/sqft) | 0.25/2.7 | 0.35/3.8 | |
Evaporator Internal Diameter (mm/inch) | 150/6.0 | 200/7.9 | |
Feeding Funel Volume (L) | 3 | 5 | |

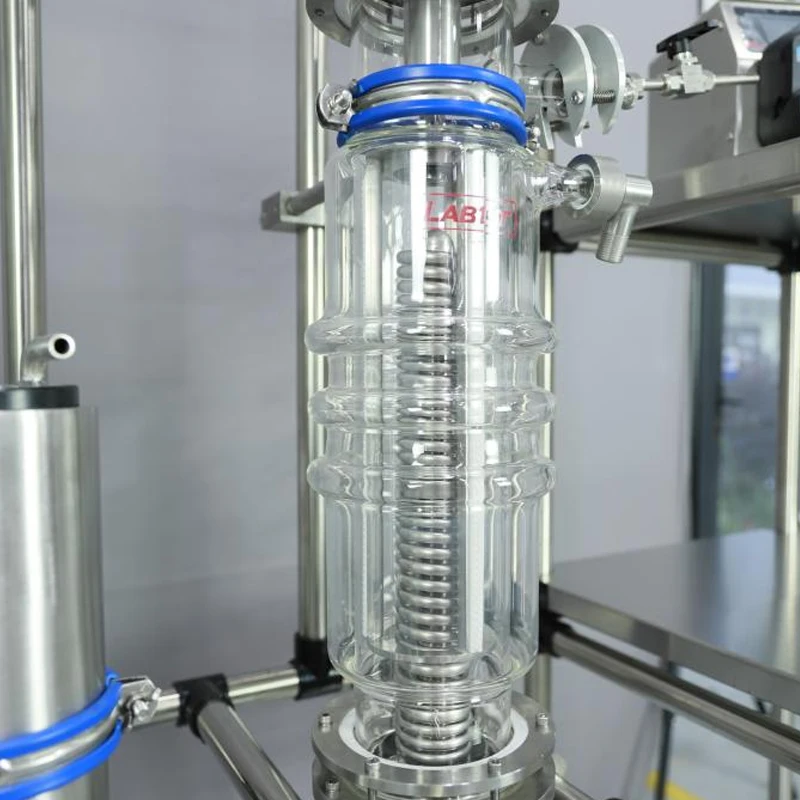

Internal Condenser Area (㎡) | 0.4 | 0.5 | |

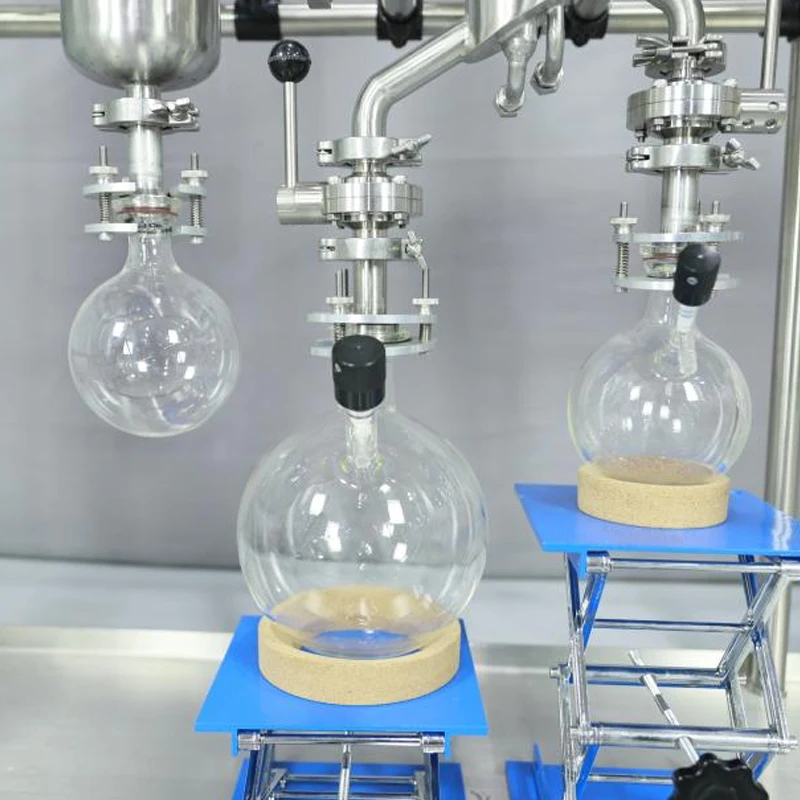

Distillate Receiving Vessel Volume (L) | 5 | 5 | |
Residue Receiving Vessel Volume (L) | 3 | 5 | |
Motor Power (W) | 120 | ||
Maximum Speed (rpm) | 400 | ||
Stirrer Seal | Oil-less Magnetic, High Vacuum | ||
Wiper Type | Scraper | ||

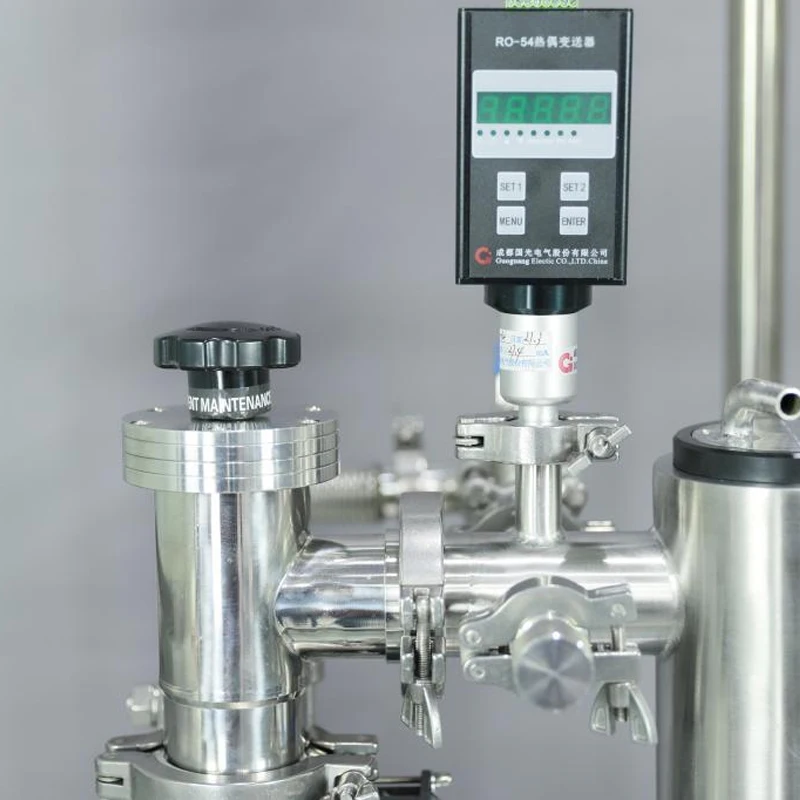

Vacuum Gauge | Pirani Style | ||
Operation Temperature | Up to 250℃ | ||
Vacuum Degree | Better than 10 Pa | ||
Voltage | 220V-Single Phase / Customizable | ||
Dimension (LxWxH mm) | 2270 x 1940 x 628 | 2420 x 2040 x 628 | |
Optional
* Continuous Feeding with peristaltic pump
* Continuous Discharging with isolate flask
* Dewar style stainless steel cold trap
* Better vacuum environment with rotary vane vacuum pump + diffusion pump
* Supporting chillers and heaters
* All accessories
* Continuous Discharging with isolate flask
* Dewar style stainless steel cold trap
* Better vacuum environment with rotary vane vacuum pump + diffusion pump
* Supporting chillers and heaters
* All accessories
* Continuous Feeding with peristaltic pump
* Continuous Discharging with isolate flask
* Dewar style stainless steel cold trap +
stainless steel coil with extra chiller, dual usage
* Better vacuum environment with rotary vane vacuum pump + diffusion pump
* Supporting chillers and heaters
* All accessories
* Continuous Discharging with isolate flask
* Dewar style stainless steel cold trap +
stainless steel coil with extra chiller, dual usage
* Better vacuum environment with rotary vane vacuum pump + diffusion pump
* Supporting chillers and heaters
* All accessories
* Continuous Feeding with Gear Pumps
* Continuous Discharging with Gear Pumps
* Fully Jacketed Pipeline
* Dewar style cold trap + stainless steel cooling coil equipped with a -80℃ chiller, dual usage
* Better vacuum environment with rotary vane vacuum pump + diffusion pump
* Supporting chillers and heaters
* All accessories
* Continuous Discharging with Gear Pumps
* Fully Jacketed Pipeline
* Dewar style cold trap + stainless steel cooling coil equipped with a -80℃ chiller, dual usage
* Better vacuum environment with rotary vane vacuum pump + diffusion pump
* Supporting chillers and heaters
* All accessories
