ZLP800 Schneider Aluminum Alloy hanging scaffolding Suspended platform for material lift
- Category: Work Platforms >>>
- Supplier: Shandong Huiyang Construction Equipment Co. Ltd.
Share on (62424967717):
Product Overview
Description
Product Description
Working Principle:
The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.
Usage and Application:
ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.
Above all. HUIYANG Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.
The Parameters of ZLP series Suspended Platform | ||||||
TYPE | ZLP500 | ZLP630 | ZLP800 | |||
1. Rated Load | 500KG | 630KG | 800KG | |||
2. Lifting speed | 9.3m/min | 9.3m/min | 9.3m/min | |||
3. Lifting height | 100m | 100m | 100m | |||
4.Hoist | LTD5.0 | LTD6.3 | LTD8.0 | |||
4.1 Voltage-3 Phase | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) | |||
4.2 Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | |||
4.3 Power | 1.5kwx2 | 1.5kwx2 | 1.8kwx2 | |||
5. Safety Lock | LSG20 | LSG20 | LSG30 | |||
6. Electric Control Cabinet Components | Schneider or CHNT | Schneider or CHNT | Schneider or CHNT | |||
7. Platform Sise (LxWxH) | (2.5+2.5)x0.69x1.42m | (2+2+2)x0.69x1.42m | (2.5+2.5+2.5)x0.69x1.45m | |||
8. Steel Wire Rope | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.6mm | |||
9. Special Cable | (3x2.0+2x1.0mm) 100m | (3x2.0+2x1.0mm) 100m | (3x2.5+2x1.5mm) 100m | |||
Counter Weight | 750kg | 900kg | 1000kg | |||
1Qty of 20" Container | 13sets | 13sets | 13sets | |||
1. Working Platform: Aluminum Alloy + Painting ;( Q235 + Galvanised; Q235 + Painting is available also)
1.1 Working Platform is the workplace at heights for the workers.
1.2 Size of platform can be adjusted from 1.0m, 1.5m, 2m, 2.5 meter or 3m etc depending upon the needs of your building
1.3 With Bottom Wheel fitted underneath, the platform is easy to move.

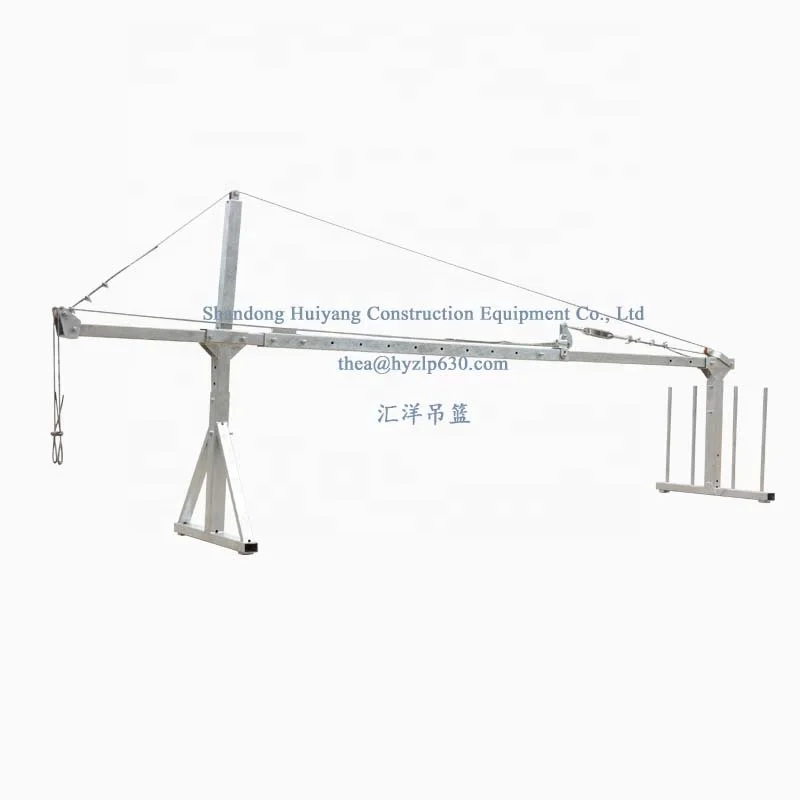

2. Suspension Mechanism: Q235 + Galvanised (Steel Q235 + Painting is ok )
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.
3. Components:
LTD8.0 Hoist: 1.8kw, 2 sets;
LSD30 Safety Lock: 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, 3x2.5+2x1.5mm sq;
Safety Rope: 1pcs; 100m/pcs;
counterweight (Optional): 40pcs, 25kg/pcs.
Components Details

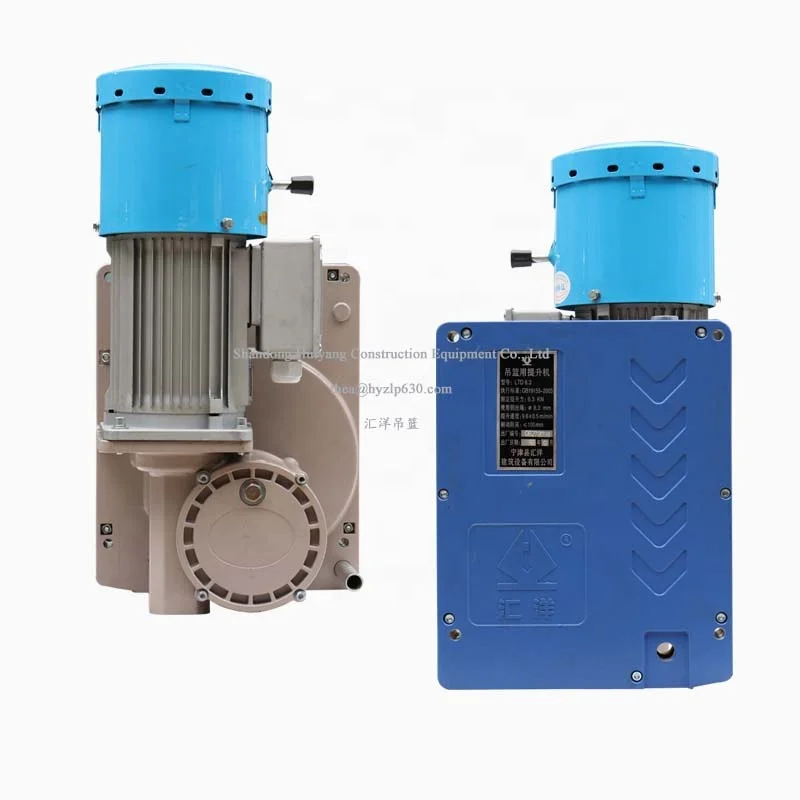

Components 1
Name: Hoist Brand: HUIYANG
Model: LTD8.0 Quantity: 2 sets
Lifting Speed: 9.3±0.5m/min
Lifting Force: 8.0KN
Name: Motor
Brand: Tianjin YONGHENG
Power: 1.8kw*2
Voltage: 3 Phase 415V/380/220V 50/60Hz
Rotational Speed:1420rpm Weight:52kgx2

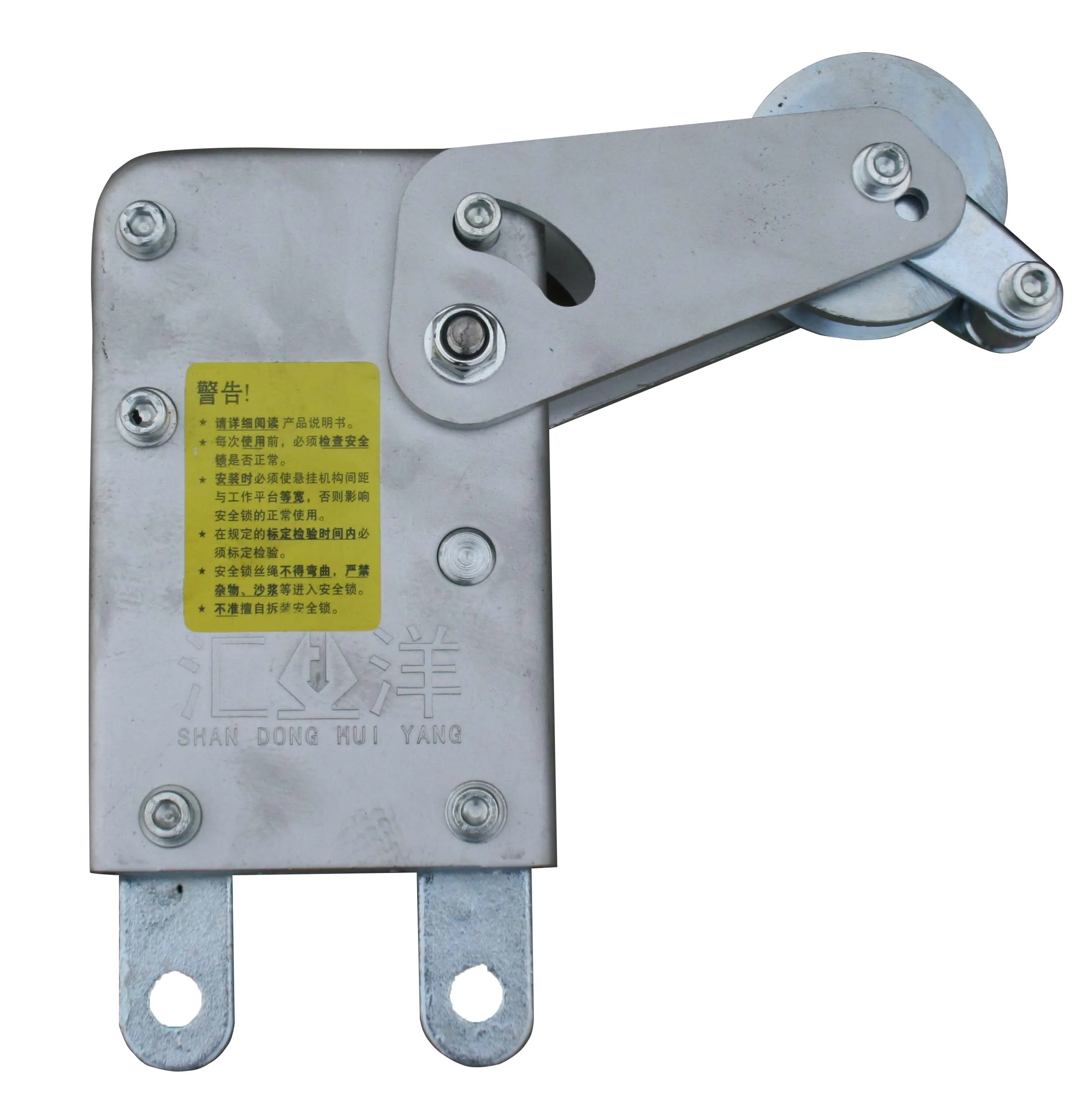

Components 2
Name: Safety Lock Brand: HUIYANG
Model: LSG30 Quantity: 2 sets
Locking Rope Angle: 3°~8°
Allow impulsive force: 30KN
Steel Wire Diameter: 9.1mm Weight: 5kgx2
Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.

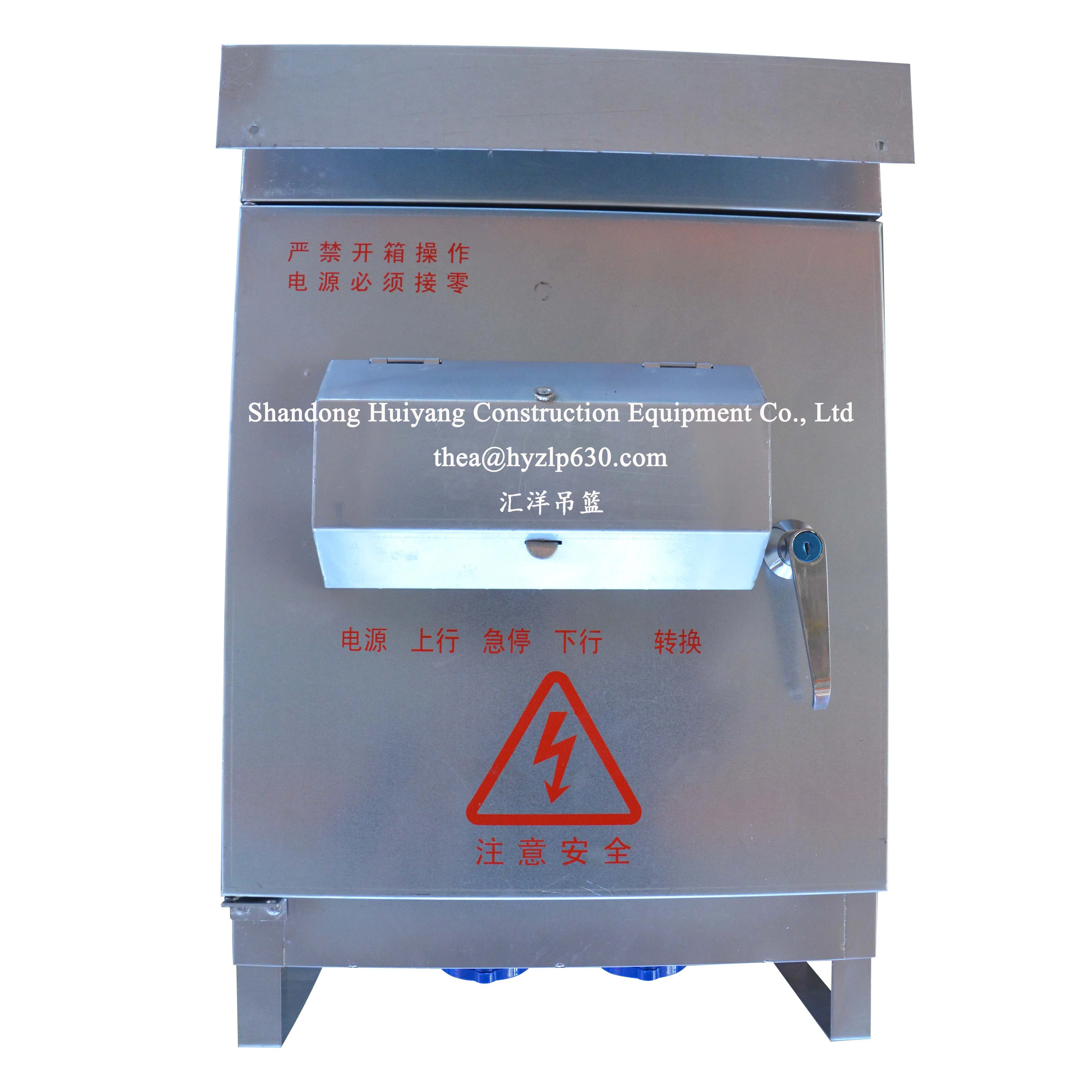

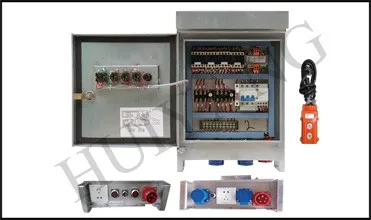

Components 3
Name: Electrlic Cotrol Cabinet
Brand: HUIYANG
Surface HDG With manual Switch
Components Brand: Schneider or CHNT
On Electric Control Cabinet, there are 4 buttons and a 220V 50Hz outlet for necessary use.
( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button )
Components 4
Name: Steel Rope
Brand: Fasten
Length: 100m 4pcs 4x31SW+FC
Diameter: 9.1mm
Weight:25kgx4
Name: Nylon Safety Rope 1Pcs=100m

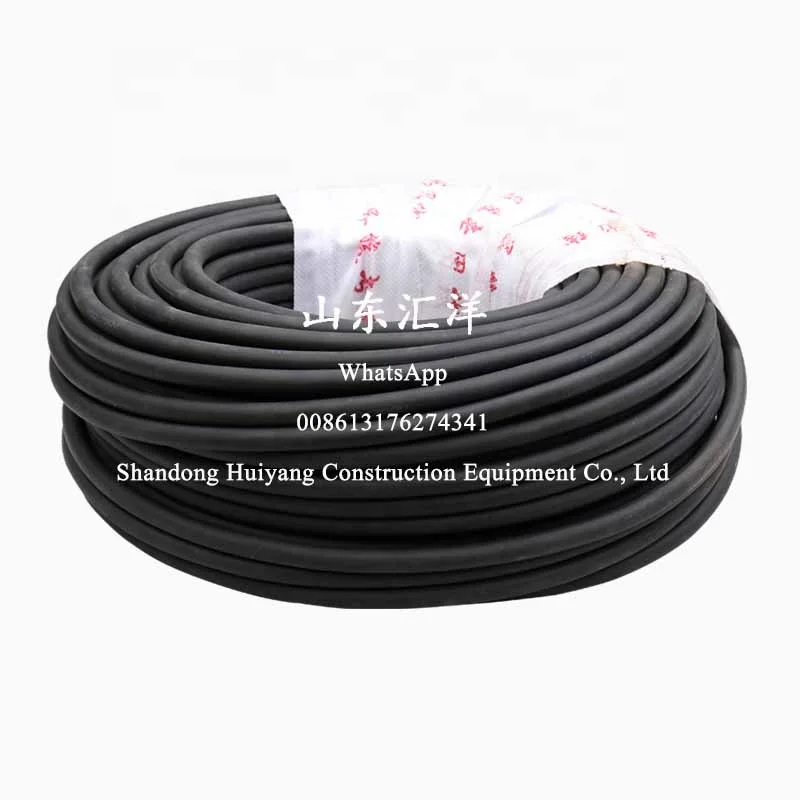

Name: Cable 1Pcs=100m (3x2.5+2x1.5mm)
Name: Counter Weight: Cement or Cast Iron
Company Introduction
HUIYANG COMPANY BRIEF.
Ningjin Huiyang Construction Equipment Co., Ltd, established in 2005,located at Dezhou City, is a professional and accurate
technique corporation who is professional in the R&D production and sale of suspended access equipment on high operation, and the accessories such as Safety Lock, Hoists, Electric Control Cabinet, Fasten Wire Ropes, and etc.
Now Huiyang becomes the production base and research centre of exporting suspended access equipment in China. The quality of
Huiyang Suspended Platform is in the first-class in China and our products have been exported to more than 20 countries, which can be comparable with European famous suspended platforms.
Huiyang Suspended Platform is one of the largest enterprises engaged in well-known suspended platform in China, and annual
production capacity is up to 8000 sets. In China, Huiyang suspended platform owns the most complete categories, specifications,
and applications compared with same industry. They have been used in every aerial area with the main models ZLP500, ZLP630, ZLP800 and ZLP1000. The Voltage and Frequency could be up to different countries' standard, such as single-phase 220V, triplicate-phase 220V, 380V etc.
No matter what structure needs, everything is easier with Huiyang.
Ningjin Huiyang Construction Equipment Co., Ltd, established in 2005,located at Dezhou City, is a professional and accurate
technique corporation who is professional in the R&D production and sale of suspended access equipment on high operation, and the accessories such as Safety Lock, Hoists, Electric Control Cabinet, Fasten Wire Ropes, and etc.
Now Huiyang becomes the production base and research centre of exporting suspended access equipment in China. The quality of
Huiyang Suspended Platform is in the first-class in China and our products have been exported to more than 20 countries, which can be comparable with European famous suspended platforms.
Huiyang Suspended Platform is one of the largest enterprises engaged in well-known suspended platform in China, and annual
production capacity is up to 8000 sets. In China, Huiyang suspended platform owns the most complete categories, specifications,
and applications compared with same industry. They have been used in every aerial area with the main models ZLP500, ZLP630, ZLP800 and ZLP1000. The Voltage and Frequency could be up to different countries' standard, such as single-phase 220V, triplicate-phase 220V, 380V etc.
No matter what structure needs, everything is easier with Huiyang.
Certifications
Our Service
Pre-Sales Service
* Factory Show.
* Consulting Support
* Fast Quotation and PI Feedback
* Deposit.
* Sample testing support.
After-Sales Service
* Video Training: how to instal the machine.
* Engineer Online Service.
* Email Instruction.
All products purchased from our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
Packing & Delivery
Size | 3m³ | |
Weight | ||
Packaging Details | 1-3 sets packed in wooden case. Morn than 3 sets will be packed by metal pallet in container. | |
Size | 3m³ | |
Weight | 950kg(Without Counter Weight) | |
Packaging Details | MOQ: 1set 1-3 sets packed in wooden case.Morn than 3 sets will be packed by metal pallet in container. | |
FAQ
1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.
2. Are you a factory or trading company?
We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.
3. What quality certificate you own for your products?
Our products own CCC, CE and ISO9001 certificate.
4. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
5. Payment term?
T/T or L/C at sight.
6. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date.
We will send new parts to replace right away.
7. Can you make suspended platform with our brand?
Yes.
8. Delivery time?
According to order quantity, 10-20 working days will be finished after getting the deposit.
Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.
2. Are you a factory or trading company?
We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.
3. What quality certificate you own for your products?
Our products own CCC, CE and ISO9001 certificate.
4. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
5. Payment term?
T/T or L/C at sight.
6. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date.
We will send new parts to replace right away.
7. Can you make suspended platform with our brand?
Yes.
8. Delivery time?
According to order quantity, 10-20 working days will be finished after getting the deposit.
