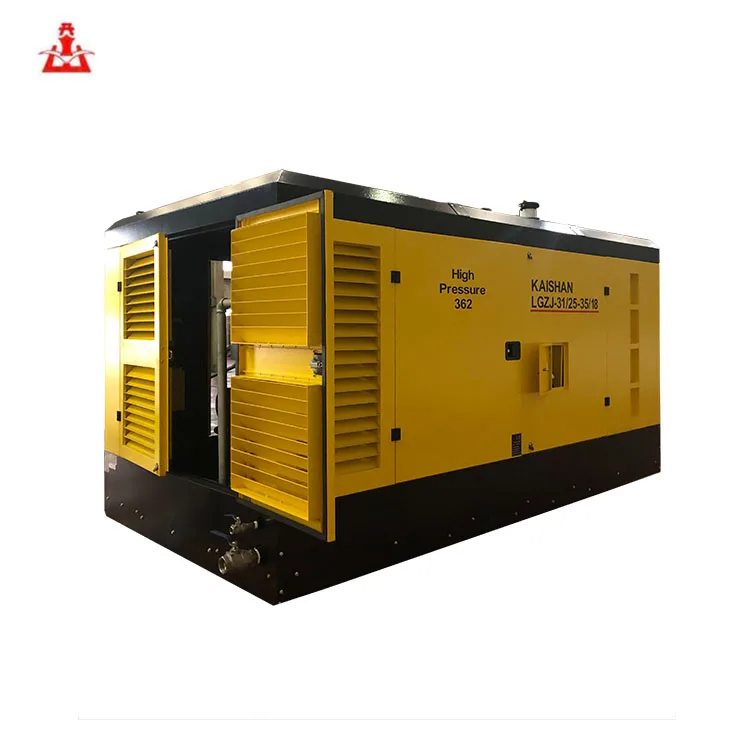

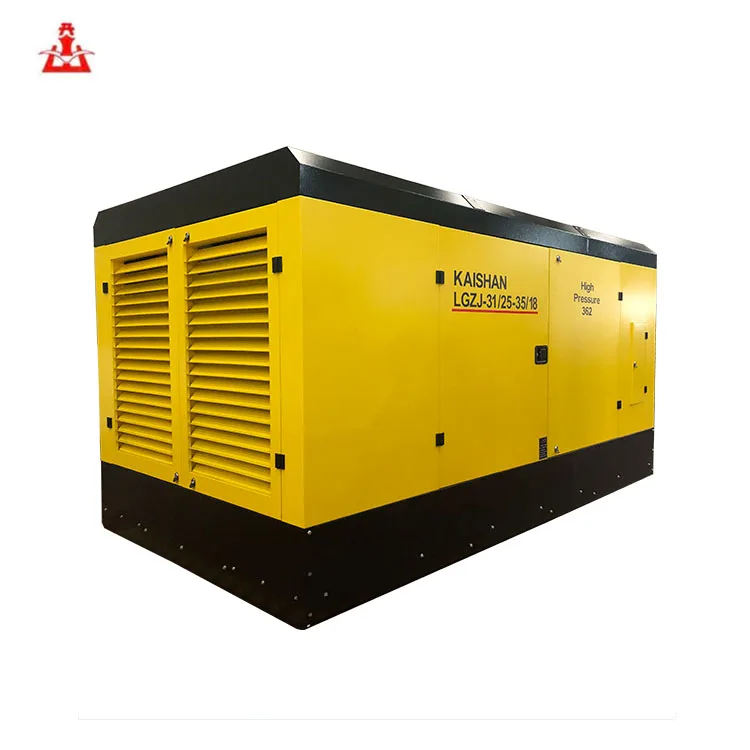

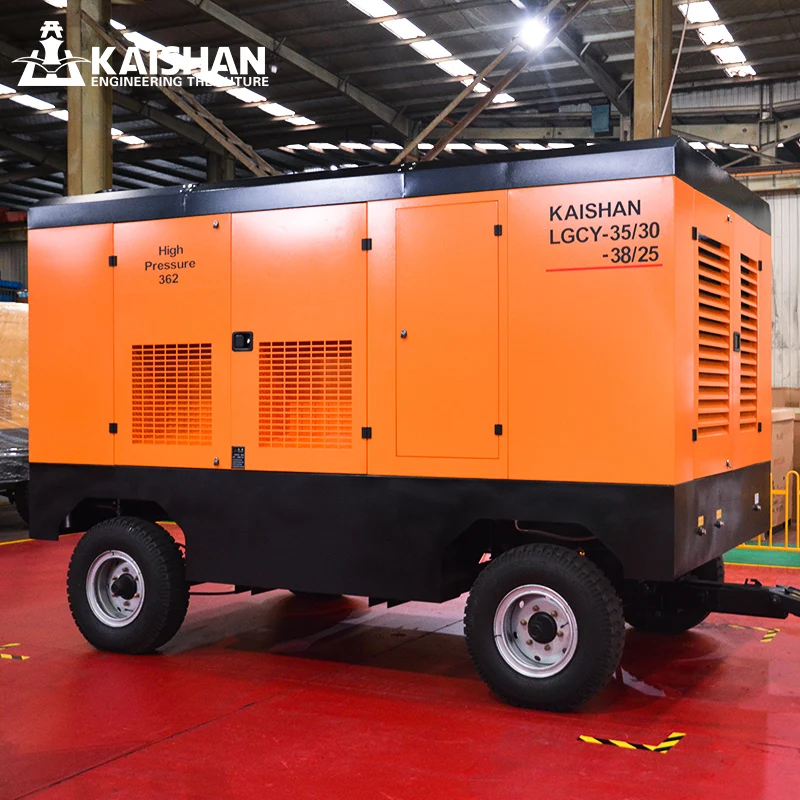

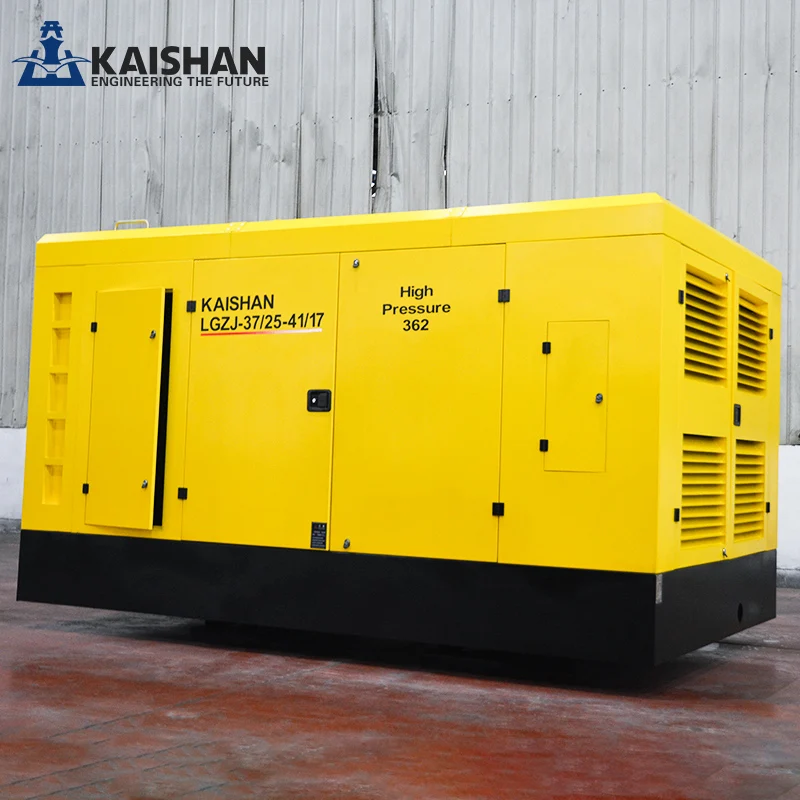

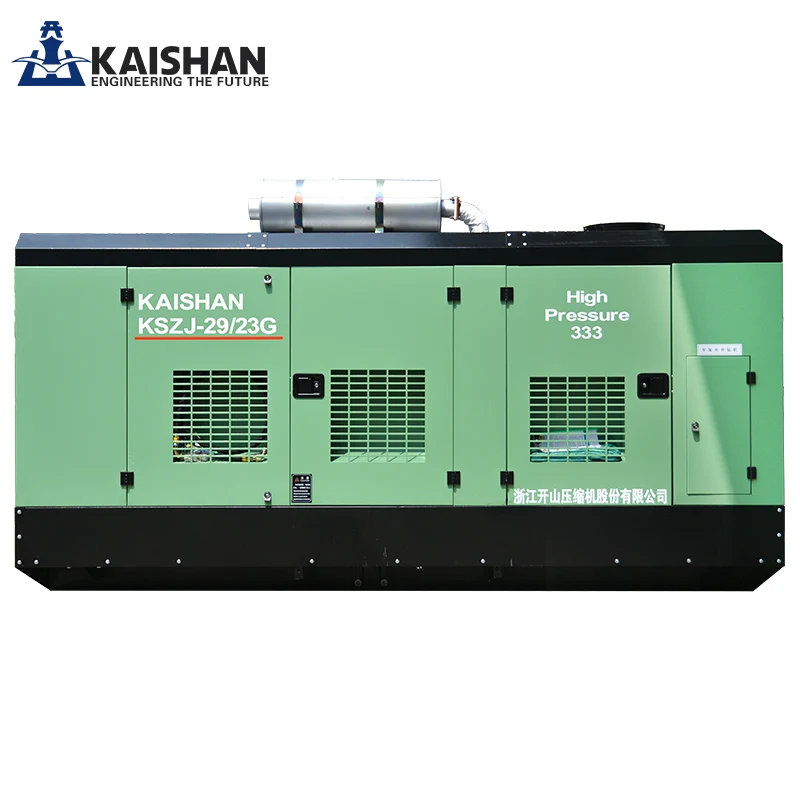

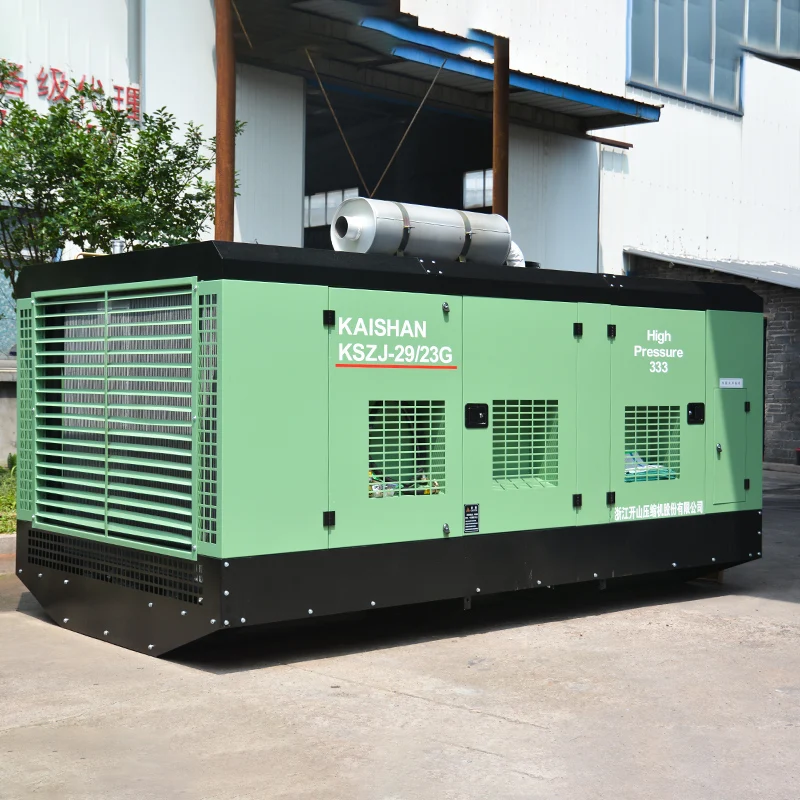

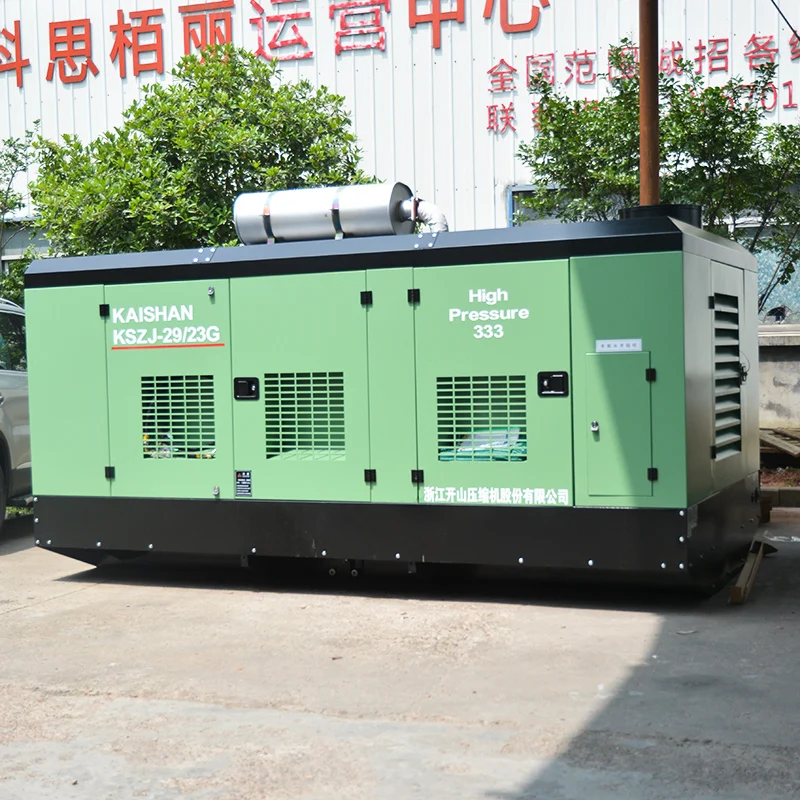

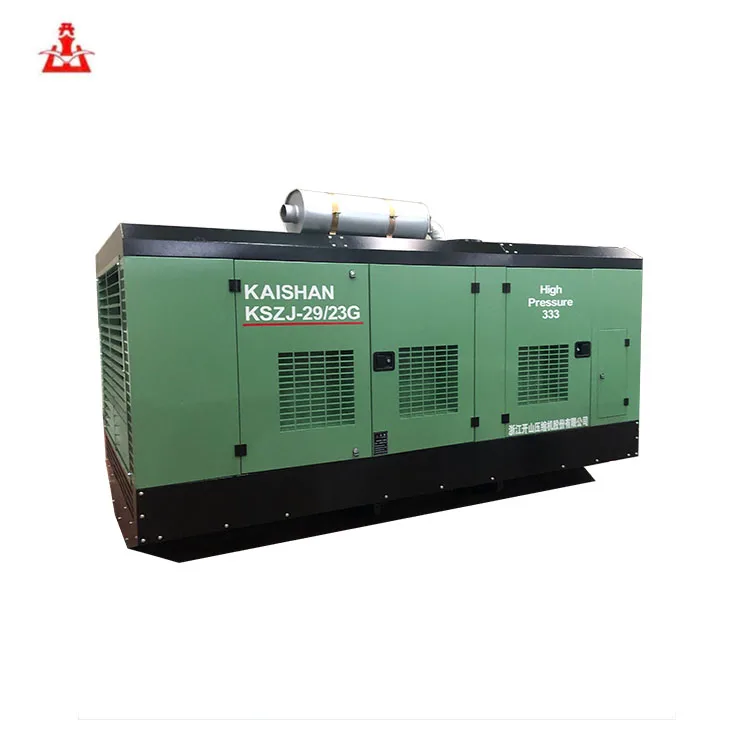

Kaishan 400KW Air compressor large skid mounted diesel air compressor for deep water well drilling rig
- Category: >>>
- Supplier: Quzhou Jugong Machinery Co. Ltd.
Share on (62425010664):
Product Overview
Description
Low Price Diesel Screw heavy duty drill hole and water well using air compressor
Product Description
Characteristic of air compressor for water well drilling rig:
1.Low operating sound and less vibration design.Easy serviceability.
2.Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.
3.High efficient Airend:
Large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan.
4.Diesel Engine of Famous Brand:
Select the diesel engine of CUMMINS and YUCHAI brand, satisfy the emission
requirement of Europe, low oil consumption, after sale service system all over China.
5.Good adaptability:
The Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equals to frequency conversion control in motor power screw air compressor.
Application scope of air compressor for water well drilling rig:
This air compressor is especially designed for water conservancy
Advantages of air compressor for water well drilling rig:
1.World advanced screw compressor with the features of highly efficiency,low maintenance and long lifetime
2.Microcomputor control system to automatically control the start and top the machine and adjust the air capacity.
3.Conplete protection function with fault alarm and indication
4.Efficient filtering and seperating system.
Technical parameter:
| Model | KSZJ-31/25 |
| Whole machine | |
| Air delivery (m3/min) | 31 |
| Working pressure (Mpa) | 2.5 |
| Weight (kg) | 6000 |
| L*W*H(mm) | 3500×2100×2200 |
| Diesel engine | |
| Model | YC6K500-K30 |
| Type | Vertical,In line,Water cooled |
| Breath way | Turbocharged intercooled |
| Cylinder diameter*stoke*cylinder quantity | 129×155×6 |
| Displacement (L) | 12.2 |
| Rated rotary speed (r/min) | 1800 |
| Unload rotary speed (r/min) | 1300 |
| Power KW(HP) | 404(550) |
| Diesel engine oil capacity (L) | 35 |
| Fuel oil capacity (L) | 350 |
| Electrical system voltage (v) | 24 |
| Compressor | |
| Compressor head model | SKY11G235 |
| Compression stage | 2 |
| Compressor oil capacity (L) | 80 |
| Intake valve size*quantity | G2×1,G3/4×1 |
