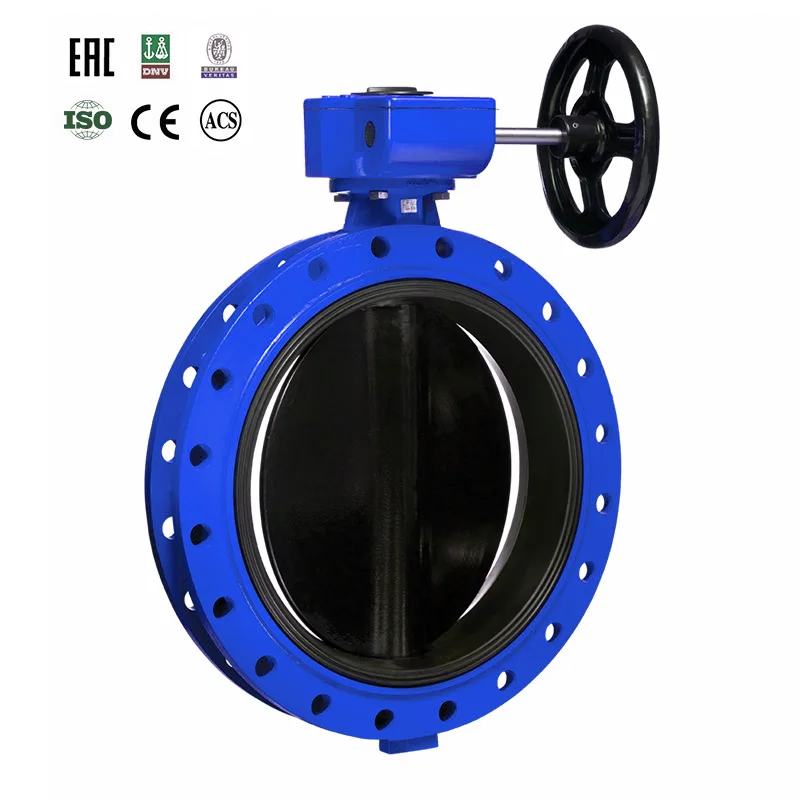

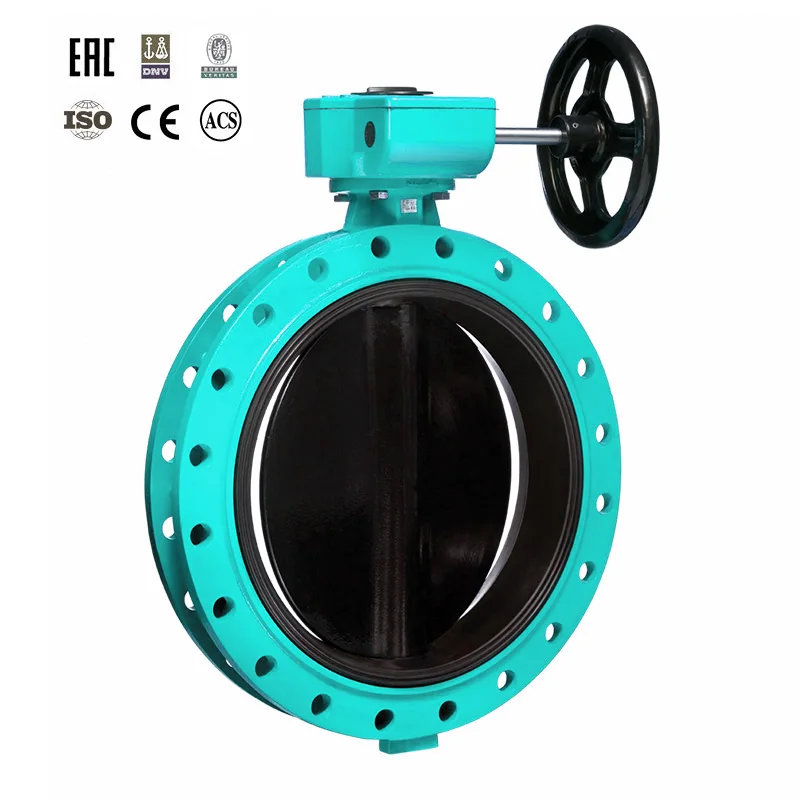

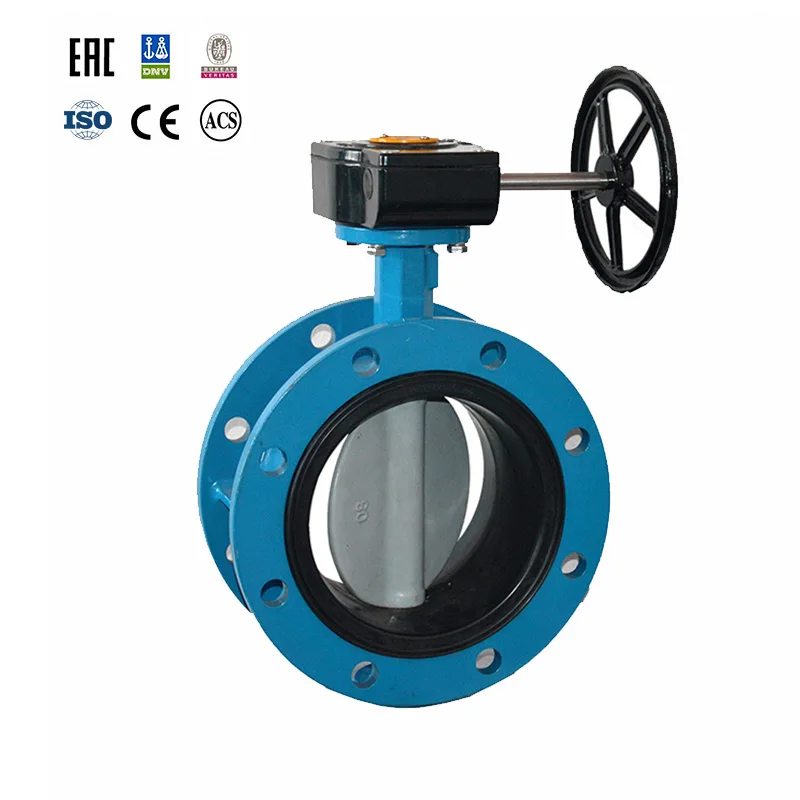

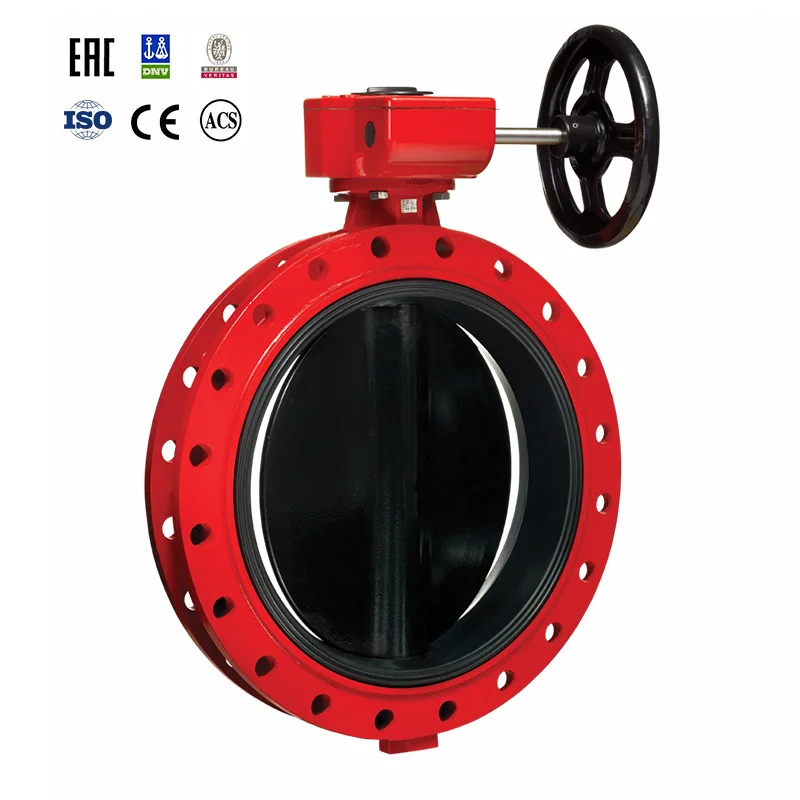

DN900 PN16 Cast Iron Butterfly Valve with Turbine Flange Conforming to DIN BS UNI ISO ANSI as JIS Standards


banerIndustrial DN65 Half Shaft  Double Flange Butterfly Valve



Product Description

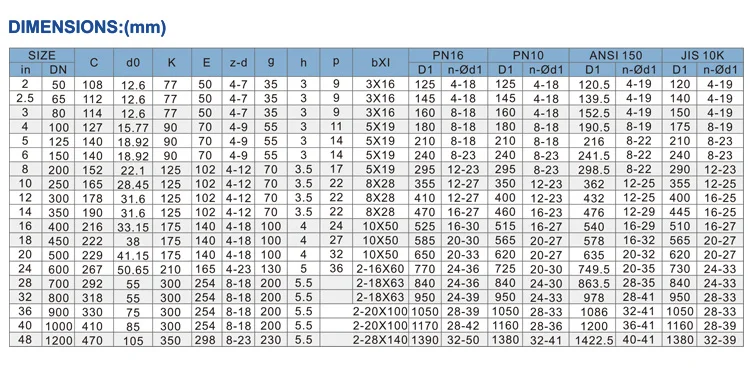

Specification:










































Nominal pressue (MPa)



1.0



1.6



Nominal diameter(mm)



50-2400



50-1600



Test pressure



Shell



1.5



2.4



(MPa)



Seal



1.1



1.76



Applicable temperature



150



Applicable medium



Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc.



Operating mode



manual, worm gear, pneumatic, electric, etc.



Standards:


















Design & Manufacture



Flange Connection



Face to Face Dimension



Test & Inspection



MSS SP-67
API609
EN593



DIN PN10/16/25; ANSI B 16.1
BS4504; ISO PN10/16
JIS B 2212/2213
BS 10 table D; BS 10 table E



API609
ISO5752 series 20
BS5155



API 598






Material:














































No.



Part Name



Material



1



Body



Carbon Steel/Stainless Steel/Cast Iron/Ductile Iron/ Al-Bronze



2



Disc



Al-Bronze/CF8M/Ductile iron/WCB



3



Seat



EPDM/PEFE/Buna/NBR/Hypalon



4



Stem



Carbon Steel/Stainless Steel314/Stainless Steel316



5



Bushing



PTFE/Lubricating



6



O ring



EPDM/PEFE/Buna/NBR/Hypalon



7



Pin



SS316/SS416/SS304






Application:
Chemicals, air, water, steam, oil, acids, salts ect
Features:


1. Small in size, light in weight, easy installation and maintenance.


2. Simple and compact construction, quick 90 degree on-off operation.


3. Minimized operating torque, energy saving.


4. Flow curve tending to straight line, excellent regulation performance.


5. Long service life, standing the test of tens thousands opening/closing operations.


6. Wide selection of materials, applicable to various medium.





production process


baner_04





Packaging & Shipping


baner_05





Company Information


 IMGV---Tianjin Union Valve Co., Ltd. is a professional valve manufacturer with high quality products and internal management standards. It has a high reputation in the foundry industry. Our company has a modern factory, advanced manufacturing processing and testing equipment, strong technical force.1.jpg


We have More than 200 employees, more than 30 years of professional experience, skilled technicians and operators, the products passed ISO 9001:2015 and CE certification, our main products are concentric butterfly valve,eccentric butterfly valve, triple-eccentric butterfly valve, soft seat gate valve, ball valve, check valve, Y-strainer, rubber joints, etc. With product quality and perfect service system, it is sold in dozens of countries and regions such as Europe, America, Southeast Asia, Middle East, Australia, North Africa, South Korea, Hong Kong,Taiwan and so on. Our company's purpose is: professional and technical support, perfect after-sales service!
We welcome you to contact us for more information and look forward to working with you!


2.jpgbaner_07





FAQ





1. Q: Are you a manufacturer or trading company ?


A: we are valve manufacturer and factory ,and not trading company.


2. Q: Do you have agent or representative abroad?


A: We dont have agent abroad,please contact us to purchase valves


from TIANJIN UNION VALVE CO.,LTD. directly.


3. Q: What's your product range?


A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,Rubber Joint


by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.


4. Q: Is there any stock in your factory? and how about your lead time?


A: We stock valves with normal sizes. The lead time depends on your quantity,


generally 30-35 days.


5. Q: Which countries do you export to ?


A: We export directly to vast majority of countries in the world.


6. Q: What certificates will you provide ?


A: We can provide CE/ ISO / WRAS


7. After-sales service
18 monthes year warranty for all kinds of products
As an experienced manufacturer, you can rest assured of the quality and sales service


8. Payment
T/T, L/C, OA, D/P, D/A


9.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea


10. Do you provide free sample?
Free sample is ok for us.


11. Do you accept custom design on size?
Yes, if the size is reasonable
