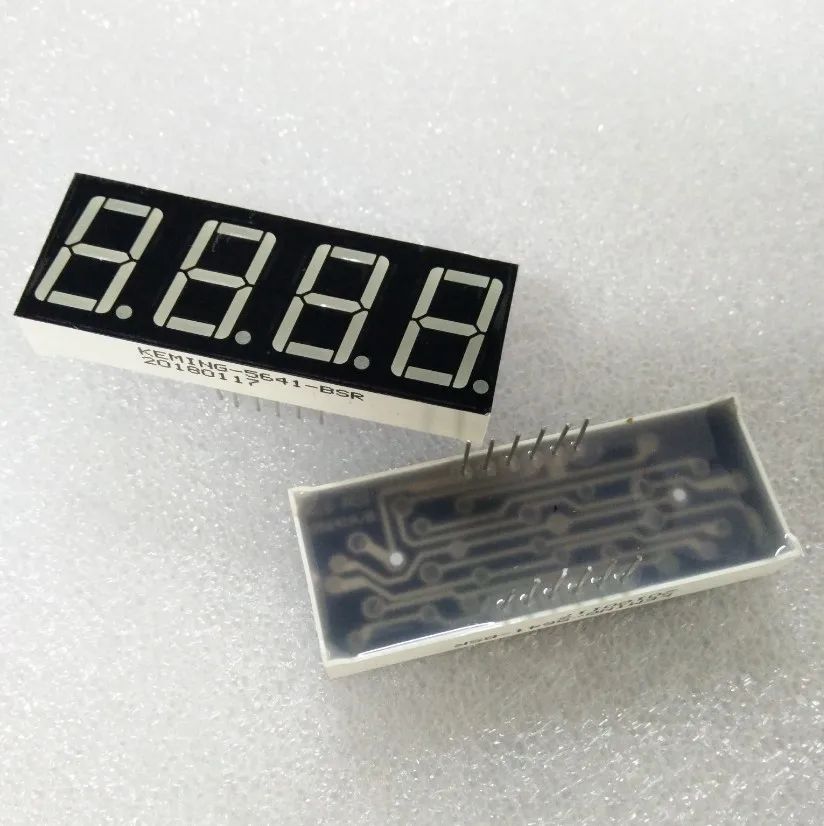

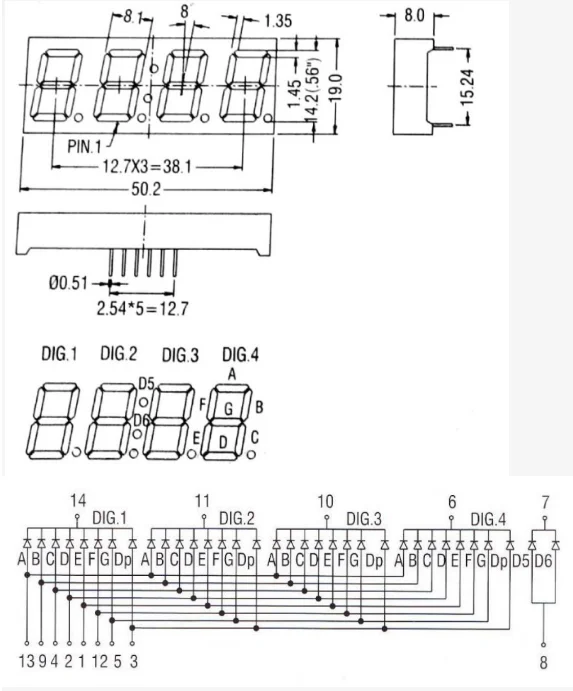

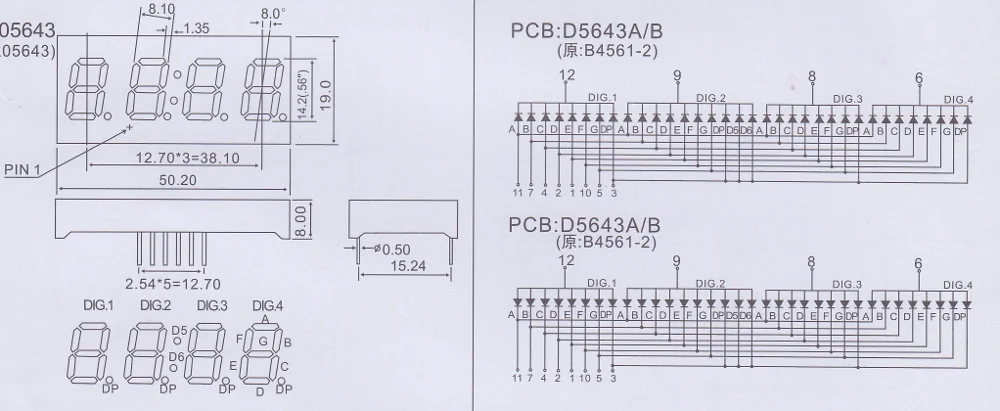

Note: If this PCB layout don't meet your requirements, please contact me for other choices.
1,Low consumption
2, High brightness
3,High intensity and reliability
4,Easy assembly
Two years quality warranty
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)
Emitting Color
Test Condition
Wavelength(nm)
Forward Voltage(V)
Luminous Intensity (mcd)
(λp)
λ
Typ
Max
Typ
Max
Amber
IF=10-15mA
600-605
30
1.9
2.0
90
100
Super green
IF=10-15mA
565-575
30
1.9
2.0
48
55
Super red
IF=10-15mA
620-625
20
1.8
2.0
110
130
ultra red 1
IF=10-15mA
620-625
20
1.8
2.0
200
210
Ultra red 2
IF=10-15mA
620-625
20
2
2.1
300
350
High red
IF=10-15mA
638-660
20
1.8
1.9
15
20
Yellow green
IF=10-15mA
570-580
30
1.9
2.0
43
50
Yellow
IF=10-15mA
580-600
35
1.9
2.0
70
80
Blue
IF=10-15mA
465-475
40
2.95
3.0
150
200
Pure green
IF=10-15mA
515-525
40
2.95
3.0
180
250
White
IF=10-15mA
-
-
2.8
2.9
180
200
