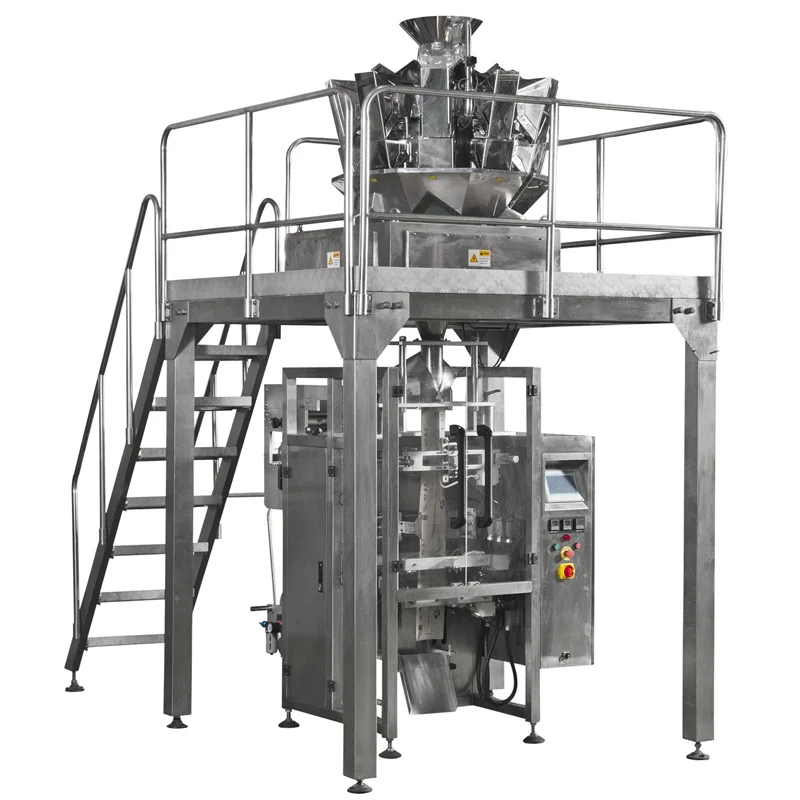

Automatic potato chips snack food packing machine

Product Overview

Description

Automatic potato chips snack food packing machine

Feature

1. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.

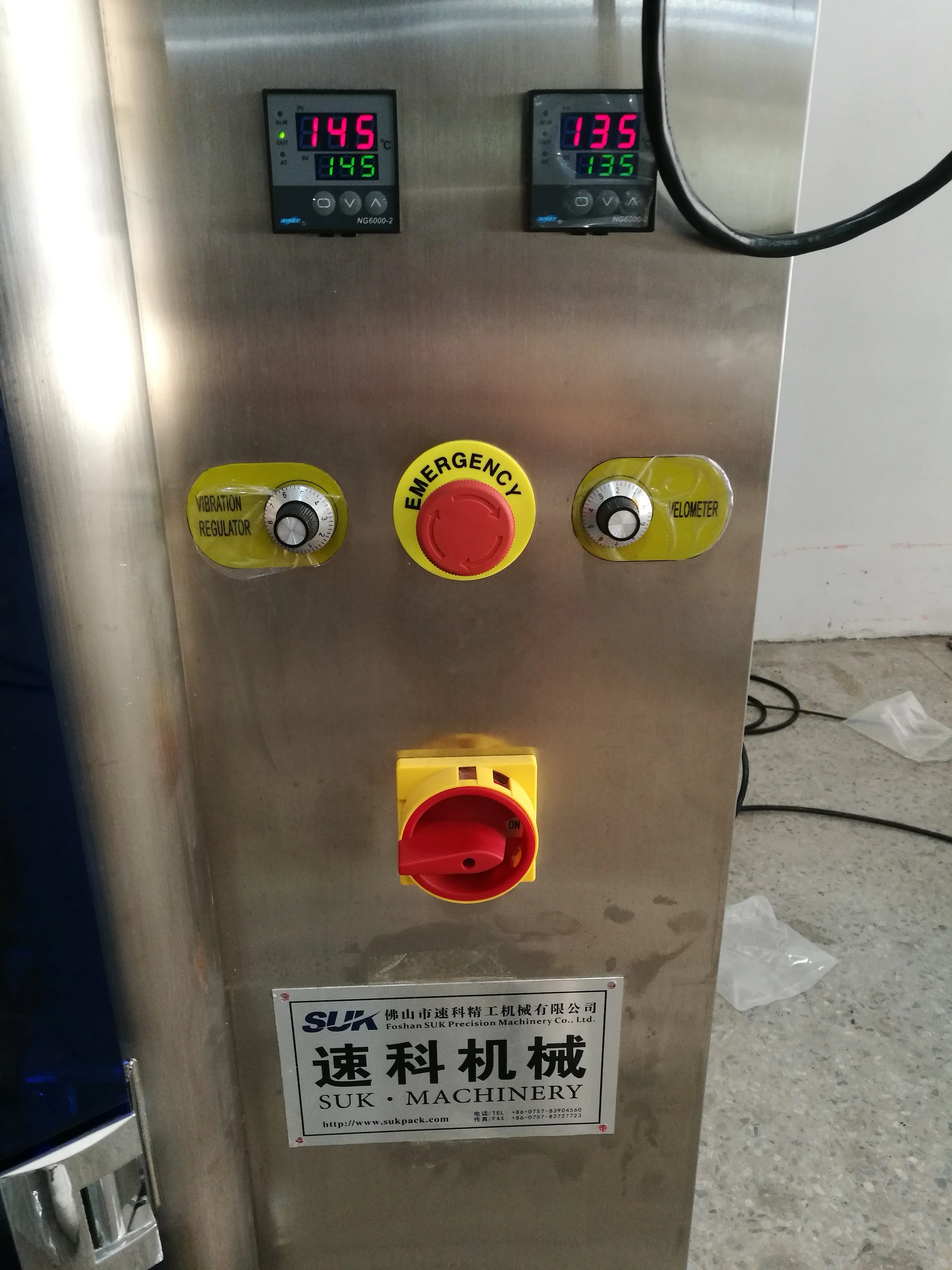

2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

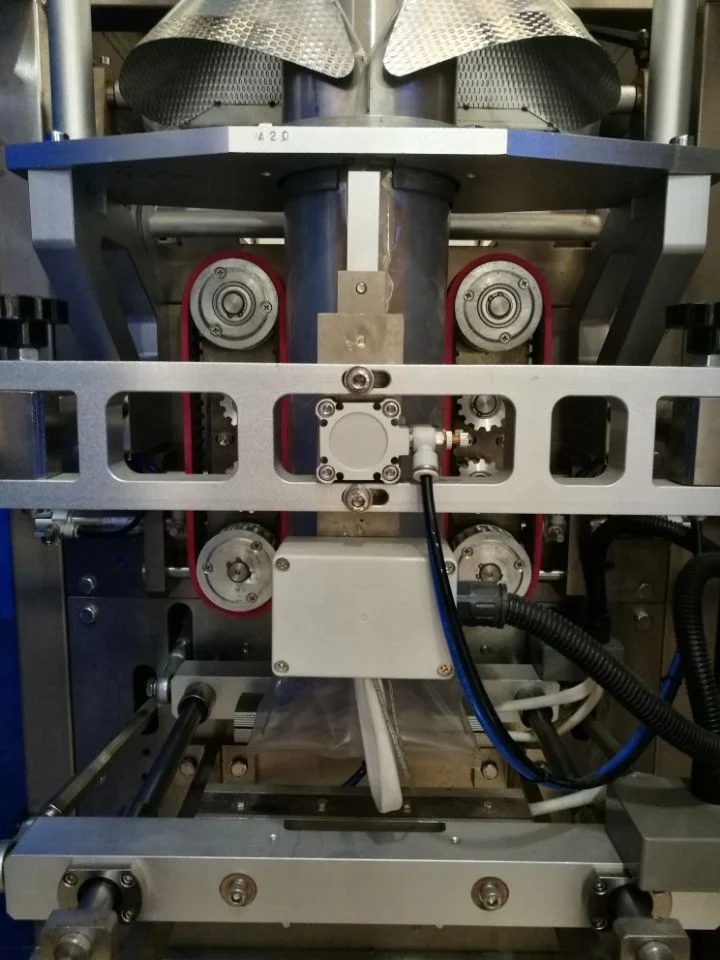

3.  Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.

4. Double servo control, high precision orientation, size more nicety.

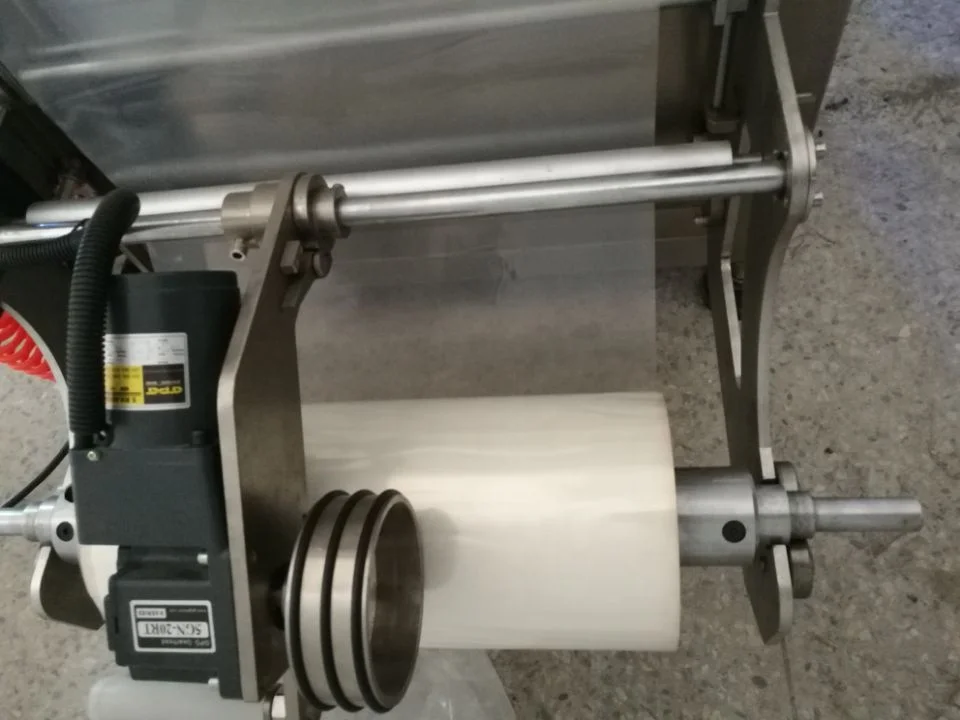

5. External film releasing mechanism: simpler and easier installation of packing film.

6. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .

7. Close down type mechanism , defending powder into inside of machine.



Application

  It’s suitable to use in packing the high accuracy and easy fragile material ,such as:puffy food.crispy rice,jelly,candy,pistachio, apple slices,dumpling,chocolate , pet food,small hardware,Medicine,etc.



Specification:



Machine model	SL-420	SL-520	SL-720	SL-820
Bag length	80-320mm(L)	80-420mm(L)	100-500mm(L)	100-550mm(L)
Bag width	50-200mm(W)	50-250mm(W)	100-350mm(W)	180-400mm(W)
Max width of roll film	420mm	520mm	720mm	820mm
packing material	OPP/CPP,OPP/PE,PET/PE
Packing speed	5-60bags/min	5-50bags/min	5-40bags/min	5-30bags/min
Measuring range	150-1500ml	150-2000ml	500-3500ml	6000ml(Max)
Power voltage	220V 50/60hz 2.2kw	220V 50/60hz 2.5kw	220V 50/60hz 3kw	220V 50/60hz 5kw
Machine weight	500kg	550kg	600kg	900kg
Machine dimension	(L)1388×(W)1116×(H)1536mm	(L)1440×(W)1216×(H)1796mm	(L)1500×(W)1116×(H)1536mm	(L)1780×(W)1350×(H)1950mm

Our company







 Packaging and shipping:







FAQ

Q: Do you have any installation services?

A: Installation Services are available in any time.

We will provide the instruction and videos to you, and we provide pre-sales and after sales service, to help and direct you to use the machines well.





Q: How long is the guarantee?

A:1 year. All machine part can be replaced for free within 1year if broken cause of quality problem, and the buyers should be afford if broken by operate in wrong.



Q: How about the after-sale service?

(1)Online service time: 8:30am to 11:30pm.

(2) Oversea service is available. The service fee, accommodation fee and board expenses, round trip ticket should be afford by the customers.



Q: What is your spare parts?

A: Generally, different type machinery comes with different spare parts, we would like to provide you a list to help you know them well.



Q: And requirements of the material about the wrapping film?

A: OPP single layer heat sealing film, and composite film.



Q: Are you manufacturer? Do you accept the ODM?

A: Yes, we are factory and we accept the ODM for sure. We have experienced mechanical designer to accept customization.



Q: Whether your factory would help for test the packing products?

A: Yes. We will send you a similar product packing video to you for reference first, as well as the programme, and you also can send us your products we will take a video and send back the finished packing products by return.
