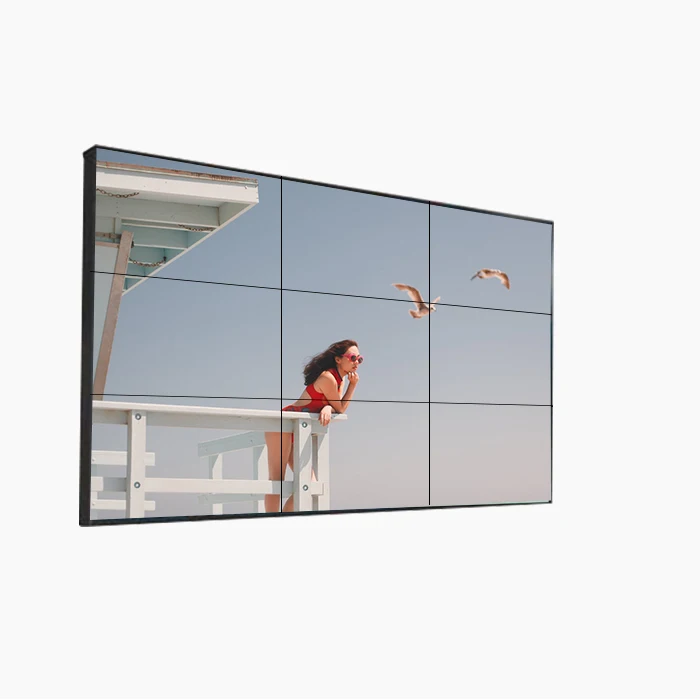

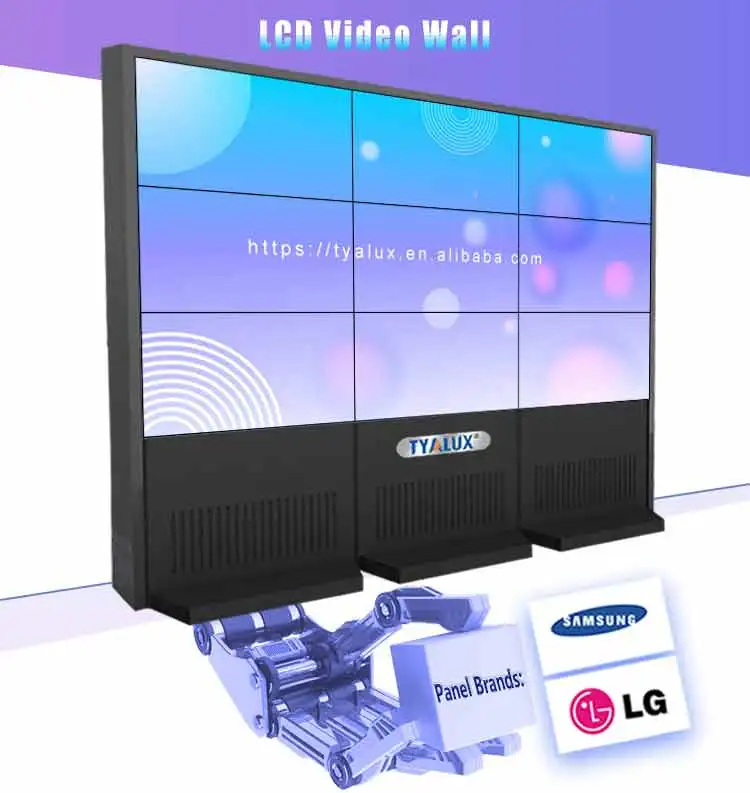

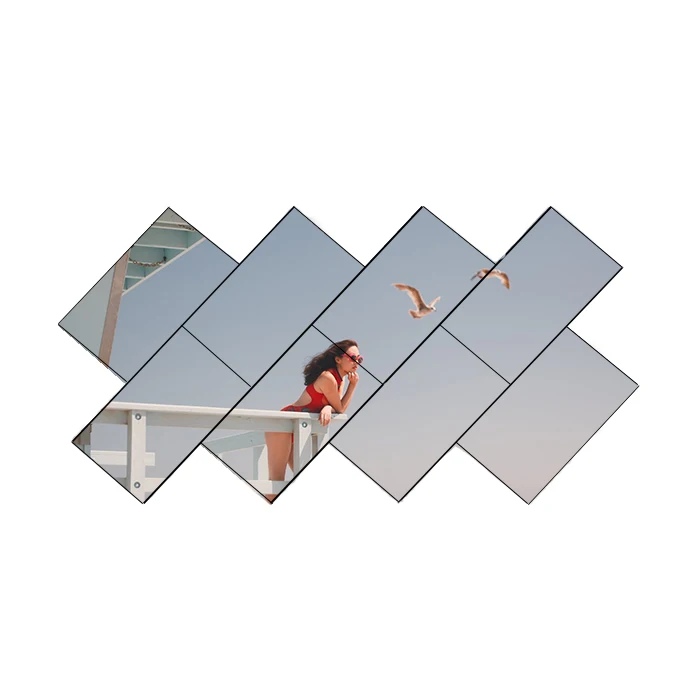

Flexible 55 inch FHD 3.5mm Bezel 500nits Brightness Floor Stand DID LCD Video Wall with Industrial LCD Panel
- Category: >>>
- Supplier: Shenzhen Weiguan Views Technology Co. Ltd.
Share on (62425234308):
Product Overview
Description
Flexible 55 inch FHD 3.5mm Bezel 500nits Brightness Floor Stand DID LCD Video Wall with Industrial LCD Panel
Product Description

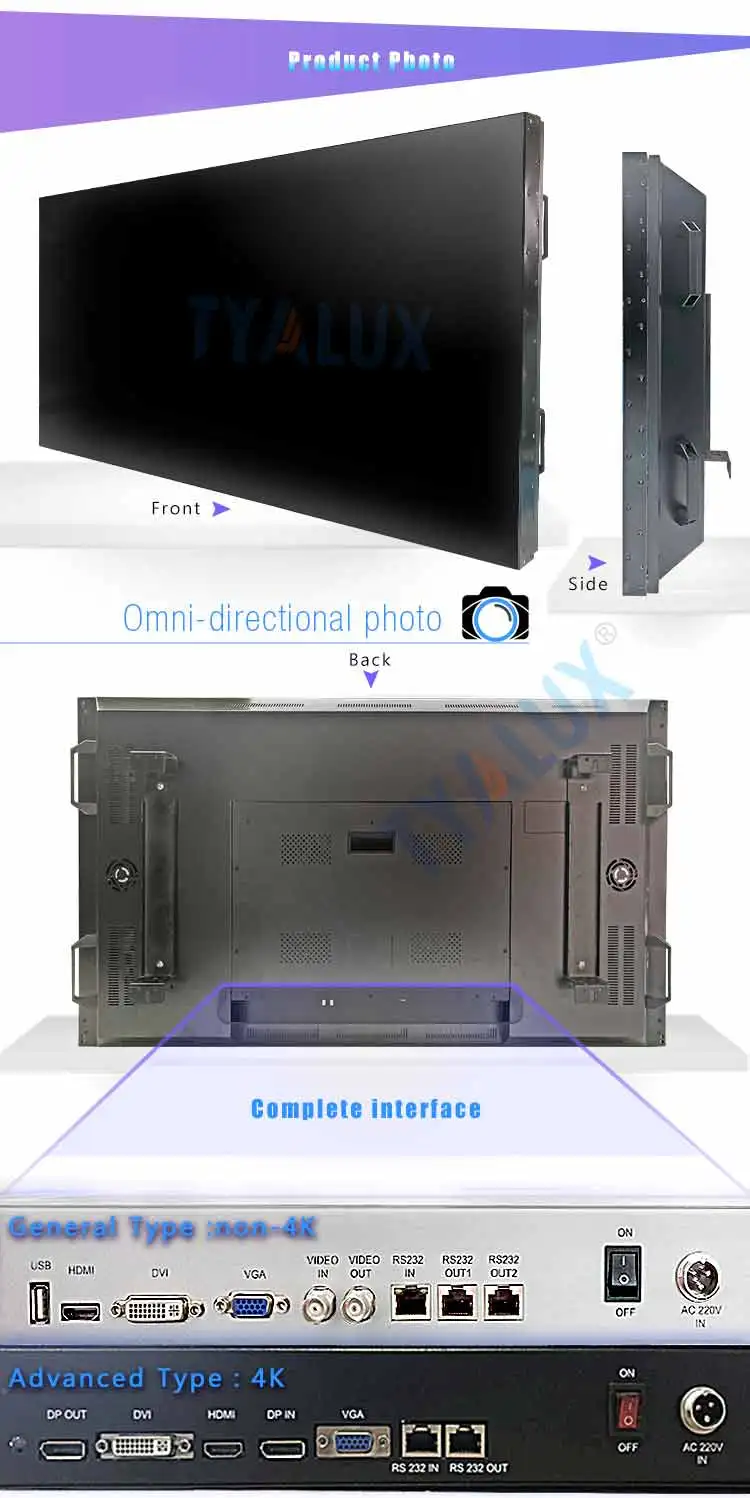

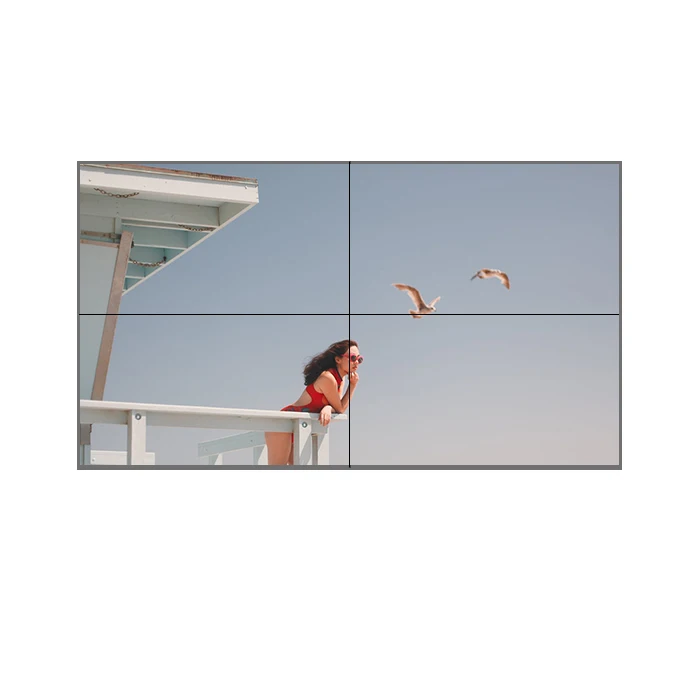

Product Photo

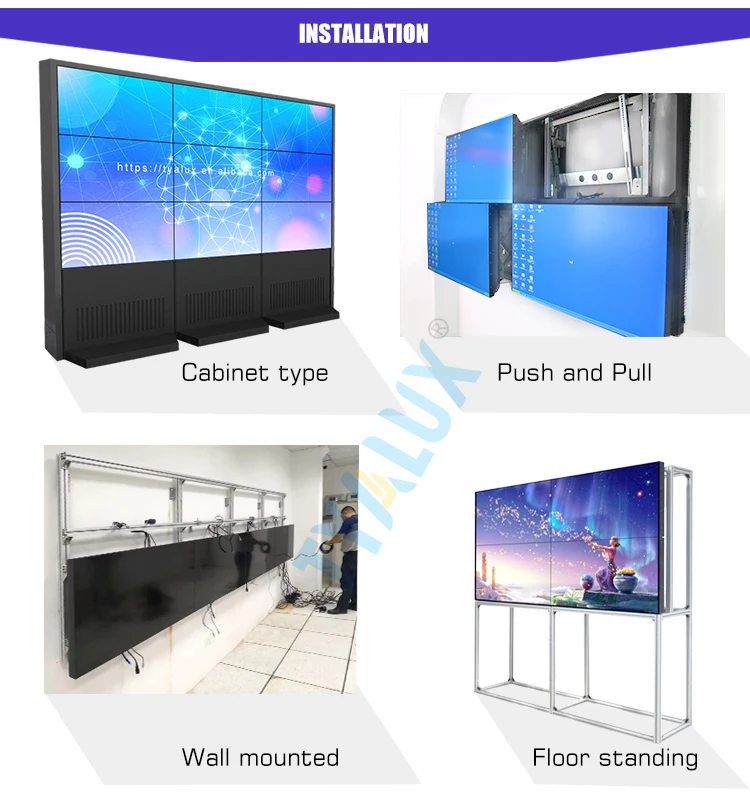

Installation

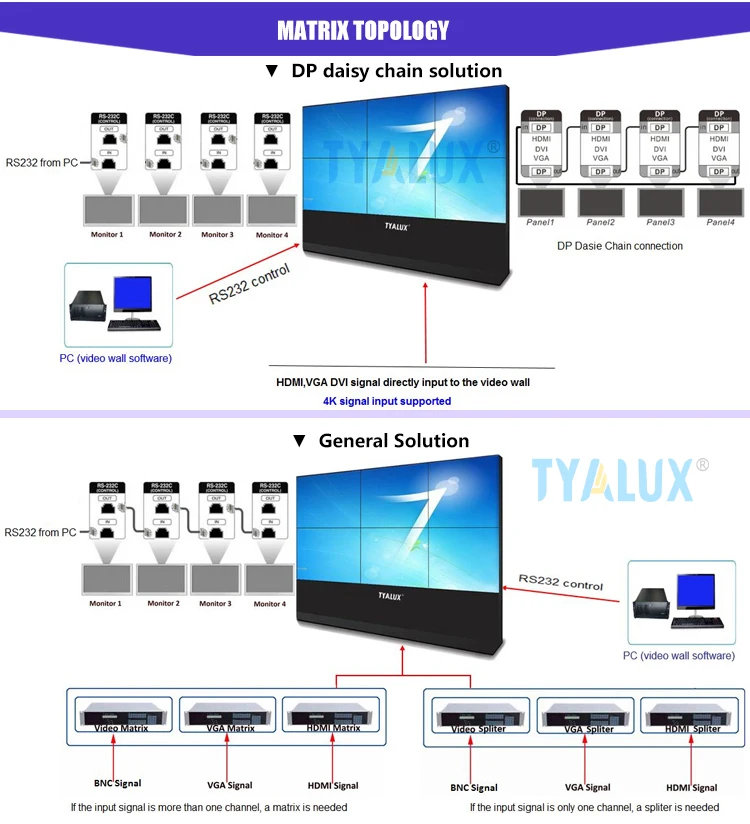

Matrix Topology

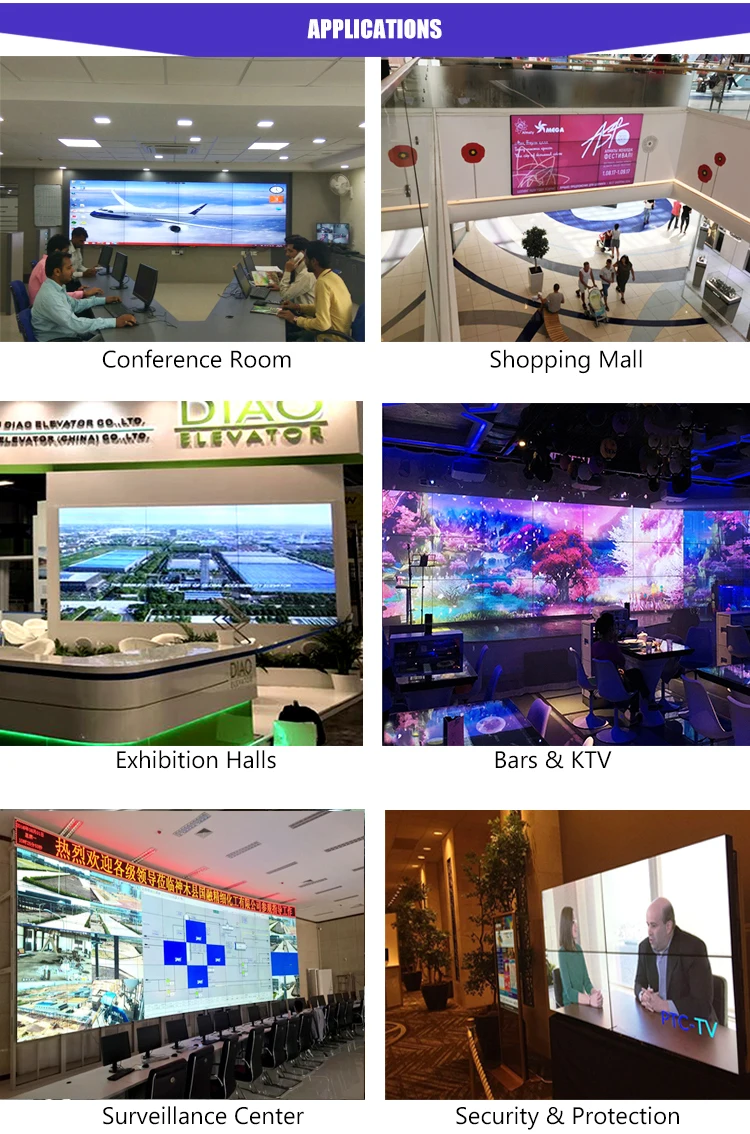

Applications
Specification of LCD Video Wall | ||||||
Size | 46 inch | 49 inch | 55 inch | |||
Panel Size | 46" LCD Screen | 49" LCD Screen | 55" LCD Screen | |||
Backlight Type | LED | |||||
Display Area | 1018.08(H)x572.67(v)mm | 1073.8(H)*604.0(V)mm | 1209.6(H)*680.4(V)mm | |||
Aspect Ratio | 16:9 | |||||
Max Resolution | 1920X1080 | |||||
Color | 8Bit,16.7M | |||||
Brightness (nits) | 500cd/m2,700cd/m2 | 450cd/m2 | 500cd/m2,700cd/m2 | |||
Contrast | 3500:1 | 1300:1 | 3500:1 | |||
Visual Angle (H/V) | 178°/178° | |||||
Response Time | 8 ms | |||||
Life Span | >60,000 hours | |||||

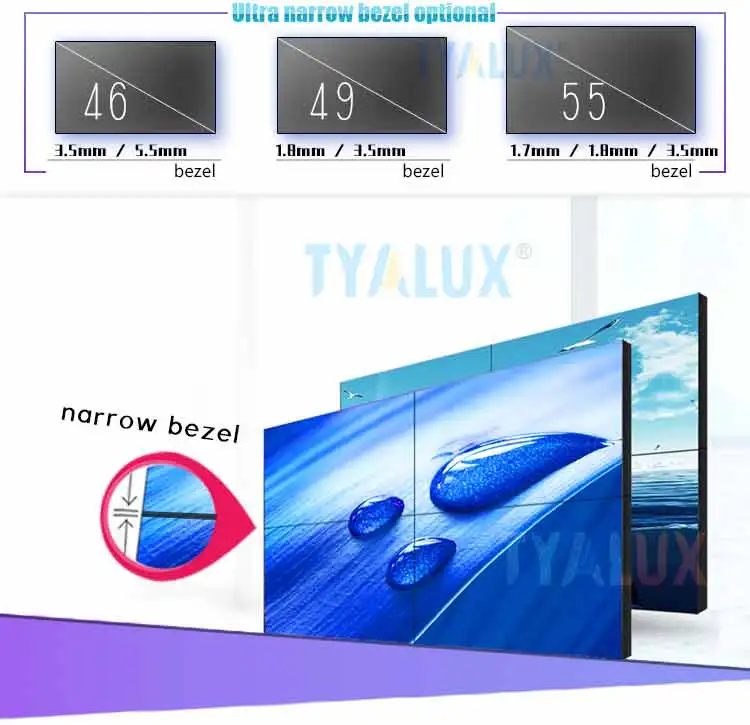

Bezel width (between screens) | 3.5mm/5.5mm | 1.8mm/3.5mm | 1.7mm/1.8mm/3.5mm | |||
Product Dimension | 1022(L)*576.6H)*124.8(D) | 1077.5(L)*607.8(H)*109.5(D)mm | 1213.4(L)*684.2(H)*133(D)mm | |||
Product Weight | 25KG | 30KG | 35KG | |||
Interfaces (option 1- without 4K input) | ||||||
Model No. | TYL-DP4609 | TYL-DP5509 | ||||
Input | 1*DVI,1*HDMI,1*VGA (SVGA / XGA / WXGA),2*BNC (PAL/NTSC),1* YPBPR,1*RS232(RJ45) | |||||
Output | 1*RS232(RJ45),1*BNC (PAL/NTSC) | |||||
Interfaces (option 2- With 4K input) | ||||||
Model No. | TYL-DP4609-H4 | TYL-DP5515-H4 | ||||
Input | 1*DVI,1*HDMI,1* DP (Display port),1*VGA (SVGA / XGA / WXGA),2*RS232(RJ45) | |||||
Output | 1* DP (Display port),2*RS232(RJ45) | |||||
Power | ||||||
Power Supply | AC100V~240V 50/60Hz | |||||
Maximum Power Consumption | 120W | 130W | 170W | |||
Standby Power Consumption | <3W | |||||
Working Environment | ||||||
Working Temperature | 0℃~60℃ | |||||
Working Humidity | 5%-95%RH | |||||
Who we are ?
a.Weiguan Views(Tyalux) is a manufacturer (Stock Code:835002) specializing in LCD Video Wall,Digital Signage and Interactive White Board since 2003,and have made over 7300 projects before.
b.12 years golden supplier on alibaba.
What we have?

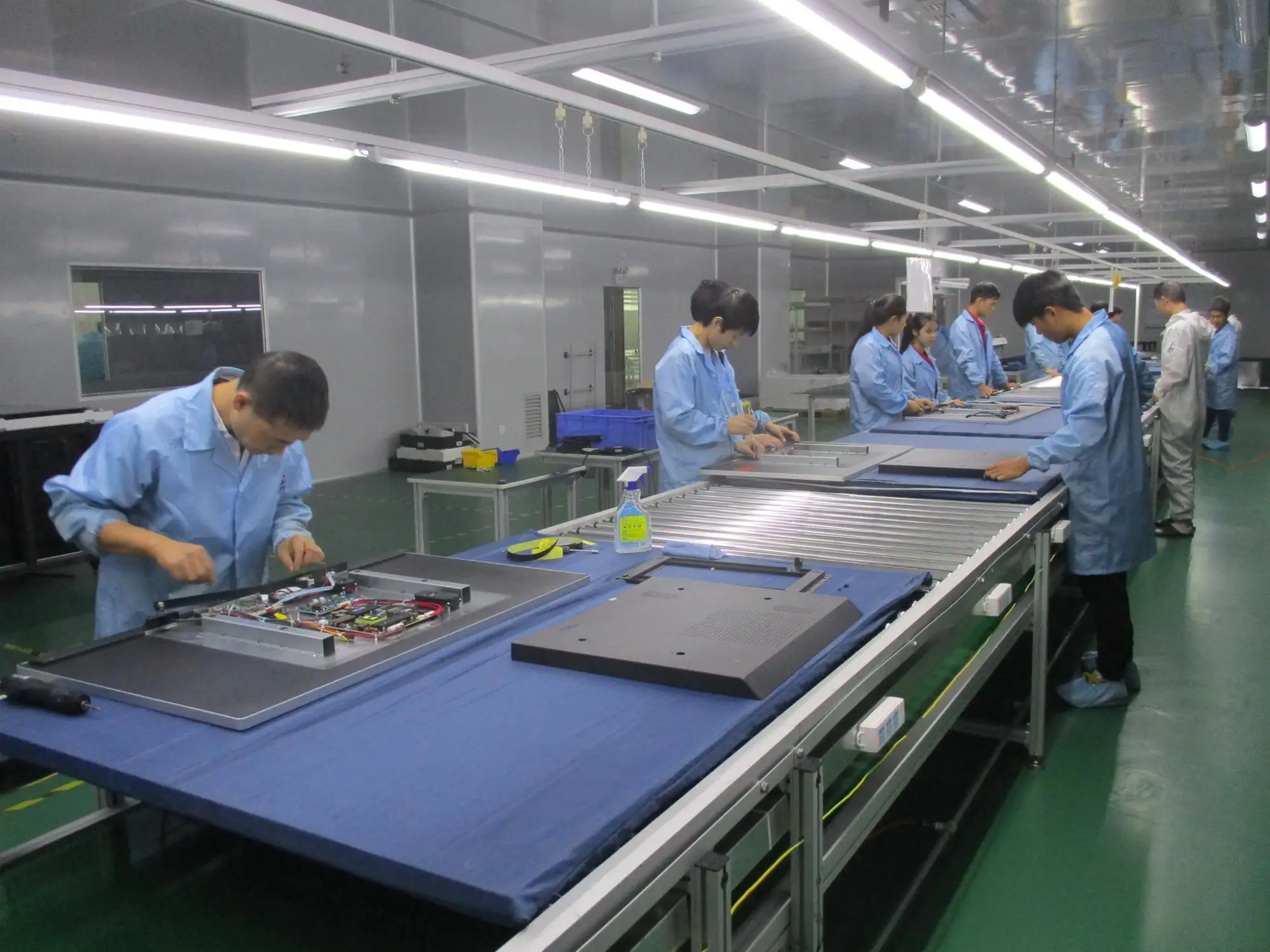

a.Two buildings with 9800 m2 in total
b.4100 m2 Workshop
c.303 employees
d.55 technicians and engineers
e.High reputation and famous Brand (Tyalux) in China
Certificates:
CE / FCC / Rohs / ISO9001 / ISO14001 / OHSAS18001
QC system
a.Reliable materials supply chain,like Samsung/LG/BOE
b.12 QC and QA exployees
a.Weiguan Views(Tyalux) is a manufacturer (Stock Code:835002) specializing in LCD Video Wall,Digital Signage and Interactive White Board since 2003,and have made over 7300 projects before.
b.12 years golden supplier on alibaba.
What we have?
a.Two buildings with 9800 m2 in total
b.4100 m2 Workshop
c.303 employees
d.55 technicians and engineers
e.High reputation and famous Brand (Tyalux) in China
Certificates:
CE / FCC / Rohs / ISO9001 / ISO14001 / OHSAS18001
QC system
a.Reliable materials supply chain,like Samsung/LG/BOE
b.12 QC and QA exployees

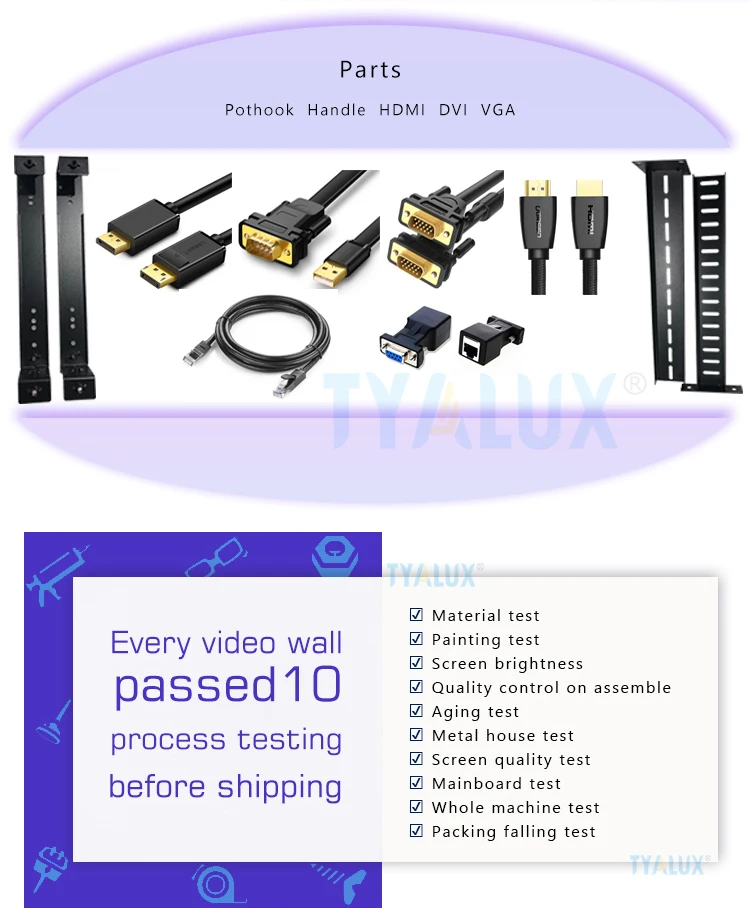

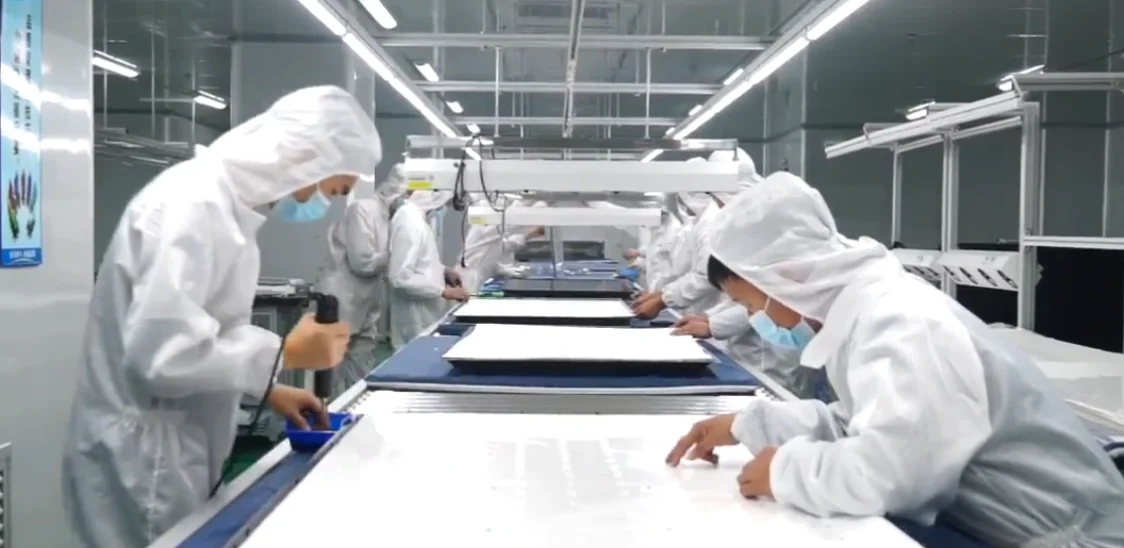

1.Full inspection with critical materials,like LCD panel,PCB board,Power board,Metal case etc.
2.In-line inspection during production stage
3.Strict aging test:72 hours for videowall and 48 hours for digital signage and smart white board
4.Full inspection for finished product before packaging
5.Sampling inspection after packaging
