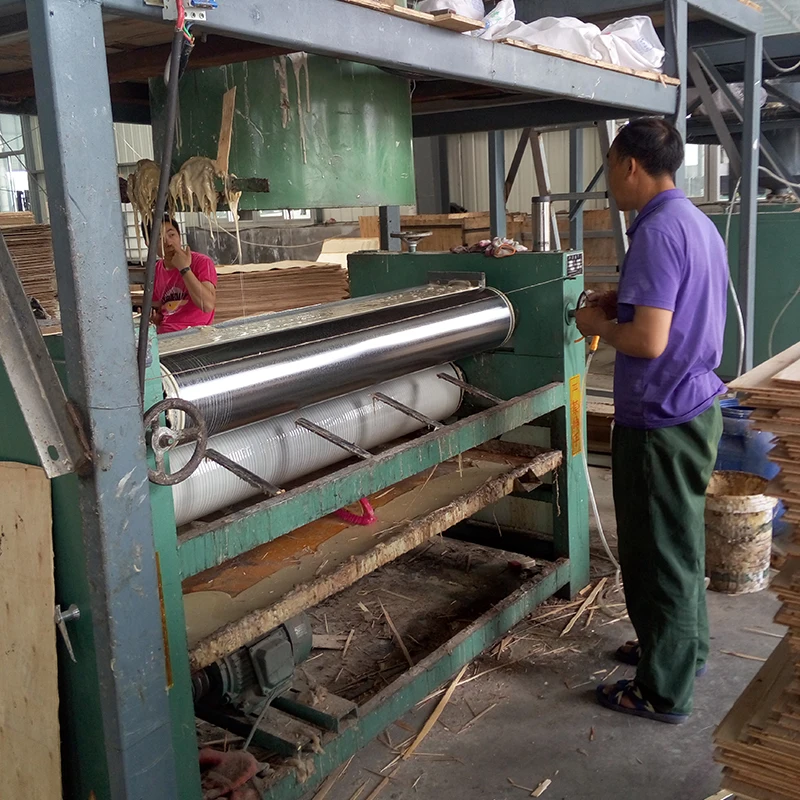

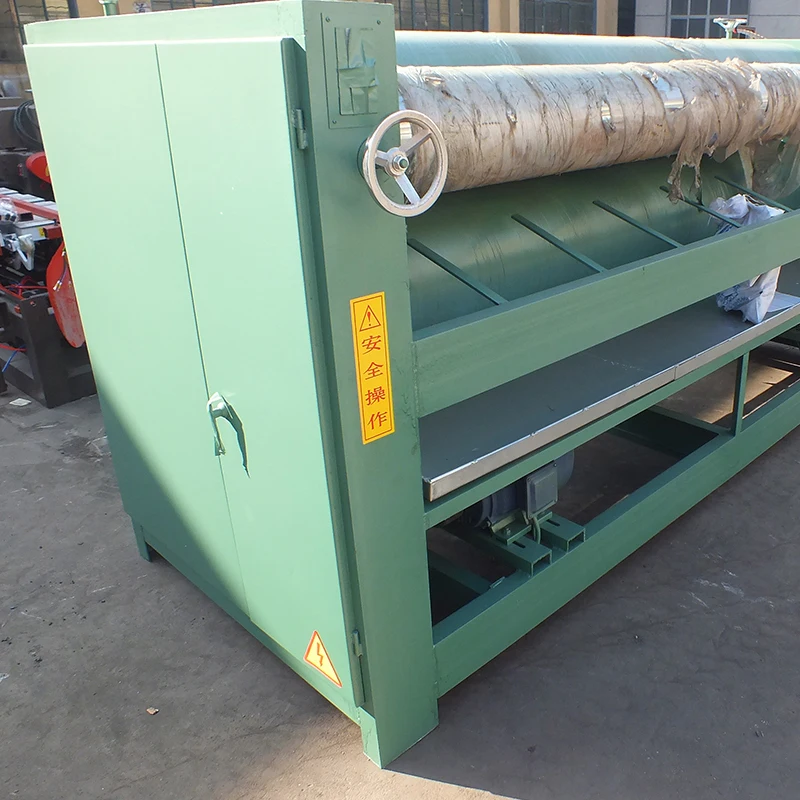

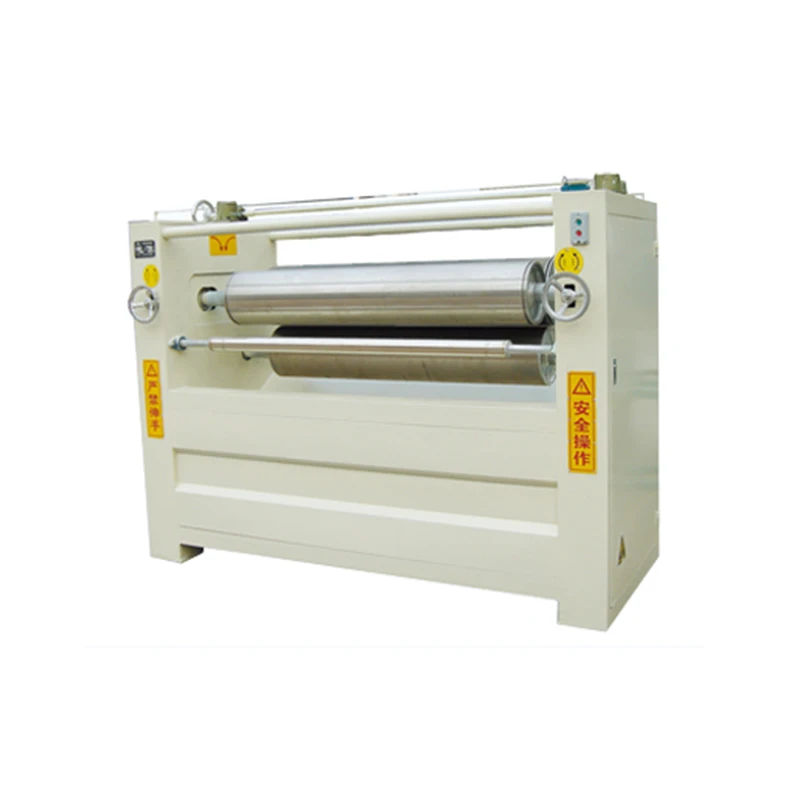

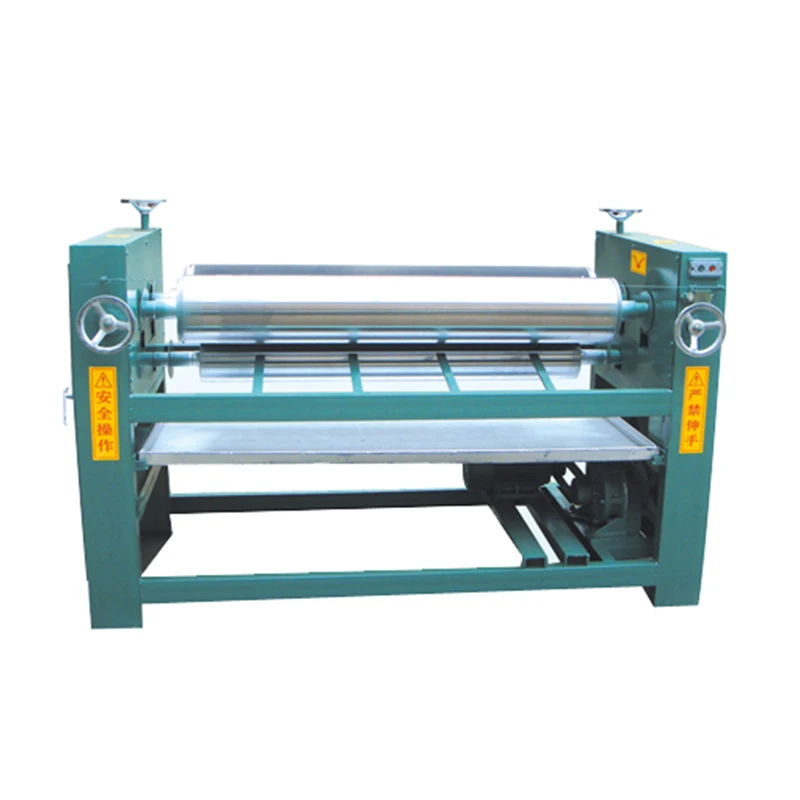

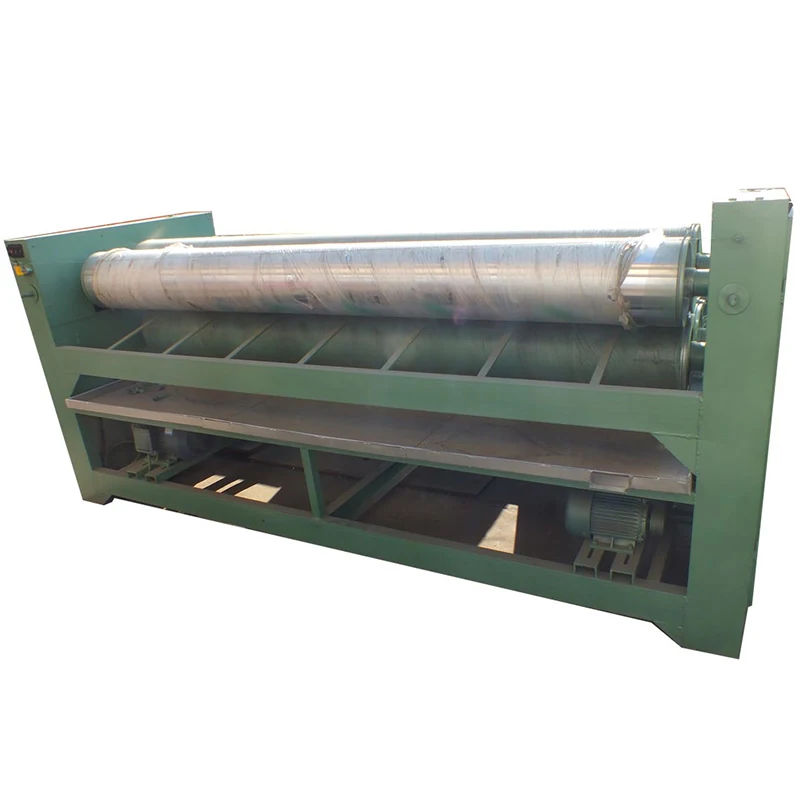

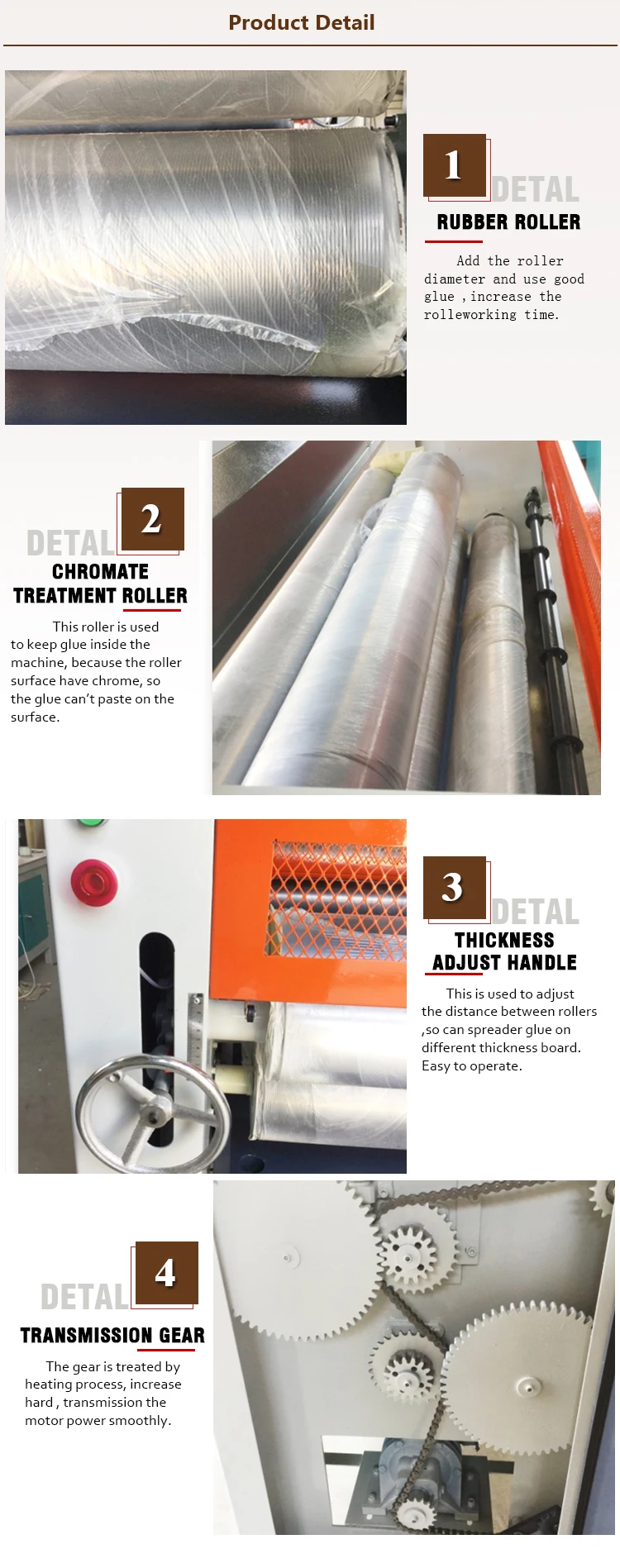

Plywood glue spreader machine is one of the main equipment of the plywood production, it is will be after modulation good adhesive evenly coated to the surface veneer of mechanical equipment. According to the number of plywood glue roller coating machine, can be classified into double roller coating machine, three roller coating machine and four roller coating machine three forms. Plywood glue spreader machine comprises a frame, the glue roller, the plastic bucket, retarding mechanism, adjusting device, etc.
No.
Item
Machine Parameters
1
Max.Processing Length
2700mm
2
Glue Roller Diameter
410mm*2
3
Glue Roller Length
2700mm
4
Extrusion Roller Diameter
273mm
5
Extrusion Roller Length
2700mm
6
Number of Roller
4 pcs
7
Motor Power
7.5kw
8
Gumming Surface
Two Sides
9
Gumming Speed
21m/min
10
External Dimensions
4300*1000*1900mm
11
Weight
3000kg
12
Cutter Size
1450mm*180mm*16mm
Main Features
1. Applicable to the production of plywood, joinery board, bamboo plywood or man-made board secondary stick a face;
2. Compact structure, strong and durable, convenient maintenance, uniform coating, high efficiency and province glue, save the production cost;
