| Model No. | KS-VW5535SL | |
| Pannel Brand | ||
| Panel Size | 55" | |
| Brightness | 500cd/sq/m | |

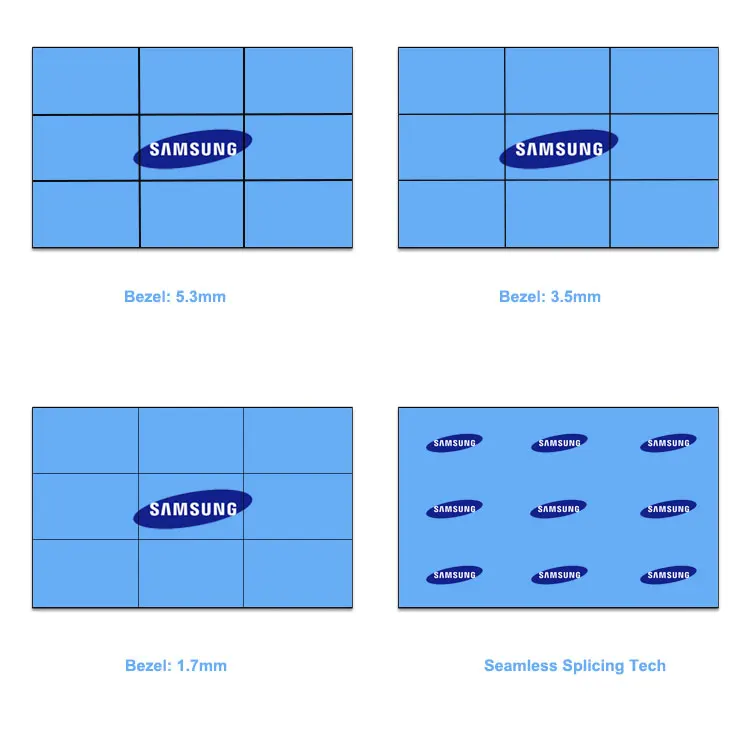

| Bezel | 3.5mm | |
| Maximum Power Consumption (W ) | 220 | |
| Product dimension L*W*H (MM) | 1213*679*127 | |
| Honeycomb Box dimension L*W*H (MM) | 1430*900 *1040 | |
| NW (kgs ) Two pcs in one carton | 78 | |
| GW (kgs)Two pcs in one carton | 91 | |
| Aspect Ratio | 16:9 | |
| Max Resolution Support | 1920*1080 | |
| Color | 8Bit,16.7M | |
| Contrast | 3500 | |
| Visual Angle (H/V) | 178° | |
| Response Time | <=6ms | |
| Life(hrs) | >100,000(hrs) | |
| Input and output | ||
| DVI | 1 | |
| H DMI | 1 | |
| VGA | 1 | |
| YPbPr | 1(BNCx3) | |
| S-video | 1(BNCx2) | |
| Composite Video Input/(AV) | 3(BNCx3) | |
| Composite Video Output | 2(BNCx2) | |
| Control signal input and loop out | RS232(RJ45-8) | |
| Split Screen | Support Picture in Picture(PIP/POP) | |
| Power Supply | AC100V~240V | |
| Standby Power Consumption | <=3W | |
| Working Temperature | 0℃~50℃ | |
| Working Humidity | 10%-90% | |
| Video Wall Controller(Built-in each Screen) | ||
| Model No. | ||
| Input | CVBS | 3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs |
| VGA | 1*D15 port, support SVGA/XGA/WXGA | |
| YPbPr/YCbCr | 1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV | |
| Y/C | 2*BNC inputs, support PAL/NTSC all formats | |
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display |
| Operate mode | Panel key operation(needs customization) | |
| Standard RS232 port( provide free control software) | ||
| Infrared Remote Control Operation | ||
| Engineering software | Customized | |
| Working temperature | 0~70 ℃ | |
| working humidity | 5~95 %RH | |
| AC voltage power supply | 100-240V/50, 60Hz | |
| power consumption | Max 300W,according to different Screen models | |
| Dimension | 338×295×60(mm) | |
| Weight | About 3.5KG | |

Q1: Are you a factory or a trading company?
A : We are a OEM/ODM factory.
Q2: What payment methods your company accept?
A : We accept most of the payment methods, Flexible Payment term: support T/T, L/C, Westunion, Paypal.
Q3: How long is the warranty time for your products?
A:1-year warranty, lifetime maintenance.
Q4: What will you do if the product be nature damange within warranty time and how about out that time?
A : Well, we will give some quite simple questions to help us confirm the damaged part. Once it confirmed, the free replacement will be send. Also, we will just request a very low price for replacement part, if the product out of warranty time.
Q5: Can I customize the product I ordered?
A : Abusolutely yes, customizatiion offer from customers are most welcome in our company.
Q6:Can I order a sample?
A:We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly.
Q7:What are your advantages?
A : We have our own ERP systems : Shorten lead times at low cost with responsive production planning.
Q8:What kind of design and development capabilities do you have?
A:artwork/ Instruction manual/ product design according to customer's requirement.
Q9:What's the shipment terms and delivery time of your company?
A : Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggestExpress and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
