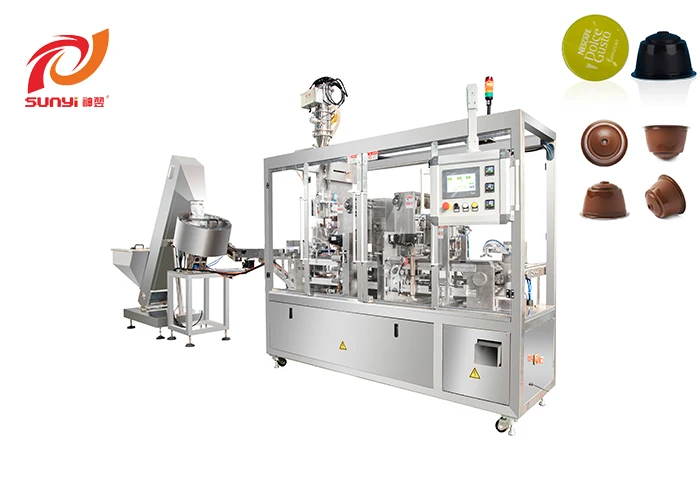

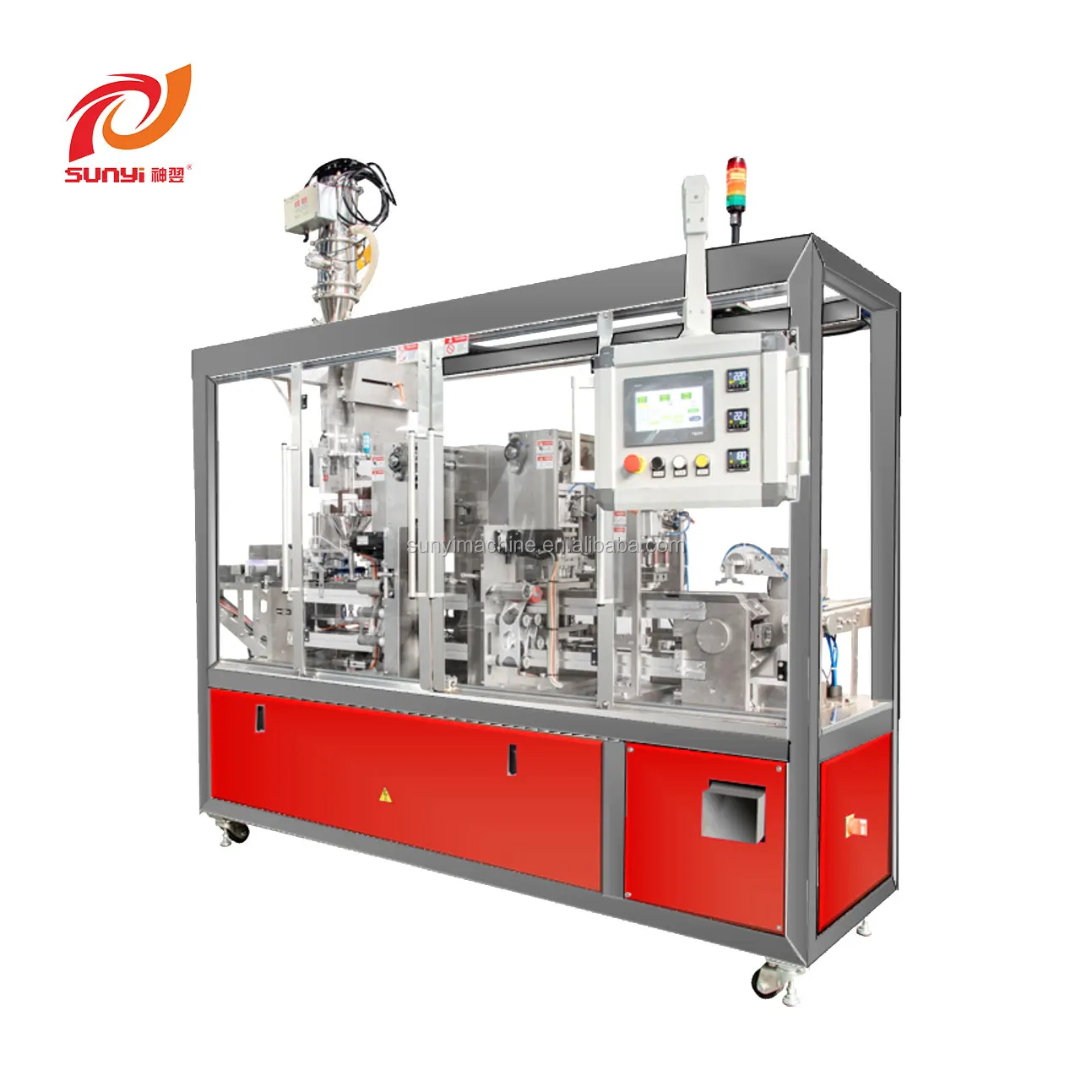

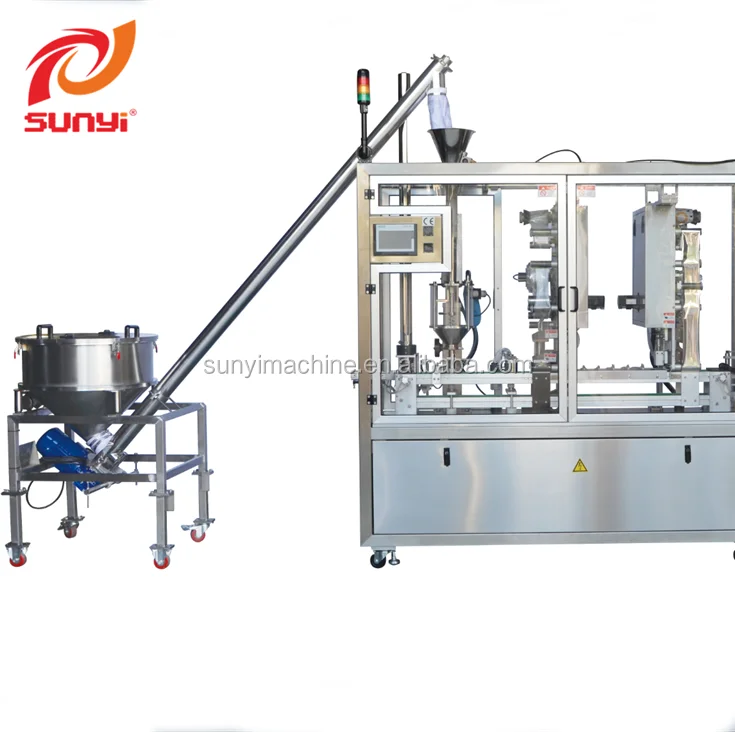

Automatic Single Line Original White Coffee Freeze Dried Powder Coffee Capsule Filling Sealing Machine for Dolce Gusto
- Category: >>>
- Supplier: Jiangsu Sunyi Machinery Co. Ltd.
Share on (62425346430):
Product Overview
Description
Product Description
Jiangsu Sunyi Machinery Co., Ltd., which is the China top 1 professional manufacturer of the compatible coffee capsules filling sealing machine for over 10 years.
Big Discount Compatible Nespresso/K-cup/Lavazza Blue/Dolce Gusto Coffee Capsule Filling and Sealing Machine(Model: SKP-1) of Sunyi Machinery is fully automatic and muti-function capsules K-cups filling sealing packaging machinery. With good appearance, stable performance, and most importantly with absolutely competitive lower price, this machine have won a variety of customers at home and abroad.
This machine main body frame adopts painted carbon steel and foodstuff contact part being food grade stainless steel. This design will meet the lower-end market requirements. However, there’s not a bit of discount on the filling speed or the filling accuracy. On contrast, the speed will be faster with stable performance because we have updated the control system and applied European brand components(such as Schneider, Siemens, Omron, etc).
Of course, we will still have full stainless steel machine for your choice.
And we also have bigger capacity machine models for your options.
If any further questions, please don’t hesitate to contact us.
Machine Photos for reference:
*Main Function
1）Automatically accomplish all production process,small volume,operate easily.
2）PLC control system and full display and real-time monitoring.
3）Automatically load cup with elevator and vibration cups sorter or centrifugal sorter or vertical capsule feeding loading.
4）Automatically vacuum feeding the powdery stuff.
5）Servo control auger filling.
6）Flavor filling system(optional).
7）Tamping stuff and clean the capsule top rim for better sealing effect
8）UV sterilization & anti-static device(optional)
9）Nitrogen flushing system, nitrogen flush process from empty capsule loading station to the heat seal station.
10）With perforated film cutting sealing unit & top rolled foil lids cutting sealing unit
11) With twice heat sealing unit for better sealing effect.
12）Automatically output finished products.
13）Automatically reject unqualified product.
14) This machine can be compatible for Nespresso, K-cup, LavazzaBlue, A modo Mio coffee capsule filling and sealing;
Technical Parameter | ||
Filling weight range: | 0-20g | |
Filling accuracy: | ±0.15g | |
Max speed: | 50 Cup per minute | |
Hopper capacity: | 10L | |
Control system: | OMRON SCHNEIDER ROCKWELL | |
Displayer: | 7 Inch touchscreen | |
Power supply: | 220V/380V | |
Dimension: | 2300*1258*2432mm | |
*Learn More about Our Capsule and What Can Be Filled in the Capsule.
The machine is suitable for various granule,powder and liquid materials.Such as coffee,milk powder,tea,instant powder,yogurt and other food materials.Applicable capsule:Compatible Nespresso,Dolce gusto,Lavazza blue or point,Pod,K-CUP,K-Shot,OneCup.
Jiangsu Sunyi Machinery Co.,LTD., founded in 2011, is headquartered in Kunshan city, Jiangsu province, the top of the country‘s top 100 countries. It has a subsidiary company, Zhejiang Sunyi Machinery. It is the national science and technology innovative enterprises. It’s a professional R&D, manufacturing, sales of intelligent food packaging machinery, packaging systems and a variety of automation control equipment technology innovative enterprises.

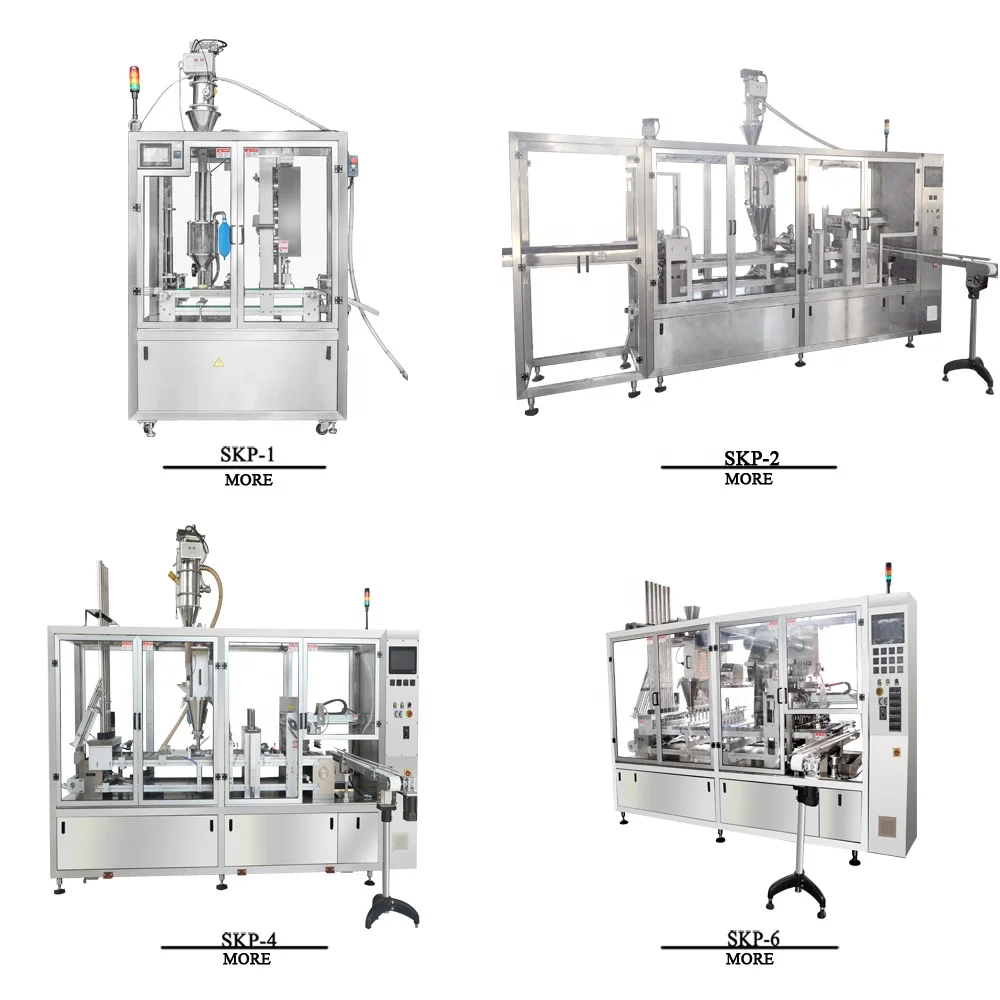

*Contrast Form of Other Production in Our Company
Since the establishment of company,we pour ourselves more into research and development of coffee packaging machine.We have produced SKP-1,SKP-2,SKP-4,SKP-6,SKP-8(Compatible nespresso,Dolce gusto,Lavazza Blue,Point,K-CUP,Kshot,One Cup)automatic Coffee capsule filling and sealing machine.With good appearance,high filling accuracy,stable performance,which has won the favor of customers at home and abroad.The product has obtained many technical invention patents,through CE,UL certification,ISO9001 quality management system certification and got a number of Zhejiang science and technology.
Model | SKP-1 | SKP-1N | SKP-2 | SKP-4 | SKP-6 | ||||
filling weight range | 0-20*n | 0-20*n | 0-20*n | 0-20*n | 0-20*n | ||||
filling accuracy | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ||||
Max speed | 50cups/minute | 50cups/minute | 80-100 cups/minute | 160-200 cups/minute | 240-300 cups/minute | ||||
Hopper capacity | 10L | 10L | 10-24L Option | 10-24L Option | 10-24L Option | ||||
control system | PLC(OMRON,SCHNEIDER,ROCKWELL) | ||||||||
power | AC 220V/380V 50Hz/60Hz | ||||||||
Certifications
Product Details

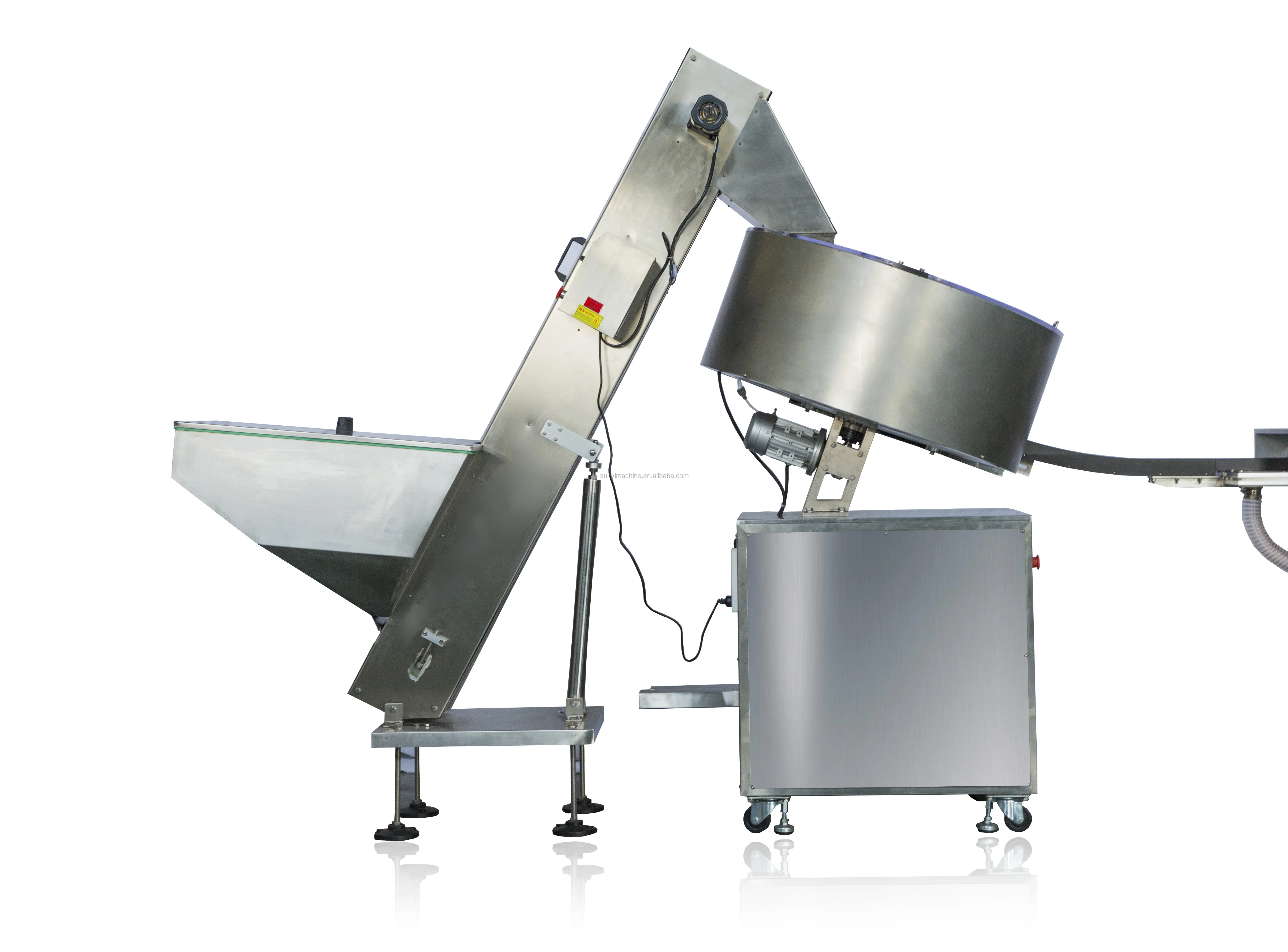

Elevator capsule feeding & centrifugal sorter
For unstackable Dolce Gusto coffee capsules, this elevator and centrifugal sorter or vibration sorter will be necessary for automatic loading the capsules into the capsule modules.

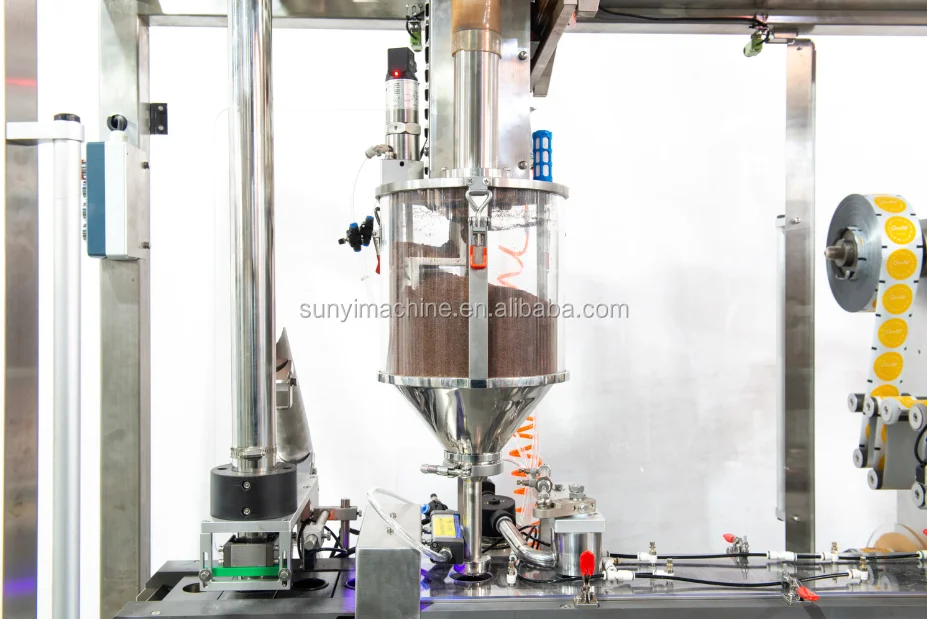

Servo Auger Filling Station
* With world famous Schneider brand servo driving the auger filling system, to increase the filling accuracy;* With mixing system
to flat the powdery stuff level for a better filling accuracy
* With easy disassemble joint for easy clean the hopper
* With Tunning fork type level sensor to control the stuff feeding automatically
* With Nitrogen flushing point inside the hopper.
to flat the powdery stuff level for a better filling accuracy
* With easy disassemble joint for easy clean the hopper
* With Tunning fork type level sensor to control the stuff feeding automatically
* With Nitrogen flushing point inside the hopper.

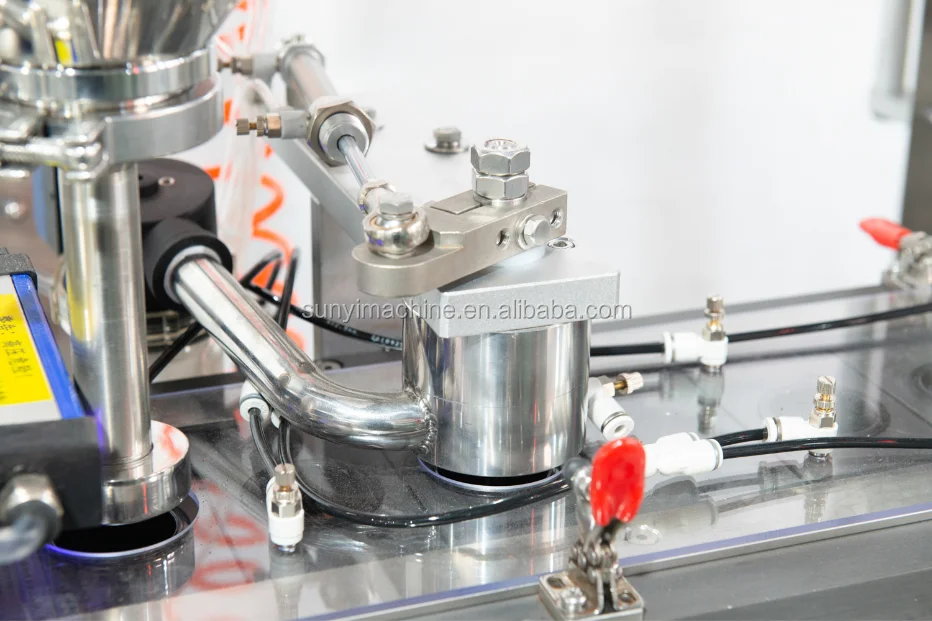

Tamping Powder & Clean capsule top rim
After filling the powdery stuff inside the capsules, tamping the powder and vacuum suction clean the top capsule rim for ease of
clean sealing surface.
clean sealing surface.

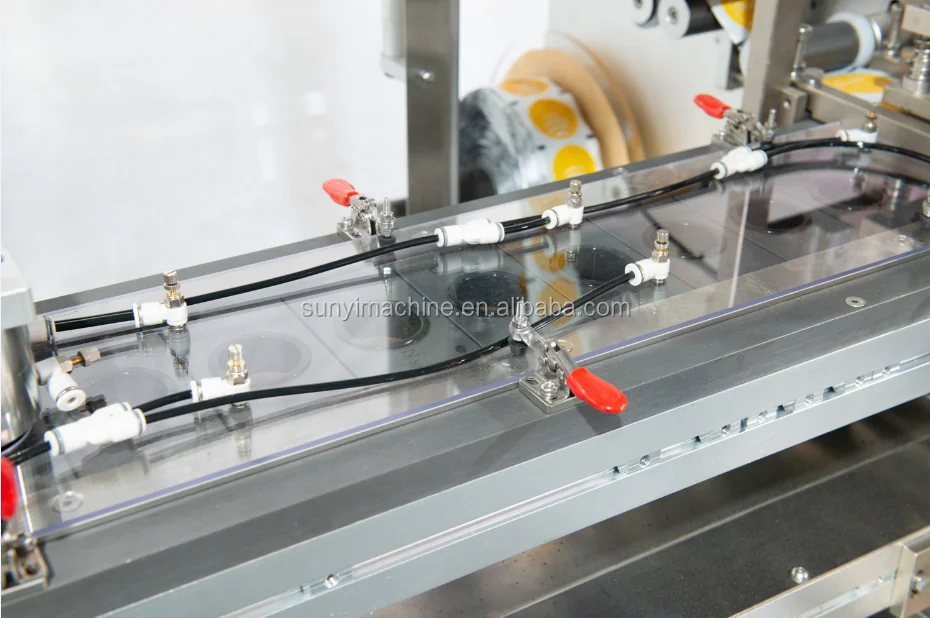

Nitrogen Flushing Tunnel
This Nitrogen flushing tunnel can build a Oxygen-barrier environment to prolong the powdery stuff shelf life.

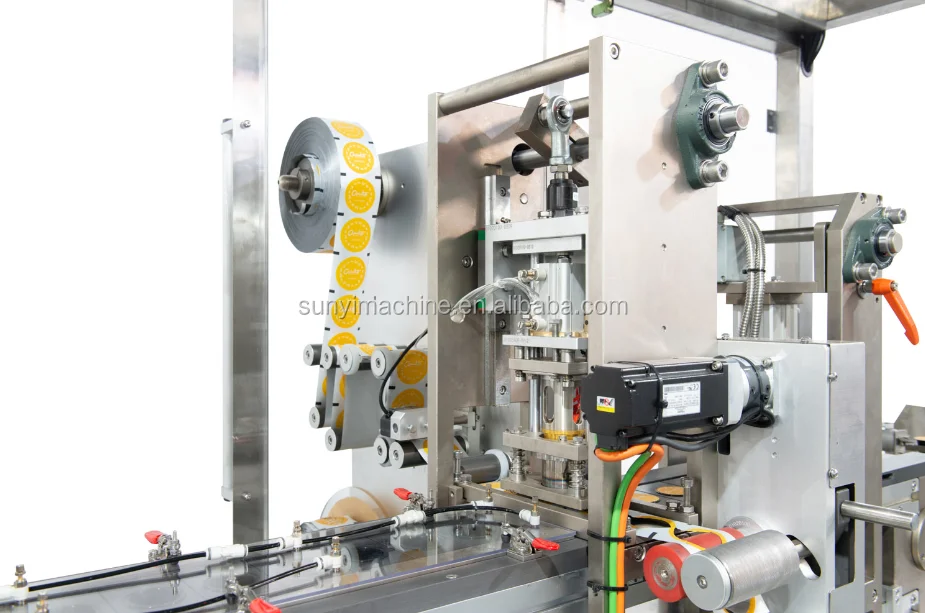

Transparent Perforated Film & Top rolled foil lids Cutting Sealing
* With world famous Schneider brand servo driven unwind the film, unwinding film accurately;* With clean cutting knife to form a
clean cutting lids rim, and at the same time, heat sealing the lids onto the capsules.
* With two units of rolled foil lids cutting sealing units, one for perforated rolled film, the other for the top lids
clean cutting lids rim, and at the same time, heat sealing the lids onto the capsules.
* With two units of rolled foil lids cutting sealing units, one for perforated rolled film, the other for the top lids

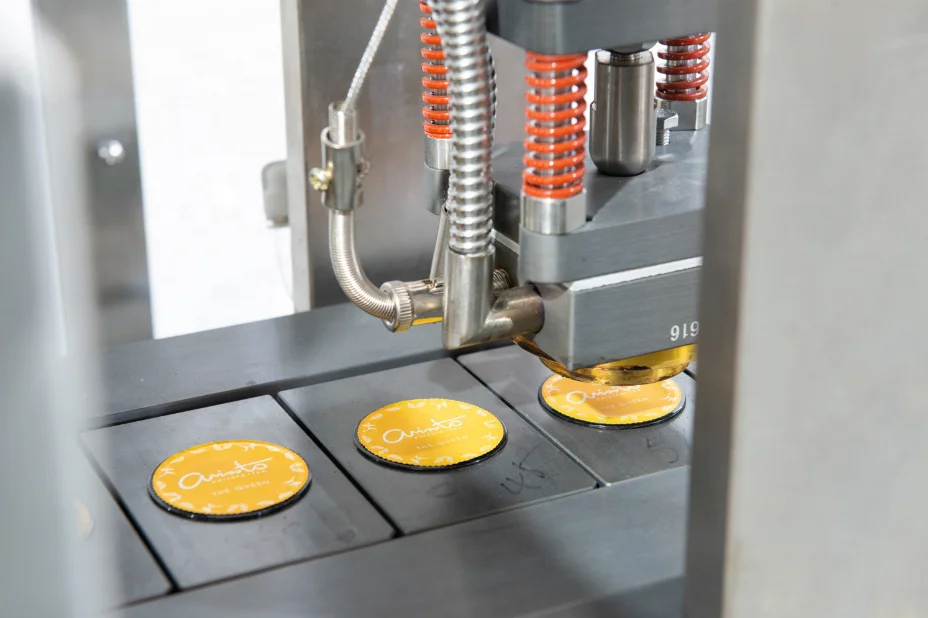

Twice Heat Sealing Station
* With premium good brass heat sealing head for well-distributed temperature, the heat sealing temperature is equal.* With world
famous Omron temperature control module, the temperature is controlled accurately.
famous Omron temperature control module, the temperature is controlled accurately.

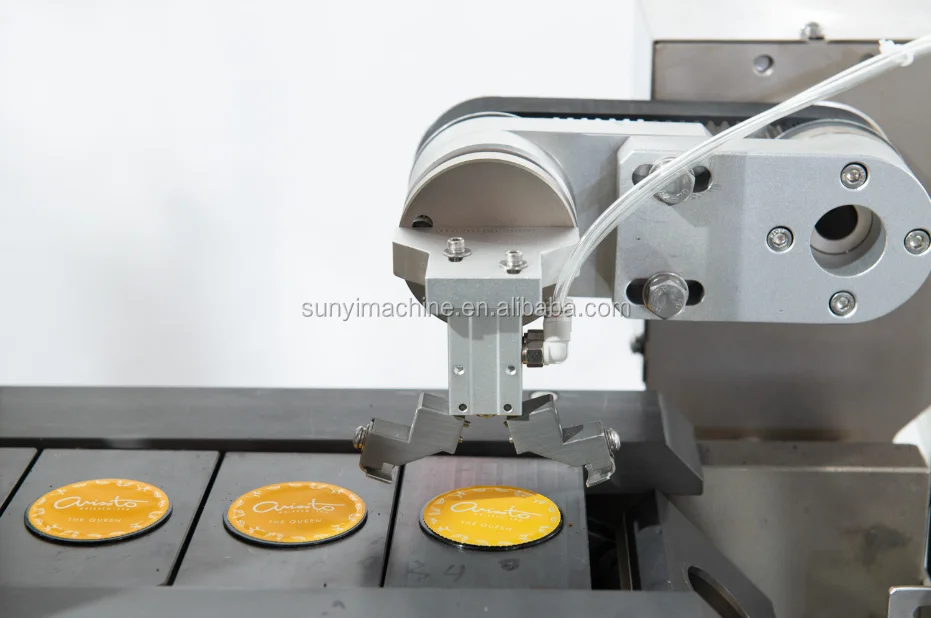

Swing Output Arm
* With Swing output arm to output the capsules/cups automatically* With optional upside down turning unit to turn over the
capsules onto the exterior conveyor for latter capsules box packing.
capsules onto the exterior conveyor for latter capsules box packing.

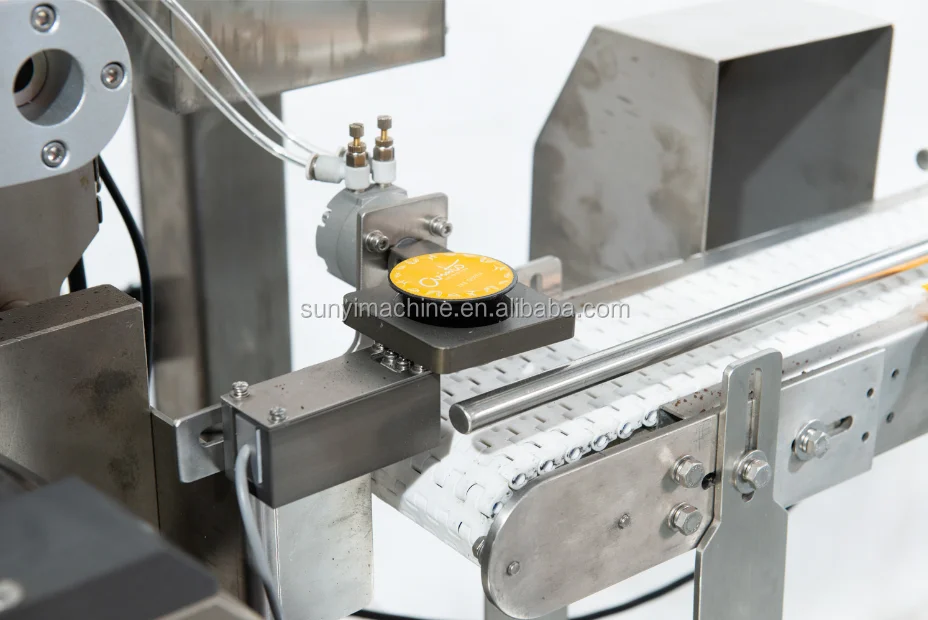

Weight Checking and Defectives Rejection
With optional weight checking station, the defectives products will be blow out automatically.
Our Service
Our Services during COVID-19
* We supply the buyer each machine operation manual, operation video, simple assembling video because our machine is whole set machine, just need to combine the main machine together.
* In the COVID-19 pandemic environment, After receiving the machine, we can supply PPT installation display and visual-audio installation guidance and free training service on live.
* The machine with the remote control device, if there’s any program system problem, we can monitor and revise the program remotely as long as your machine can reach the internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc. No worry about the services.
* In the COVID-19 pandemic environment, After receiving the machine, we can supply PPT installation display and visual-audio installation guidance and free training service on live.
* The machine with the remote control device, if there’s any program system problem, we can monitor and revise the program remotely as long as your machine can reach the internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc. No worry about the services.
Packing & Delivery
Strong Export Wooden Case Related
* Before packed in the wooden case, the machinery will be wrapped with bubble film and plastic film around and around. After fixed onto the pallet, another plastic bag will be entangled on the machine, then packed into the strong export wooden case.
* Strong Wooden Case is important part for transporting the machine during the shipment journey. A solid wooden case will protect the machine from damaging, which make sure the customers accept flawless and perfect production. It's our duty to reassure you.
* Strong Wooden Case is important part for transporting the machine during the shipment journey. A solid wooden case will protect the machine from damaging, which make sure the customers accept flawless and perfect production. It's our duty to reassure you.
FAQ
1. What advantages you have?
* Over 10 Years professional working experience in the coffee capsules filling packing machine only.
* With abundant of technology reserve and lots of innovative patents
* With very strict standard on each machine that sold to all over the world.
* With world famous components application.
* One-stop packaging solutions
* Sunyi machine has been exported to over 40 countries all over the world.
* Professional after-service system
* With distributors in USA, Mexico, Thailand, Russia, Italy, etc...
*Prompt response to the after sales service.
2. How can you guarantee that we can receive a good quality machine?
* Sunyi Machinery is the direct factory-based company, we can supply visual-audio factory inspection service.
* From the machine processing parts to the electric-pneumatic parts, from the machine assembling to the electric-pneumatic
adjustment, from the package to the shipment, we have a set of strict QC standard.
* After the machine is ready, we will send each customer their machine photos and machine testing videos.
After confirmation by the customers, then we are permitted to arrange the delivery.
* After receiving the machine, we can set out technicians to customer factory for machine installation as agreed if need.
* Within the 12 months warranty, any broken parts will be delivered to customers by express for free of charge.
After the warranty, the broken parts will be discharged only at the lowest cost price.
3. Do you provide and help about the product operation?
* We have English version operation manual and videos for all products, and all the icons will be displayed by English or
nominated language.
* After receiving the machine, we can supply the remote guidance on Internet for machine installation and operation.
4. During the COVID-19, How can I visit the factory?
* During the COVID-19, we can supply 360 degree VISUAL-AUDIO factory inspection services.
* If any questions, we can show you the details on the Internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc.
* Over 10 Years professional working experience in the coffee capsules filling packing machine only.
* With abundant of technology reserve and lots of innovative patents
* With very strict standard on each machine that sold to all over the world.
* With world famous components application.
* One-stop packaging solutions
* Sunyi machine has been exported to over 40 countries all over the world.
* Professional after-service system
* With distributors in USA, Mexico, Thailand, Russia, Italy, etc...
*Prompt response to the after sales service.
2. How can you guarantee that we can receive a good quality machine?
* Sunyi Machinery is the direct factory-based company, we can supply visual-audio factory inspection service.
* From the machine processing parts to the electric-pneumatic parts, from the machine assembling to the electric-pneumatic
adjustment, from the package to the shipment, we have a set of strict QC standard.
* After the machine is ready, we will send each customer their machine photos and machine testing videos.
After confirmation by the customers, then we are permitted to arrange the delivery.
* After receiving the machine, we can set out technicians to customer factory for machine installation as agreed if need.
* Within the 12 months warranty, any broken parts will be delivered to customers by express for free of charge.
After the warranty, the broken parts will be discharged only at the lowest cost price.
3. Do you provide and help about the product operation?
* We have English version operation manual and videos for all products, and all the icons will be displayed by English or
nominated language.
* After receiving the machine, we can supply the remote guidance on Internet for machine installation and operation.
4. During the COVID-19, How can I visit the factory?
* During the COVID-19, we can supply 360 degree VISUAL-AUDIO factory inspection services.
* If any questions, we can show you the details on the Internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc.
