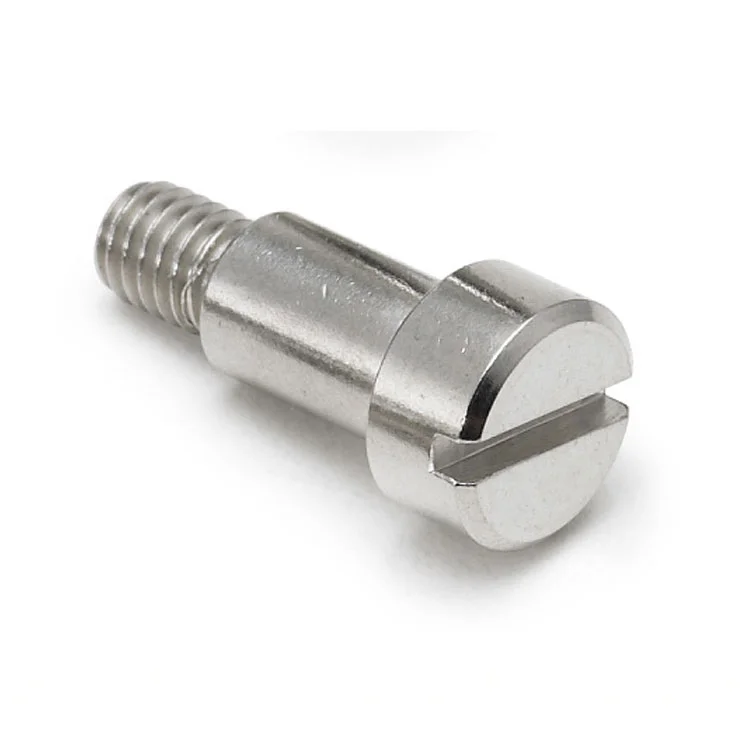

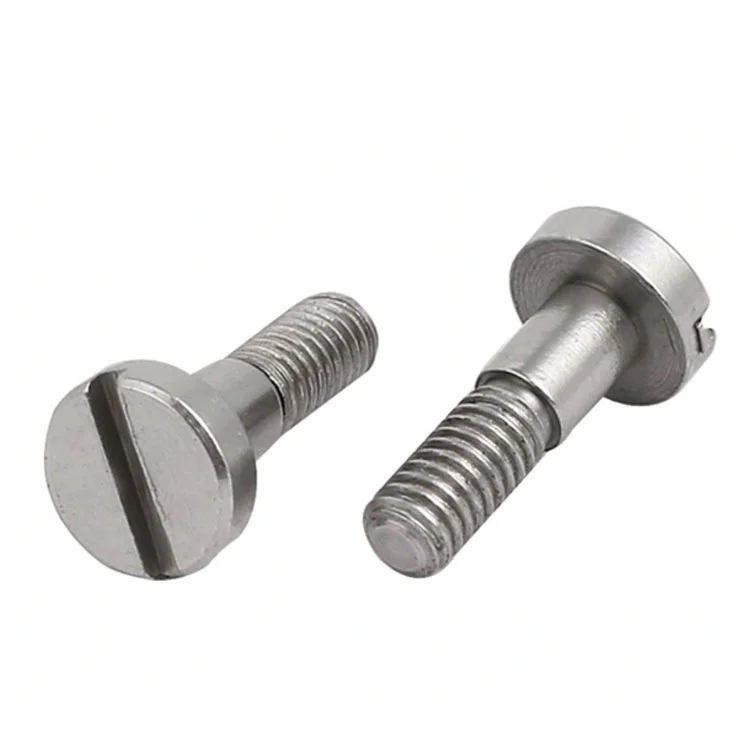

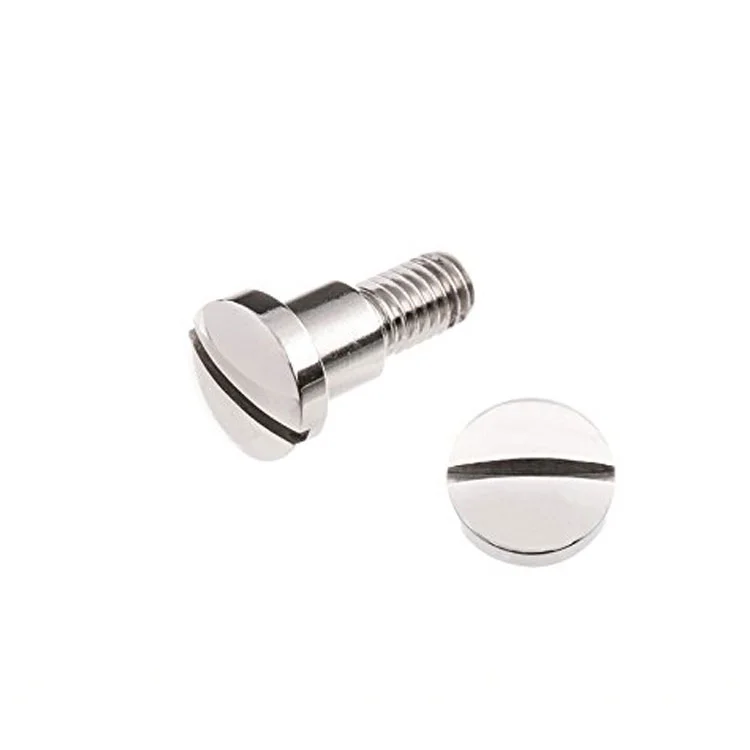

304 316 Stainless Steel DIN 923 Cylinder Slotted Pan Head Shoulder Screw M3 M3.5 M4 M5 M6 M8 M10

Product Overview

Description

  Jiaxing Rock Industry Imp & Exp Co., Ltd.We are a professional hardware parts OEM manufacturer, we mainly provide customized services, according to your drawings to produce the corresponding products, our price is very favorable, waiting for your inquiry.

Items	Description		Picture
Material	LOW carbon steel, Stainless Steel, brass
Size	M3-M10
Standard	Din/ISO/ASME/JIS/BS

Welcoming send us an inquiry with your dimensions. We provide 24hours*7days service.      Click here for more information!

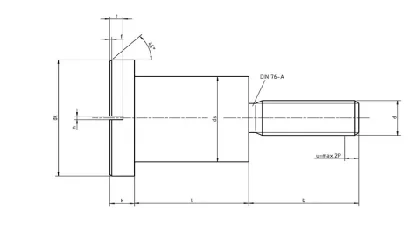

Thread d		M3	(M3,5)	M4	M5	M6	M8	M10
P		0,5	0,6	0,7	0,8	1	1,25	1,5
b		4,5	5,5	6	7	9	11	13,5
dk	nominal = max.	7	7,5	8,5	11	13	16	20
	min.	6,78	7,28	8,28	10,73	12,73	15,73	19,67
ds (h9)	nominal = max.	4	4,5	5,5	7	8	10	13
	min.	3,97	4,47	5,47	6,964	7,964	9,964	12,957
f	approx.	0,45	0,5	0,6	0,7	0,8	0,9	1,1
k	nominal	1,8	2	2,4	2,7	3,1	3,8	4,6
	max.	1,92	2,12	2,52	2,82	3,25	3,95	4,75
	min.	1,68	1,88	2,28	2,58	2,95	3,65	4,45
n	nominal	0,8	0,8	1	1,2	1,6	2	2,5
	max.	0,86	0,86	1,06	1,26	1,66	2,06	2,56
	min.	1	1	1,2	1,51	1,91	2,31	2,81
r	max.	0,1	0,1	0,2	0,2	0,25	0,4	0,4
l	min.	0,9	1	1,2	1,3	1,5	1,9	2,3
	max.	1,15	1,3	1,5	1,6	1,9	2,4	2,8

Process forging, strict control

High quality raw materials processing
High plasticity good fatigue resistance
