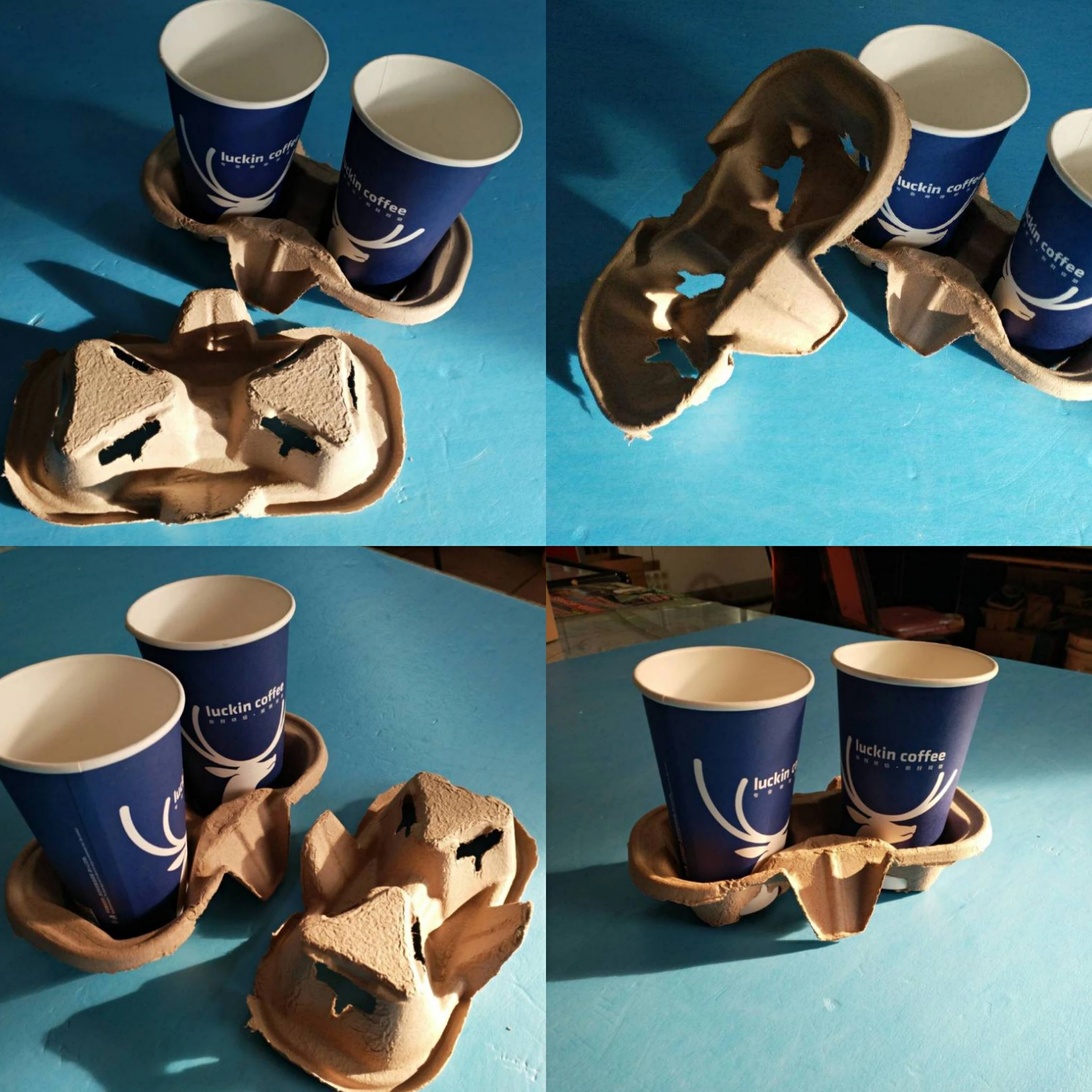

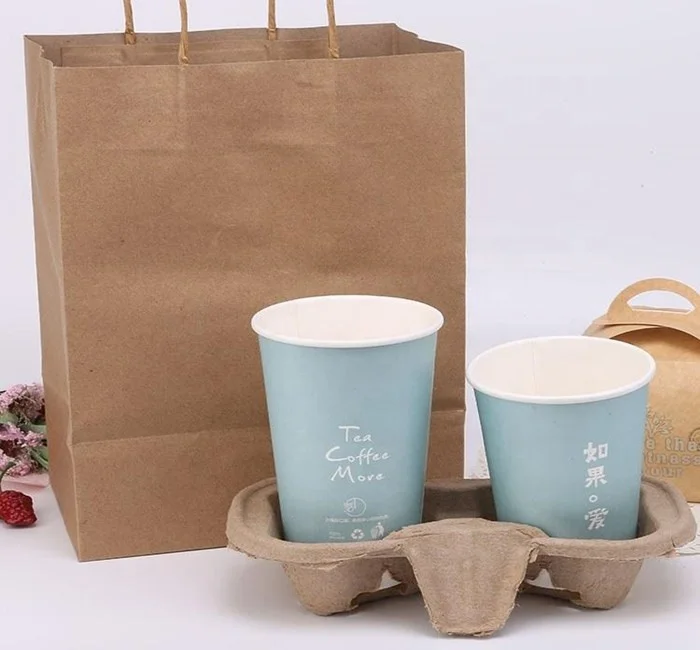

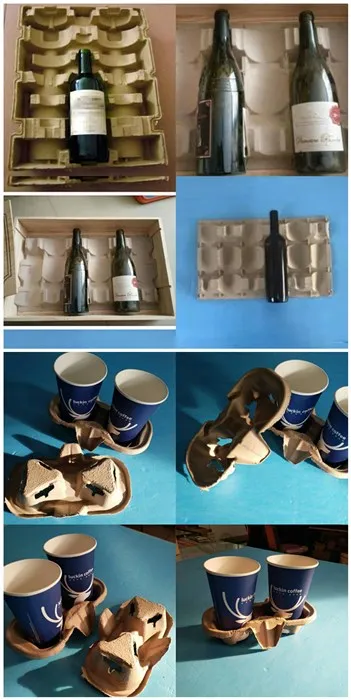

Wanyou cheap coffee cup tray egg tray pulp paper tray production line

Product Overview

Description



           Wanyou cheap coffee cup tray egg tray pulp paper tray production line

Egg tray mould quantity		1pcs
Raw material		Waste paper
Output for egg tray		350pcs/hour
Net weight per piece (gram)		70g-75g
The volume of waste paper consumed		0.025ton / hour
The volume of water consumed		0.05ton / hour
Operators number		2-3workers
Area of workshop	Without dryer	More than100M²
	With dryer	More than200 M²
		(8*25M)
Capacity of power	Without dryer	20KW
	With dryer	30KW
Machine length	Without dryer	7meters
	With dryer	18-22meters
Size of container	Without dryer	20ft*1
	With dryer	40ft*1+20ft*1

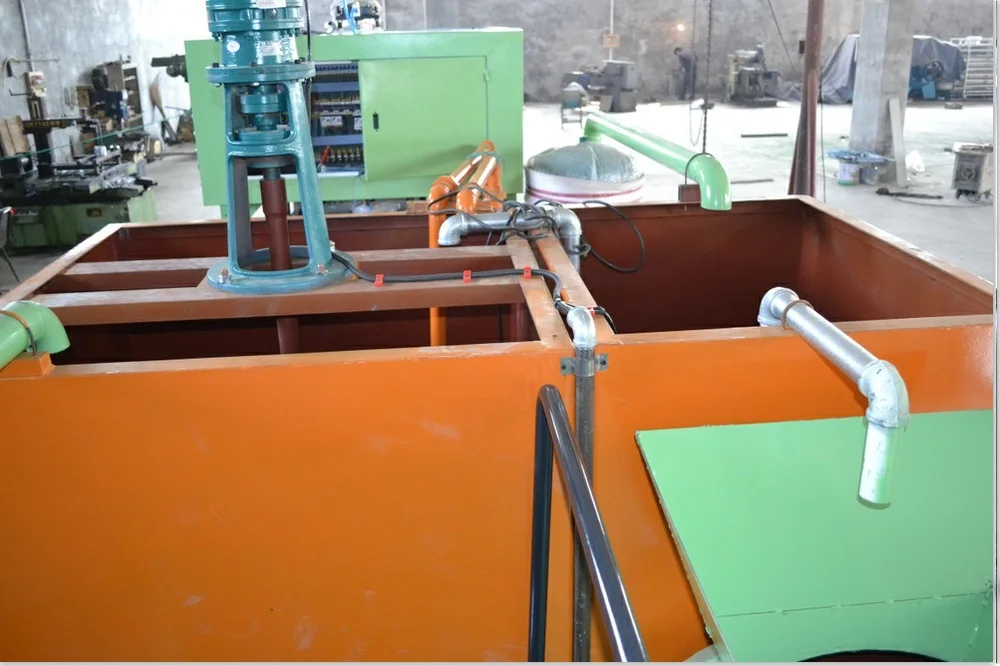

(1)Pulping system of egg carton machine:

Pulping system is mainly comprised of hydrapulpter, pulp pump, multi-function refiner machine, blender, control cabinert,ect.

The raw material is all kinds waste paper. And it is the first step in making process!

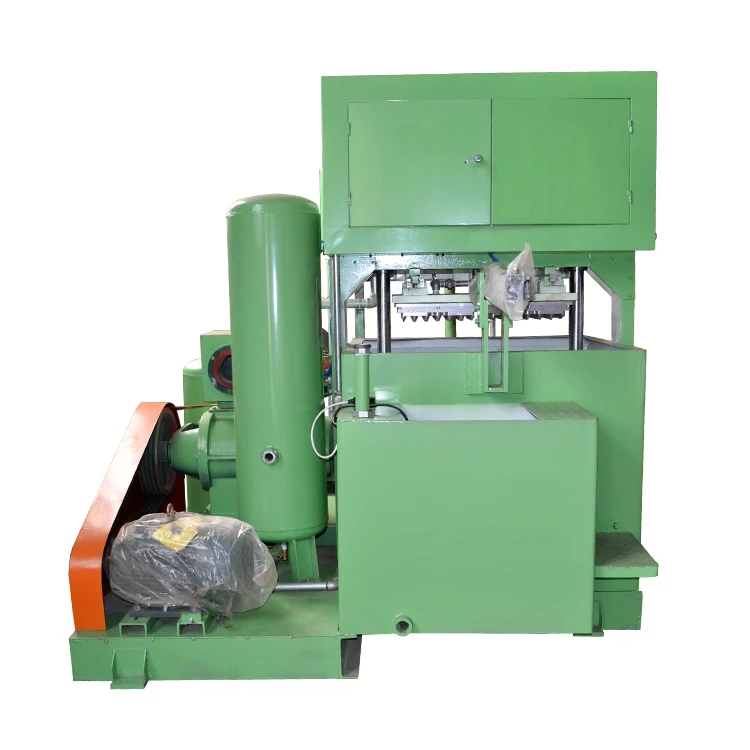

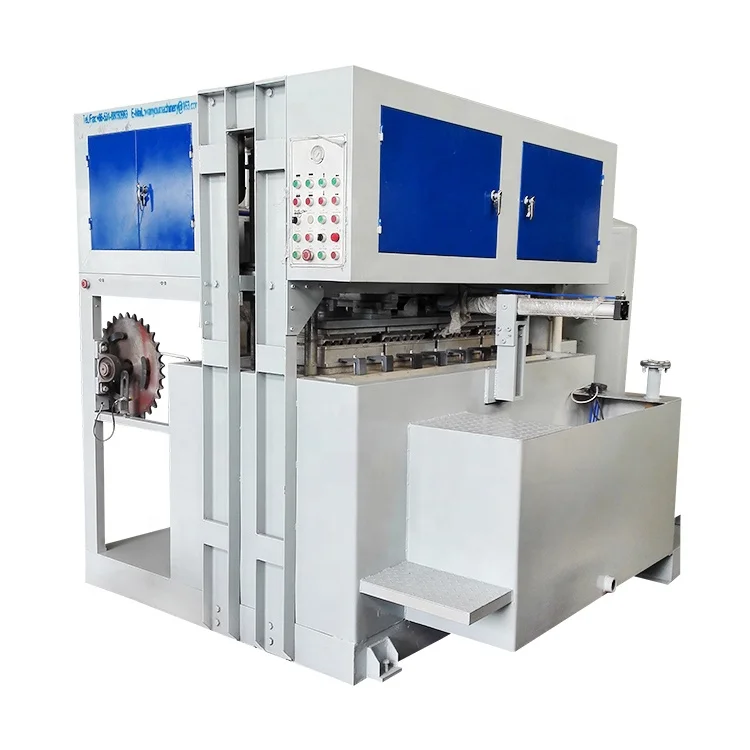

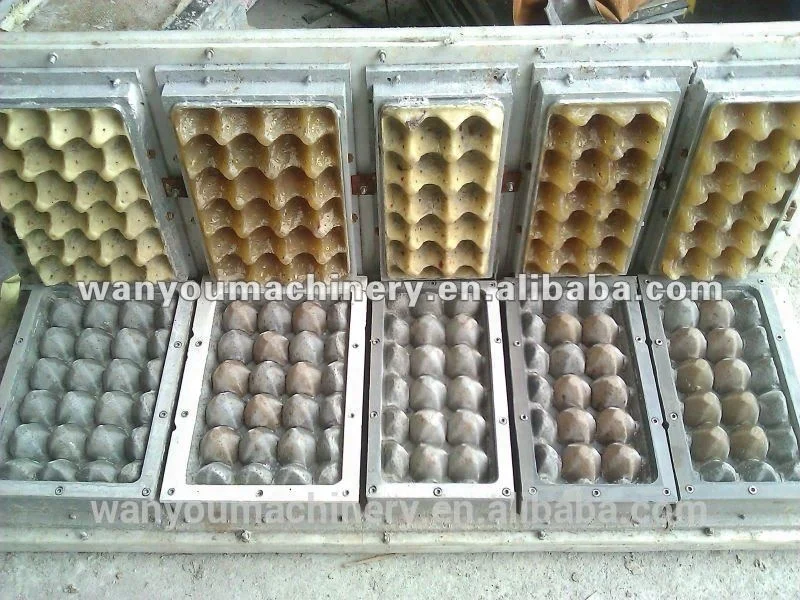

(2)Forming system of egg tray mould :

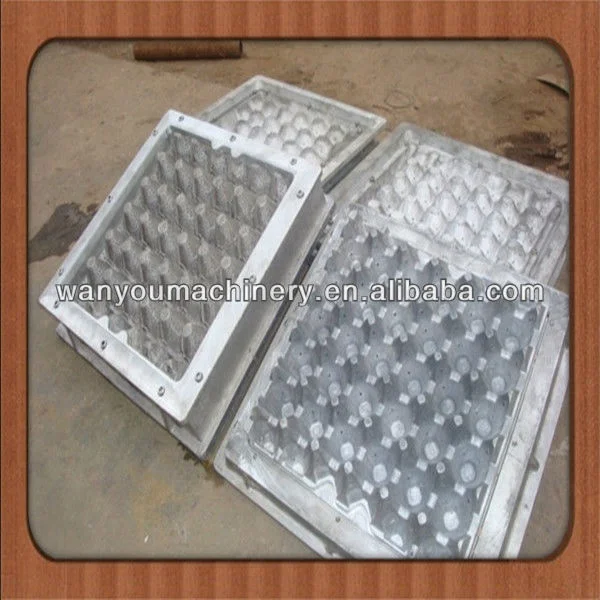

This part mainly is the egg tray forming machine.We could produce the forming mould and transfering mould based on our customers request.The material of the mould could be Alumminum,Resin,Plastic.

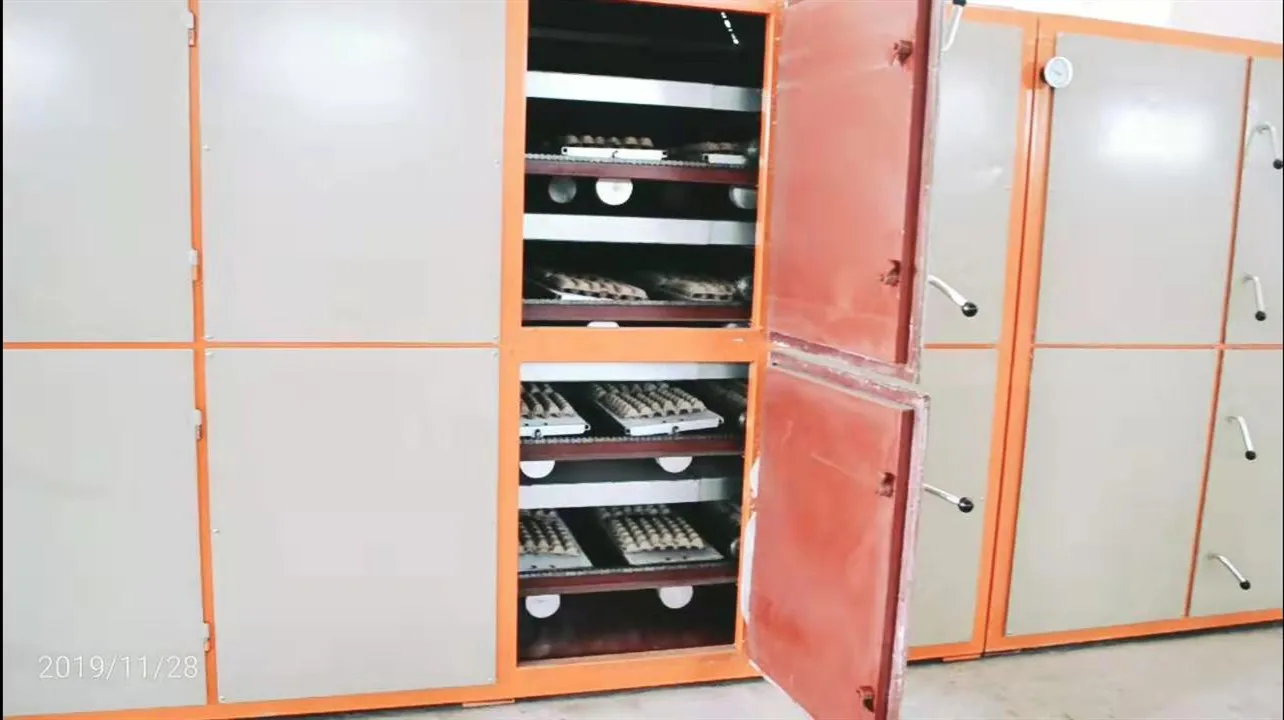

(3)Drying line of egg tray mould :

This is the very important in the all of line. When the egg tray be made over by the forming machine, the egg tray will be put on the drying line,they will across the drying channel, then you can get the dry tray!





1. Service phone line keep 24 hours unlocked
2. All emails will get response within 24 hours
3. Any needed machine parts can be supplied with professional guiding and ordinary price.
4. Engineer can be dispatched abroad for installation and maintenance.
5. Collect after-sale-service feedback from customer, keep improving.





Our production line has Fully Automatic and Semi Automatic two types , both have computer control system .
1. What is Semi Automatic type ?
If only order The 1st and 2nd compulsory parts , that's Semi Automatic because you'll have to do the work of drying up egg tray manually;
2. What is Fully Automat type ?
Meaning: the production line includes the Drying system and the whole procedure can be done Automatically .
Of course, the price and the required work space would have big difference from the semi-automatic type.
3. Quality
--- Our machines use UK Technical and part of the components are Germany-made (ex: Ball valve) .
-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years’ lifespan .
-- The Egg tray moulds material is Aluminium which can keep the fixed shape much better than that made of rubber material.
--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;
--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .
4 .What capacity per hour do you offer ?
 Our machines’ capacity is from 350pcs/hr to 5000pcs/hr.
5.Do your products come with a warranty ?
 Yes , we have 2 years warranty according the international practice.
6.Can I customize this kind of machine from your factory?
 Yes ,we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc.
