Product Overview

Description

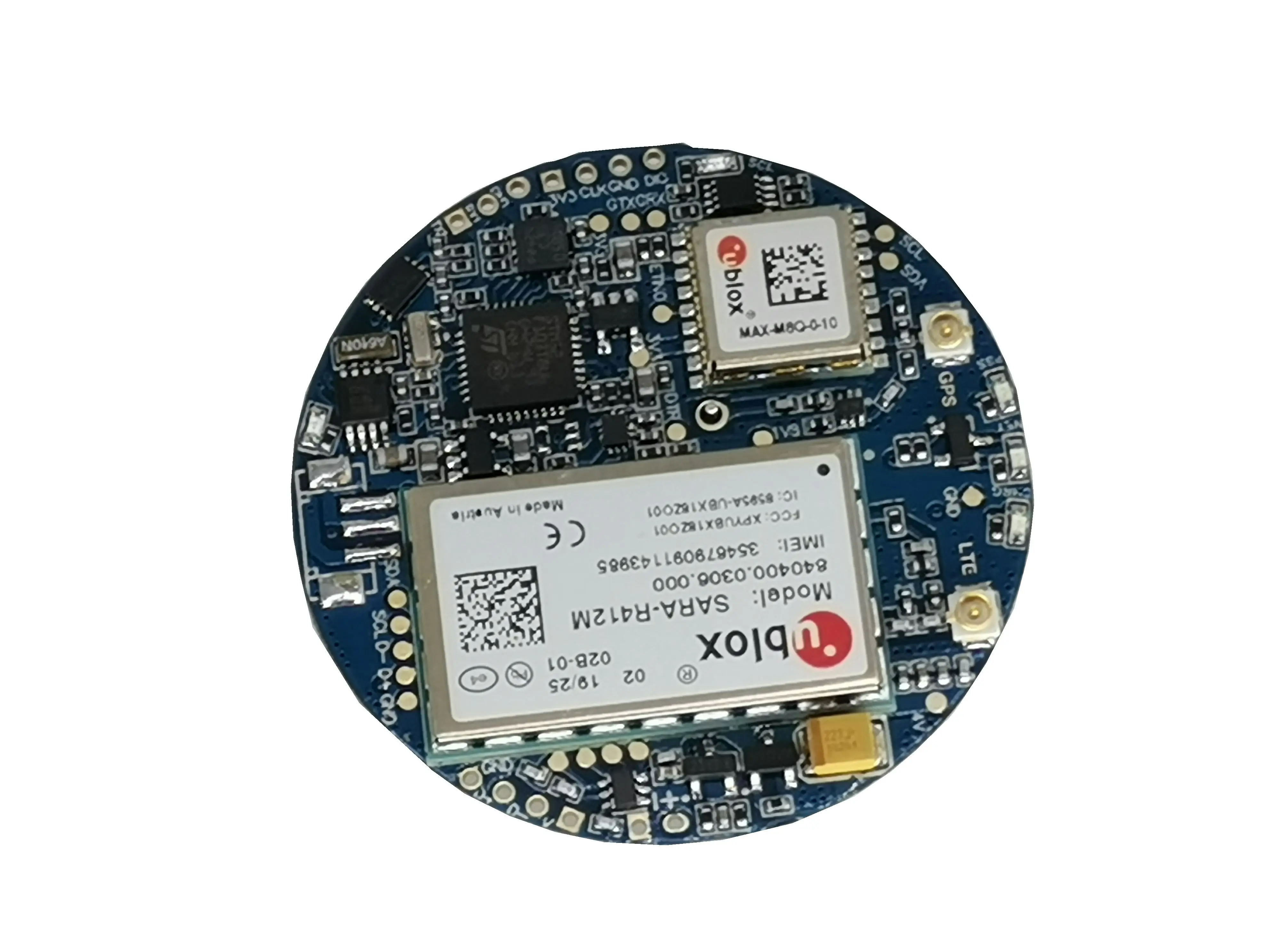

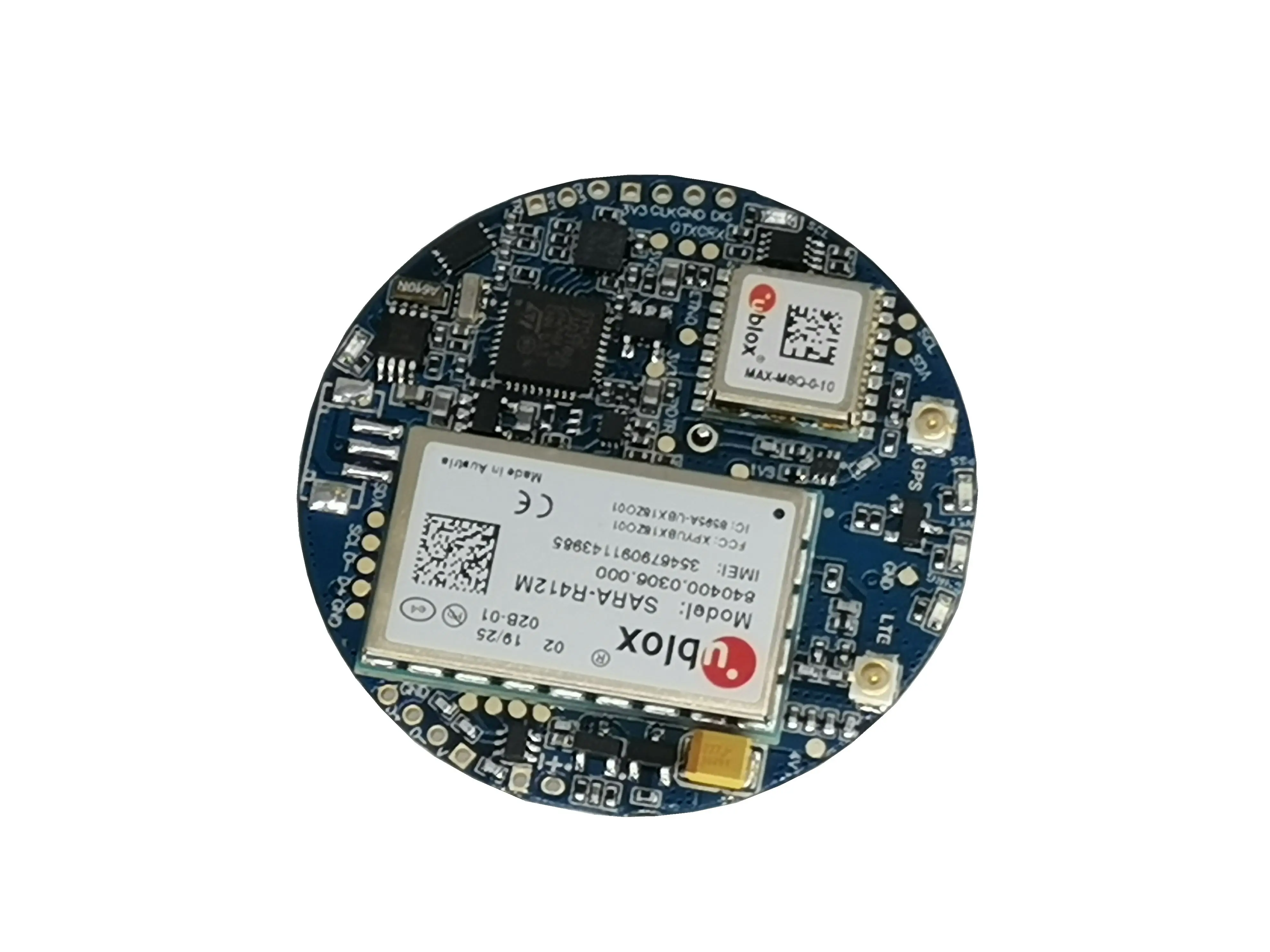

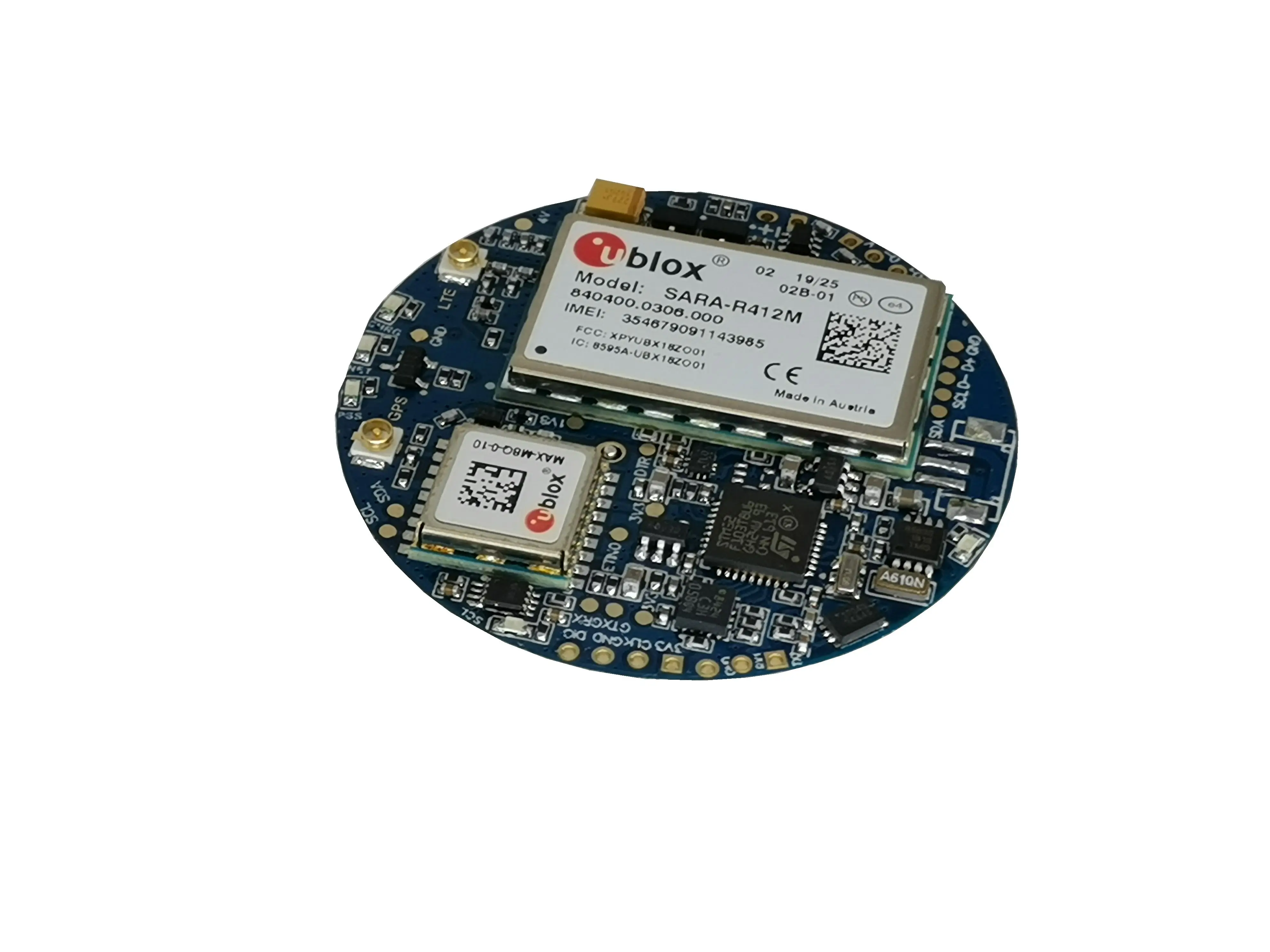

2G GSM GPRS Mini Round 42mm Size  GPS TRACKER MODULE

A   Brief Information

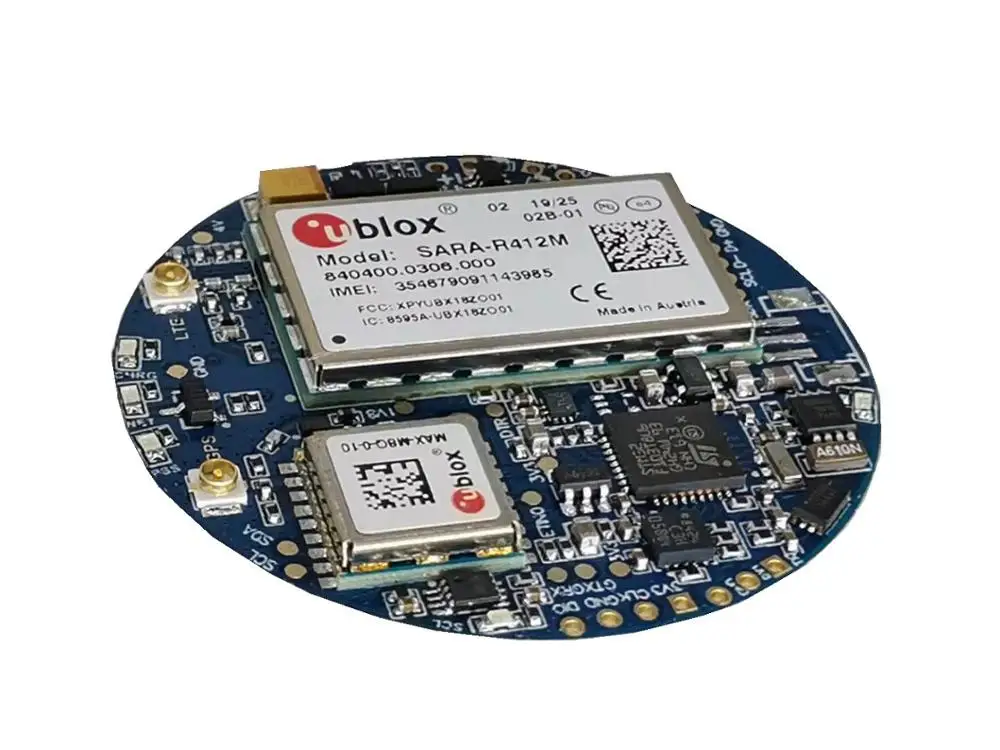

1,  Highest peformance gps soultion: 2G GSM/GPRS UBX SARA- G350 cellular module+Max- M8Q
2,  2.5m poisoning accuracy.

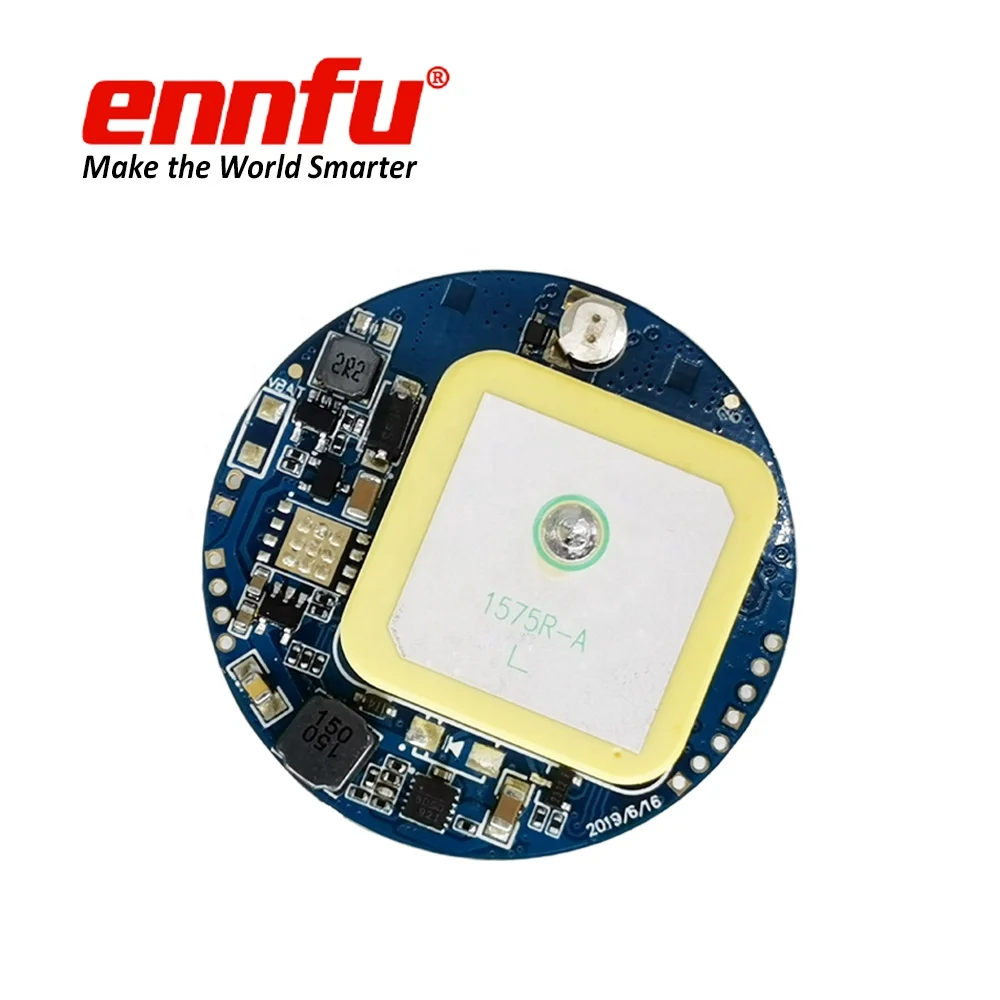

3,  25*25mm GPS antenna on board
4,   eSim on Board
5,  API output to the cloud/app
*Note: Need eSim chip on board**
            Don't  support sim card.

B Performance and features
1） High Positioning Accuracy and Fast Positioning;
2） Auxiliary positioning function;
3)    Support GPS,BDS, GLONASS and Galileo,Positioning system;
4）  2G Quad-band GSM GPRS mode
5） Vibration wake up function
6)  Regular wake up
7） Low to 156uA Ultra Low Power Consumption
8） Outline size:
Small round 42mm diameter
9） Enclosures optional. Round 50mm~52mm

C Technical parameters
Exteral powered supply
DC 12~24VDC
Battery voltage
3.6~4.2VDC
Standby Power Consumption
~156uA
Working Power
~0.36W
Cellular antenna gain
3~4dB
GPS antenna gain
3~5dBI
positioning Accuracy
up to 2.5meters
Cellular Networking
2G Quad-bands or LTE CAT M1&NB1&2G optional
Polarization
Vertical
D  String Data Format
The string data includes:Date,Time,Zone,Coordinator, altitude, Speed,IMEI,Signal quality,backup battery capacity,battery capacity percent, firmware version. Eg: SM21:13/08/2019,10:23:36.000,51.1676651,6.7501132,59,1551,0,0,0,0,0,0,0#35467909052262 7#10#4.0850#87.5#10#0000000#V0.01 “#” is Separator. GPSData: 13/08/2019,10:23:36.000,51.1676651,6.7501132,59,1551,0,0,0,0,0,0,0 13/08/2019,10:23:36.000 --------------------- Date&Time 51.1676651,6.7501132 -------------------- Latitude&Longtitude 59 --------------------- Altitude 1551 --------------------- Uncertainty 0 --------------------- Speed Note: The remaining data has no meaning IMEI: 354679090522627 Connection signal quality: 10 Battery Voltage: 4.0850 -------------------- Battery Voltage Battery Percentage: 87.5 ------------------- Battery Percentage Battery and charge state: 01 ------------------- Battery not connection, External power supply connected 10 ------------------- Battery connection, External power supply not connected 11 ------------------- Battery connection, External power supply connected Note: 0 show not connection 1 show connection

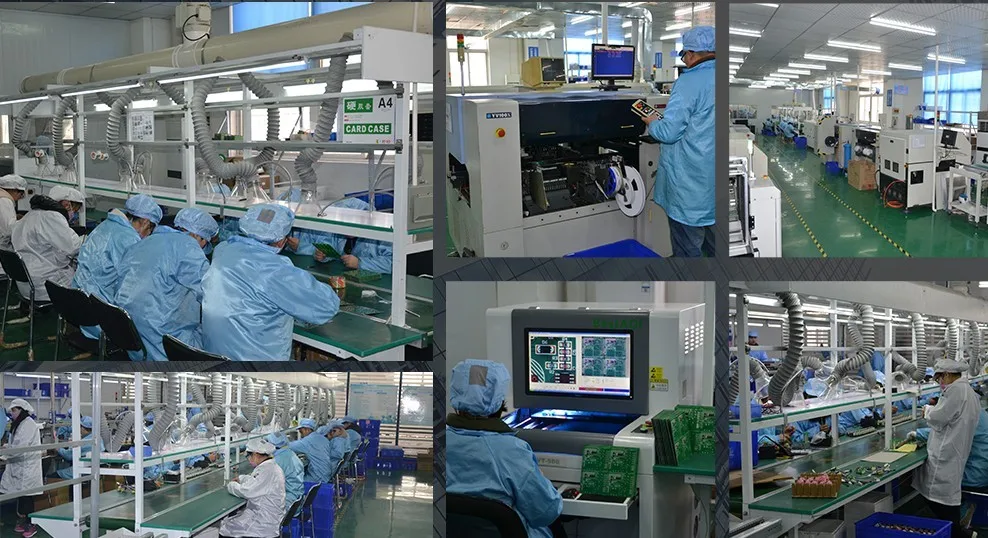

Our Company
