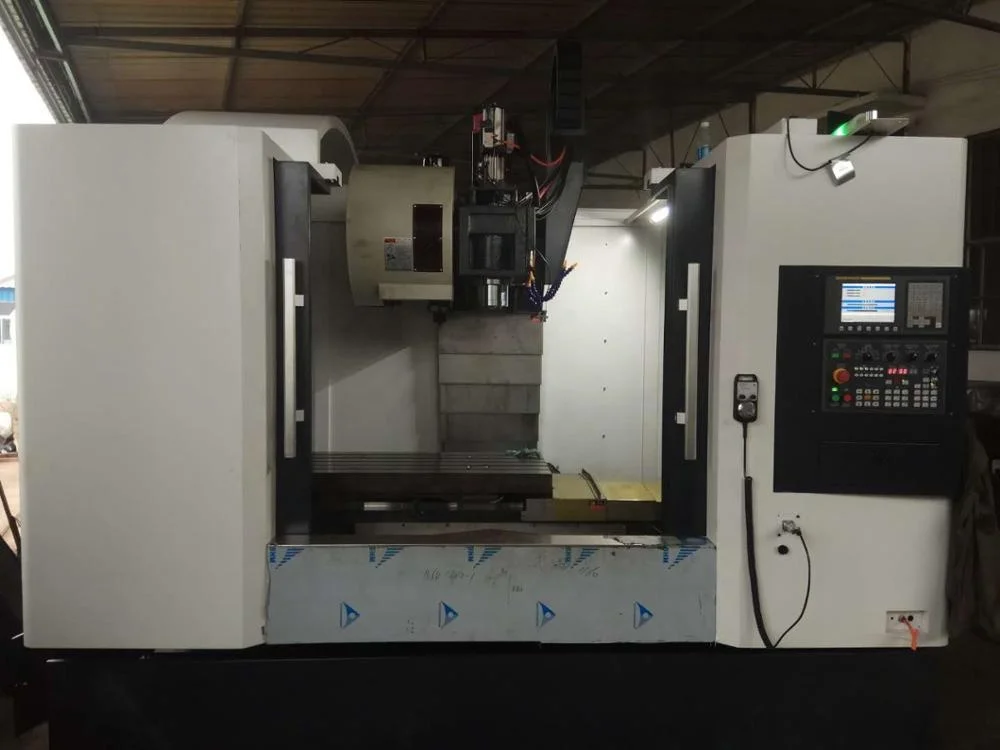

cnc milling machine center VMC1060 for mould making Fanuc system with CE certificate

Share on (62425651426):


Price:$23,000.00 - $30,000.00

Quantity:


Product Overview

Description

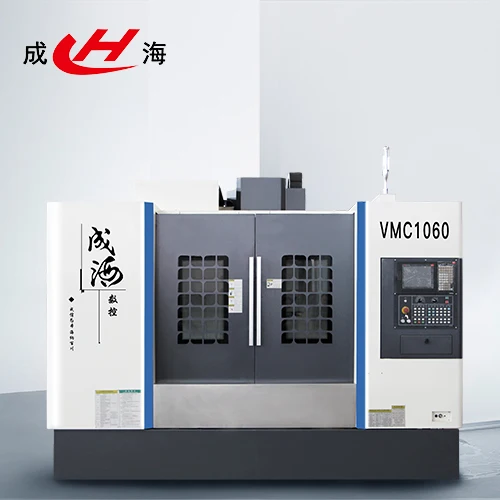

cnc milling machine center VMC1060 for mould making Fanuc system with CE certificate

Company Information

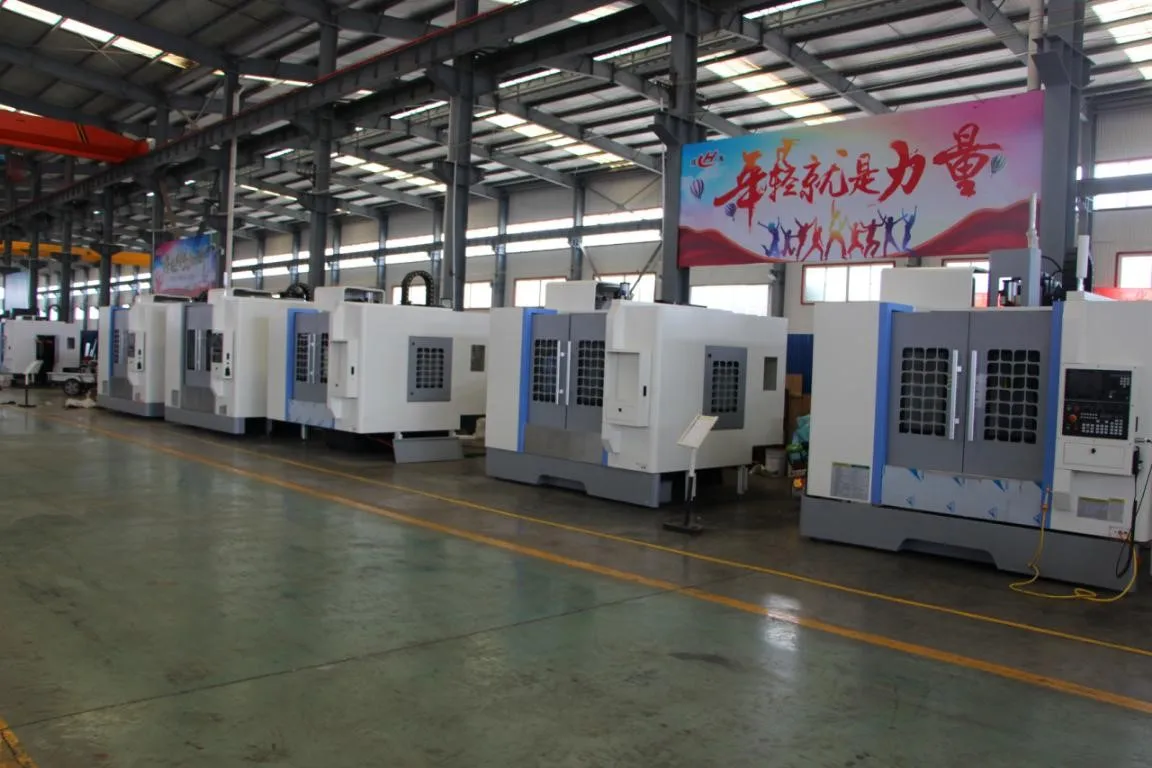

.jpgWe are manufacturer of vertical machining center, cnc milling machine, drilling machine, milling machine,

lathe and shaper. We have our own factory, so we can provide the factory price with good quality.

We always pay more attention to the quality of our machines under the ISO standard system, and our quality

control team are responsible to insure the product quality in every process. So you can trust us. Customers'

satisfaction is the eternal pursuit of our company.



Chenghai machine to ensure product quality, implementation of stringent vendor management, all of the key

components of the machine purchased directly from the country of origin, shorten delivery time, reduce production

costs and improve product quality.



Product Overviews

Our main product is vertical machining center, cnc milling machine, cnc lathe, radial drilling machine, both have hydraulic radial drilling machine (hydraulic arm drilling

machine) and mechanical radial drilling machine (mechanical arm drilling machine).

 machine center features.jpg


Product Description








terms

Name

unit

Specification

Working table

Table size

mm

1200×600

T-slot

mm

5-18-100

Max loading capacity of table

Kg

1000

Travel



 X,Y,Z axis travel

 mm

1000×600×600

Distance from spindle nose to table

mm

120-720

Distance from spindle center to vertical guide way surface

mm

600

Feed



Rapid movement speed X,Y,Z

m/min

30/30/24

Feed rate of cutting X,Y,Z

mm/min

1~10000mm/min



Three axis

X Y Z axis motor torque

Nm

23/23/23

X Y Z axis linear guide rail width

mm

45

X Y Z lead screw size



4012

X Y Z sliding block no.

piece

4.4.4

Spindle



Spindle taper



BT40

Spindle speed

r/min

8,000rpm

Spindle power

kw

11

Tool Magazine

Tools capacity

NO.

24

Max weight

kg

8kg

Max length

mm

φ78/300

Average tool change time

sec

1.5s

Specision



Positioning accuracy X/Y/Z

mm

0.016

Repeated positioning accuracyX/Y/Z

mm

0.006

Machine

Machine size

mm

2450*2780*2700

Machine weight

kg

7200








Our famous brand suppliers:

famous brand suppliers.png



Packaging & Shipping

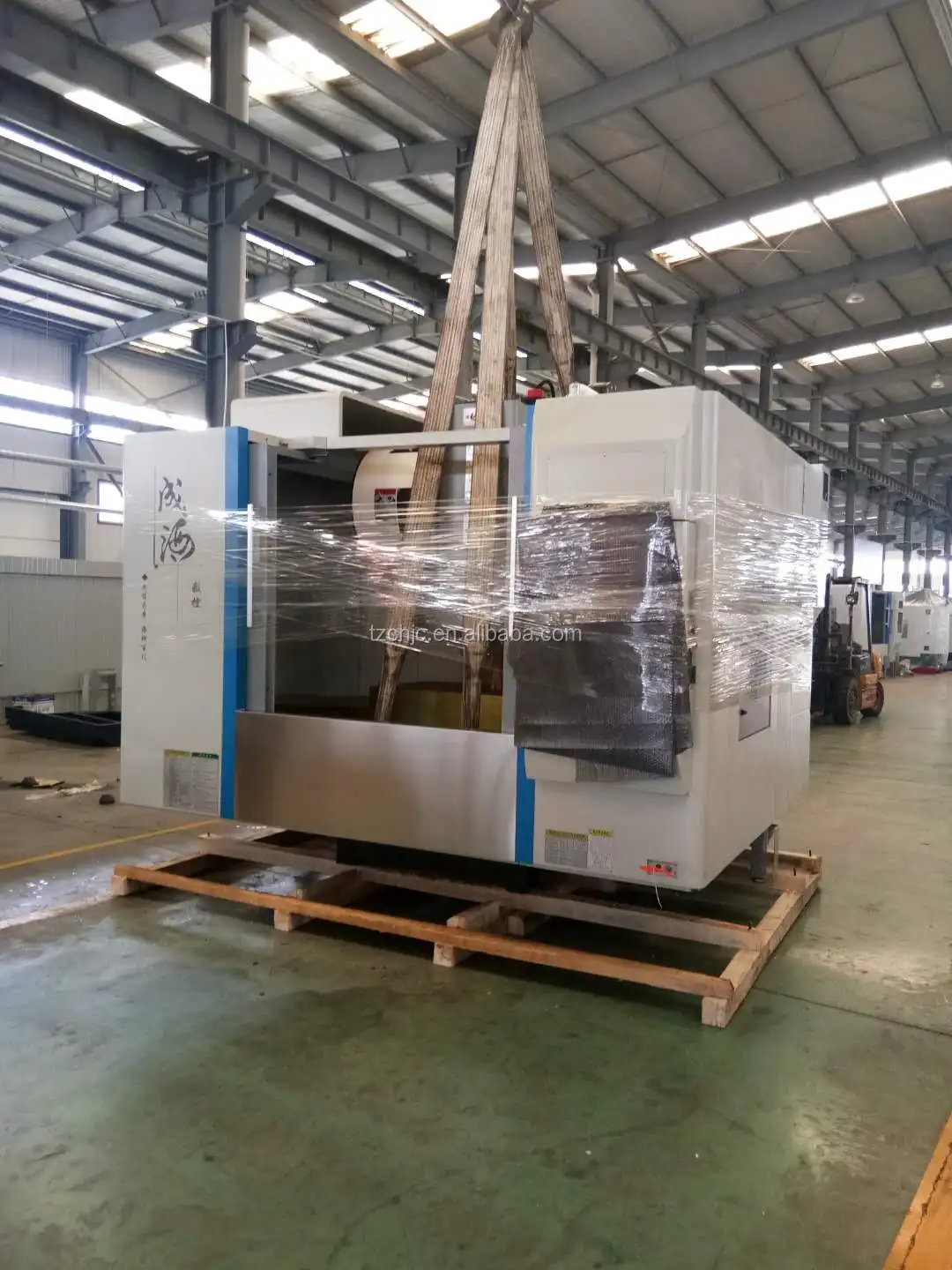

Packaging: 1 set cnc milling machine center  VMC1060 for mould making packed in 1 wooden case.

Delivery: Delivery time should be with 10 days after receiving deposit.

Shipping: Usually by SEA.


Exhibition Display


Our Services

1. Your inquiry and email will be replied within 24hours.



2. If you need to develop products with your own specification, we can help you to work it out.



3. Always be honest, never lie to customer, and never declare anything we don't have.



4. 3 First: Customer, Quality and Service!

FAQ

1. Payment Method:30% deposit T/T in advance, rest against the copy of B/L or before delivery.



2. Delivery Time:

For one set machine, will be within 15 days after deposit.

For 5-10 sets same machines, will be within 30 days after deposit.

For 5-10 sets different machine, will be more than one month.



3. MOQ:

1 set machine

4. Shipping: Usually by sea

.jpg
