High quality Chinese MAX laser source 1000W 1500W 2000W 3000W 4000W
- Category: >>>
- Supplier: Shandong Leapion Machinery Co. Ltd.
Share on (62425800706):
Product Overview
Description
Product Description
Description：

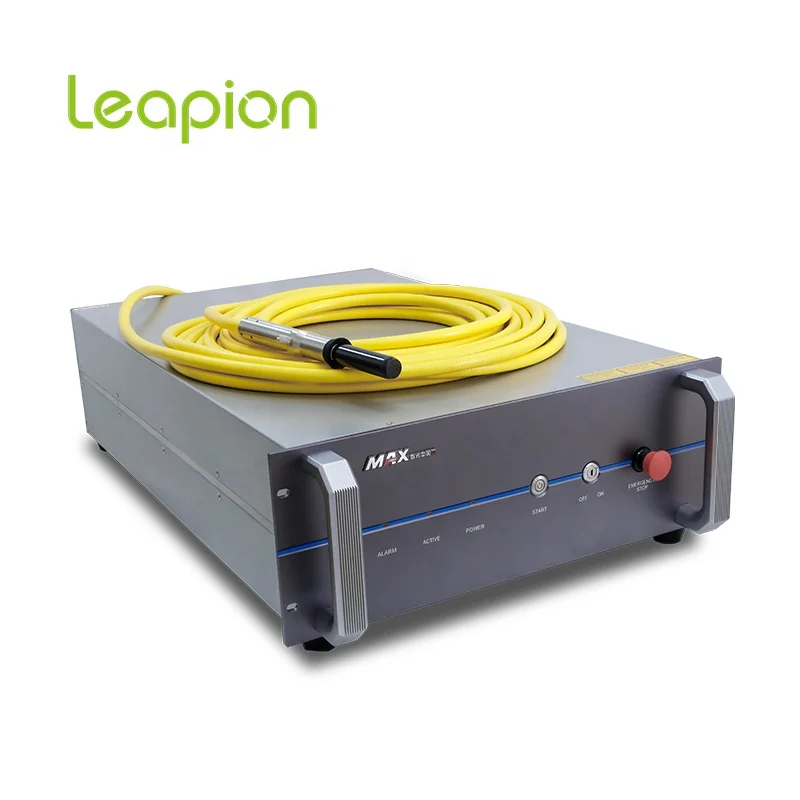

MFSC500W-1000W Single-mode continuous fiber laser using adopt water-cooled, it has high power, perfect beam quality and high electro-optical conversion efficiency, and can realize optical fiber transmission. This kind of laser system has extraordinary high reliability to other solid lasers and gas lasers. It is the best choice for cutting , welding and drilling on stainless steel, carbon steel, aluminum, copper and other metal materials,widely used for sheet metal cutting, metal processing, home appliances manufacturing, automotive manufaturing and other industrial field.
Product features：
1. High photoelectric conversion efficiency
2. Excellent beam quality
3. Super reliability
Product parameters：
Optical Characteristic Parameters | ||||||
No. | Characteristics | Test conditions | Min. | Nom. | Max. | Unit |
1 | Operation mode | CW/Modulated | ||||
2 | Polarization | Random | ||||
3 | Output power 700W | 100% CW |
| 700 |
| W |
Output power 800W | 100% CW |
| 800 |
| ||
Output power 1000W | 100% CW |
| 1000 |
| ||
Output power 1200W | 100% CW |
| 1200 |
| ||
Output power 1300W | 100% CW |
| 1300 |
| ||
Output power 1500W | 100%CW |
| 1500 |
| ||
4 | Tuning range of output power |
| 10 |
| 100 | % |
5 | Emission wavelength | 100% CW | 1070 | 1080 | 1090 | nm |
6 | Spectrum width(3dB) | 100% CW |
| 3 | 4 | nm |
7 | Short-term power instability | 100% CW>1h |
| 1 | 3 | % |
8 | Long-term power instability | 100% CW>24h |
| 3 | 5 | % |
9 | Beam quality M2 | 100%CW（20u-QBH) |
|
| 1.3 |
|
100%CW（50u-QBH) |
|
| 2.8 |
| ||
10 | Laser switching ON time （700W-1000W)
| 10% → 90%Output |
| 50 | 100 | us |
Laser switching ON time （1200W-1500W) | 10% → 90%Output |
| 50 | 80 | ||
11 | Laser switching OFF time （700W-1000W) | 90% → 10%Output |
| 50 | 100 | us |
Laser switching OFF time （1200W-1500W) | 90% → 10%Output |
| 30 | 50 | ||
12 | Modulation rate （700W-1000W) | 100% Output |
|
| 20 | KHz |
Modulation rate （1200W-1500W) | 100% Output |
| 20 | 50 | ||
13 | Red guide laser power | 100% Output | 150 |
|
| uw |
14 | Feeding fiber cable length |
|
| 15 |
| m |
15 | Feeding fiber core size | 50（30、100 optional） | um | |||
16 | Feeding fiber cable bending radius |
| 200 |
|
| mm |

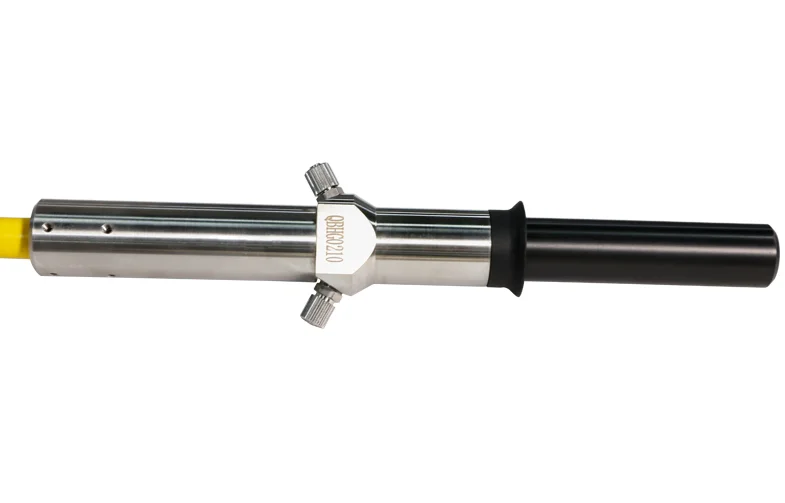

17 | Output form | Standard QBH（LOC） | ||||
General Characteristic Parameters | ||||||
No. | Characteristics | Test conditions | Min. | Nom. | Max. | Unit |
1 | Operating voltage |
| 180 | 220 | 240 | VAC |
2 | Nominal power consumption MFSC-700W | 100% Output |
|
| 2.5 | kw |
Nominal power consumption MFSC-800W
| 100% Output |
|
| 2.8 | ||
Nominal power consumption MFSC-1000W | 100% Output |
|
| 3.5 | ||
Nominal power consumption MFSC-1200W | 100% Output |
|
| 4.8 | ||
Nominal power consumption MFSC-1300W | 100% Output |
|
| 5.2 | ||
Nominal power consumption MFSC-1500W | 100% Output |
|
| 6 | ||
3 | Operating ambient temperature |
| 10 |
| 40 | ℃ |
4 | Operating ambient relative humidity |
| 10 |
| 85 | % |
5 | Cooling method | Water-cooling | ||||
6 | Storage temperature |
| -10 |
| 60 | ℃ |
7 | Dimensions | 800*482.6*193.2 | mm | |||
8 | Weight | 50±3 | kg | |||
For reference only. Other beam diameter avai lable by order。 | ||||||
Product packaging
OUR COMPANY
✦Leapion in laser machine business since 2007, we are a global manufacturing company producing Laser engravers, laser markers,
✦CNC Router, UV inkjet printers for various applications such as signage, advertising, Woodworking furniture.
Leapion Laser is becoming the word's TOP in the laser engraving, cutting and marking industry. We are innovators. We are problem solvers.
✦We are committed to designing and manufacturing the highest-quality laser systems and cnc router machine.
Leapion original concept was to bring CO2 laser engraving systems to both commercial customers, small business owners and the home craftsman.
✦Over the years we developed larger, more powerful CO2 laser systems and fiber laser cutting and marking machine.
Samples display

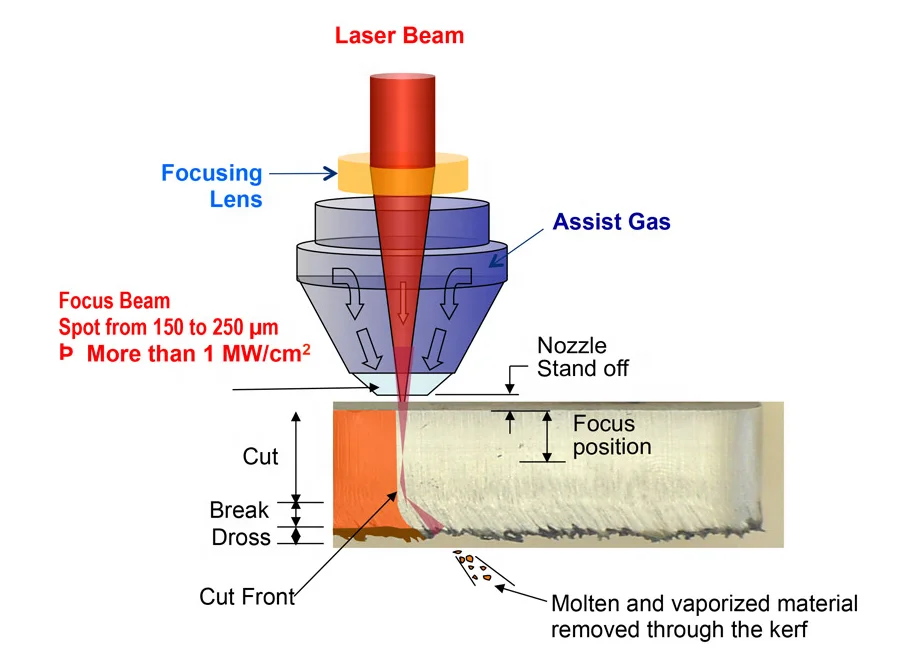

High quality fiber laser cutting machine is usually used to cutting steel sheet or steel pipe, It can be used in the Aluminium, carbon steel and stainless steel.
Want To Tell You
We are the reliable manufacture and have been in this field since 2007,you will get the best quality and after-sale service if you choose us,cause long time cooperation and business are what we want,we won't leave any customer who bought machine from us.INTEGRITY&QUALITY&RESPONSIBILITY are our company rule),and you will know about our quality,after-sale service after you build the cooperation with us)
It's our honor that you can choose our products！

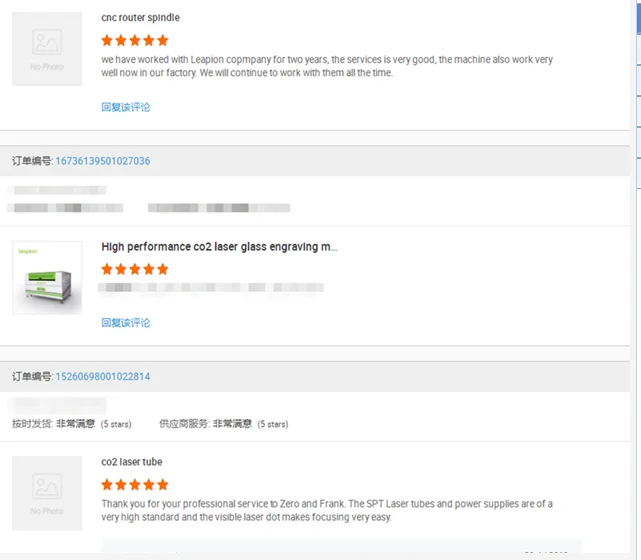

GOOD REPUTATION
