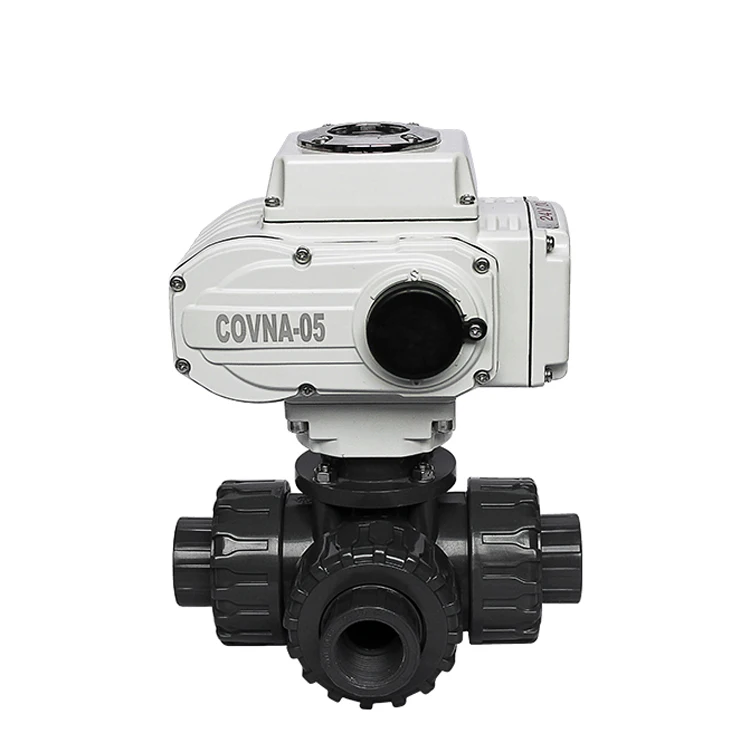

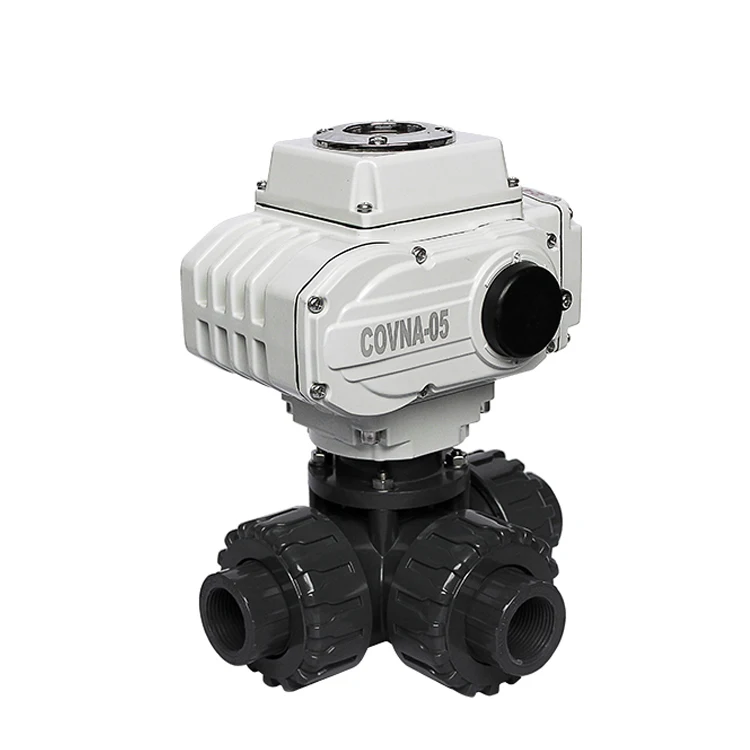

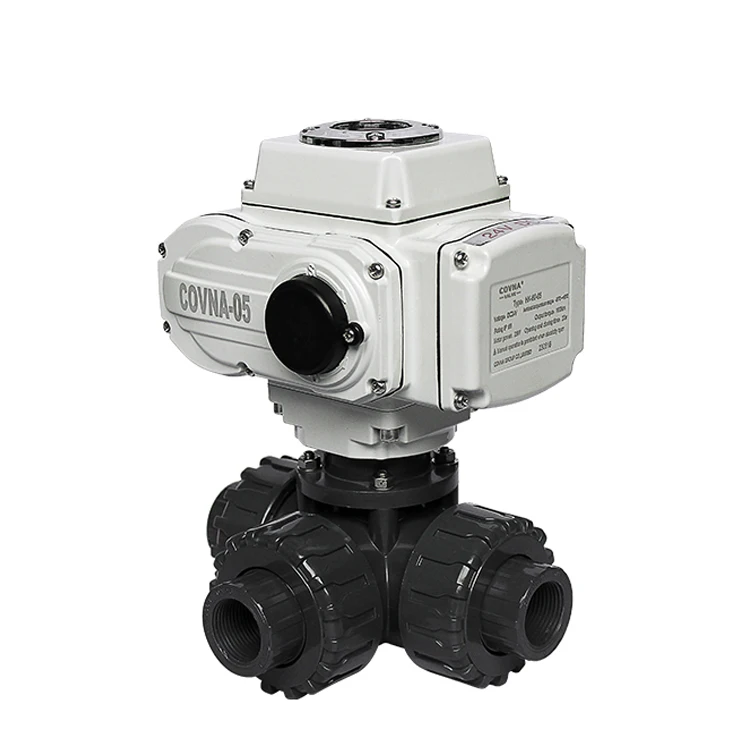

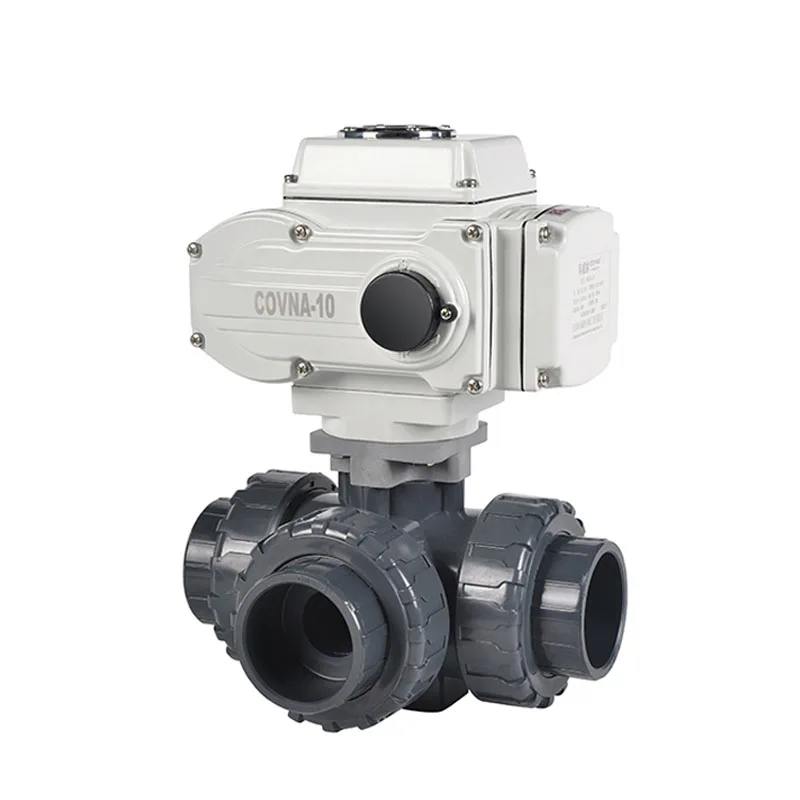

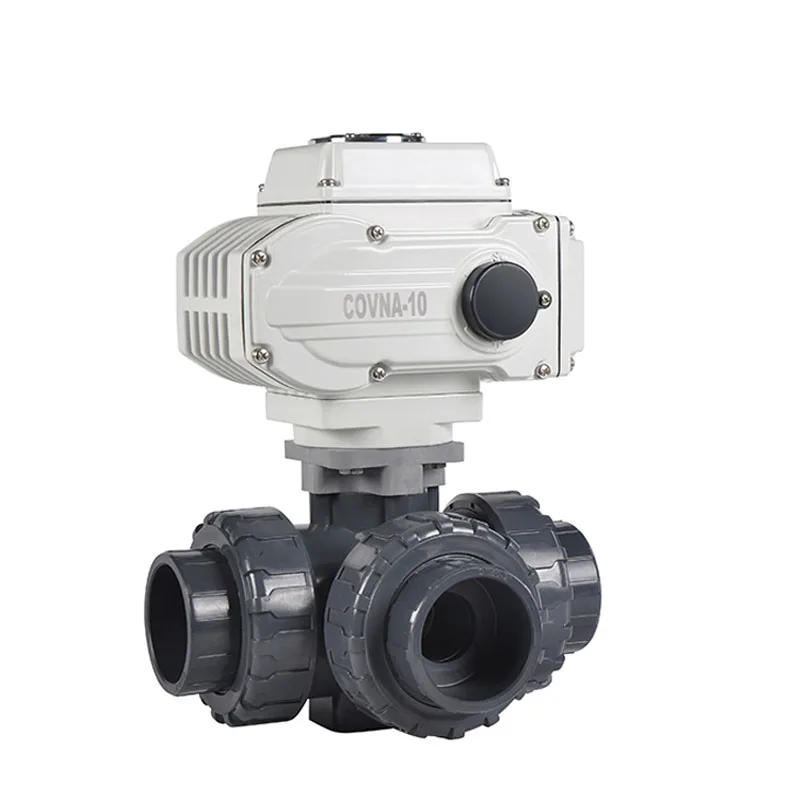

COVNA On Off Type Plastic Motorize Actuated Valves 120V DN50 3 Way Electric PVC Ball Valve
- Category: >>>
- Supplier: Dongguan Chuancheng Pneumatic Components Co. Ltd.
Share on (62425807643):
Product Overview
Description
Hot Sale Products
Specification

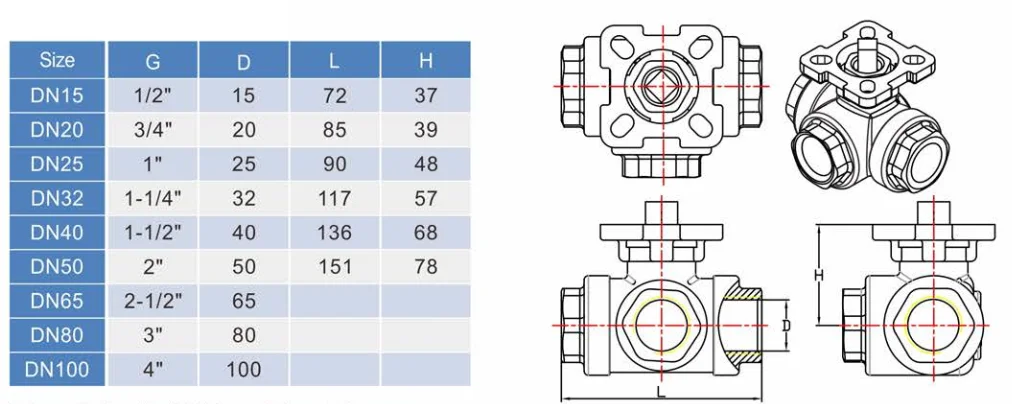

Item | 110V 120V 24Vdc DN40 3-Way Electric Motorized Ball Valve | ||||
Size Range | DN15 to DN50 | ||||
Operating Pressure | PN 1.0 / 1.6MPa | ||||
Body Material | Plastic UPVC/CPVC | ||||
Ball Material | Plastic UPVC/CPVC | ||||
Sealing Material | UPVC | ||||

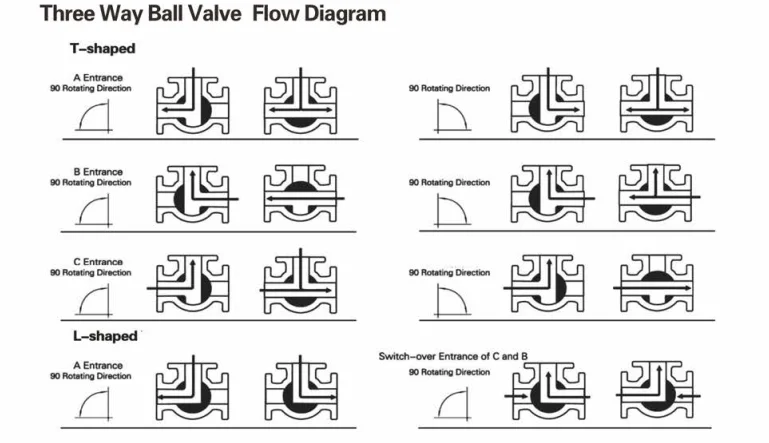

Structure | 3 Way T Type / L Type | ||||
End Connection | Double union quick connection | ||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid | ||||
Temp. of Media | Range from -10 to +80°C | ||||
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | ||||
Features Of COVNA Quarter-Turn Electric Actuator:
● 90 degree rotation
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● Available in ON/OFF type, modulating type and intelligent type for your choice to allow you flow control easier
● AC/DC power supply, signal control and manual override
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
● High output torque up to 4000N.m
● Low failure rate, overloading protection
● ISO5211 mounting for ball and butterfly valve
● IP65 weather proof protection class for outdoor use
● Offering online technical support to help you install the actuator and valve
● 1 Year warranty
Series | 05 | 10 | 16 | 30 | 60 | 125 | 250 | 400 | |||||||
Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm | |||||||
90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S | |||||||
Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | |||||||
Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A | |||||||
Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W | |||||||
Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | ||||||||||||||
Input Signal | 4-20mA, 1-5VDC, 0-10VDC | ||||||||||||||
Output Signal | 4-20mA, 1-5VDC, 0-10VDC | ||||||||||||||
Protection Class | IP65 protection class | ||||||||||||||
Ambient Temp | -20 to +60°C | ||||||||||||||
Wiring Diagram | A: ON/OFF type with light indicator signal feedback B: ON/OFF type with passive contact signal feedback C: ON/OFF type with resisance potentiometer signal feedback D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback E: Regulation type with servo control module F: DC24/DC12V direct ON/OFF type G: AC380V 3-phase power supply with passive signal feedback H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback | ||||||||||||||
About COVNA

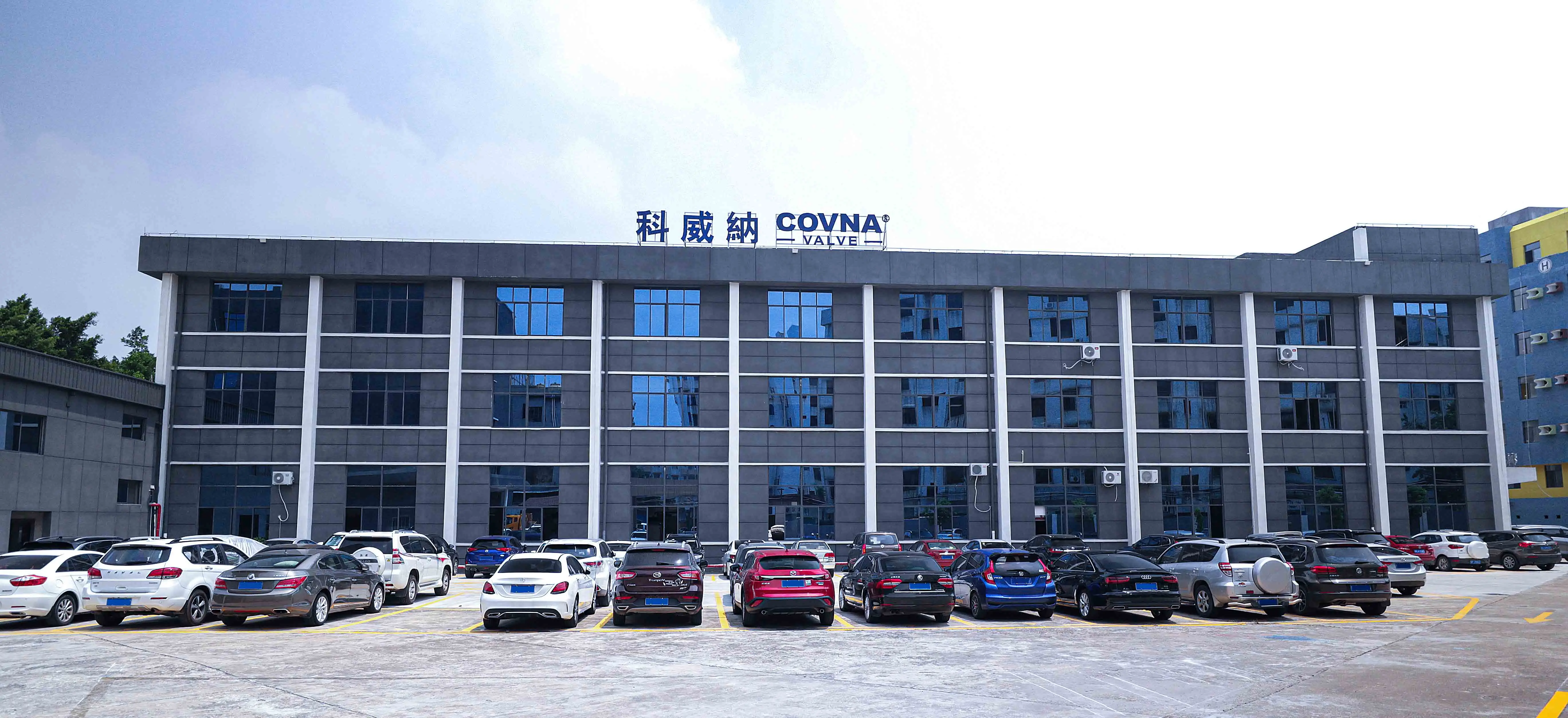

Company Profile

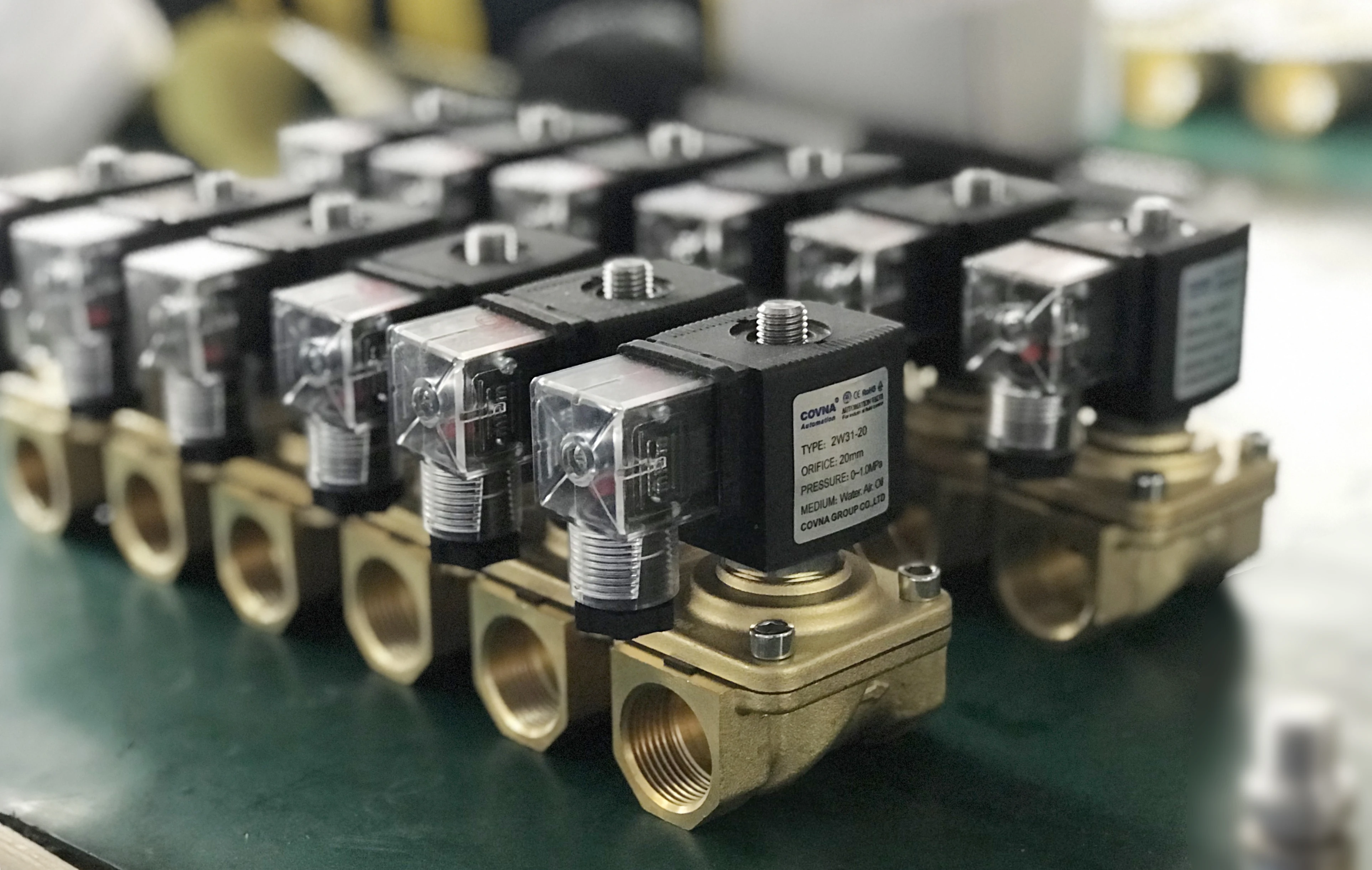

● Solenoid valve
● Electric actuator valve
● Pneumatic actuator valve

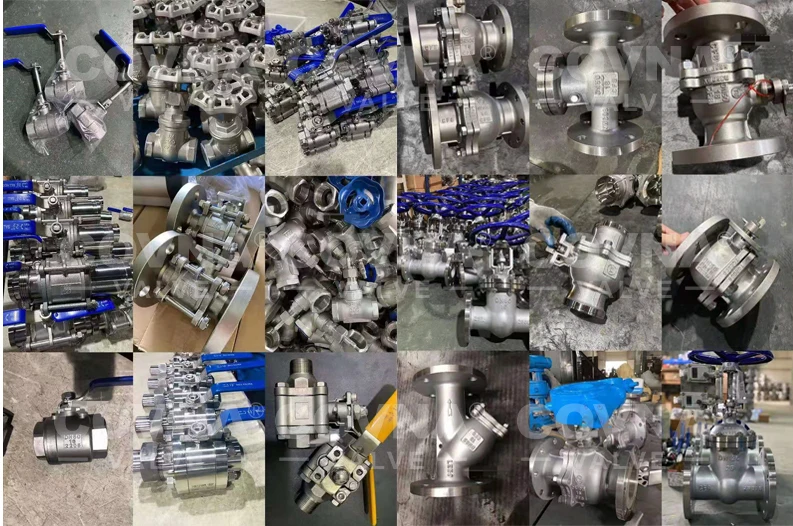

● Ball valve/Butterfly valve

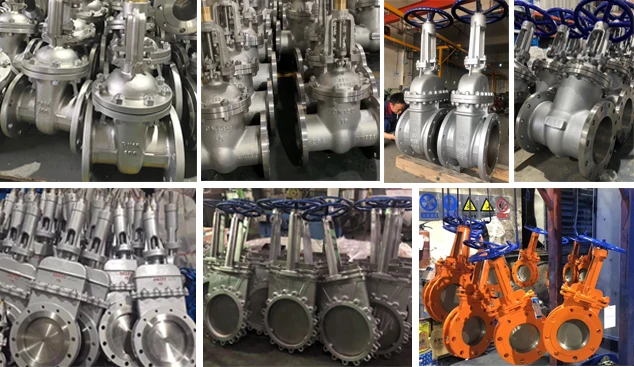

● Check valve/Gate valve/Globe valve
As you see, we are a one-stop valve solution provider. We have offer automation solution for more than 2,000 companies. 20 Years experience in valve manufacture and automation solution. We are confident that we could offer the suitable valve and cost-effective solution for you.
Consult us and we are willing to help you resove the problem!
Certifications
Exhibition
Packing
Packing: Electric valves packed with foam in carton, mater carton or wood pallet
Delivery Time: 7-10 working days after payment confirmed.
FAQ
Q: Can I get a sample and how do I get it?
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Q: What are your main products?
A: We are a valve and actuator manufacturer with 20 years experience and we could provide ball valve, butterfly valve, check valve, gate valve, globe valve, electric actuator and pneumatic actuator for you. We committed to being your No.1 one-stop valve solution provider.
Q: Do you have any certificates?
A: Yes, we have ISO9001:2015, CE, TUV, SGS and more than 30 patents. Quality is our goal and the certificate is good proof of our quality.
Q: Can I be your distributor?
A: Yes, you can be our distributor. Details please contact us.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Q: What are your main products?
A: We are a valve and actuator manufacturer with 20 years experience and we could provide ball valve, butterfly valve, check valve, gate valve, globe valve, electric actuator and pneumatic actuator for you. We committed to being your No.1 one-stop valve solution provider.
Q: Do you have any certificates?
A: Yes, we have ISO9001:2015, CE, TUV, SGS and more than 30 patents. Quality is our goal and the certificate is good proof of our quality.
Q: Can I be your distributor?
A: Yes, you can be our distributor. Details please contact us.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
