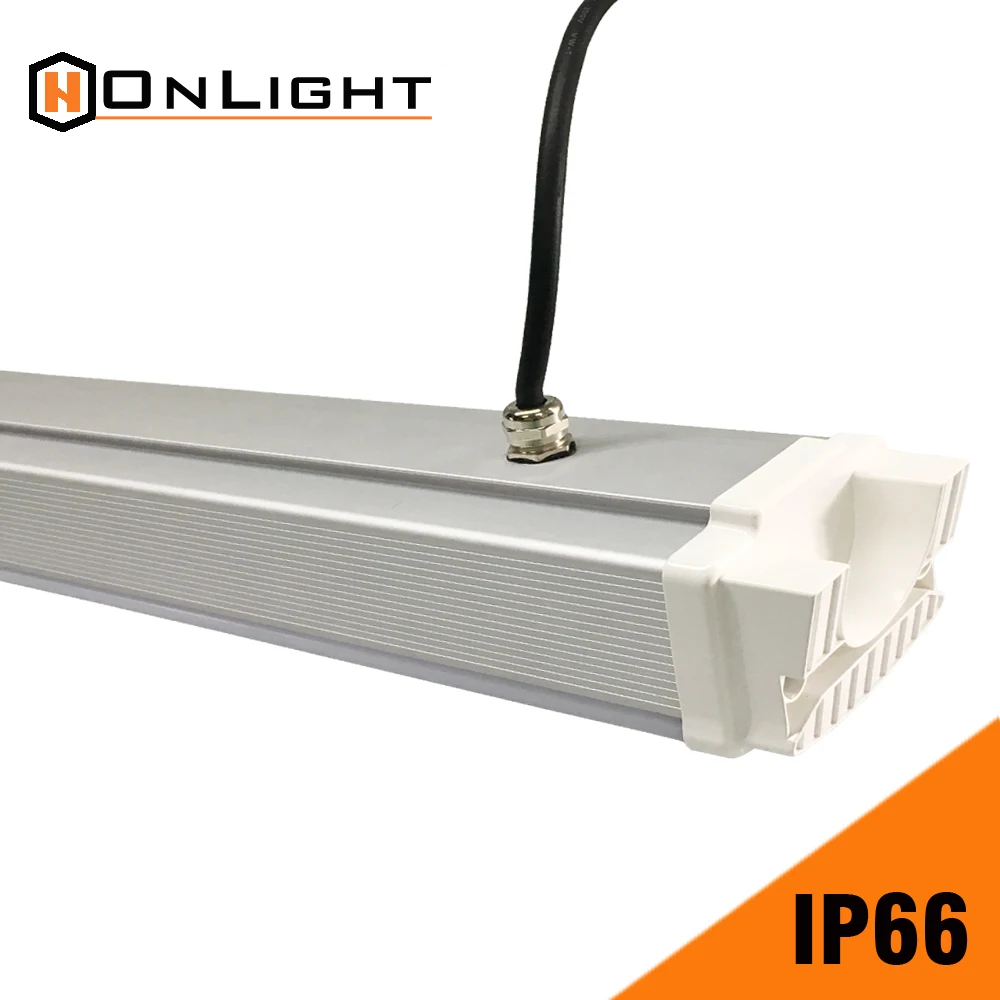

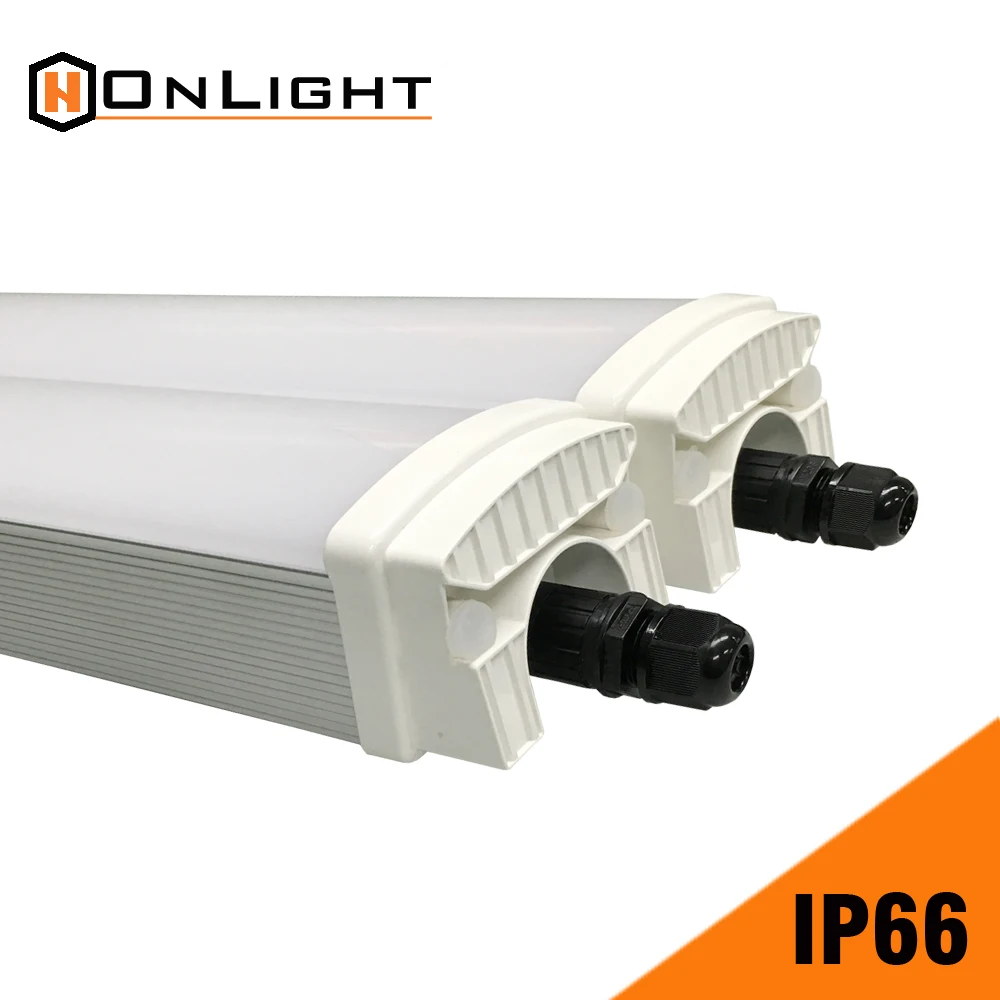

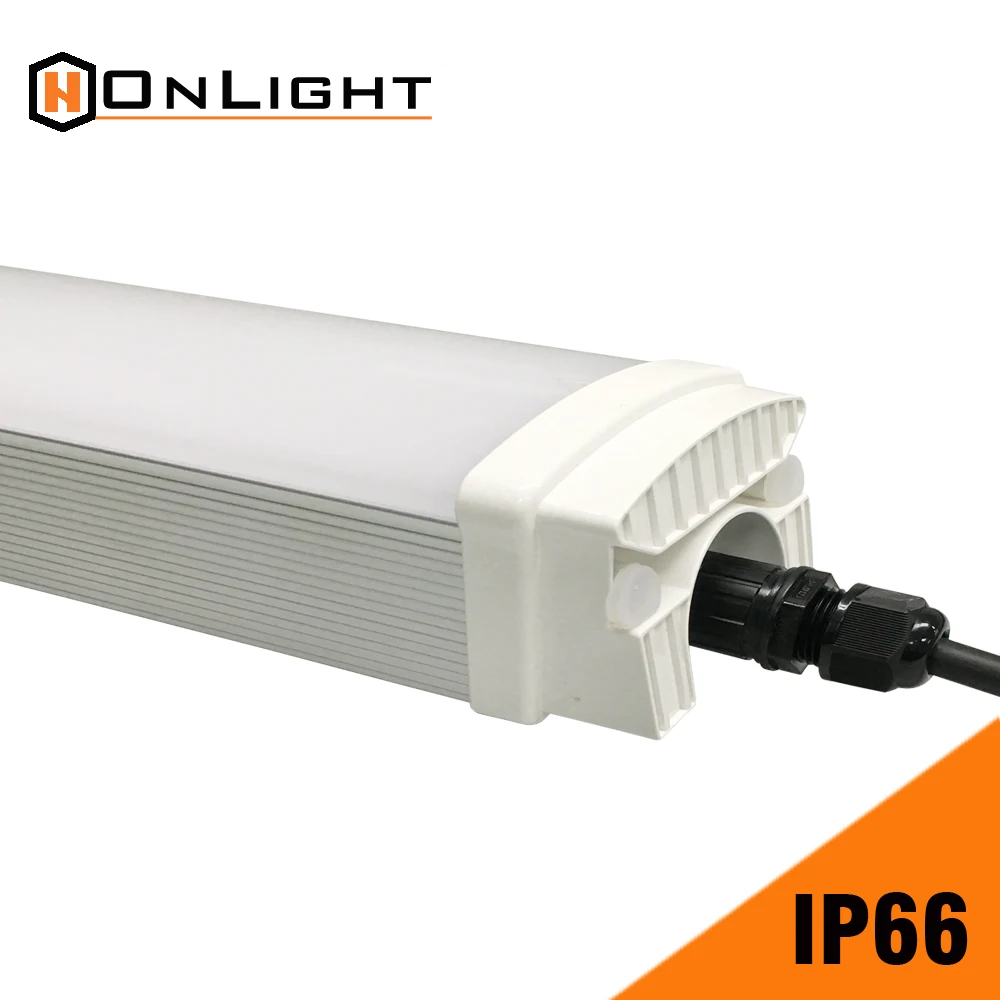

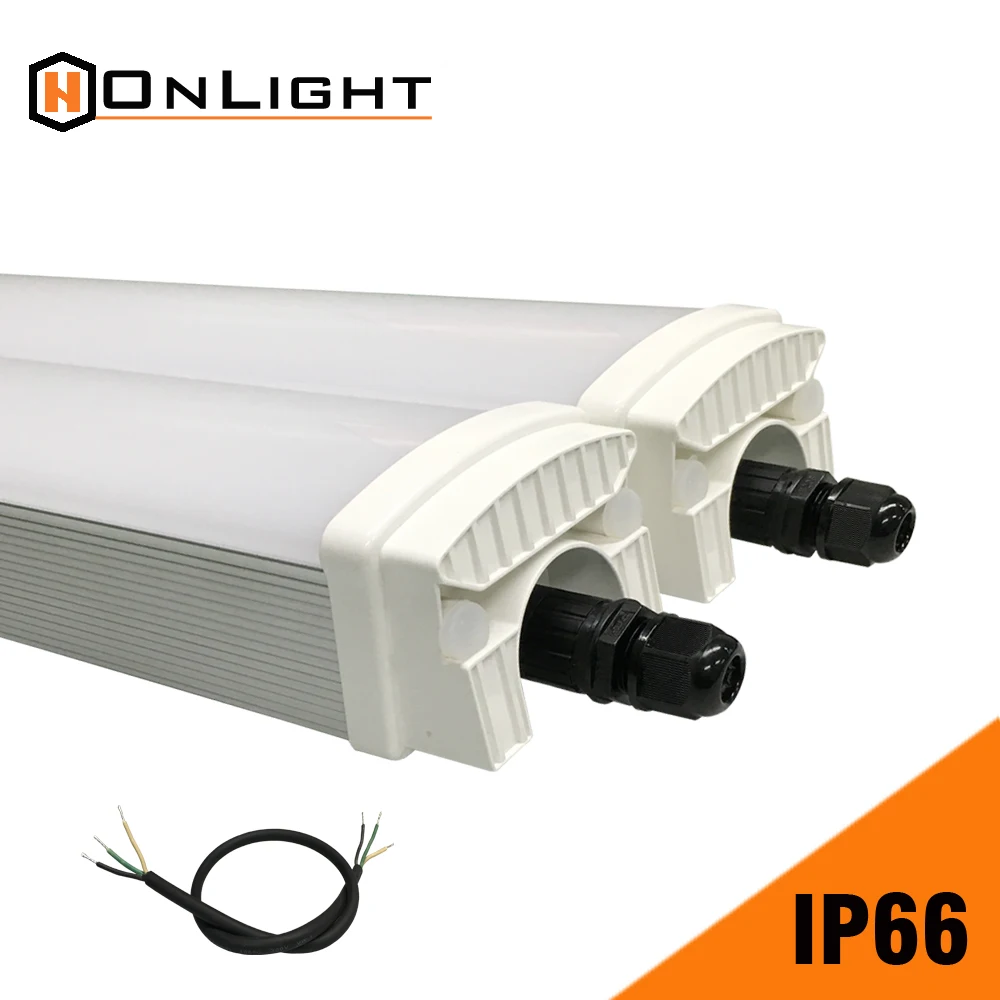

DLC Pendant Linear Lighting Ogjg Modern Waterproof Linear Lamp 4Ft 60W Ip66 Ip65 Fire Resistant Led Lighting Fixture

Product Overview

Description

DLC Pendant Linear Lighting Ogjg Modern Waterproof Linear Lamp 4Ft 60W Ip66 Ip65 Fire Resistant Led Lighting Fixturet

1. Tri-proof led fixture for waterproof, dust, corrosion and pressure-proof, IP65,  IP66, IK10


2. Rated AC Input voltage AC100-277V, widely work for AC90-265V; Safety operating voltage DC30~DC42V


3. Constant LED forwarder current 45~50mA during tube operating;(Best design for low LED light decay & long life time)


4. High lumination SMD2835 LED and High lumens 90-115lm/w, 120-130lm/w, 130-140lm/w


5. Patent design tool for Aluminum housing, PC diffuser and Aluminum PCB board


6. Temperature difference less than 20°C between inside and outside; Excellent heat dissipation depending on whole thick aluminum housing


7. Widely use for ambient lighting application


8. No UV ,No lead, No Mercury


9. Being reduced 40% heat dissipation, compared with traditional fluorescent lamp


10. 5 years warranty

Model Name:	Enduro Series
Model Part No:	HNX-TP65-60W5F-H
Part Name:	dlc pendant linear lighting
Input Power:	60W ± 2W
Mercury-free:	Yes
Body Color:	Silver Grey or Customized Color
Input Voltage:	AC 100~277V /AC200-240V / DC12V /DC24V
Input Frequency:	50/60HZ
Power Factor:	>0.95
Conventional Lamp Power to Replace:	120W
Energy Consumption:	60KWH/1000H
Luminous Flux:	6000LM, 7800LM, 8400LM
Color Temperature:	6000K~6500K
Color Rendering Index RA:	>83
Luminaries Efficacy (lamp):	95-110LM/W, 120-130LM/W, 130-140LM/W
PC Diffuser:	Clear Strip PC Diffuser or Frosted PC Diffuser
Housing Material:	Aluminum Alloy Housing
Power Supply:	Single End or Double End or Back Entry
Beam Angle:	120 degree
Dimension:	1200*75*91mm
Nominal Life Time:	50,000 Hours
Working Temperature:	-20℃~+45℃
1-10V Dimmable:	Optional
DALI Dimmable:	Optional
Microwave Motion Sensor:	Optional
Emergency:	Optional
Certificate:	CE,RoHs, LVD, EMC, ERP
Installation Method:	Ceiling Mounted Installation
	Suspended Installation
Water Resistant Rating:	IP65, IP66
Vandal Resistant Rating:	IK10
Warranty:	5 Years















Model	Lamp Size (mm)	Qty (pcs/ctn)	GW/Carton(kg)	Package Size(mm)
HNX-TP65-20W2F-H	600*91*74	6	8.9	680*240*280
HNX-TP65-30W2F-H	600*91*74		8.9	680*240*280
HNX-TP65-40W4F-H	1200*91*74		15.6	1280*240*280
HNX-TP65-50W4F-H	1200*91*74		15.6	1280*240*280
HNX-TP65-60W4F-H	1200*91*74		15.6	1280*240*280
HNX-TP65-50W5F-H	1500*91*74		19.8	1580*240*280
HNX-TP65-60W5F-H	1500*91*74		19.8	1580*240*280
HNX-TP65-80W5F-H	1500*91*74		19.8	1580*240*280
HNX-TP65-80W6F-H	1800*91*74		23.8	1880*240*280
HNX-TP65-100W8F-H	2400*91*74		23.5	2470*240*200





Q1: What is the warranty for the dlc pendant linear lighting?

A1: For our dlc pendant linear lighting, we have 5 years warranty for standard function, and 3 years warranty for dimmable and emergency function. If any quality problems for this dlc pendant linear lighting occurred within warranty period , replacement parts will be provided for you by FREE of COST.



Q2: What is the led chips, light efficiency, CRI, CCT for this dlc pendant linear lighting?

A2: Our chips for this dlc pendant linear lighting are Epistar SMD2835, 90-120lm/w, CRI>83, CCT: 3000k 3500k 4000k 4500k 5000k 5500k  6000k  6500k.



Q3: Will your dlc pendant linear lighting work with sensor, auto dimmable and battery emergency?

A3: Yes, we can add radar sensor, 1~10v dimable, auto smart dimmable and emergency function (1 hr, 1.5hrs, 2hrs, 3hrs at full power or half power) on the dlc pendant linear lighting for your option, please feel free to contact us if there is a need.



Q4: Are your dlc pendant linear lighting in double end power supply or single end power supply?

A4: Double end power supply and single end power supply for this dlc pendant linear lighting is available for your option.

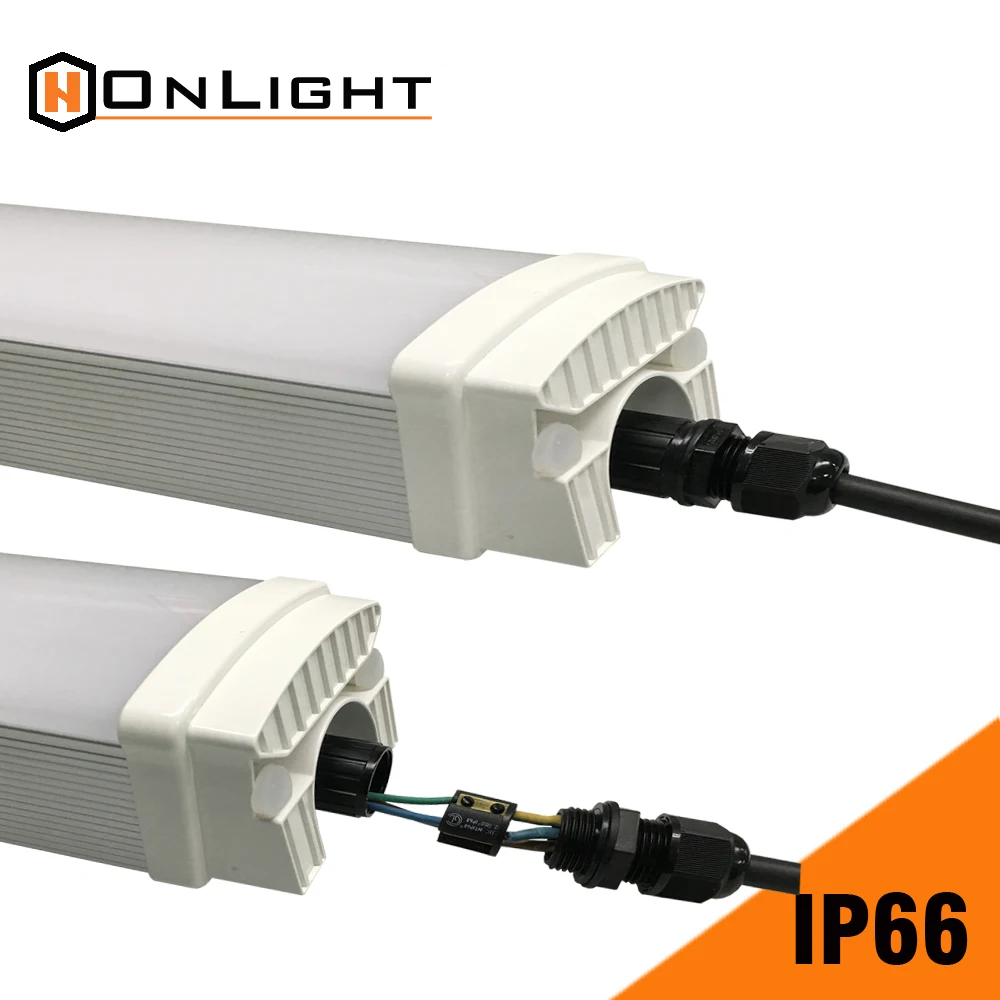

Q5: Can your dlc pendant linear lighting be series connection and seamless connection?

A5: Yes, our dlc pendant linear lighting can be connected in series by fast connectors and also available to connect by smart aluminum for seamless connection.



Q6: Do your dlc pendant linear lighting accept OEM?

A6: Yes, OEM is also welcome for this dlc pendant linear lighting here. If you need to print your logo on the dlc pendant linear lighting product itself or on the outer carton box, we can make that with MOQ 500pcs. If you need any other OEM requirement, just let us know the detailed information.



Q7:How to order this dlc pendant linear lighting?

A7: Just need to confirm which spec you need, then please kindly contact us to release sample or mass order. Generally, samples order for this dlc pendant linear lighting is 5 working days, and mass order will be 14 working days.
