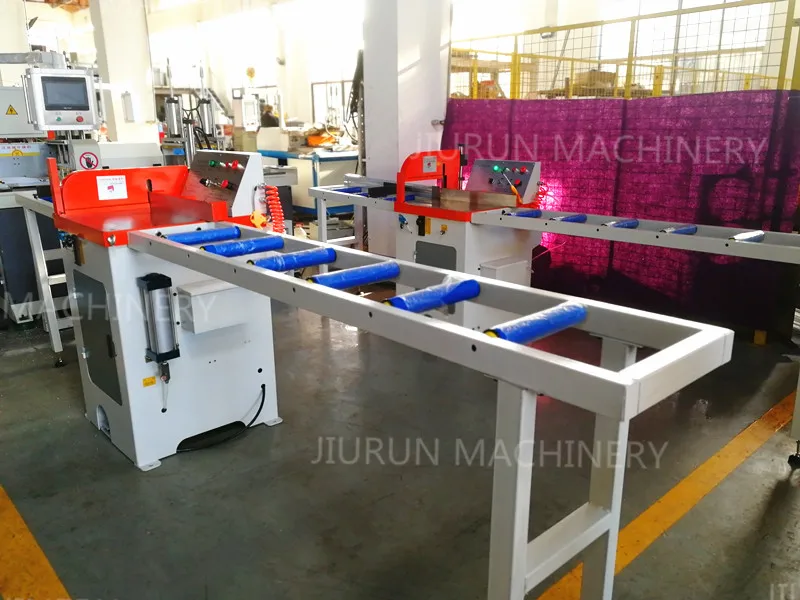

Non ferrous metal aluminum bar cutting machinery
- Category: >>>
- Supplier: Zhangjiagang Jiurun Machinery Technology Co. Ltd.
Share on (62425889222):
Product Overview
Description
Product Description
It is adapted for sawing aluminum extrusion material, aluminum doors and windows, radiating rib, wooden material, water pipes and sound faceplate.
It is suitable for cutting various materials, such as aluminum, brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic, honeycomb board, wood and other non-ferrous metals.
Feature

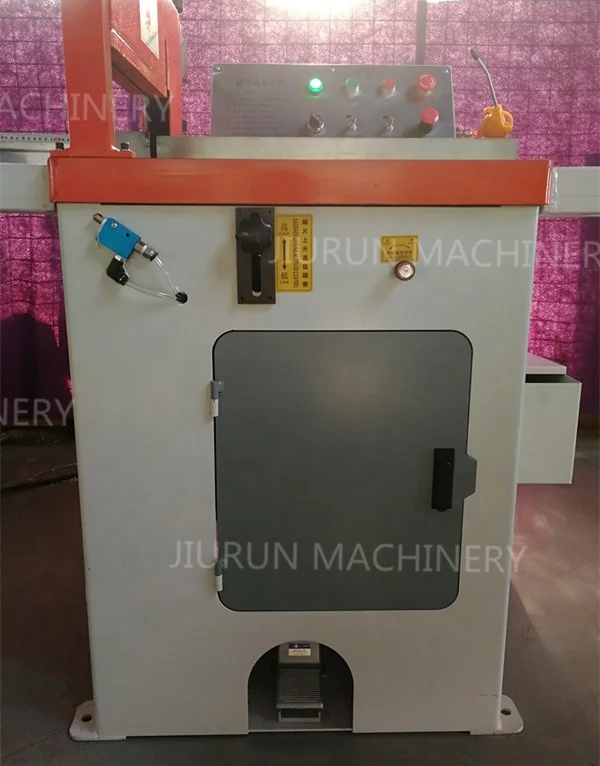

1. When operating the machine, just step on the foot switch, the machine will automatically clamp and cut, easy to operate.
2. Hidden blade up and down can be very safe work.
3. Vertical slide way for advance and retreat blade up and down.
4. The cutting feed is stable, the service life of the cutter is long, and the sawing accuracy is high.

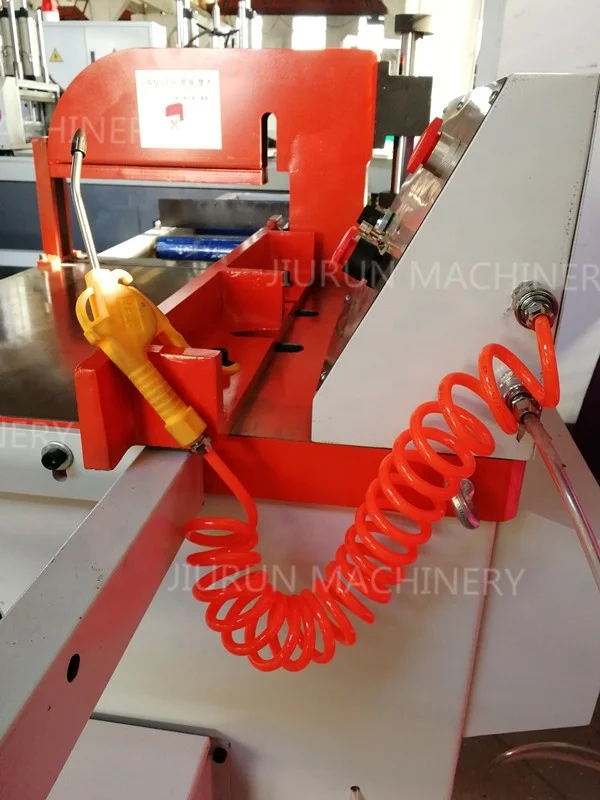

5. Cooling liquid and lubricating liquid spray out automatically during cutting to ensure smooth cutting surface and prolong the service life of saw blade.
6. The cutting feed is driven by the cylinder so the cutting speed is extremely stable.
7. The saw blade Angle is fixed and the cutting precision is improved.
8. The shelves have a positioning panel, which is more convenient to cut the material.
Technical parameter
Model | JR-S455 |
Cutting Angle | 90 ° |
Cutting Capacity(HxW) | 120*300mm |
Spindle Speed | 2800-3300 R.P.M. |
Saw Blade Size | φ355-455mm |
Table Area | 645*668mm |
Table Height From Floor | 850mm |
Motor Power | 4 kw |
Air Pressure | 4-6 kg/cm² |
Conveyor Length (opt.) | According to customer’s requirements |
Voltage | 380V or customized |
Feed Mode | Up and down |
Weight | 300 kg |
Company Information
Our Services
1. Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.
2. Our company can send our engineer to the customer’s factory install, commission and training freely. The customer has to provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our company to learn the operation and maintains freely.
3. Our company provide the service for the customer forever, if the customer need operation help, you can contact us by Skype, Email and Telephone at any time.
Packaging & Shipping
FAQ
Why your price is higher/lower than others?
For years specializing in polyamide granules and thermal break strips has bestowed us experienced and skilled technical workers and production workers. We promise the stability of products and the high-quality of raw material. Furthermore, we can provide technical support from raw material to the final appliance. Believe in that you can get better products and service with lower price.
About warranty
We are confident in our products, and pack them well before delivery, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately.
About Payment or other question
50% T/T before production, balance before shipment.
If you have any question, pls feel free to contact us as below:
Whatsapp: +8613812855067
Skype: lana_lou_5
Wechat: lanadelreybiscuit
