PF 1007 gold ore coal impact crusher
- Category: >>>
- Supplier: Henan Zoomjo Mining Machinery Manufacturing Co. Ltd.
Share on (62425958575):
Product Overview
Description
Products Description

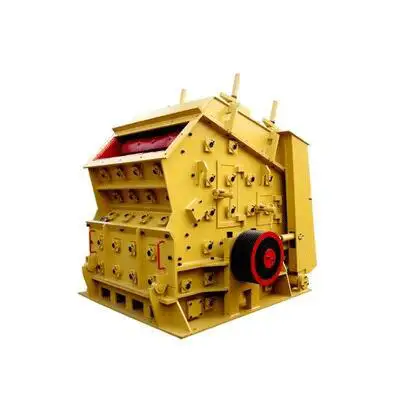

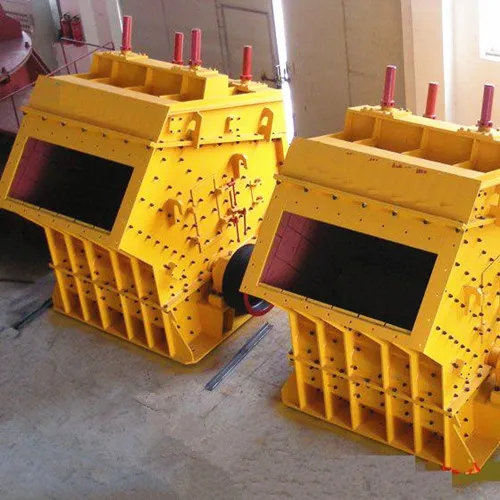

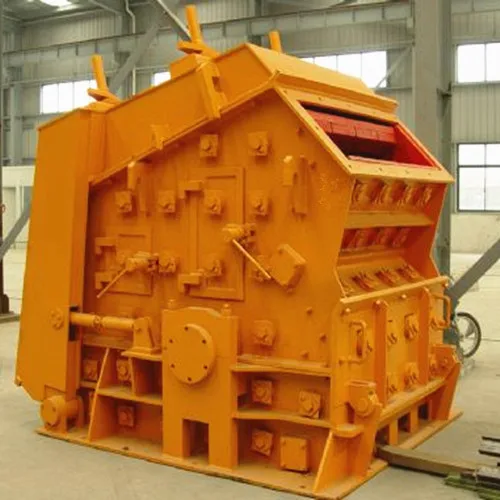

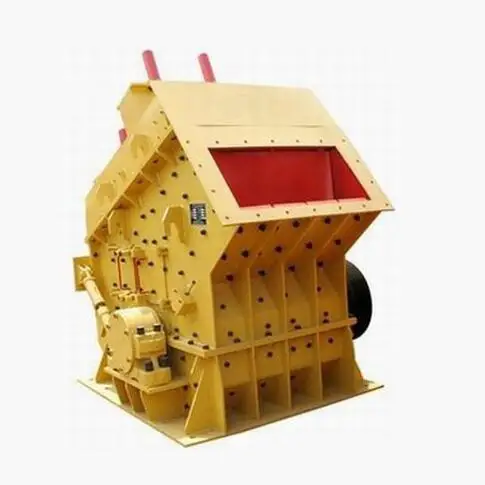

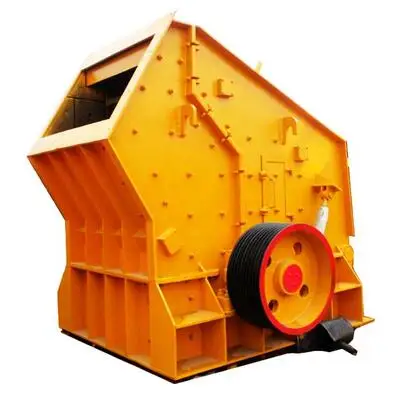

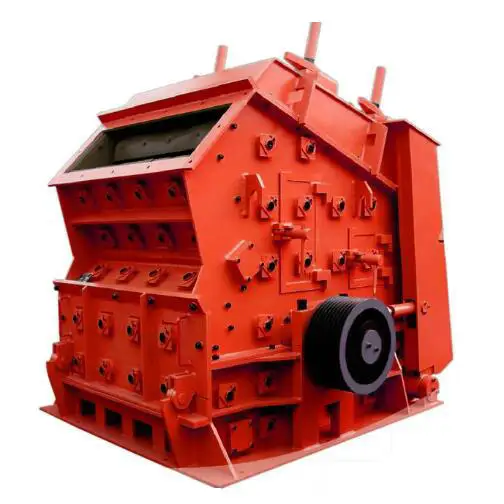

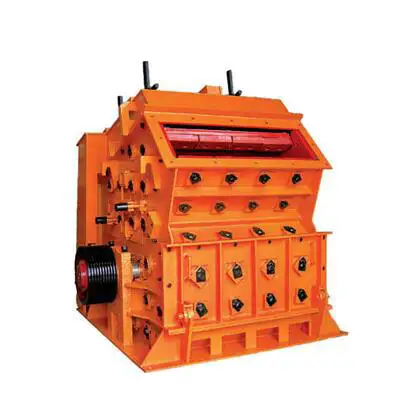

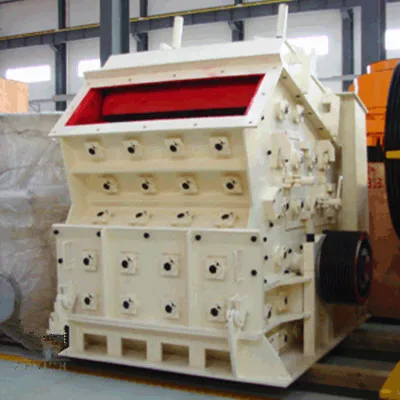

PF-1007 gold ore coal impact crusher
PF-1007 gold ore coal impact crusher is a new product designed by our company after absorbing the advanced technology at home and abroad.It has the features of high reduction ratio,high crushing efficiency,easy to maintenance.The final products are cubic shapes and are ideal for the highway and hydraulic power construction.
Features
Features
1.Feed in port is large,crushing chamber is high,applicable materials has high hardness,large blocks,less stone power;
2.Clearance between impact plate and plate hammer is easy to adjust,the finished product size can be controlled easily,and particle shape is good;
3.Compact structure,Machine rigidity is strong,the rotors have large rotational inertia
4.High chromium plate hammer,impact resistance,wear resistance,large impact force;
5.No-board connection,convenient maintenance,reliable economy
6.Complete crushing functions,high productivity,little parts wear and tear,high comprehensive benefits.

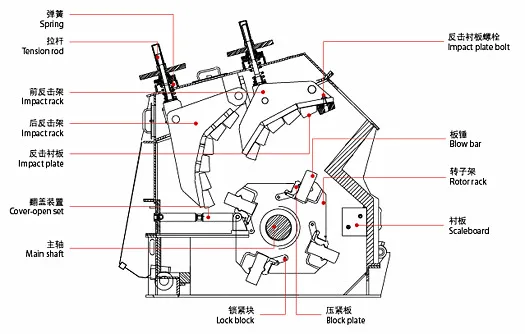

Working Principle
Working Principle

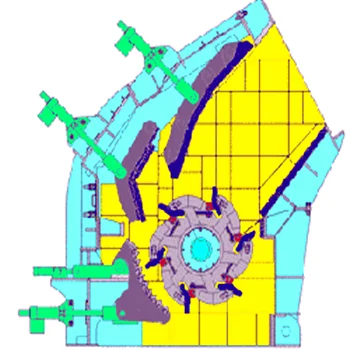

The impact crusher crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the material will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed, then discharge from the discharge port. By adjusting the gap between the impact rack and rotor rack, we can change the finished material size and their shape.
Technical Parameters
Model | Spe. (mm) | Feed opening size(mm) | Max feed size(mm) | Capacity (t/h) | Power (kw) | Overal dimensions (mm) | Weight (t) |
PF-0607 | φ644*740 | 320*770 | 100 | 10-20 | 30 | 2010*1490*2600 | 6.5 |
PF-0807 | φ850*700 | 400*730 | 300 | 15-30 | 30-45 | 2210*1490*2670 | 8.1 |
PF-1008 | φ1000*800 | 400*830 | 300 | 30-50 | 37-55 | 2400*1558*2660 | 9.5 |
PF-1010 | φ1000*1050 | 400*1080 | 350 | 50-80 | 55-75 | 2400*2250*2620 | 12.2 |
PF-1210 | φ1250*1050 | 400*1080 | 350 | 70-120 | 110-132 | 2690*2338*2890 | 14.9 |
PF-1212 | φ1250*1250 | 400*1300 | 350 | 100-150 | 132-160 | 2690*2508*2890 | 16.3 |
PF-1214 | φ1250*1400 | 400*1430 | 350 | 130-180 | 132-160 | 2690*2688*2890 | 18.6 |
PF-1310 | φ1300*1050 | 490*1170 | 400 | 80-140 | 110-160 | 2780*2478*2855 | 21.2 |
PF-1315 | φ1320*1500 | 830*1520 | 500 | 160-250 | 180-260 | 3096*3273*2667 | 24.3 |
PF-1520 | φ1520*2000 | 860*2050 | 700 | 300-550 | 315-440 | 3581*3560*3265 | 36.5 |
PFS-1814 | φ1800*1400 | 600*1400 | 300 | 350-450 | 132*2 | 2839*2830*3140 | 34.5 |
PFS-2016 | φ2000*1600 | 900*1600 | 400 | 500-700 | 200*2 | 3060*2990*4087 | 43 |
Product packaging
Packaging Details
1.International export standard packing of PF-1007 gold ore coal impact crusher；
2.small parts are woodened box package；
3.main engine nude,container,or customer 'requirement.
Port:
Qingdao or the nearest port
Lead Time:
Shipped in 20 days after payment
Company Profile
Company profile
Henan Zoomjo Mining Machinery Manufacturing Co., Ltd, as a joint-stock enterprise, is focusing on the production of large-sized
mining machinery including ball mill, rotary kiln, etc. Located in jiaozuo city, a industry city with a long history for large
equipment and machinery manufacturing, Zoomjo is becoming more and more connected to the world. For more details, please refer to
our website: www.zoomjomac.com
Why Choose Us
Why Choose Us?
1.We are online 24 hours on working days.
2.Our team of engineers for solutiongs of products.
3.Punctual shipment time and perfect after-sales services will be guaranteed.
4.Stock of spare parts.
5.Strict inspection before delivery.
FAQ
FAQ
Q1.How long is the warrenty of your equipments?
The warranty period of our equipments is one year.
Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q3.Can you test our samples?Do you provide beneficiation flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4. If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
The warranty period of our equipments is one year.
Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q3.Can you test our samples?Do you provide beneficiation flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4. If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
If you are new for this business, we will help you
In order to find the suitable models and design the best stone crusher plant or sand making line for you,pls kindly inform us the following information:
1. Which kind of material you are going to crush? Soft stone (dolomite, limestone) or hard stone ( granite, basalt, river pebble )?
2. What's the max input size of the material? (In inch,centimeter or milimeter)
3. What's the granularity of the final products you need? (in milimeter, micron or mesh)
4. What's the production capacity you want? How many tons or cubic meters per hour?
5. You want only a Crusher, or a complete Crushing Production Line?
