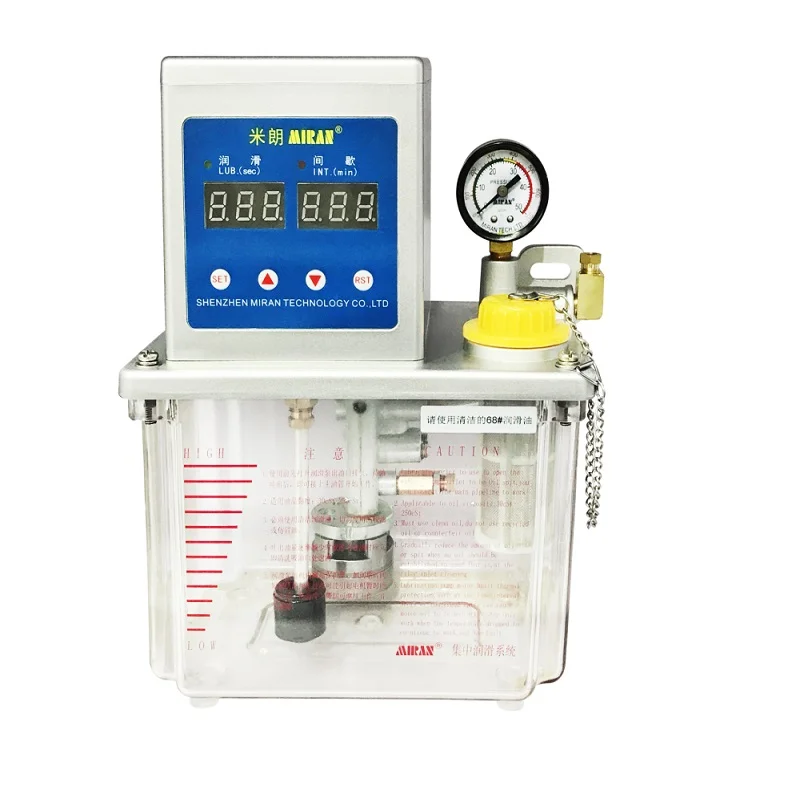

Miran 2L small hydraulic pump central lubrication system electric oil gear pump dispenser pump
- Category: >>>
- Supplier: Hubei Miran Technology Co. Ltd.
Share on (62425968335):
Product Overview
Description
Product Description
Product datasheet | ||
MR-2232(2L) | ||
Operation | self-control | |
Oil Injection Cycle | 1~200s and 1~999min adjustable | |
Oil Pressure | 18 kgf/cm2 | |
Oil Flow | 150-200 ml/min | |
Working Voltage | 110,220 VAC | |
Power | 18 W | |
Oil Viscosity | 30-1000 kgf/cm2 | |
Tank Capacity | 2000ml | |
Oil Pipe Size:Φ6mm | Φ6mm | |
Applicable System | Damper Type SLR / Volumetric PDI | |
More Details: MR-2232-200 self-controlled, intermittence could be maximum 999 minutes, oil supply last maximum 200 seconds. When the liquid level is insufficient, the machine stops and buzzing alarm goes. NC / COM / NO outputs, water outlet at the bottom, damper type or volumetric type perferrable, suitable for various lubricating systems. | ||
More Details: MR-2202-300 is controlled by Host or a special controller, with a Liquid Level Alarm, NC / COM / NO outputs, water outlet at the bottom, damper type or volumetric type perferrable, suitable for various lubricating systems. | ||
1. What is the difference between: 2202 and 2232 ? 2202 type is half-controlled,it needs your machine to control the oil offering time and resting time. 2232 type is self-controlled,there is the controller inside,it can control the oil offering time (0-200 seconds) and resting time(0-999 mins). 2. How long can be the hose? You can buy our plastic hose,it is from 1 meter to 100 meters,200 meters or 300 meters. 3. How many lubrication points can be used for each pump? You can buy our lubricating points from 2 points to 14 points. 4. What is the main application for lubricating pump? Normally our pumps are suitable for plastic machinery,engineering machinery,and machinery for textile,printing,woodworking,chemical,etc. ,ensuring lubrication performance of various kinds of machinery products, for longer service life and accuracy. | ||

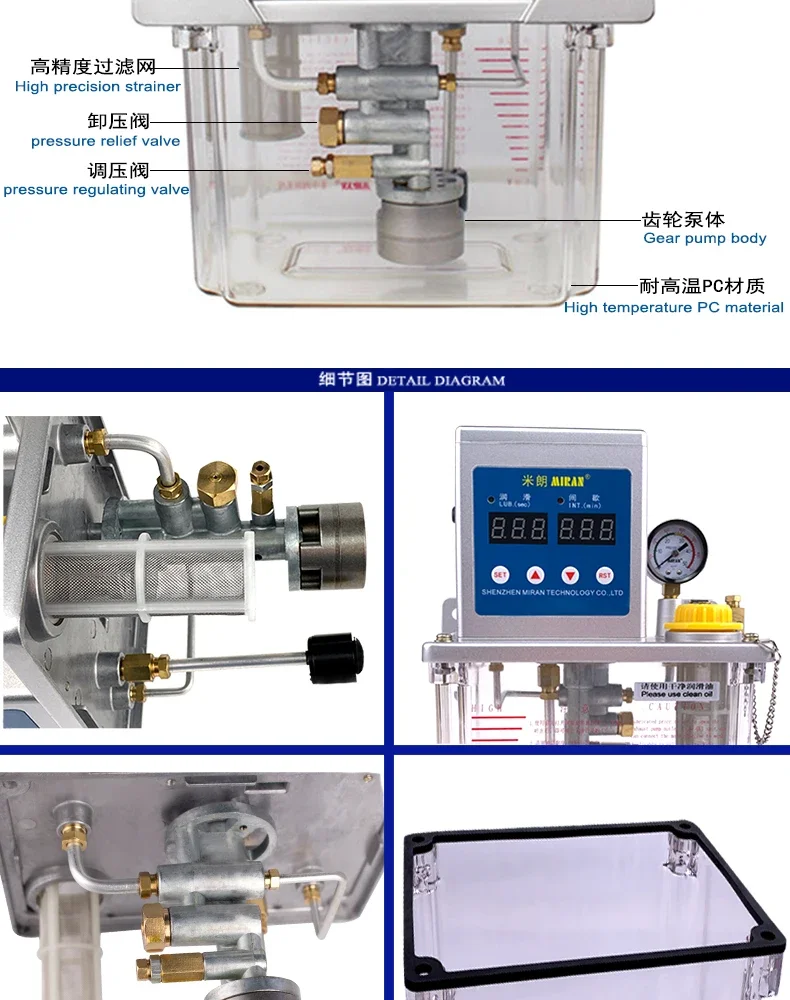

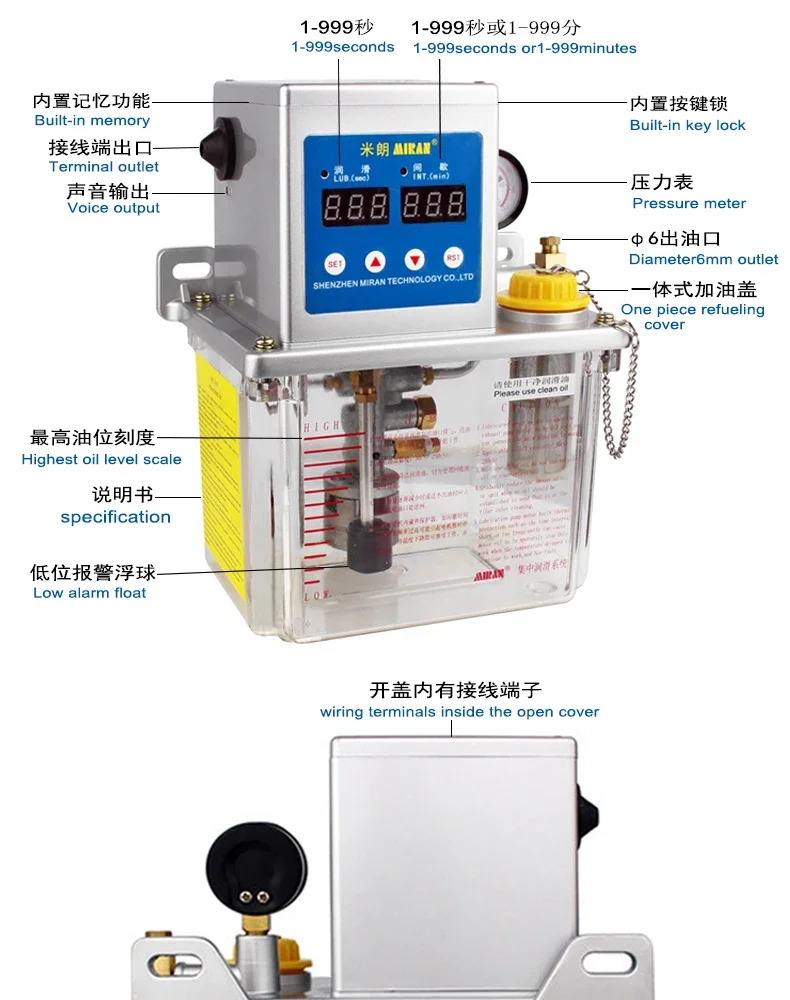

Detailed Images

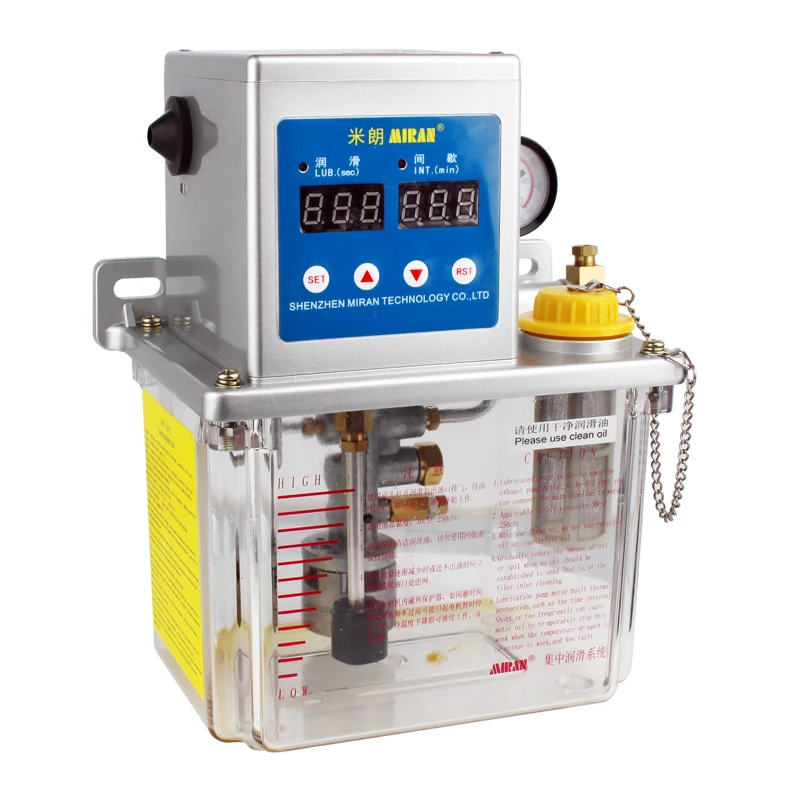

Operating Instruction:
1.Working time: press and hold the SET button, release it when the numbers jump, then press ▲ ▼ to set unit digit; and press the button of SET again, to set ten digit with pressing ▲ ▼; press SET to hundreds digit(1~999 seconds).
2.Interval time: press and hold the SET button, release it when the numbers in other Display screen jump, then press ▲ ▼ to set unit digit; and press the button of SET for two seconds, the interval time can shift between minutes and second(1~999 minutes or 1~999 seconds).
3.RST: Press and hold this key to relubricate or clear the abnormal alarm.
4.After the circuit power is turned on, the system belongs to the oil supply state, and enters the LUB, INT cycle. When the fuel is supply , the left LUB green light is on, the right INT red light is on when the system is on rest.
5.When the ERO flashes, it means that the amount of oil is insufficient, and when the ERP flashes, it means that the pressure is abnormal.
6.There is no power-off memory function in the digital display box, and a small switch is turned on to enter the power-off memory. Turn off the small switch, and the
power off memory stops.
7.There is a key lock function in the digital display box. You can lock the set button after setting the time according to your needs.
(The lubrication program Can be customized according to customers’ requirements)
2.Interval time: press and hold the SET button, release it when the numbers in other Display screen jump, then press ▲ ▼ to set unit digit; and press the button of SET for two seconds, the interval time can shift between minutes and second(1~999 minutes or 1~999 seconds).
3.RST: Press and hold this key to relubricate or clear the abnormal alarm.
4.After the circuit power is turned on, the system belongs to the oil supply state, and enters the LUB, INT cycle. When the fuel is supply , the left LUB green light is on, the right INT red light is on when the system is on rest.
5.When the ERO flashes, it means that the amount of oil is insufficient, and when the ERP flashes, it means that the pressure is abnormal.
6.There is no power-off memory function in the digital display box, and a small switch is turned on to enter the power-off memory. Turn off the small switch, and the
power off memory stops.
7.There is a key lock function in the digital display box. You can lock the set button after setting the time according to your needs.
(The lubrication program Can be customized according to customers’ requirements)
