Foamed Polyethylene Sheet Making Machine
- Category: >>>
- Supplier: Longkou Shuangji Mechanical Equipment Co. Ltd.
Share on (62425980141):
Product Overview
Description
Product Description
Product Application:
1.Cushioning and packing material for electrical equipment,potteries,glassware etc.
2.Insulation materials at agriculture and construction purposes.
3.Anti-static foam protects static sensitive electronic components.
4.Expansion joint filter, under-roof insulation, wall insulation, duct insulation.
5.Pipe insulation for thermal and acoustic applications.
Main Features:
EPE Foam Sheet is a new type of packing material also named as pearl cotton .It is an ideal substitute of traditional packing material for many advantages including dampproof, shockproof, sound insulation, heat preservation and high plasticity.
As a new type packing material it is widely used in the packing of electronic product, commodity, glass, ceramic, household apparatus, spraying, furniture, hardware product and toy.
Detailed Image
Extruding Unit
Diameter: ∮210mm
Material :38CrMoAlA nitrogen treatment
Heating area:11pcs
Method of heating:cast aluminum heater
Method of cooling: inner and outer water cooling
Material :38CrMoAlA nitrogen treatment
Heating area:11pcs
Method of heating:cast aluminum heater
Method of cooling: inner and outer water cooling
Material: 38CrMoAlA nitrogen treatment
Compression ratio: 3:1
Rotating speed: 0-48r/min
Compression ratio: 3:1
Rotating speed: 0-48r/min
Automatic feeding device and feeder table(CE standard)
Auto feeding unit 1set
Feeding capacity: 350-450 kg/hr
Feeding method: Auto feeding
Hopper: conical CE standard
Hopper with sight-glass

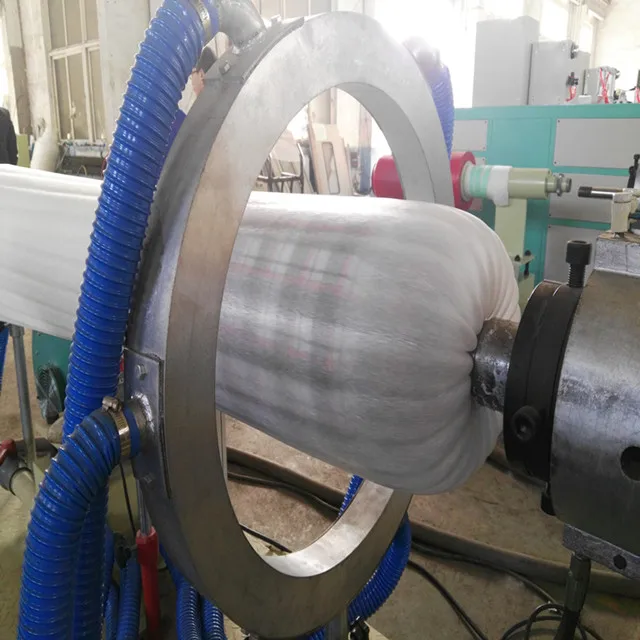

Air ring & shaping drum unit.
Air ring
Blowing method :air blower
Shaping drum
Material:steel
Cooling method:wind cooling
Methods for cutting open :round cutter motor driven
Shaping drum size: customer product decided
Expanding unit:
⑴Style:gradually expand
⑵Material: stainless steel
⑶Positioner: control product move direction
Haul-off unit :
Material:STPG tube hard chrome plating
Material of expanding roller: stainless steel
Length control: controlled by meter counter,could pre-set, equipped with the length alarm
Material of expanding roller: stainless steel
Length control: controlled by meter counter,could pre-set, equipped with the length alarm
Winding unit :
Model: Double axis cantilever displacement type(air shaft type)

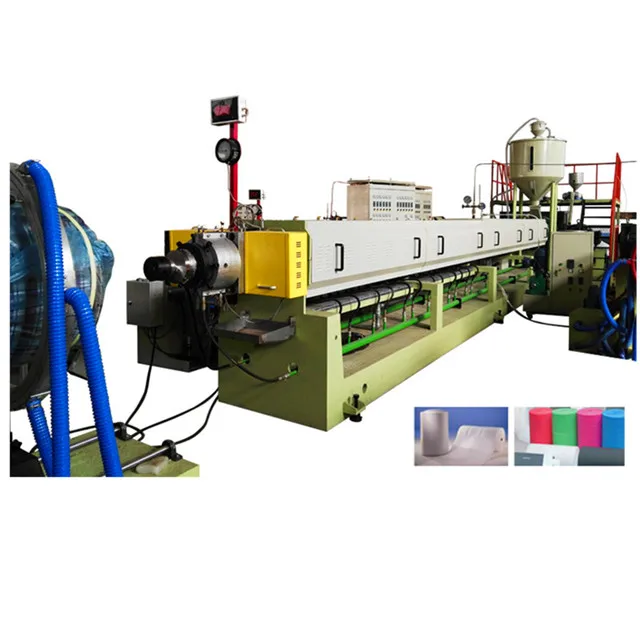

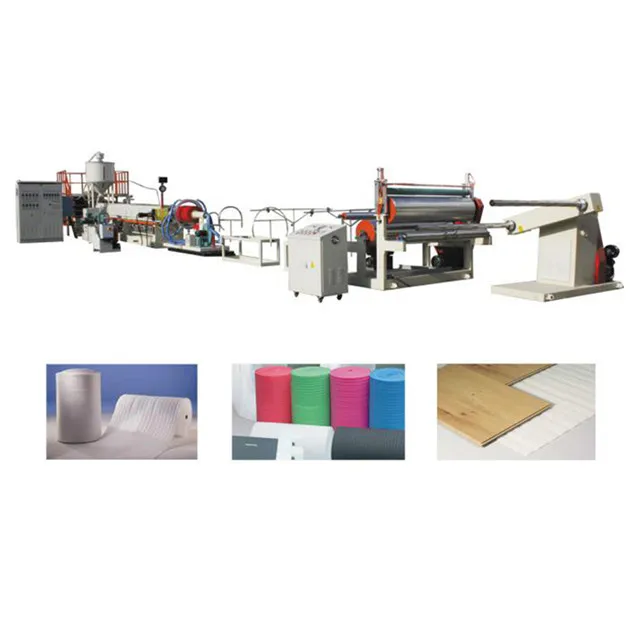

EPE Foam Sheet Plastic Extruder
Finish product
