Chinese 1 ton 2 ton 3 ton mini dump truck Small cargo dumper underground mine tricycle with 1 KW 2 KW 3 KW 7 KW motor
- Category: >>>
- Supplier: Gongyi Xiaoyi Jinwang Machinery Factory
Share on (62426067152):
Product Overview
Description

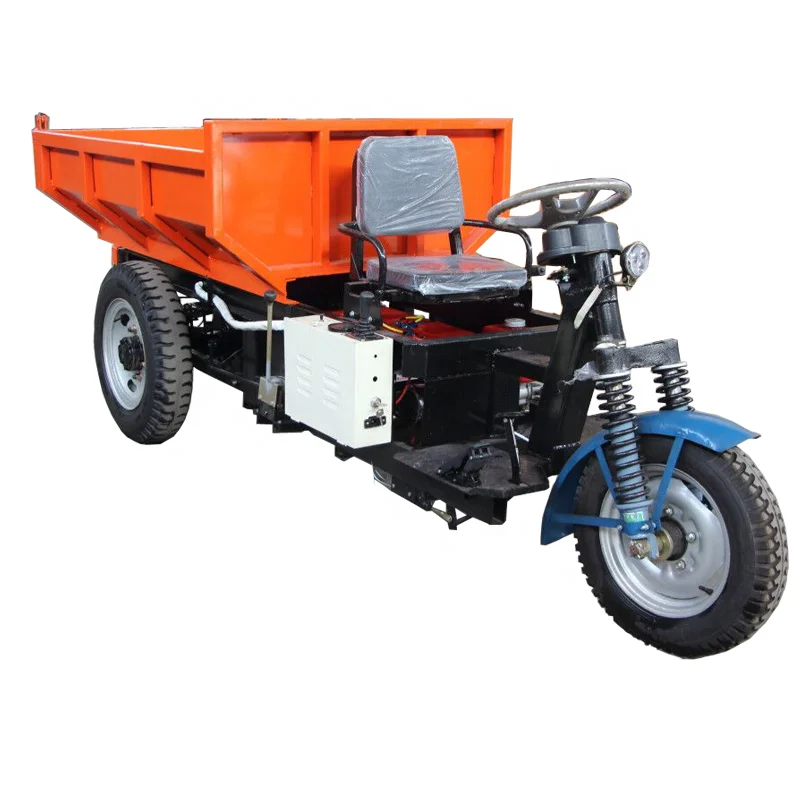

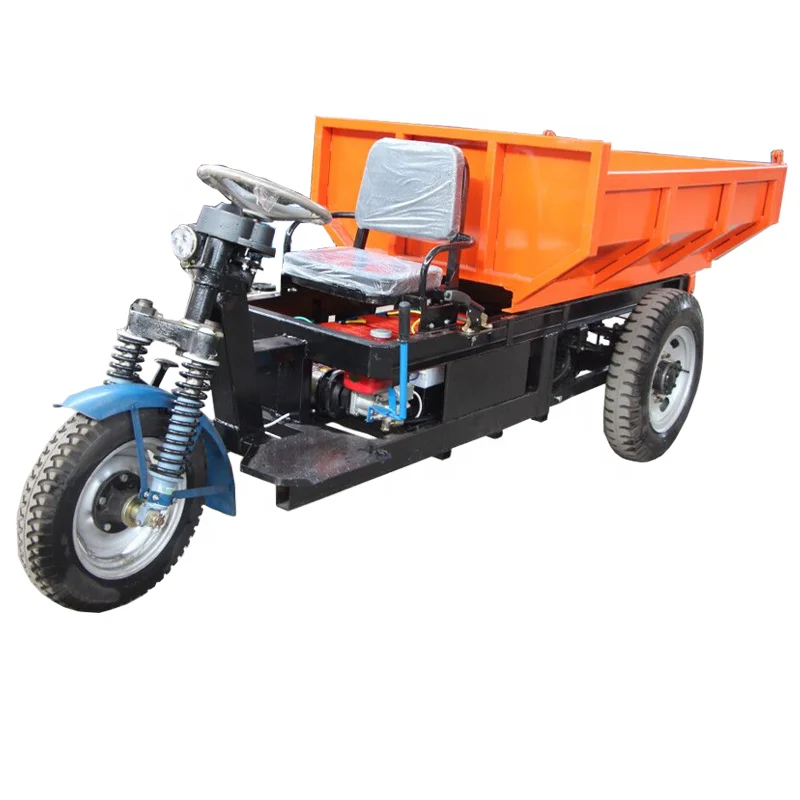

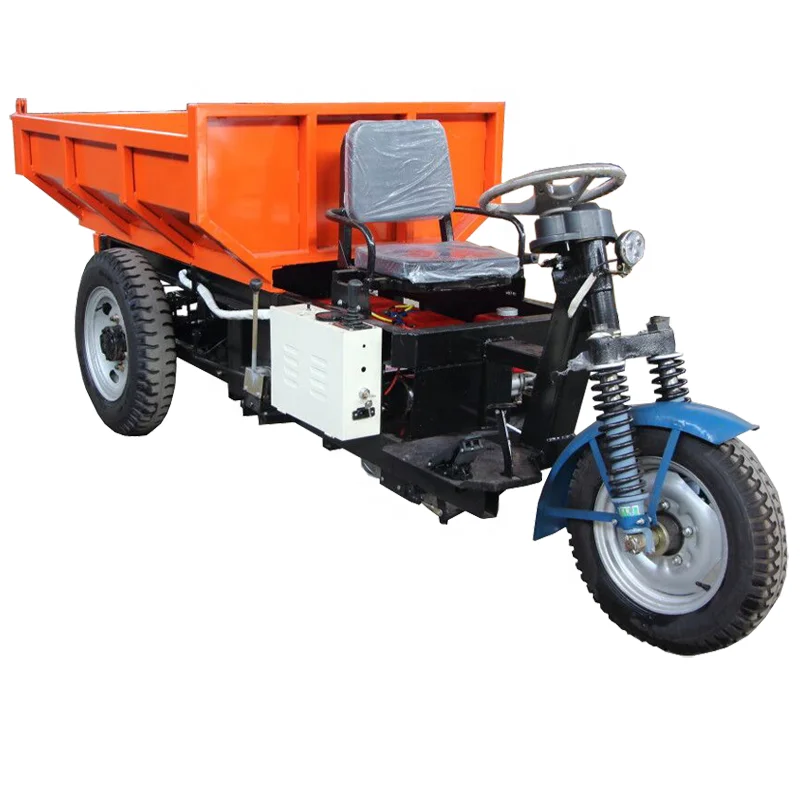

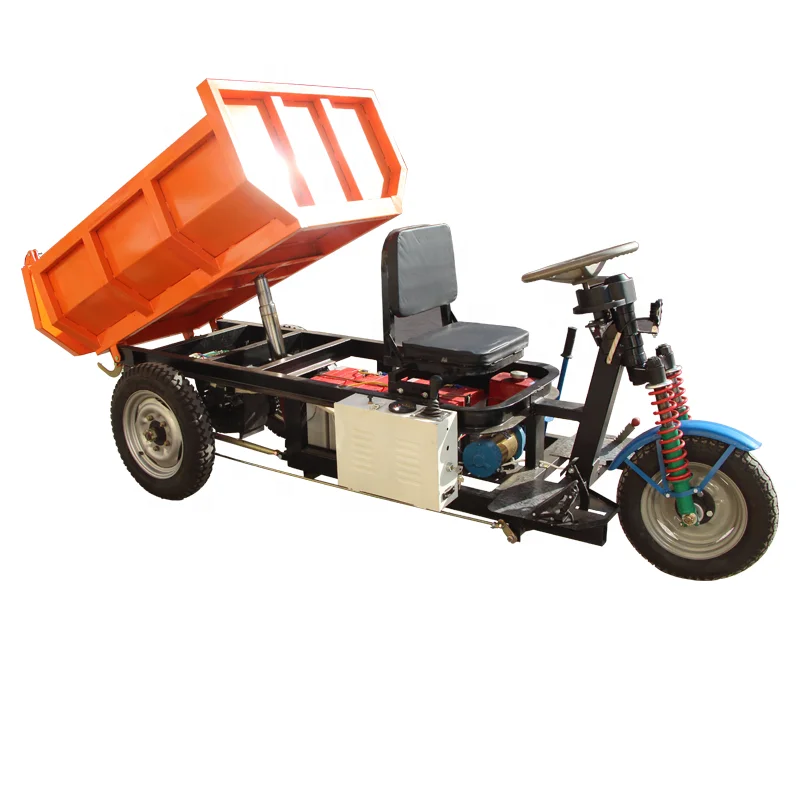

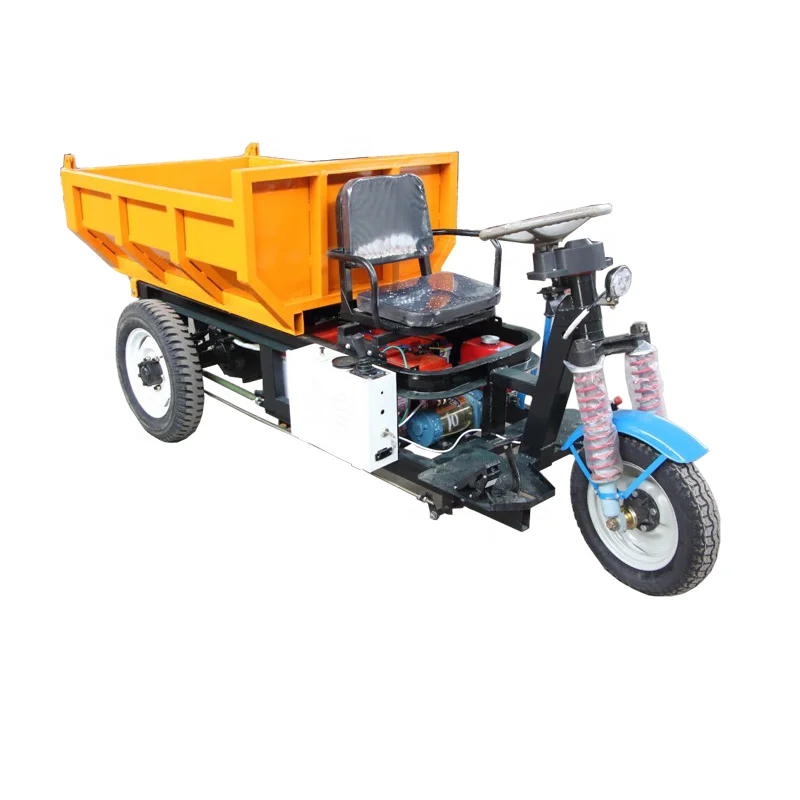

Chinese 1 ton 2 ton 3 ton mini dump truck Small cargo dumper underground mine tricycle with 1 KW 2 KW 3 KW 7 KW motor
Mini dump truck can be applied in mine, brick factory, environmental cleaning and so on. We always earn high compliments from our customer at home and overseas because our high quality and reasonable price.
Model | ZY155 | ZY165 | ZY180 | ZY190 | |||
Loading capacity | 1000kg | 1500kg | 2000kg | 3000kg | |||
Voltage | 48V | 60V | 72V | 72V | |||
Overall sizes | 2600*1000*1200mm | 3000*1100*1200mm | 3300*1200*1400mm | 3600*1200*1400mm | |||
Cargo box sizes | 1500*1000*400mm | 1600*1000*500mm | 1800*1200*500mm | 2000*1200*500 | |||
Weight | 520kg | 850kg | 1000kg | 1400kg | |||
Battery model | 180 | ||||||
Rear tire type | 450-14 | 500-14 | 600-16 | 700-16 | |||
Front tire type | 400-12 | 450-14 | 450-14 | 450-14 | |||
Work platform height | 600mm | 700mm | 720mm | 730mm | |||
Operating speed | 15-25km/h | ||||||
Charging time | First is 12h, normal 6h to 8h | ||||||
Working time | 10-12h | ||||||
Lifting Motor Power | 1000w | ||||||
Driving Motor power | 1000w | 2000w | 3000w | 7000w | |||
Main Features
2)Simple operation and strong road adaptability.
3) Easy to operate and maintain without technical training.
4)Environmental protection, energy saving and reliable.

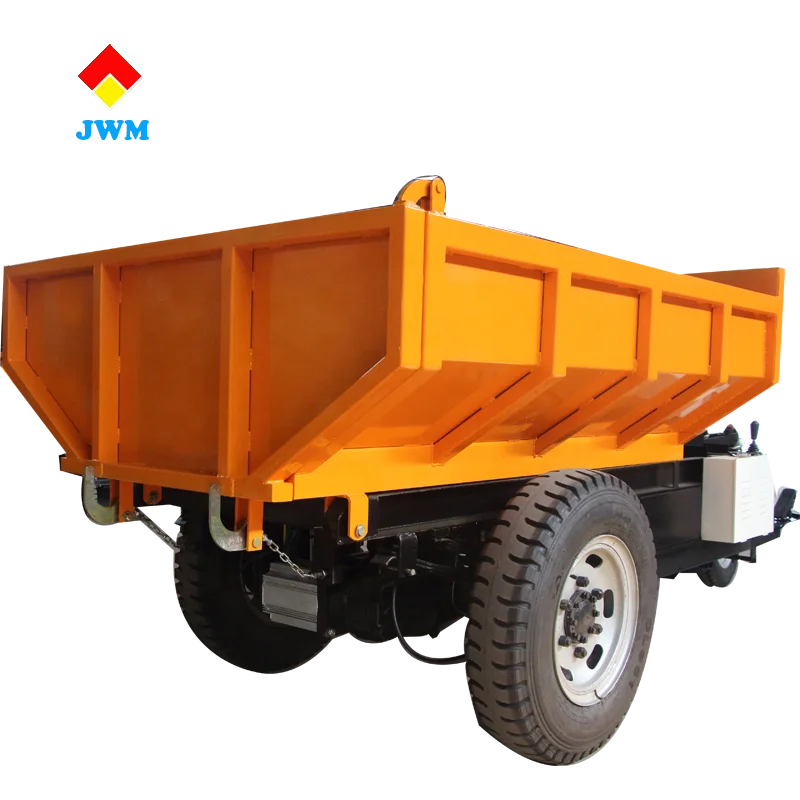

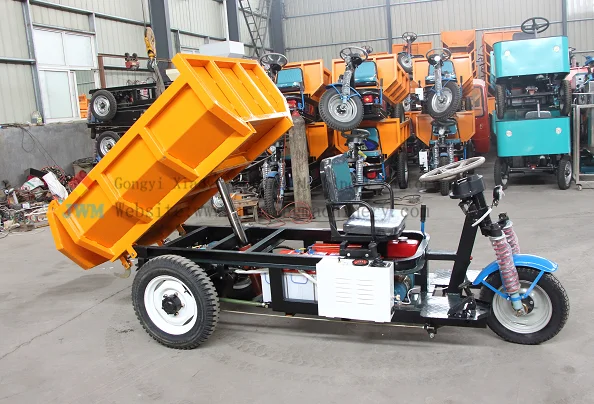

Cargo size
The cargo box size is 1500mm*1000mm*400mm, which has the advantage of big loading capacity.

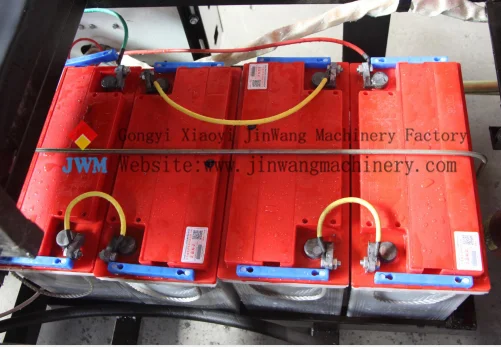

Battery
The truck is equipped with four 48-volt batteries as a source of power, and it will continue to discharge for 10 to 12 hours during a charge. (Supports mobile charging)
The Lifting Motor power is 1000w
The Driving Motor power is 1000w
The 1kw motor uses a single chain drive gearbox to achieve stepless speed change. This motor has large power, strong power and stable speed.
Shock mitigation system
Cushion the shock of the electric car, protect the electric car from
the damage of shock.
Tank
The connecting bridges on the left and right sides use high-strength cylindrical steel to increase the overall stability of the body.
Hand brake
The hand brake can prevent the vehicle from slipping during parking to ensure the safety of the vehicle and the person.
Coulomb-meter
check the quantity of electricity in time, so that can avoid the bad situation, like out of charge in the middle way.
Rear tire type ：450-14/Front tire type ：400-12
Chaoyang tires meet the performance requirements of safety, energy saving, quietness and wear resistance.

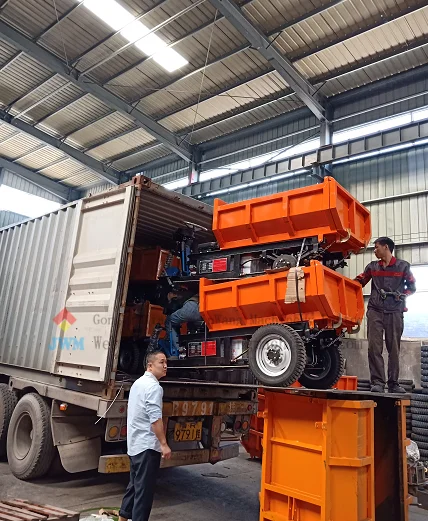

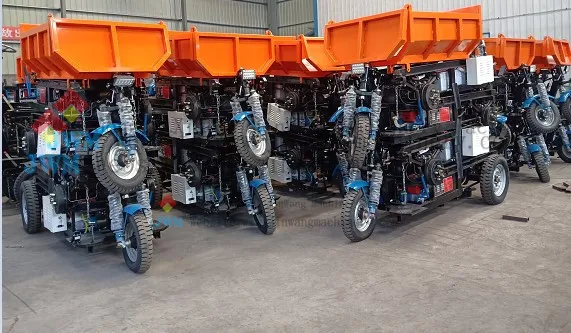

Less than container load
Full container load

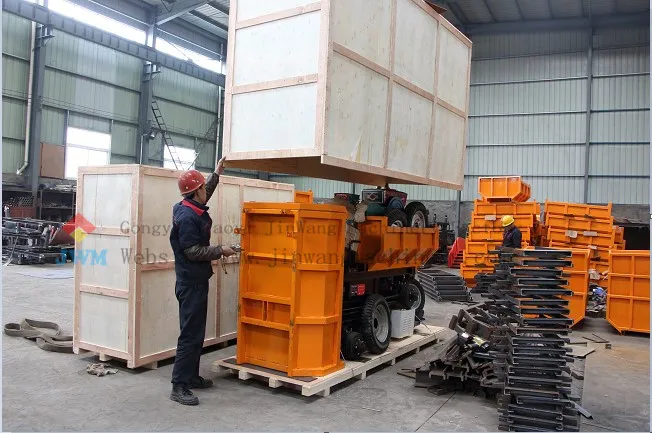

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
One 20 GP Container can take 10 sets 1 ton electric tricycles, which are aparted; and take 8 sets Complete 1 ton electric tricycles.
