K power RC42P Arduino Industrial Coreless 40kg huge torque robot arms servo
- Category: Toy Accessories >>>
- Supplier: Dongguan K-Power Technology Co. Ltd.
Share on (62426210565):
Product Overview
Description
Product Description

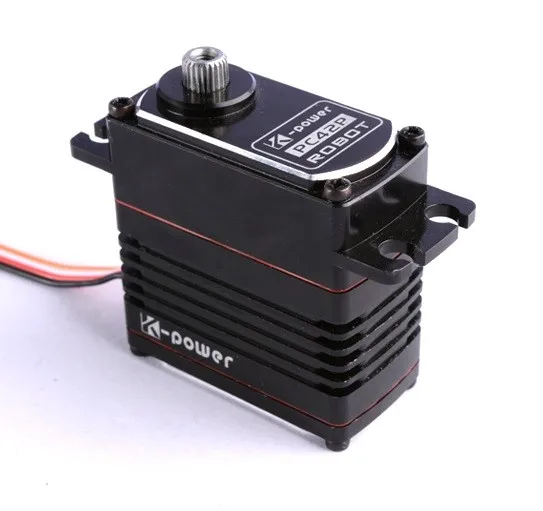

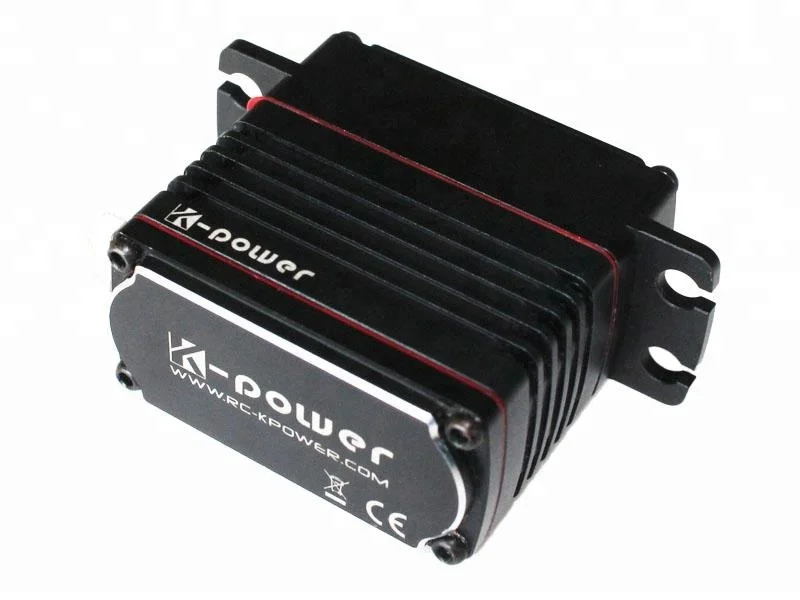

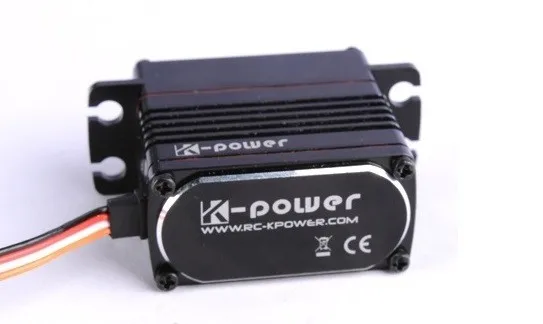

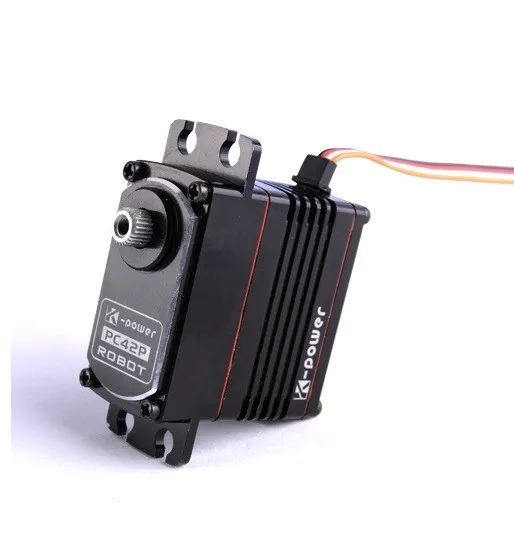

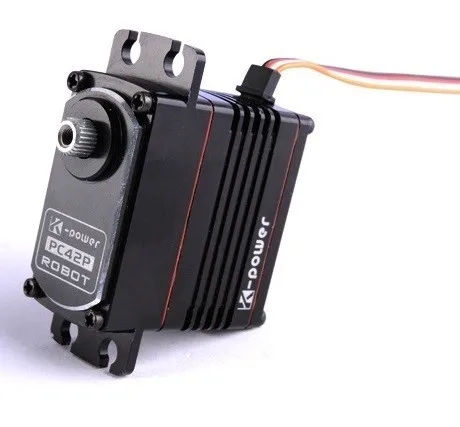

K-power RC42P Arduino Industrial Coreless 40kg huge torque robot arms servo
Stall torque is the maximum instantaneous and static torque. we recommends that your robot or project uses 1/5 or less of the stall torque to create stable motions.
Servo parameter
Model Type | RC42P 42kg Torque robot arms Servo | ||||
Dimension (mm)： | 40*20*39.6mm | ||||
Weight(g)： | 65g | ||||
Voltage Range(DC V) | DC4.8-8.4V | ||||
Rated Voltage(DC V) | 7.4V | ||||
Stall Torque (N.M) | 4.12N.M(42kg.cm) | ||||
No load Speed（RPM) | 59rpm(0.17s/60°) | ||||
Motor Type | Coreless | ||||
Resolution | 0.35° | ||||
Running Degree | 0-360° | ||||
Mode | Servo/Wheel Mode(endless rotation) | ||||
Communication Method | PWM(deadband 1-2μs) | ||||
NO.of Wire | 3Pin | ||||
Feedback | Position | ||||
Position Sensor | Magnetic encoder | ||||
Case | CNC Aluminium Alloy | ||||
Gear | 7075 Aluminium Coated With Titanium | ||||
*NOTE:
1 Year warranty against manufacturer defects
Our Company

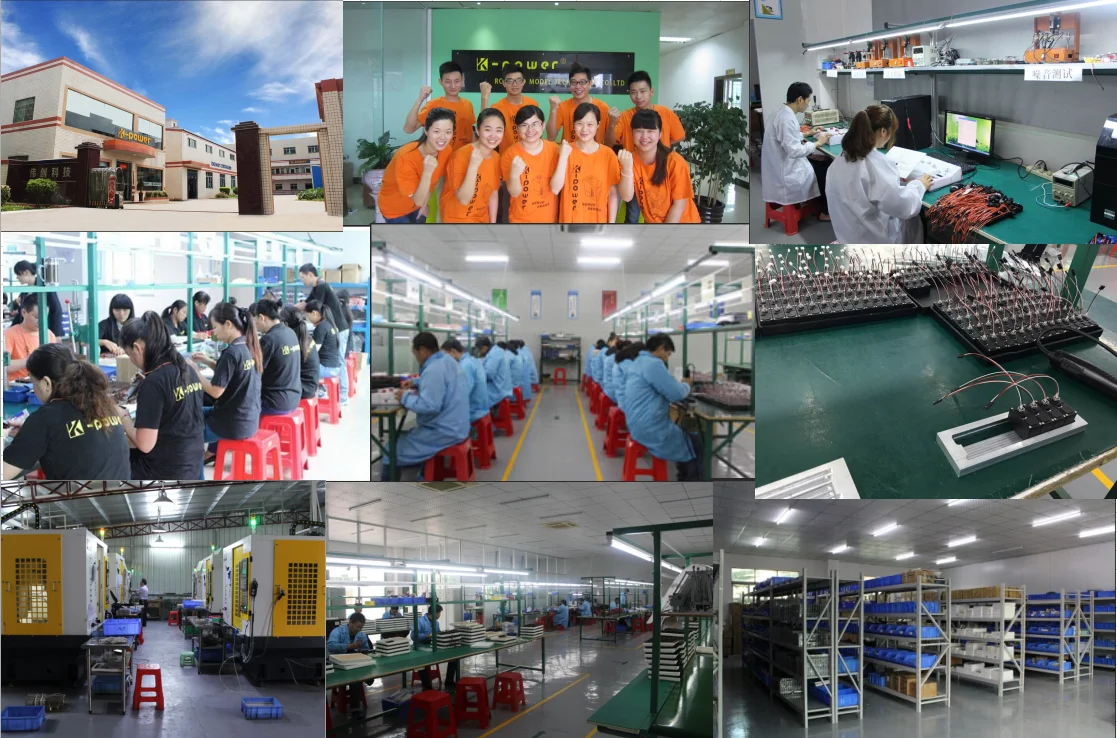

K-power Company Introduction:
Established in 2005, certified by ISO9001-2015, K-power Technology Co., Ltd is specializing in R&D and manufacture of all kinds of servos, gearbox, the actuator for RC cars, helicopter, glider, drone, UAV (landing skid), 3D printer Robotic kits, robot toy,smart home application and industrial tool or equipment. We have an excellent R&D engineering team and skilled workers in servo manufacturing. By now, over 140 types of servos are available.
Company Scale:
Established in 2005, certified by ISO9001-2015, K-power Technology Co., Ltd is specializing in R&D and manufacture of all kinds of servos, gearbox, the actuator for RC cars, helicopter, glider, drone, UAV (landing skid), 3D printer Robotic kits, robot toy,smart home application and industrial tool or equipment. We have an excellent R&D engineering team and skilled workers in servo manufacturing. By now, over 140 types of servos are available.

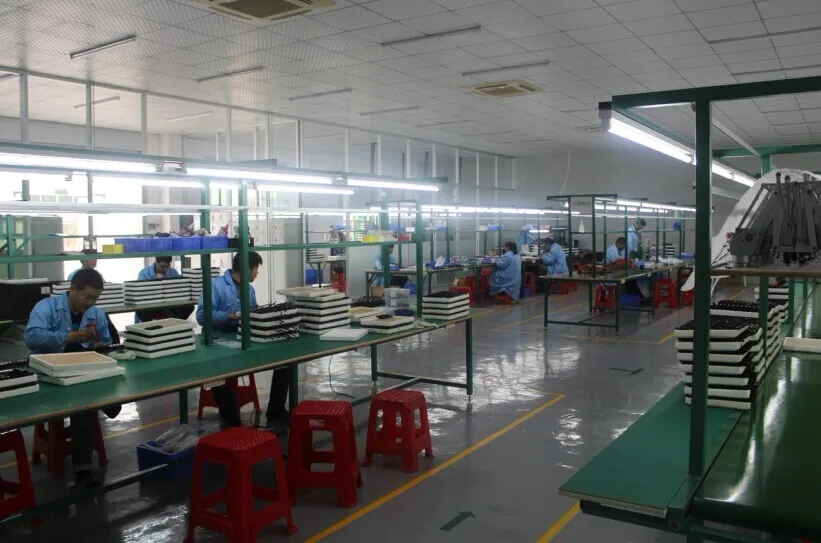

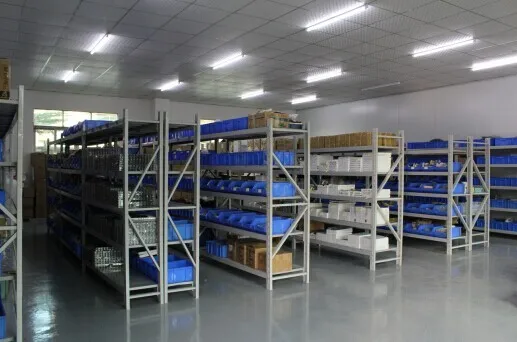

Company Scale:
about 12000 square meters.
Product quality:
Product quality:
K-power servos are with RoHS, CE and FCC certification. Each K-power servo is under strict R&D and quality control.
Business mission:
Teamwork, Innovation, High-quality product, Voice of the customer is prime.
K-power Guarantee:
On the basis of service, survive on quality, and seek development by science and technology.
Business mission:
Teamwork, Innovation, High-quality product, Voice of the customer is prime.
K-power Guarantee:
On the basis of service, survive on quality, and seek development by science and technology.
Servo Application
K-Power servo have wide application, like as for RC robot, smart home, electronic digital lock,
RC car, UAV drone, industrial equipment. agricultural machinery, RC car, RC airplane......
Certifications
Exhibition
FAQ
Q: Can I get a free sample?
A: Some servos support free sample. Please contact with us for more detailed information.
Q: What is your servo's rotation angle?
A: The rotation angle can be adjusted according to your requirements, but it is 0~120 degree if no requirement, please do contact
with us if you need special rotation angle.
Q: What is your servo's communication?
A: PWM, TTL, RS485 are optional. most of servo are PWM if no requirement, please do contact with us if you need not PWM.
Q: Can I get customized servo?
A: Of course! we have an excellent and Professional R&D Department, providing the supports for both constructional design and
software. Perfect customization services are our main business.
We are confident we can make any to suit your application!
Q: For a customized servo, how long is the R&D time (Research & Development time)?
A: Normally, 10~50 business days depends on your requirements.
A: Some servos support free sample. Please contact with us for more detailed information.
Q: What is your servo's rotation angle?
A: The rotation angle can be adjusted according to your requirements, but it is 0~120 degree if no requirement, please do contact
with us if you need special rotation angle.
Q: What is your servo's communication?
A: PWM, TTL, RS485 are optional. most of servo are PWM if no requirement, please do contact with us if you need not PWM.
Q: Can I get customized servo?
A: Of course! we have an excellent and Professional R&D Department, providing the supports for both constructional design and
software. Perfect customization services are our main business.
We are confident we can make any to suit your application!
Q: For a customized servo, how long is the R&D time (Research & Development time)?
A: Normally, 10~50 business days depends on your requirements.
