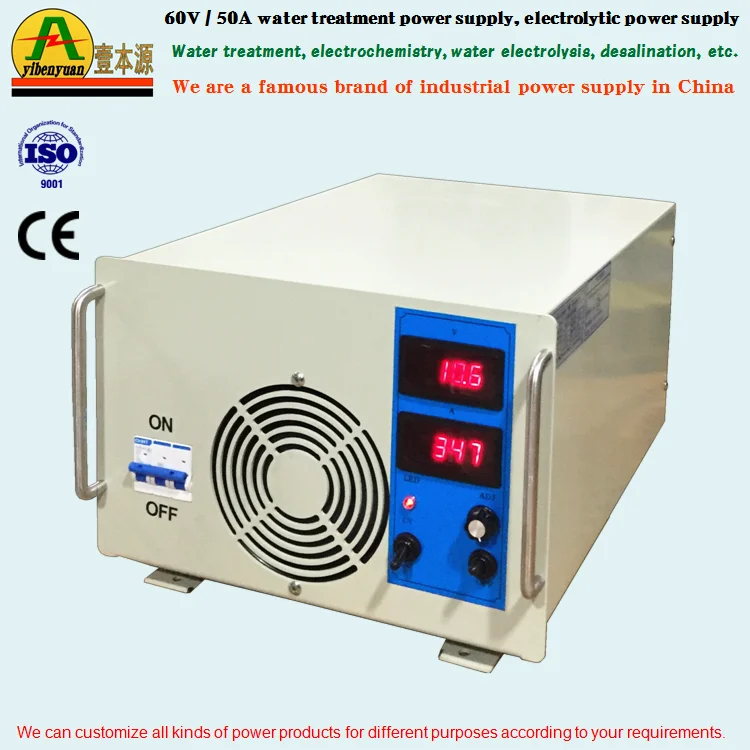

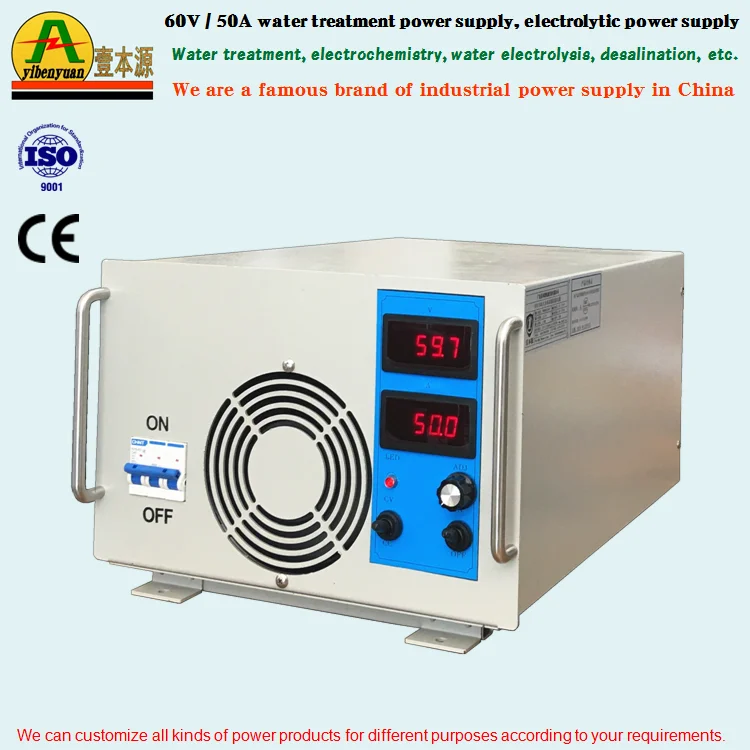

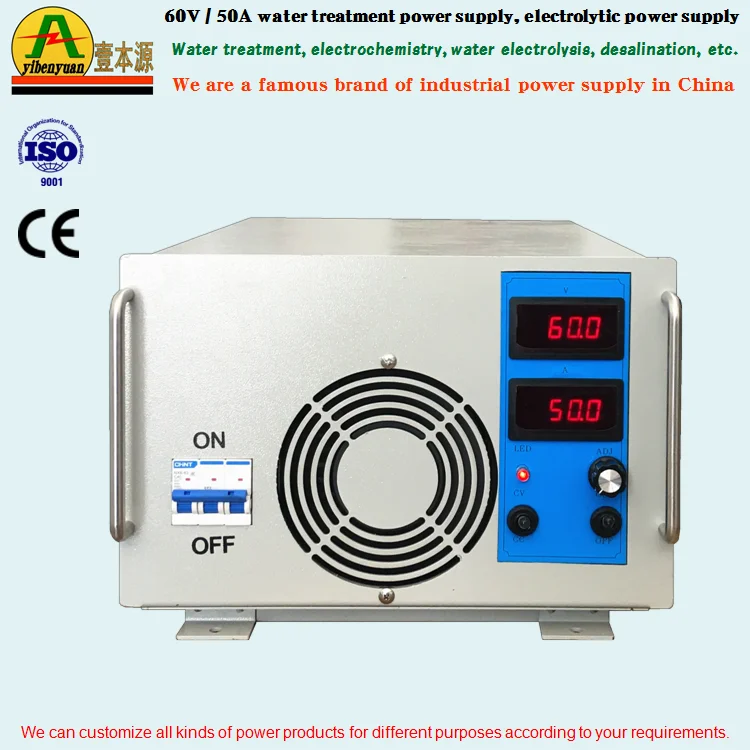

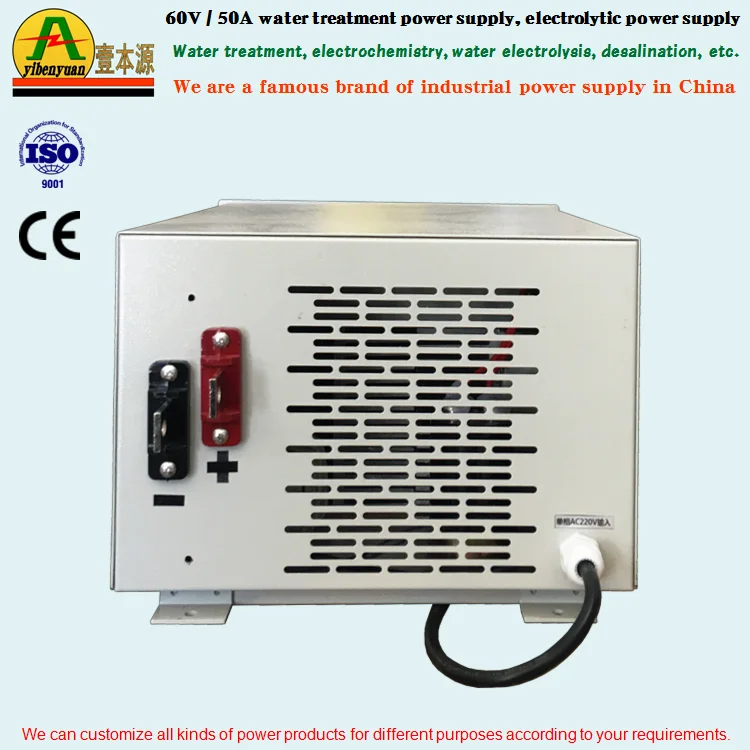

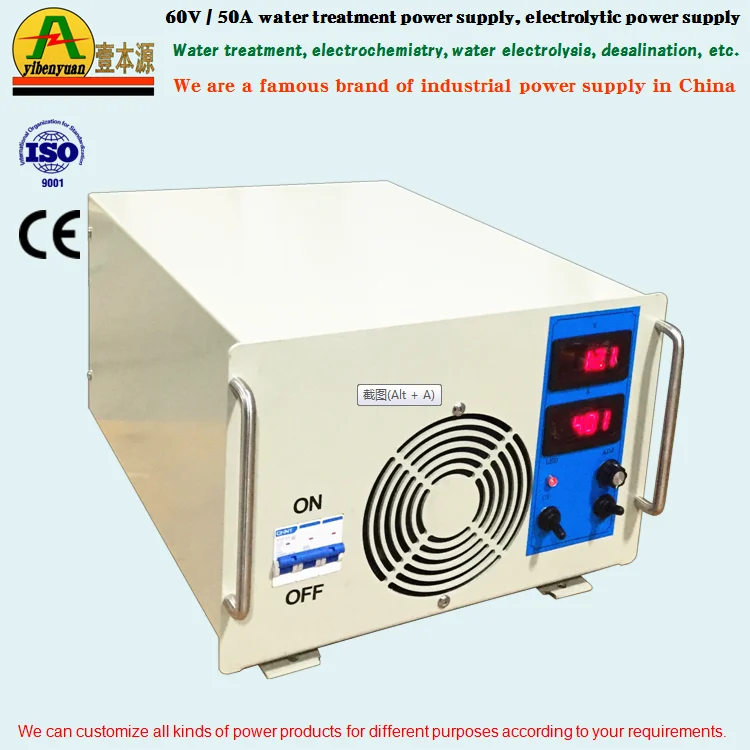

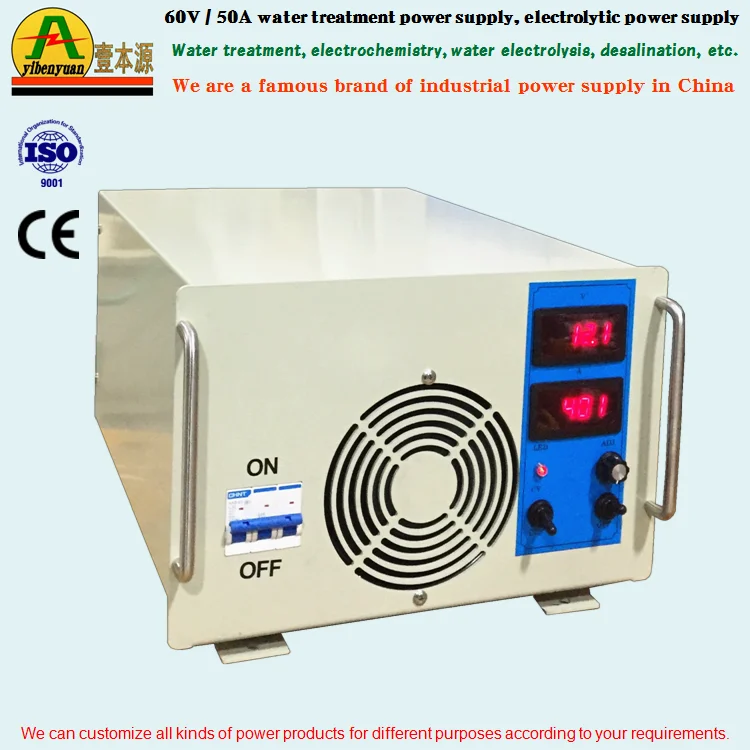

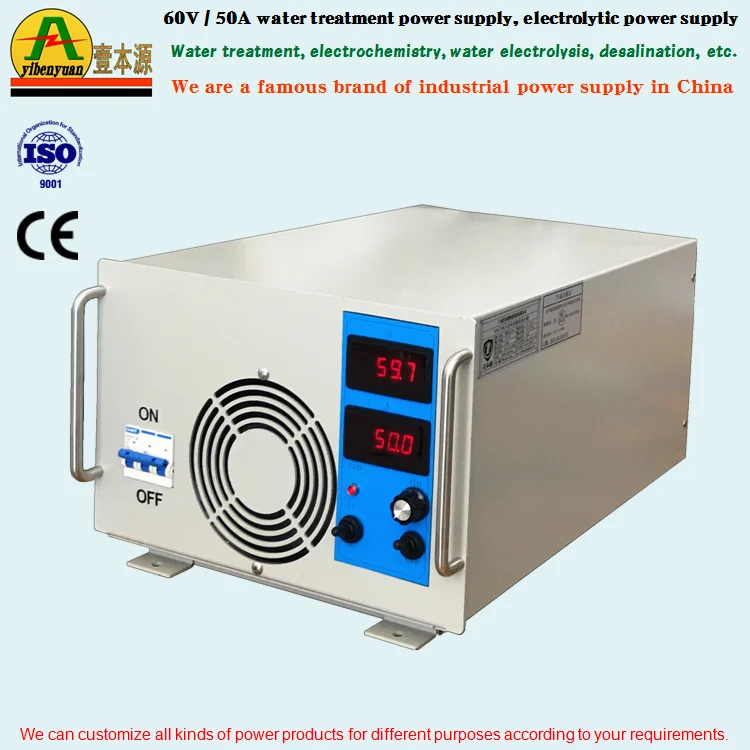

Constant voltage and constant current adjustable DC power supply 60V50A water treatment power supply electrolytic power supply
- Category: >>>
- Supplier: Guangdong Yibenyuan Power Supply Equipment Co. Ltd.
Share on (62426649997):
Product Overview
Description
Constant voltage and constant current adjustable DC power supply 60V50A water treatment power supply electrolytic power supply
Product parameters
| Product name | 60V / 50A water treatment power supply, eleetrolytic power supply |
| input voltage | Single phase AC220V (Can be customized according to the voltage used in different countries) |
| output voltage | DC 0~60V adjustable (voltage can be customized according to customer requirements) |
| Output current | DC 0~50A adjustable (Current can be customized according to customer requirements) |
| Output characteristic | Constant voltage or current can be selected |
| The output power | 3KW |
| Work efficiency | ≥90% |
| Power factor | ≥93% |
Output voltage accuracy | 0.5%FS |
Oatput current accuracy | 0.5%FS |
| Protection mode | It has automatic fault protection functions such as, over heating,over voltage,over current and short circuit. |

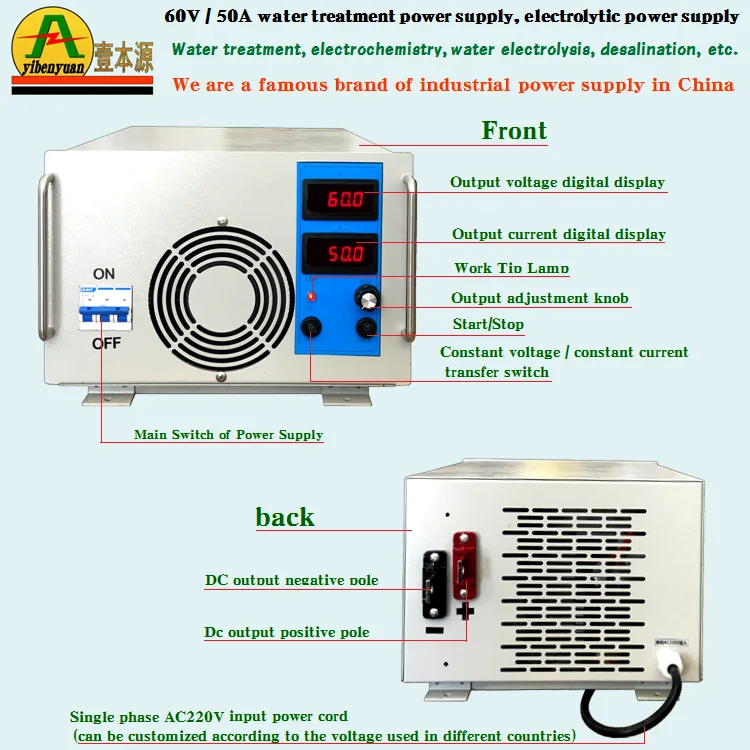

| The output shows | Digital Display of LED Voltmeter and Amperometer |
| cooling method | Forced fan cooling |
| ambient temperature | -15~45°C |
| Ambient humidity | ≤85% |
| Insulation strength | Input and output, input and chassis: AC2200V, 10mA, 1 minute |
insulation resistance | Input and Output, Input and Shell, Output and Shell: > 20M |
| insulation class | Level B |
| Protection level | IP20 |
| Outline size | Shell size: H270 * W380 * L550 mm |
| Applicable load | Municipal sewage treatment, water electrolysis, industrial waste water treatment, electrochemistry, electro flocculation, seawater desalination |
FAQ
————————————————
1Q:Aer you a manufacturer or a trading company?
| A:We are a manufacturer,and this is our factory's address:NO.3,Xinye Yixiang,Chenchung in dustrial zone,Qiaonan street,Panyu district,Guangzhou city,Guangdong Province,China. |
2Q:Do you accept OEM?
| A:Yes,all of our products can be customized. |
3Q:What's your MOQ?
| A:1piece is OK |
4Q:What's the lead time?
| A:It deoends,generallyit's with in 5 business daysfor 1-2 piece. |
5Q:What's your warranty?
| A:One year. |
6Q:What's your payment?
| A:T/T,L/C are both acceptable. |
60V/50A high power DC regulated power supply Water treatment power supply Adjustable electrolytic power supply

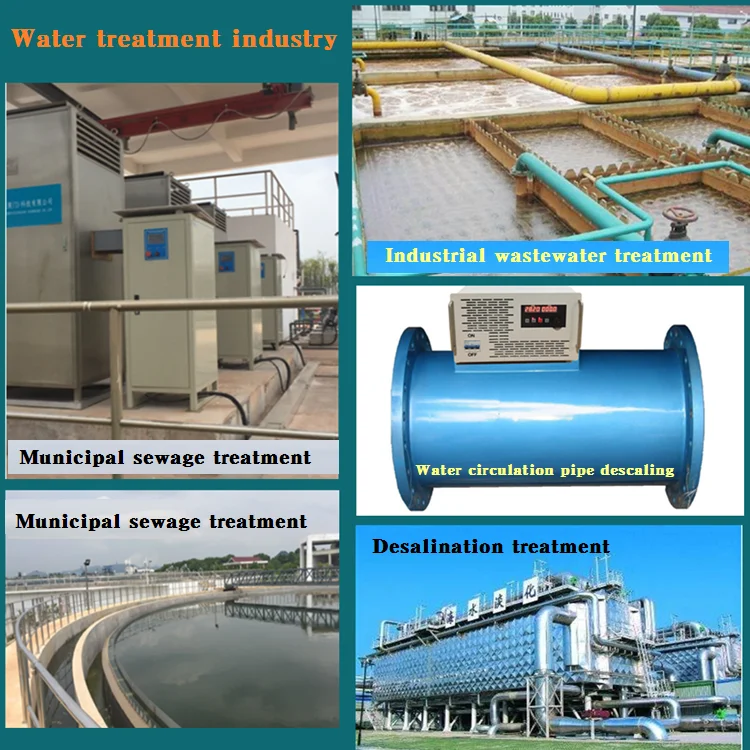

Scope of application:
Water electrolysis, municipal wastewater treatment, industrial wastewater treatment, electric flocculation, electrochemistry, etc.
product manual:
* The product adopts the design patent of our company. The product has a beautiful appearance, a firm and sturdy structure, and powder coating on the surface of the shell, which is strong and resistant to corrosion.
* This power supply uses the world's most advanced control system PWM technology and a stable and reliable circuit topology design control circuit, and is equipped with German imported Infineon brand module (IGBT) control. The main transformer is wound with nano-crystalline magnetic core and pure copper wire, which has good heat dissipation, sufficient power, low power consumption, long-term durability and stable performance. The main components such as the rectifier bridge and rectifier are made of high-quality materials from around the world. The power supply has added advanced LC filtering design. It has the characteristics of small output ripple coefficient and good current distribution; a wide range of output voltage and current, and high stability of voltage and current.
* The internal circuit board adopts anti-salt spray acid proof anti-adhesive and an independent sealed box, which is effective in preventing dust, moisture, and preventing the short-circuit phenomenon caused by the entry of small insects. . Power lines, control line contacts, and trigger signal line contacts are sealed with silicone to prevent leakage, moisture, and corrosion; all circuit boards are treated with secondary immersion paint after assembly and commissioning, making the product suitable for damp , Acid corrosion plating and electrolytic environment.
* The product uses generous materials, sufficient power, and a large design margin for electronic components and important components, which can ensure that the product can maintain full load and work continuously for a long time.
