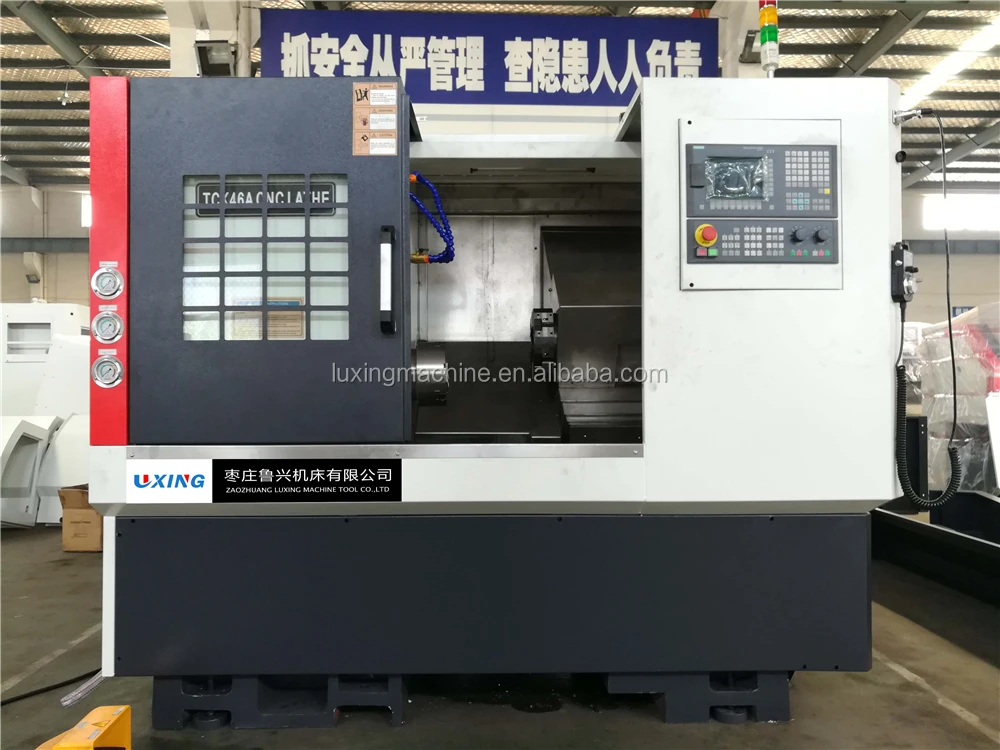

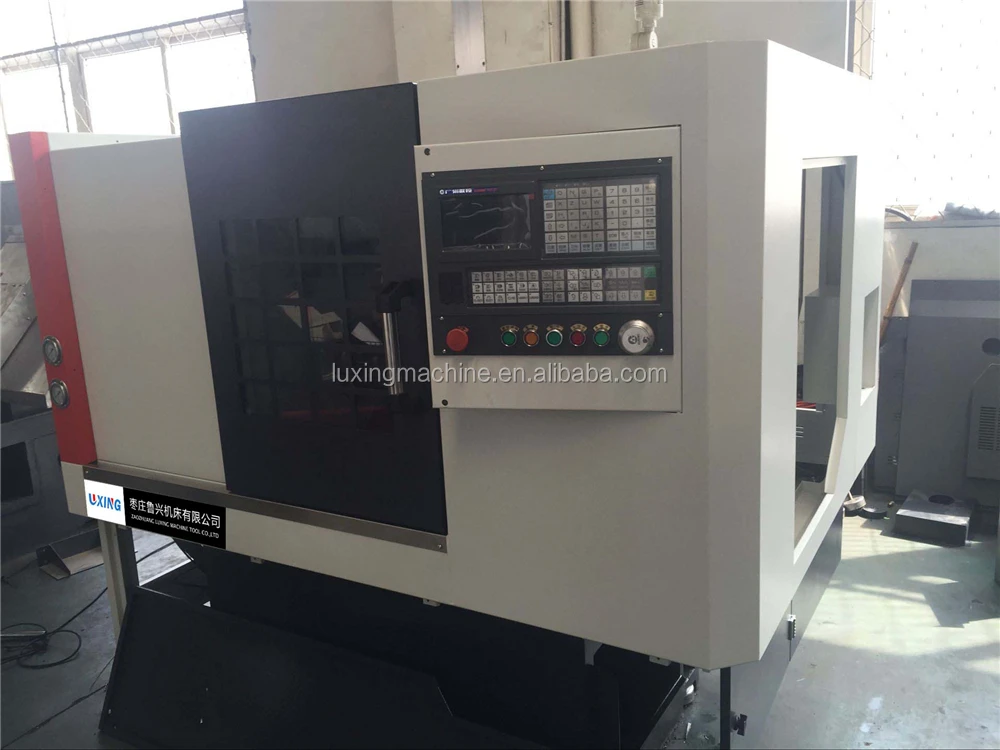

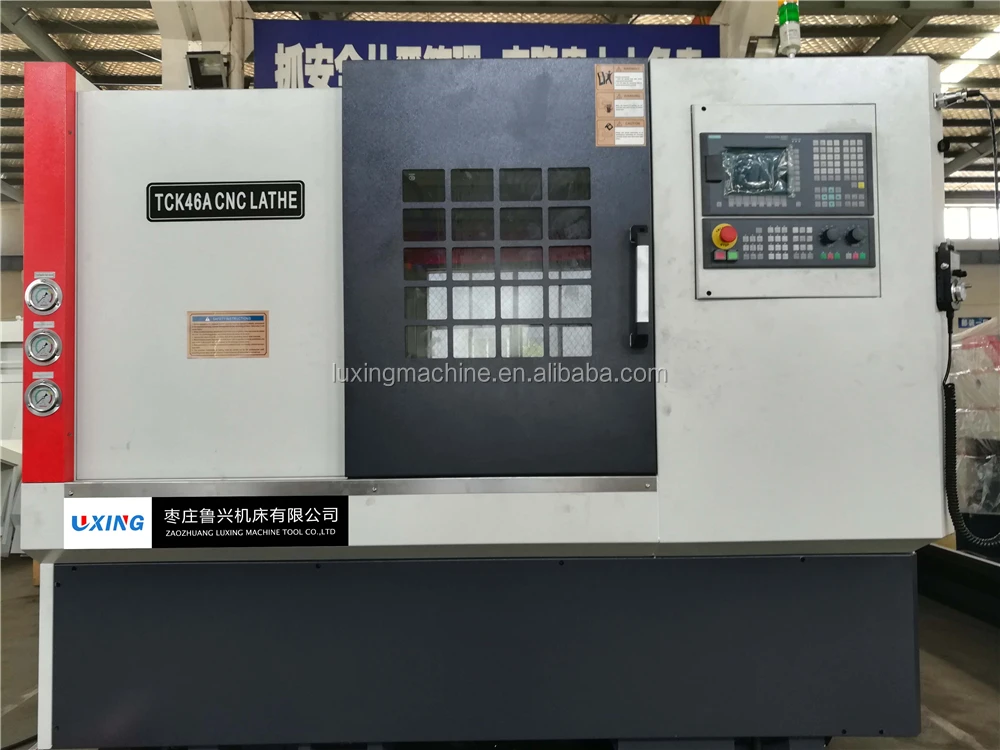

higp speed precision slant bed turret cnc instrument turning center lathe machine TCK46A TCK56A
- Category: >>>
- Supplier: Zaozhuang Luxing Machine Tool Co. Ltd.
Share on (62426657565):
Product Overview
Description
higp speed precision slant bed turret cnc instrument turning center lathe machine TCK46A TCK56A
Product Description
Product features:
Highest accuracy Taiwan linear guide ways;
Higher speed spindle unit ,optional homemade spindle;
Higher rigidity cast iron;
Integrated automatic lubrication;
One-piece casting slant bed cnc lathe.
Application :
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,circle arc,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve,electrical applicance,instrument,automobile,motorcycle,bearings and so on.
Machine main specifications:
Specification | Units | TCK46A | TCK56A |
Max.swing over bed | mm | 460 | 660 |
Max.swing over cross slide | mm | 170 | 400 |
Max.turning length | mm | 350 | 600 |
Spindle unit | mm | Ø170 | Ø260 |
Spindle nose(optinal chuck) |
| A2-5/A2-6 | A2-8 |
Spindle motor power | kw | 5.5 | 11 |
Max.spindle speed | rpm | 3500 | 2800 |
Spindle bore | mm | Ø56 | Ø85 |
Bar capacity | mm | Ø45 | Ø75 |
X/Y axis lead screw specification |
| 3210/3210 | 4010/4010 |
X axis limit Travel | mm | 240 | 280 |
Z axis limit Travel | mm | 400 | 600 |
X axis motor torque | N.m | 7.5 | 10 |
Z axis motor torque | N.m | 7.5 | 10 |
X/Z axis repeatability | mm | 0.003 | 0.003 |
Tails tock quill travel | mm | 80 |
|
Tail stock travel | mm | 200 | 500 |
Tail stock taper |
| MT4 | MT5 |
The bed form and inclination | ° | One -piece casting/30° | One -piece casting/30° |
Machine dimensions(L*W*H) | mm | 2500*1700*1710 | 2500*1700*1710 |
Weight | kg | 2600 | 2600 |

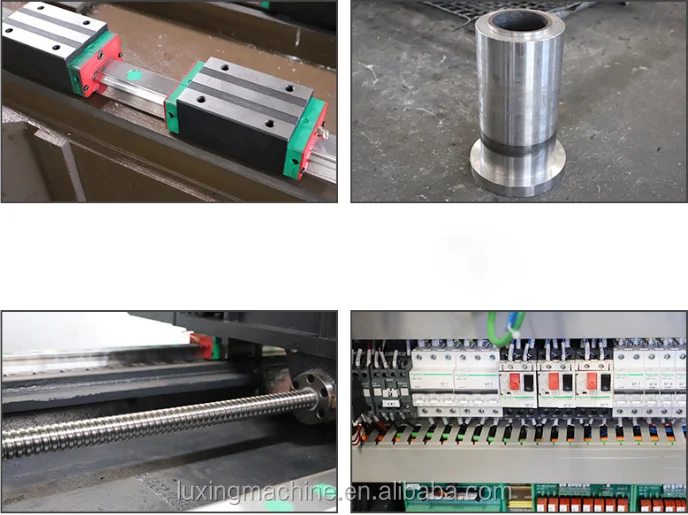

Detail:
1.Taiwan linear rail;
2.45# steel.Guarantee the rigidity and service life of the spindle;;
3.Taiwan ballscrew;
4.Delixi/Schneider Electric Appliances;
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
