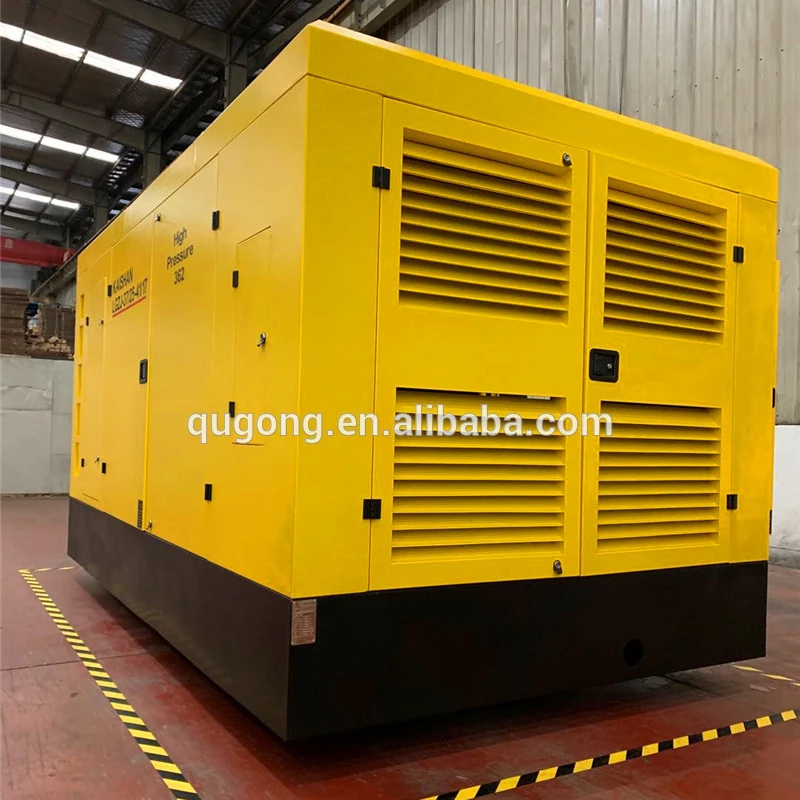

LGZJ series 2020 new developed diesel screw rotors air compressor for deep water well drilling rig
- Category: >>>
- Supplier: Zhengzhou Qugong Machinery Equipment Co. Ltd.
Share on (62426664629):
Product Overview
Description
LGZJ series 2020 new developed diesel screw rotors air compressor for deep water well driling rig
Product Description
Product Application
Diesel stationary screw air compressor, which are widely used in highway, railway, mining, water conservancy, shipbuilding, urban construction, energy, military industry and other industries.
Highly reliable and efficient,This diesel screw air compressor is availble in a complete range of models
Characteristic of air compressor for water well drilling rig :
1.Low operating sound and less vibration design.Easy serviceability.
2.Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.
3.High efficient Airend:
Large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan.
4.Diesel Engine of Famous Brand:
Select the diesel engine of CUMMINS and YUCHAI brand, satisfy the emission
requirement of Europe, low oil consumption, after sale service system all over China.
5.Good adaptability:
The Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equals to frequency conversion control in motor power screw air compressor.
Application scope of air compressor for water well drilling rig:
This air compressor is especially designed for water conservancy
Advantages of air compressor for water well drilling rig
1.World advanced screw compressor with the features of highly efficiency,low maintenance and long lifetime
2.Microcomputor control system to automatically control the start and top the machine and adjust the air capacity.
3.Conplete protection function with fault alarm and indication
4.Efficient filtering and seperating system.
5.Large oilfter cooler ensures the machines in optimum operation temperature when the ambient temperature
is high.
6.Efficient air-cooled enclosed motor
7.Super low noise.
Technical Parameter
Model | Air displacement | Working pressure | Adopted diesel engine | Air outlet size | Weight | Overall dimension |
(m3/m) | (Bar) | (HP) | (Inch) | (kg) | (mm) | |
LGZJ-27/25-30/20 | 25-20 | 27-30 | CHINAIII:400HP | G2x1, G3/4x1 | 4100
| 3650*2000*2200 |
LGZJ-31/25-35/18 | 25-18 | 31-35 | YUCHAI CHINA III:400HP | 4100 | 3650*2000*2200 | |
LGZJ-37/25-41/17 | 25-17 | 37-41 | YUCHAI CHINA III:560HP | 4800 | 3800*2200*2320 | |
LGZJ-32/35-36/18 | 35-18 | 32-36 | YUCHAI CHINA III:560HP | 4800 | 3800*2200*2320 | |
LGZJ-32/35-36/18K | 35-18 | 32-36 | CUMMINS CHINA III:550HP | 4800 | 3800*2200*2320 | |
LGZJ-36/30-41/20 | 30-20 | 36-41 | YUCHAI CHINA III:560HP | 4800 | 3800*2200*2320 | |
LGZJ-36/30-41/20K | 30-20 | 36-41 | CUMMINS CHINA III:550HP | 4800 | 3800*2200*2320 |

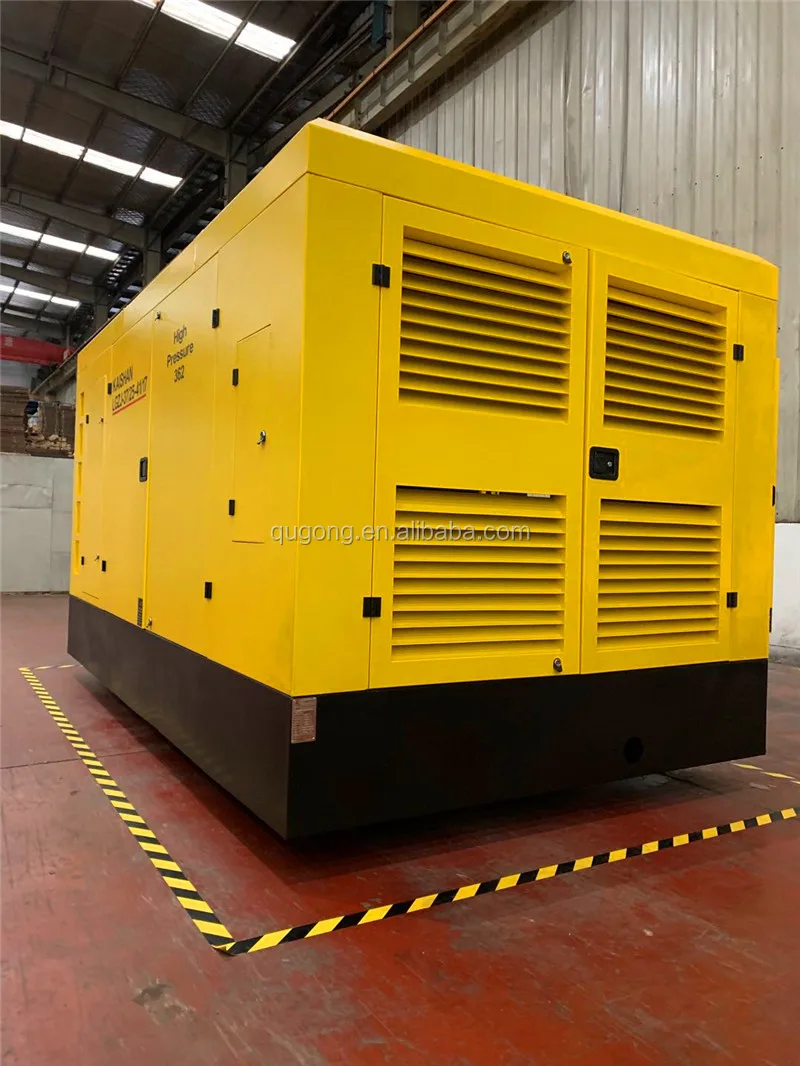

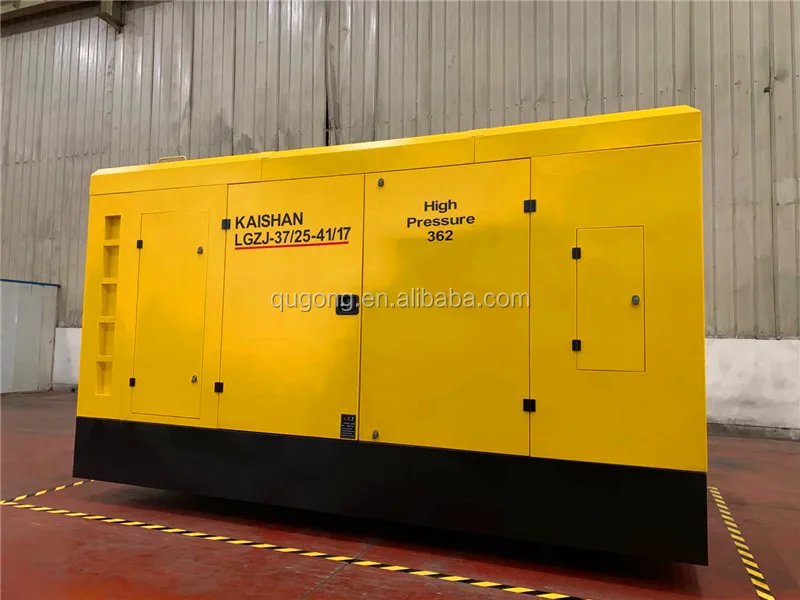

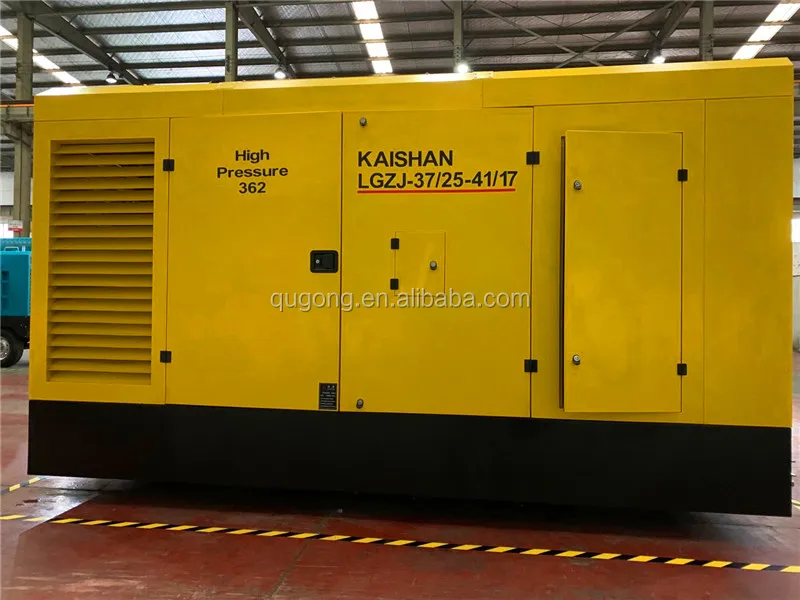

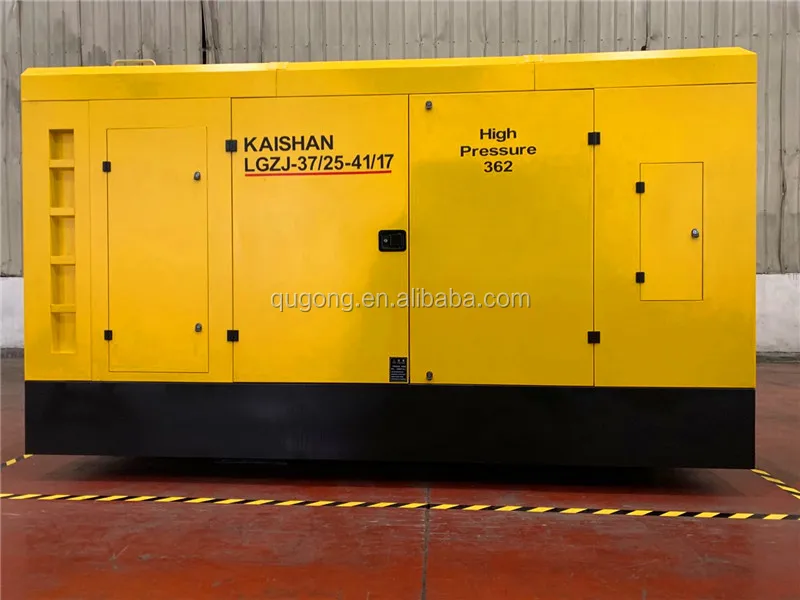

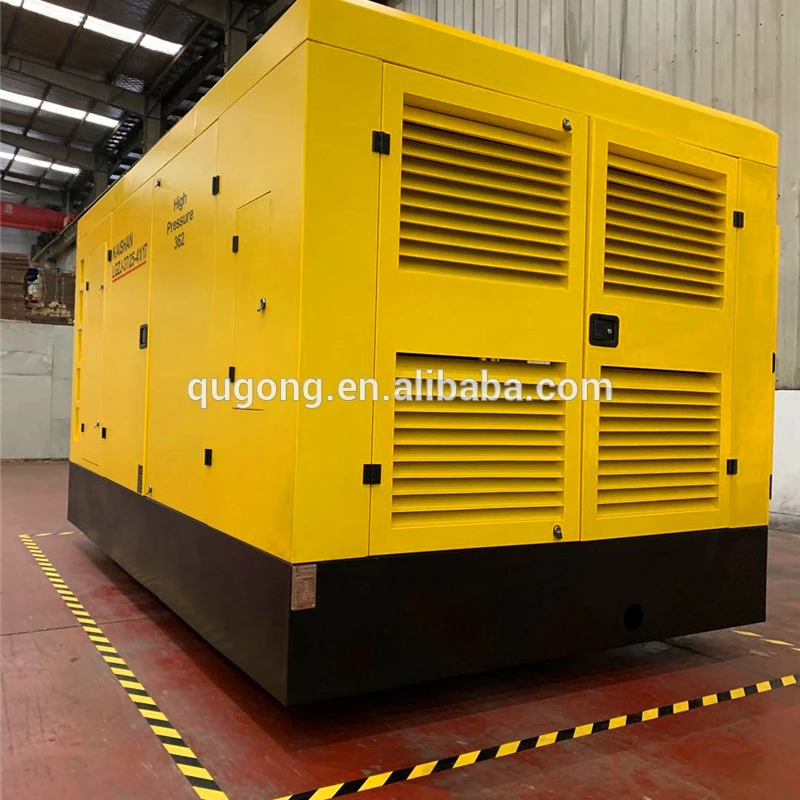

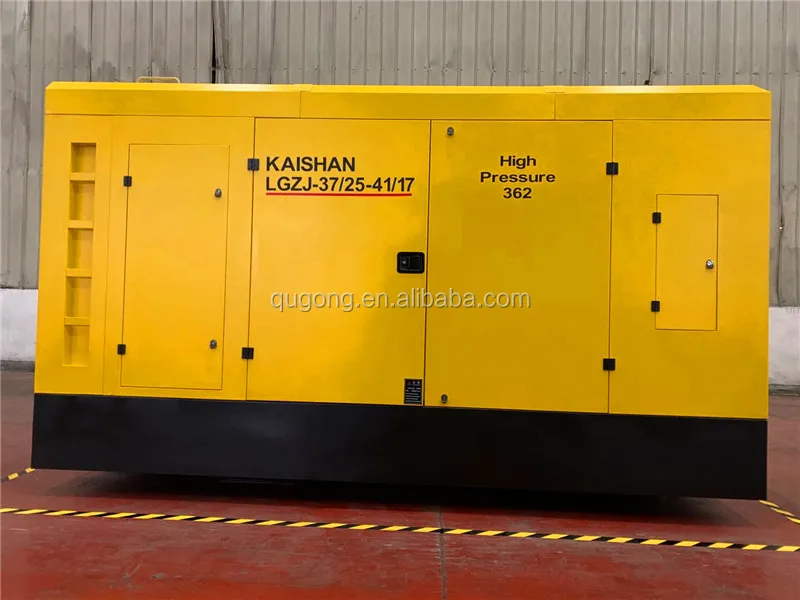

Detailed Images

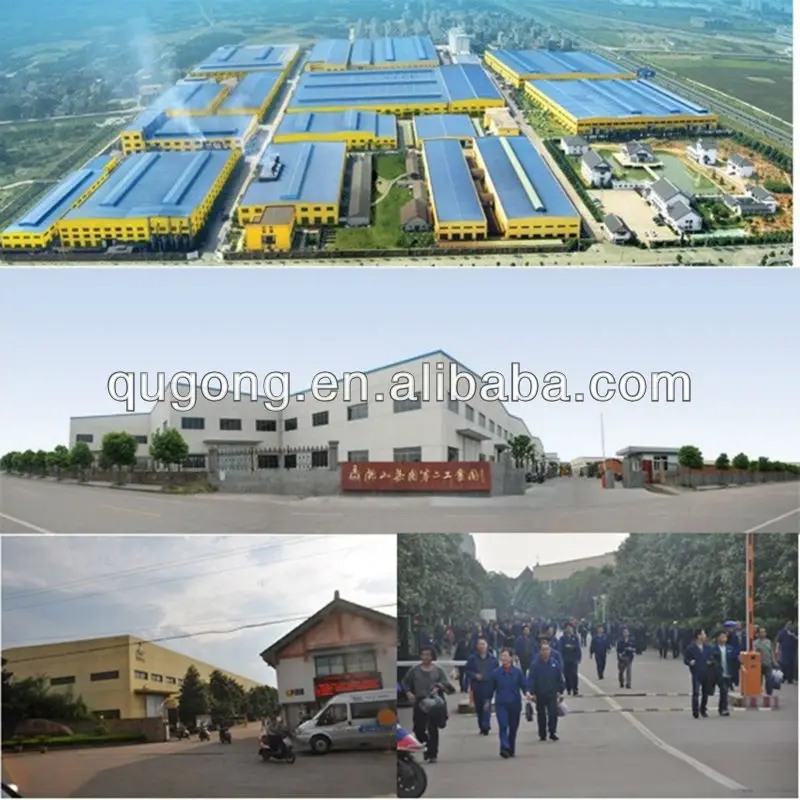

Company Information
