DIN 6926 Class8 Nylon Insert Hex Hexagon Flange Lock Nuts M5 M20

Product Overview

Description

Jiaxing Rock Industry Imp & Exp Co., Ltd.We are a professional hardware parts OEM manufacturer, we mainly provide customized services, according to your drawings to produce the corresponding products, our price is very favorable, waiting for your inquiry.

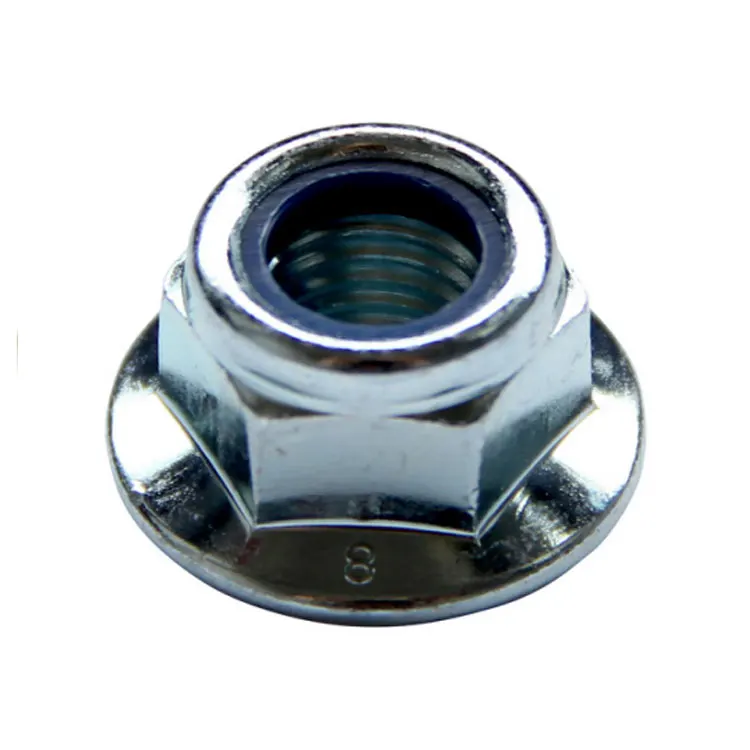

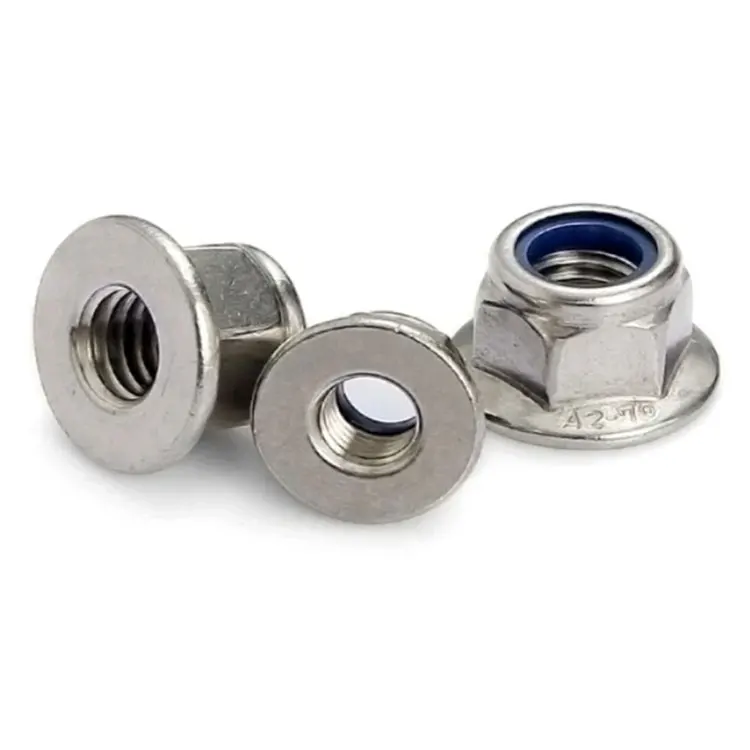

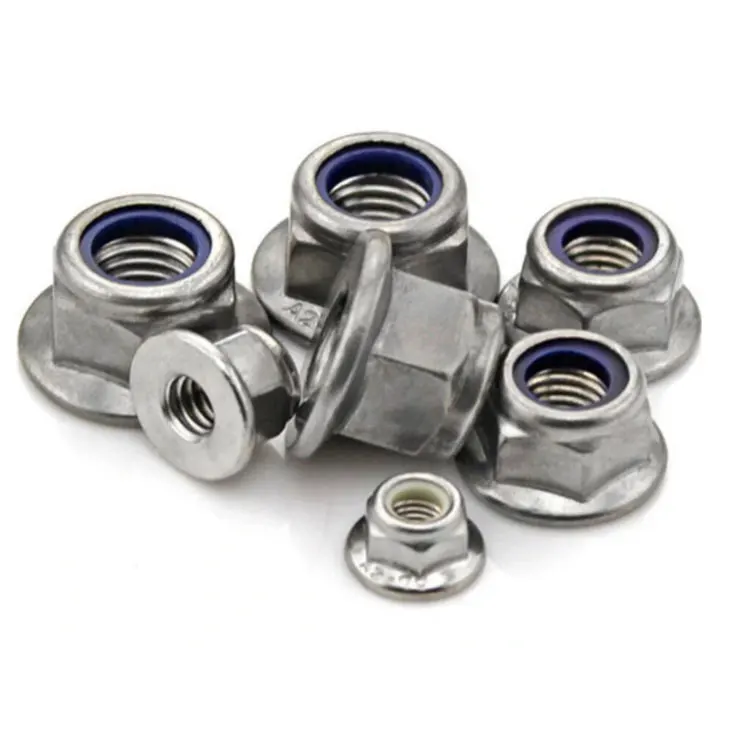

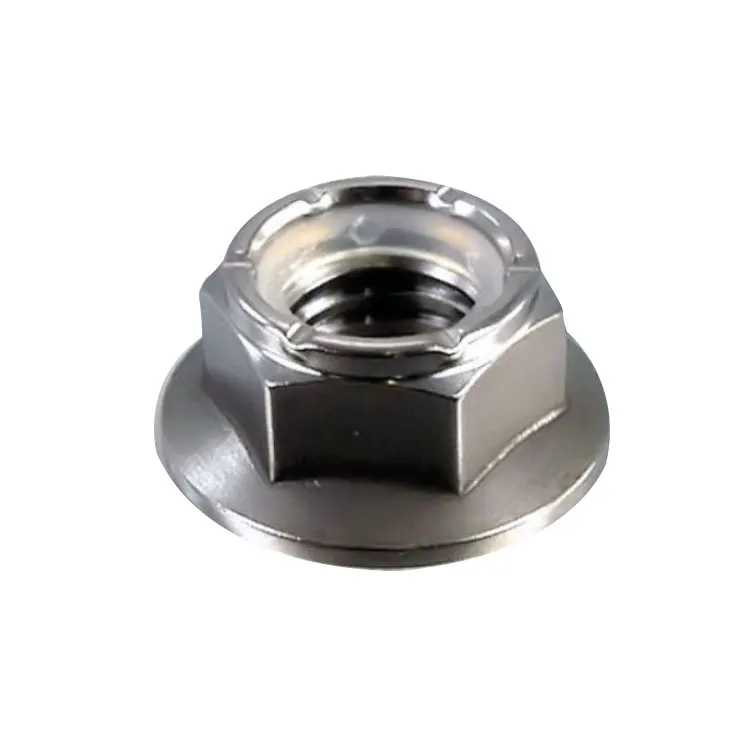

Items	Description		Picture
Product name	DIN 6926 Class8, Nylon Insert Hex Hexagon Flange Lock Nuts M5-M20
Material	CARBON STEEL,stainless steel A2, A4
Size	M5-M20
Standard	Din/ISO/ASME/JIS/BS
Surface treatment	PLAIN, ZINC PLATED,Black oxide

Welcoming send us an inquiry with your dimensions. We provide 24hours*7days service.      Click here for more information!

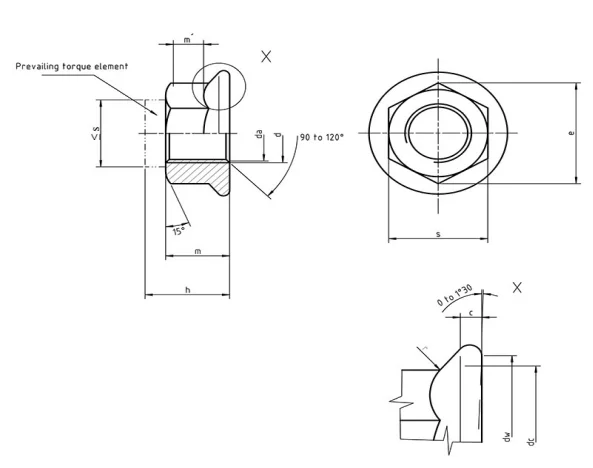

Thread Size d		M5	M6	M8	M10	M12	(M 14)	M16	M20
		-	-	M8 x 1	M10 x 1,25	M12 x 1,5	(M14 x 1,5)	M16 x 1,5	M20 x 1,5
		-	-		(M10 x 1	(M12 x 1,25)	-	-	-
P		0,8	1	1,25	1,5	1,75	2	2	2,5
c	Min.	1	1,1	1,2	1,5	1,8	2,1	2,4	3
da	Min.	5	6	8	10	12	14	16	20
	Max.	5,75	6,75	8,75	10,8	13	15,1	17,3	21,6
dc	Max.	11,8	14,2	17,9	21,8	26	29,9	34,5	42,8
dw	Min.	9,8	12,2	15,8	19,6	23,8	27,6	31,9	39,9
e	Min.	8,79	11,05	14,38	16,64	20,03	23,36	26,75	32,95
h	Max.	7,1	9,1	11,1	13,5	16,1	18,2	20,3	24,8
	Min.	6,74	8,74	10,67	13,07	15,67	17,68	19,46	23,96
m	Min.	4,7	5,7	7,6	9,6	11,6	13,3	15,3	18,9
m´	Min.	2,2	3,1	4,5	5,5	6,7	7,8	9	11,1
s	Nominal size = max.	8	10	13	15	18	21	24	30
	Min.	7,78	9,78	12,73	14,73	17,73	20,67	23,67	29,16
r	Max.	0,3	0,36	0,48	0,6	0,72	0,88	0,96	1,2

Process forging, strict control
High quality raw materials processing
High plasticity good fatigue resistance

welcome to contact with us.
