Good Price Biological Treatment Intergrated Sewage Treatment Equipment for Factories/Mines/Food/slaughter/tourist/railways/homes

Product Overview

Description

Good Price Biological Treatment Intergrated Sewage Treatment Equipment for Factories/Mines/Food/slaughter/tourist/railways/homes

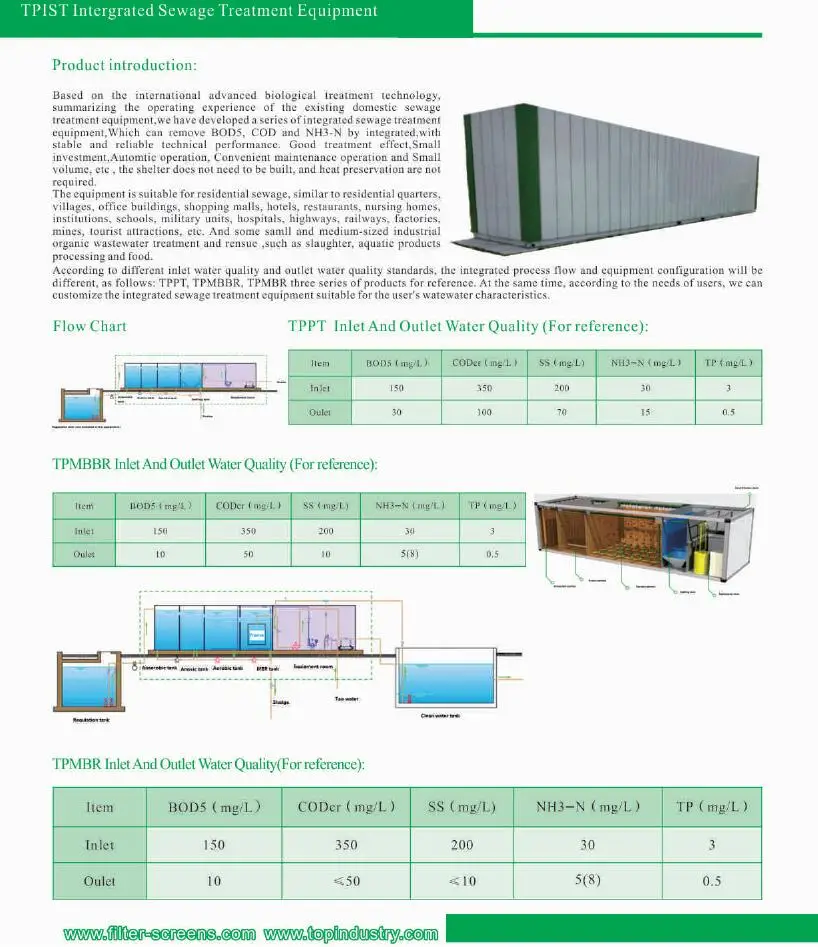

Product introduction:



Based on the international advanced biological treatment technology, summarizing the operating experience of the existing domestic sewage treatment equipment,we have developed a series of integrated sewage treatment equipment,Which can remove BOD5, COD and NH3-N by integrated,with stable and reliable technical performance.Good treatment effect,Small investment,Automtic operation, Convenient maintenance operation and Small volume, etc , the shelter does not need to be built, and heat preservation are not required.

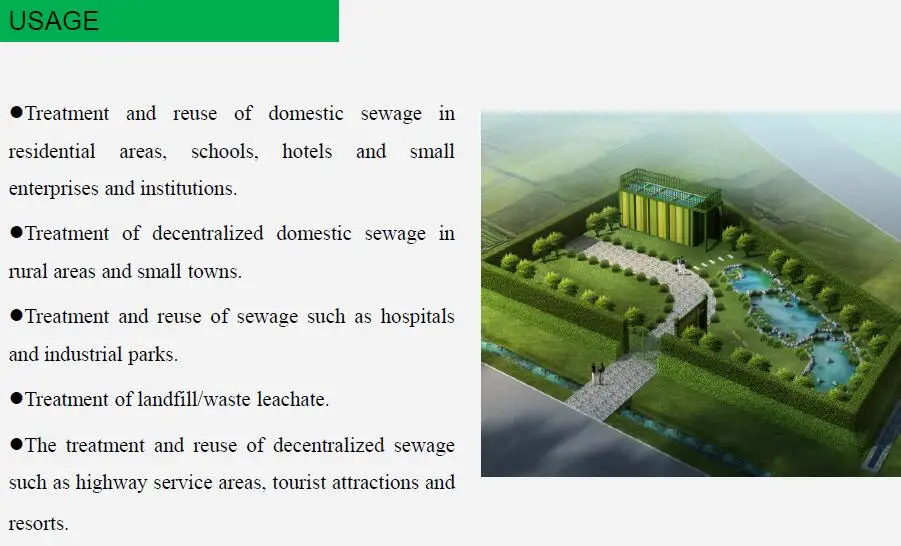

The equipment is suitable for residential sewage, similar to residential quarters, villages, office buildings, shopping malls, hotels, restaurants, nursing homes, institutions, schools, military units, hospitals, highways, railways, factories, mines, tourist attractions, etc. And some samll and medium-sized industrial organic wastewater treatment and rensue ,such as slaughter, aquatic products processing and food.

According to different inlet water quality and outlet water quality standards, the integrated process flow and equipment configuration will be different, as follows: TPPT, TPMBBR, TPMBR three series of products for reference. At the same time, according to the needs of users, we can customize the integrated sewage treatment equipment suitable for the user's watewater characteristics.

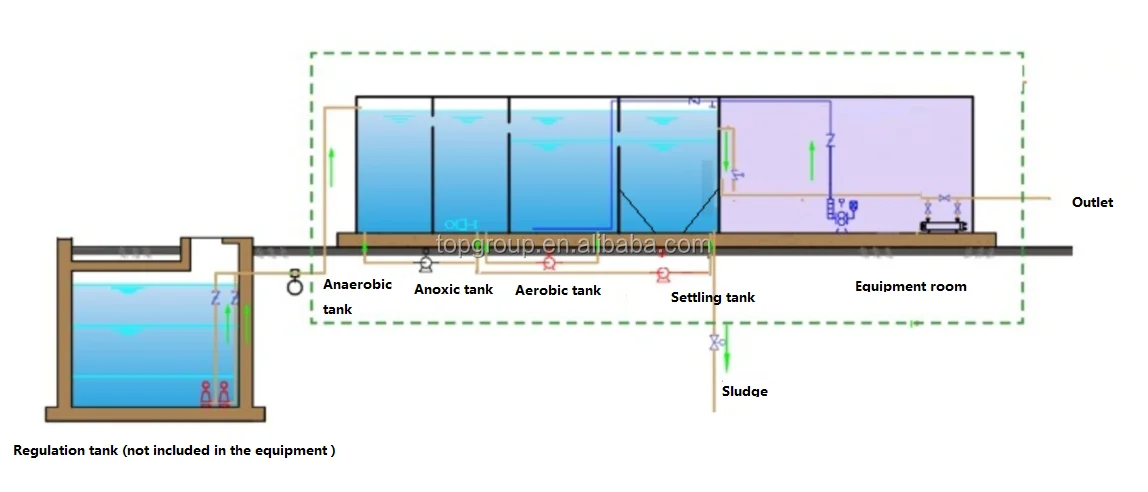

Flow Chart:



TPPT  Inlet And Outlet Water Quality (For reference):



Item	BOD5(mg/L)	CODCr(mg/L)	SS(mg/L)	NH3-N(mg/L)	TP(mg/L)
Inlet	150	350	200	30	3
Outlet	30	100	70	15	0.5











TPMBBR  Inlet And Outlet Water Quality (For reference):





Item	BOD5(mg/L)	CODCr(mg/L)	SS(mg/L)	NH3-N(mg/L)	TP(mg/L)
Inlet	150	350	200	30	3
Outlet	10	50	10	5(8)	0.5

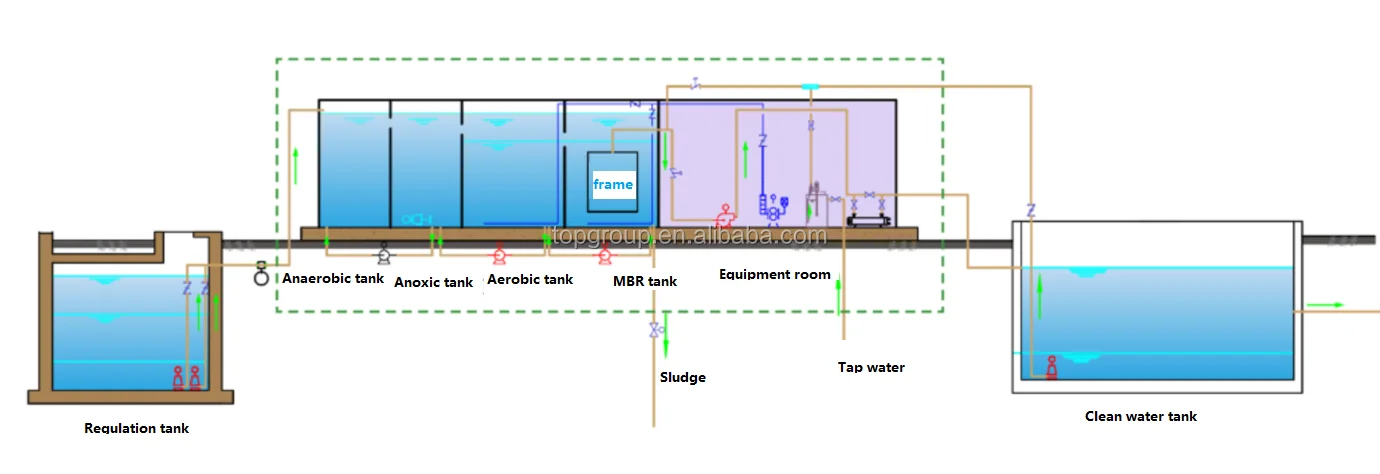

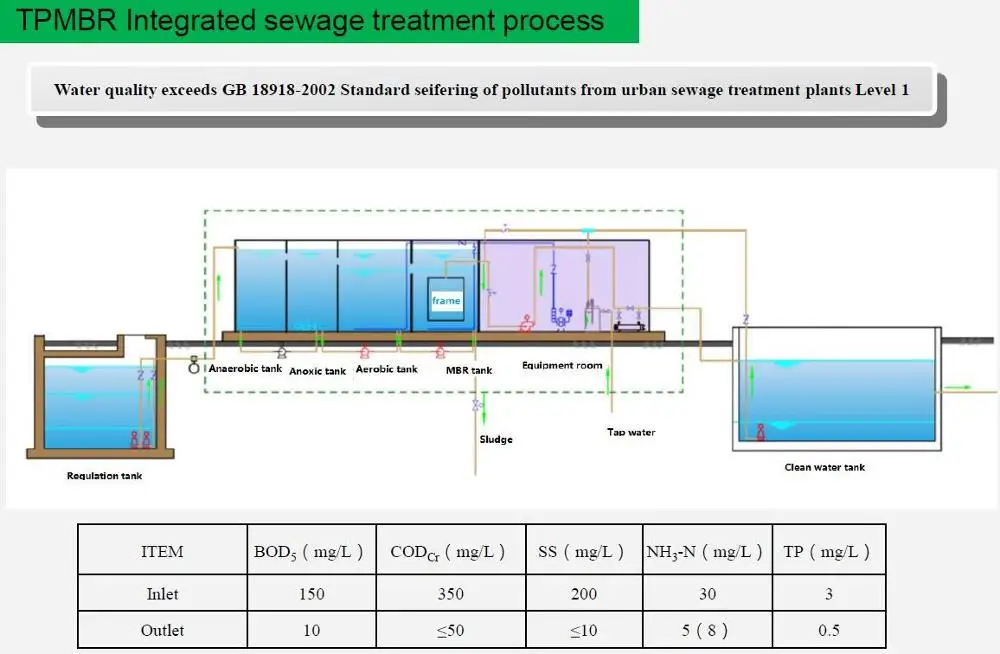

TPMBR  Inlet And Outlet Water Quality (For reference):



Item	BOD5(mg/L)	CODCr(mg/L)	SS(mg/L)	NH3-N(mg/L)	TP(mg/L)
Inlet	150	350	200	30	3
Outlet	10	≤50	≤10	5(8)	0.5

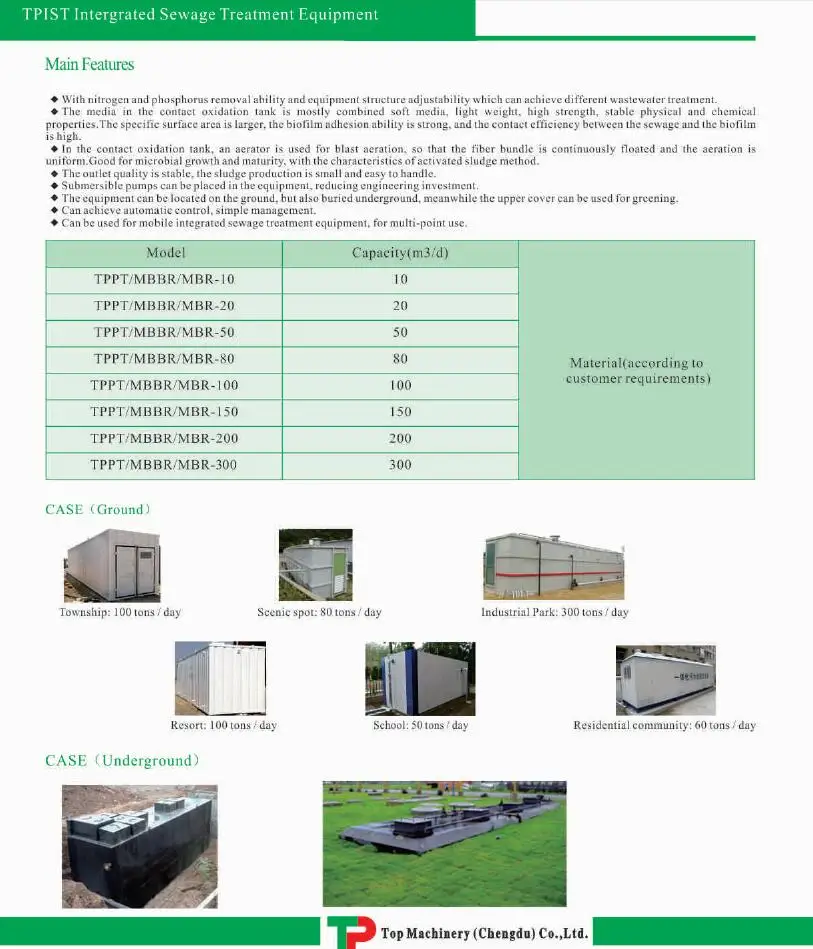

Main Features:

1.With nitrogen and phosphorus removal ability and equipment structure adjustability which can achieve different wastewater treatment.

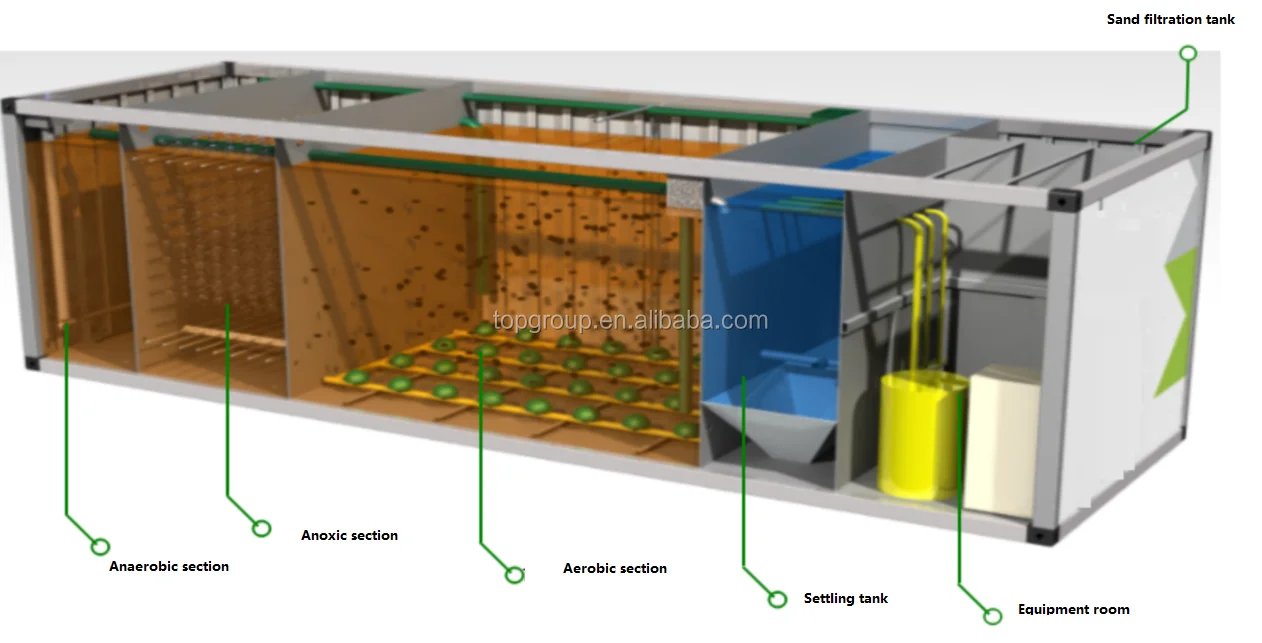

2.The media in the contact oxidation tank is mostly combined soft media, light weight, high strength, stable physical and chemical properties.The specific surface area is larger, the biofilm adhesion ability is strong, and the contact efficiency between the sewage and the biofilm is high.

3,In the contact oxidation tank, an aerator is used for blast aeration, so that the fiber bundle is continuously floated and the aeration is uniform.Good for microbial growth and maturity, with the characteristics of activated sludge method.

4. The outlet quality is stable, the sludge production is small and easy to handle.

5. Submersible pumps can be placed in the equipment, reducing engineering investment.

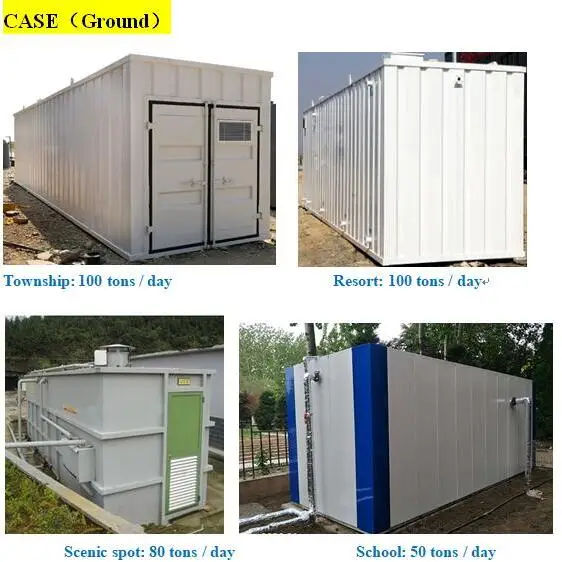

6.The equipment can be located on the ground, but also buried underground, meanwhile the upper cover can be used for greening.

7.Can achieve automatic control, simple management.

8.Can be used for mobile integrated sewage treatment equipment, for multi-point use.



Specifications:



Model	Capacity(m3/d)	Material(according to  customer requirements)
TPPT/MBBR/MBR-10	10
TPPT/MBBR/MBR-20	20
TPPT/MBBR/MBR-50	50
TPPT/MBBR/MBR-80	80
TPPT/MBBR/MBR-100	100
TPPT/MBBR/MBR-150	150
TPPT/MBBR/MBR-200	200
TPPT/MBBR/MBR-300	300



Note: According to the customer's inlet and outlet water quality, equipment parameters and configurations are different.



Any plans & inquiry, Please contact Maksim Zhou
