Rigging Hardware Fastener Malleable Steel Zinc Plated DIN 741 Wire Rope Clip

Product Overview

Description

   Jiaxing Rock Industry Imp & Exp Co., Ltd.We are a professional hardware parts OEM manufacturer, we mainly provide customized services, according to your drawings to produce the corresponding products, our price is very favorable, waiting for your inquiry.

Items	Description		Picture
Product name	Rigging Hardware Fastener Malleable Steel Zinc Plated DIN 741 Wire Rope Clip
Material	Steel
Standard	Din/ISO/ASME/JIS/BS

Welcoming send us an inquiry with your dimensions. We provide 24hours*7days service.      Click here for more information!

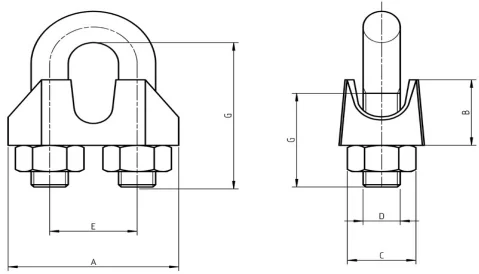

Rope	A	B	C	D	E	F	G
3	21	10	1	4	9	12	16,6
5	23	10	11	5	11	13	19,95
6,5	26	11	12	5	13	15	23,65
8	30	15	14	6	16	19	28,85
10	34	17	18	8	19	22	35
12	36	18	19	8	20	22	37
13	40	21	23	10	24	30	46,24
15	44	22	23	10	25	30	48,24
16	50	26	26	12	29	33	42,5
20	54	30	29	12	32	38	64,5
22	61	34	33	14	37	44	72,5
25	65	37	35	14	41	45	82,5
28	74	43	37	16	48	50	95,6
32	80	50	42	16	52	55	105,6
40	88	55	45	16	58	60	125,6

Process forging, strict control
High quality raw materials processing
High plasticity good fatigue resistance
