VOUNG Electric cabinet keyless vending machine lock 12V 24V
- Category: >>>
- Supplier: Shenzhen Voung Electronics Co. Ltd
Share on (62426976715):
Product Overview
Description
Product Description

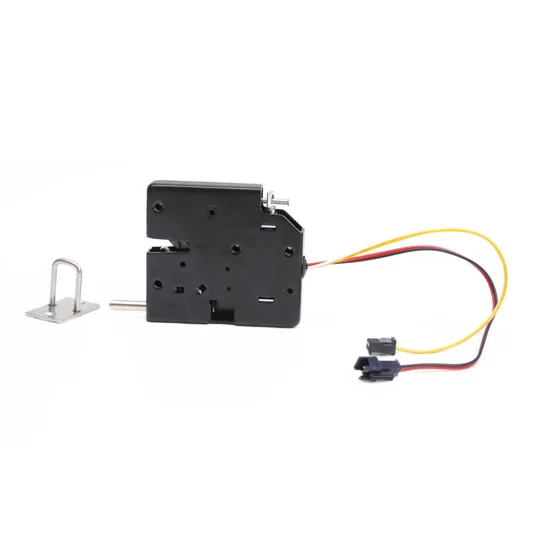

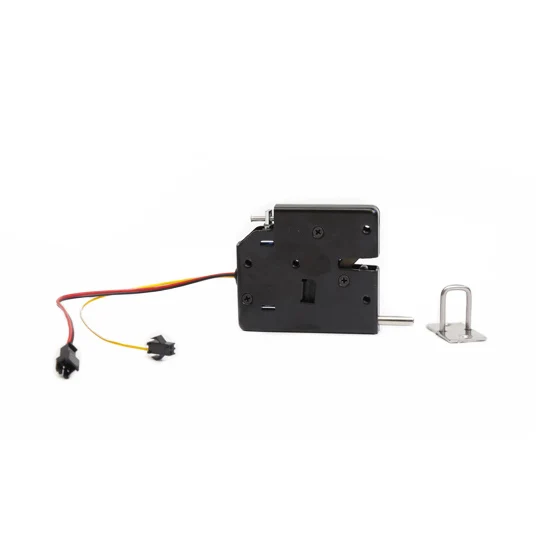

12V Electromagnetic Lock for Cabinet Storage Box
Item | 12V Electromagnetic Lock for Cabinet Storage Box |
Model | VE-P203A |
Automatically Release | Power on to release lock, door bounce out automatically to disconnect power; |
Work mode | Power off to lock, The energization time must not exceed 200ms; |
Electrical Parameters | DC12V 2A; |
Elasticity | can be adjusted, suitable for 0.5 ~ 4Kg door, especially suitable for refrigerated cabinet and express cabinets; |
Size | 73*66*13mm |
Emergency Release | Manually release; |
Durable | 500,000 times tested |
Holding Force | 150Kg force, anti-vibration, tamper design |
Specification :
2. Size : 73*66*13mm;
3. Working mode: independent (i.e. the door is locked when the power is turned off, and the lock is triggered when the power is
turned on);
4. Electrical parameters: DC12V 2A, suction time cannot exceed 200ms;
5. Mechanical life: more than 500,000 times under design load;
6. Electromagnet life: rated working conditions, more than 1000000 times;
7. Lock opening detection: built-in lock opening position detection, door lock switch conduction, lock opening switch disconnect.
8, Self-elastic design: elastic adjustable, can be applied to 0.5~4Kg weight door self-elastic.
9, Surface treatment: electrocoat paint (neutral smoke test over 500 hours).
10. Safety: the lock hook can bear 150Kg tension without obvious permanent deformation;With anti - shock, anti - skid performance
11, Working temperature: -40 - +60 ° c
12, Installation: small size, simple installation, no left and right, pros and cons;And reserve the mechanical emergency opening
position;
Application :
Storage cabinet, telegraph box, locker, logistics cabinet, file cabinet, electricity meter box, locker, vending machine, mobile phone cabinet, shoe cabinet and other centralized control cabinet.Widely used in schools, community logistics, hotels, factories, bath centers, military, Banks, supermarkets, prisons and other places.

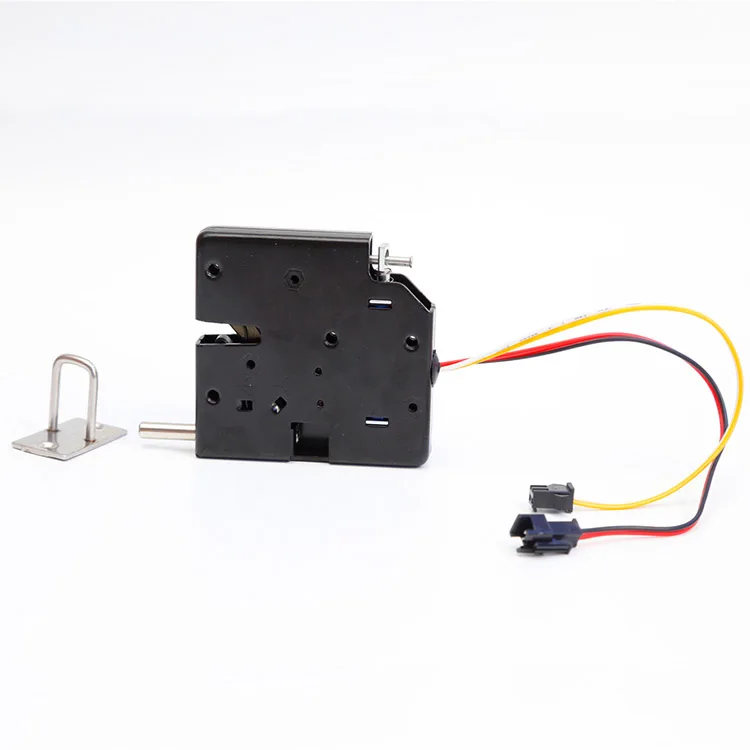

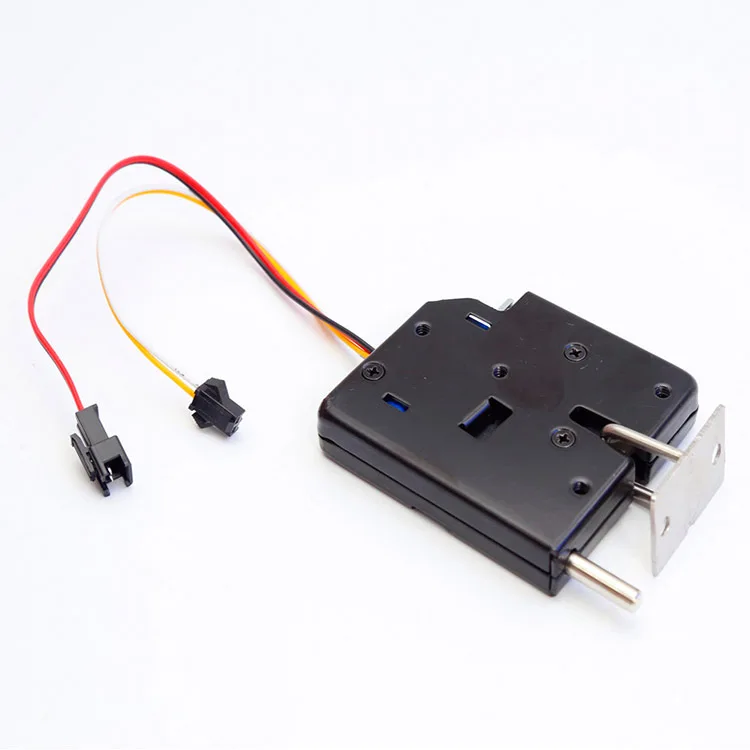

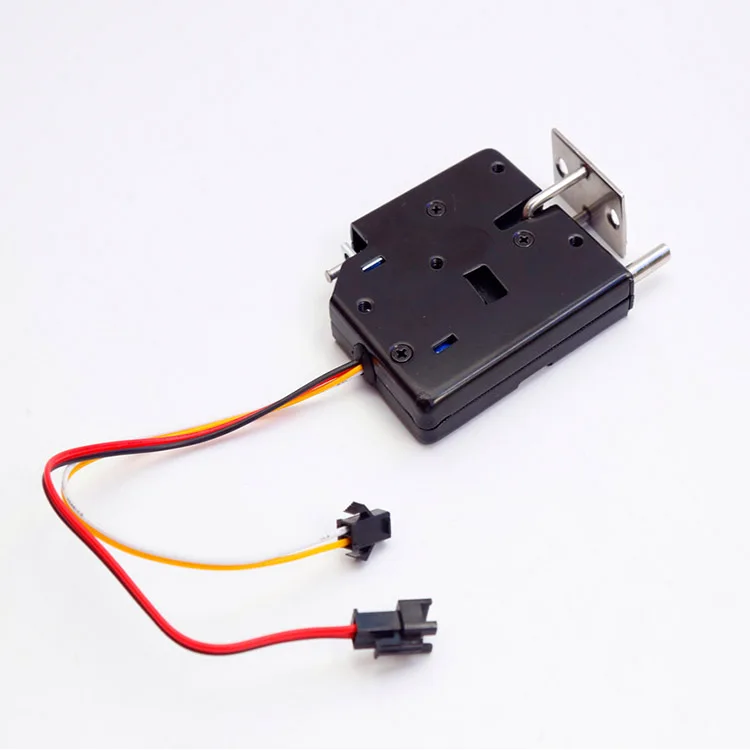

Products Show
Usage & Installation
1 Read the manual carefully and test it before the installation;

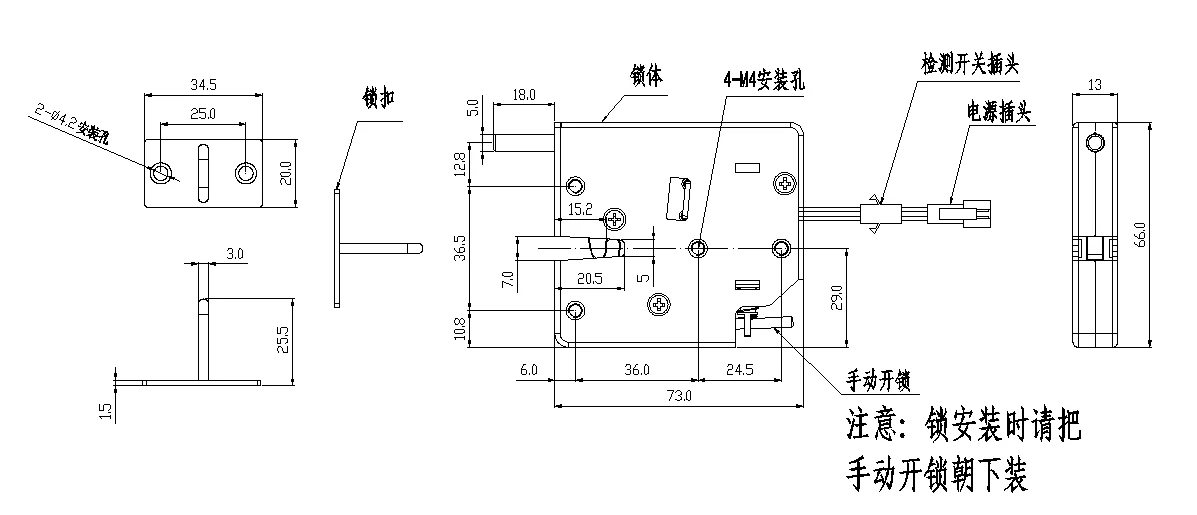

2 Lock Dimensions:
Related Products
Packing & Delivery
Packing : Standard carton S
Shiping : DHL/UPS/FEDEX/TNT (4-7days , depend on your country ,door to door service ,)
By Air ( 7-15days ,door to airport )
By sea 20-40days , sea port to sea port )
