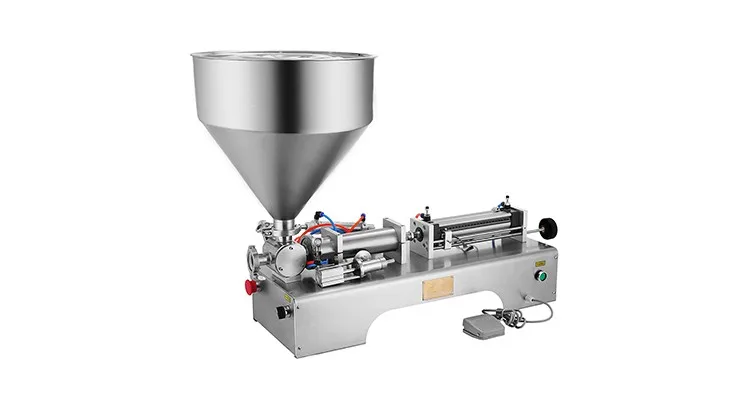

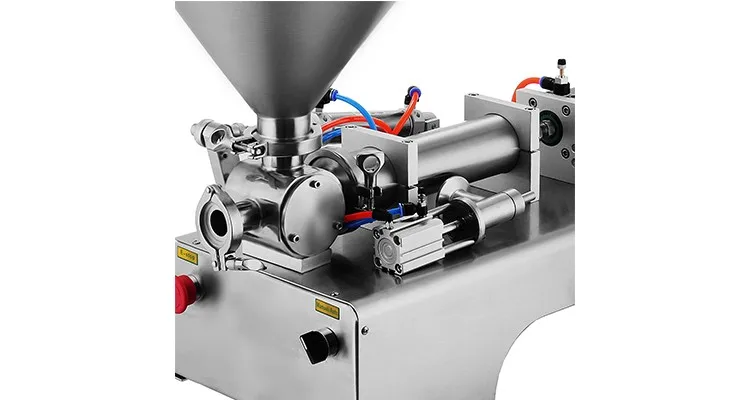

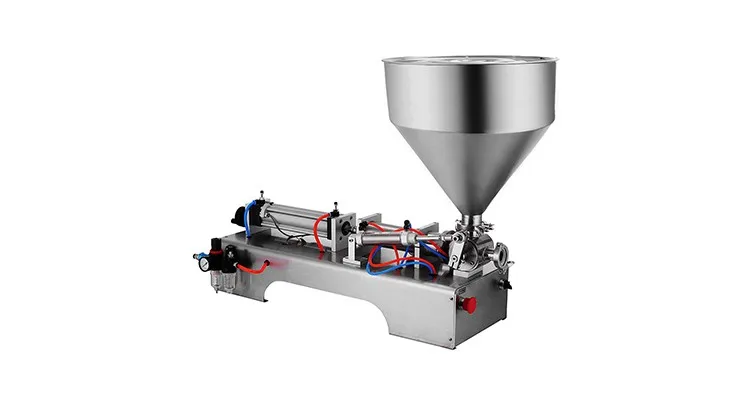

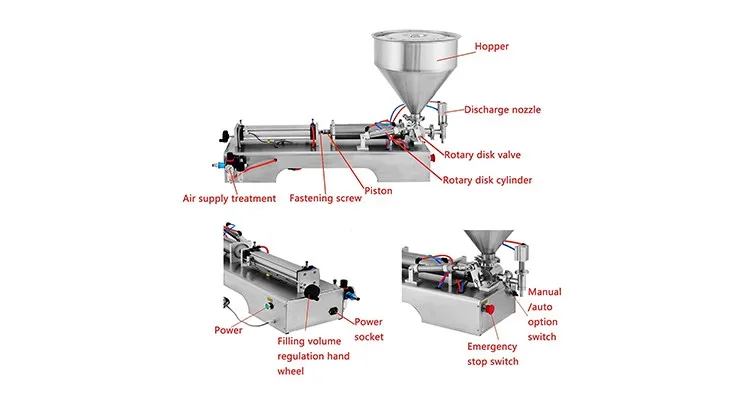

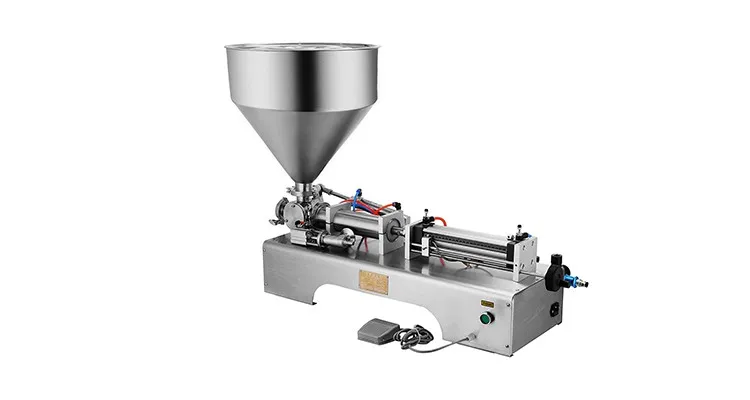

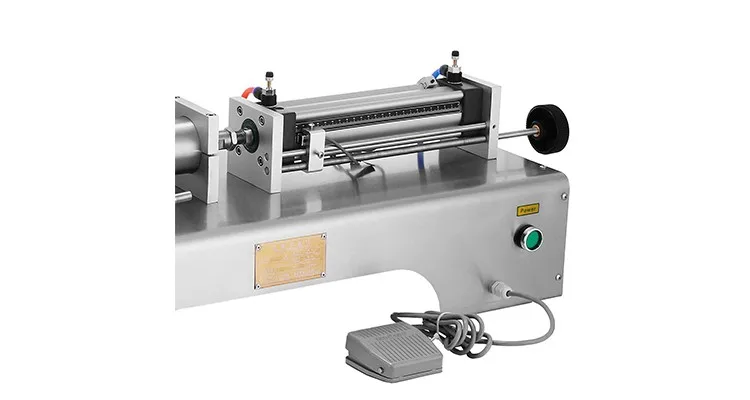

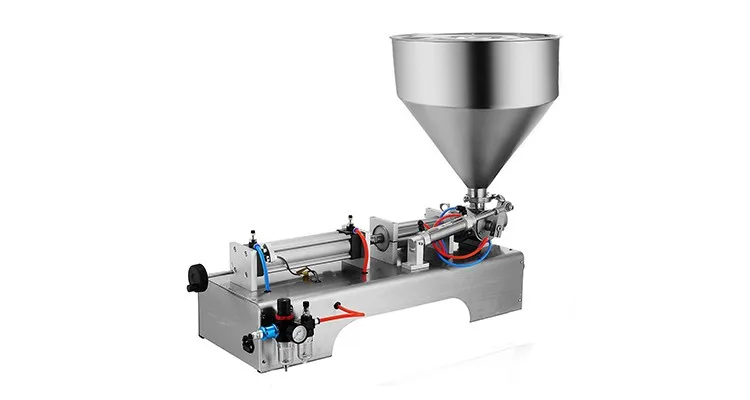

Semi automatic pneumatic filling machine for honey This series of filling machine is for the semi-automatic piston filling machine. Through the cylinder to drive a piston to draw and put out material, and then with a one-way valve to control the flow of material.With a magnetic switch to control the cylinder stroke, you can adjust the filling volume. This Pneumatic Piston Fillers are widely used by industries in the Food & Beverage, Personal Care, Cosmetics, Agricultural, Pharmaceutical, Animal Care and Chemical fields.This pneumatic piston filler is suitable for all liquid and paste without particles, cream, honey, shampoo, oil, toothpaste, emulsion.
Contact: Kelly Li WhatsApp:18001564982 WeChat:Kelly2021286246 Email:ms.Kelly@kjxyljx.com

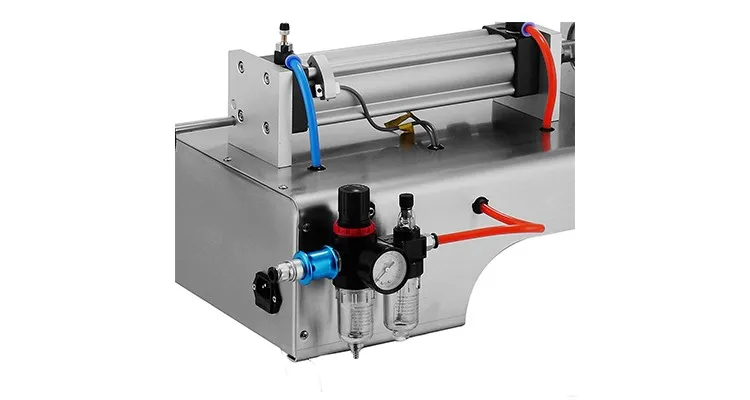

Key Features Semi Auto/Continuous Operation Selector Switch. All Parts in Contact with Product are Food Grade. Silica gel O-ring System. Piston Feed Speed Adjustment. No-drip Option Included and Installed. Sanitary Stainless Steel Quick Disconnect Fittings. Quick Connect/Disconnect Pneumatic Fittings. With the Air pressure gauge,Adjustment Piston Volume Adjust. Air Intake Pressure.
Technical specifications Power supply voltage: 220v ± 5v 110v ± 5v Power: 10w Filling volume: 100-1000ml Filling head: single head Air Consumption 3-5KG 0.4-0.6MPa. Filling speed: 10-30 bottles/min Filling accuracy: ±0.5%-±1% Weight: About 26kg(57.2lb) Speed: Approximate 2-50 r/min Accuracy: ≤±1% Machine size: 1150×680×550mm(45.26"×17.98"×21.65") Package size: 1160×550×335mm(45.67"21.65"13.19")
Package Content 1×Main Unit 1×English Instruction Manual 1×Packing List 1×Product certification 1×Set of hexagon wrench(1.5,2.5,3,4.5) 1×Set of Sealing ring(O type, planarity) 1×"+"screwdriver 1×"-"screwdriver

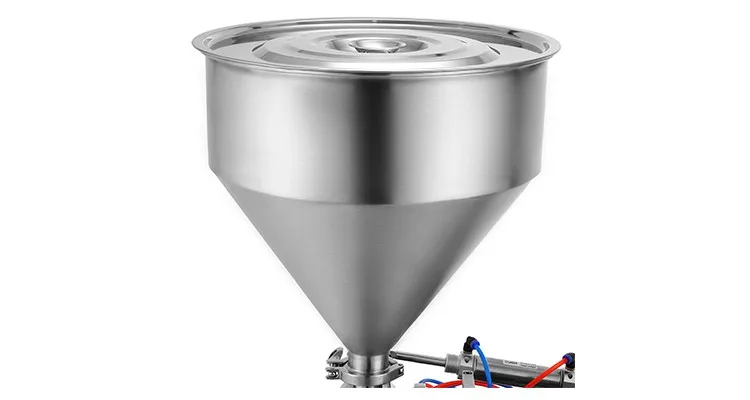

1 x Hopper
