Stable manual conventional paralel lathe machine horizontal metal turning manual tengzhou CA6250 specification dalian for sale
Product Description
Main Feature:
1.Bed guideway is harden and tempered by super audio quenching and precision grinding
2.Precision grinding of the main shaft box, low noise.
3.Many thread type can be choosen
4.Electrical safety performance is good, high reliability
Application:
1 CA series of ordinary horizontal lathe is suitable for turning inside and outside cylindrical surface, conical surface and other rotating surface, turning various metric and inch, modulus and pitch thread, and can carry out the work of drilling and pulling oil groove, is a very versatile horizontal lathe, widely used in all kinds of shaft and disc parts of the batch processing.
2 This series of lathe bed width in general lathe, rail width 400mm has a high stiffness; guide rail surface is quenched by medium frequency, and is durable.
3 The machine operation is flexible and concentrated, the apron with fast moving mechanism. Using single handle vivid of the operation, pleasant and good..
4 Machine tool structure rigidity and transmission rigidity are higher than the general lathe, the power utilization ratio is high, is suitable for the strong cutting.
5 Machine tool factory in strict accordance with the test procedures for testing, and make a strong cutting test, to ensure that the machine has a good accuracy and reliability.
Machine main specifications:
Type | CA6140 CA6240 | CA6150 CA6250 | CA6161 CA6261 | CA6166 CA6266 | CA6180 CA6280 |
Max. swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm |
Max. swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm |
Max. swing in gap | 630mm | 720mm | 830mm | 880mm | 1020mm |
Max. effective length in gap | 210mm | ||||
Max. length of workpiece | 750/1000/1500/2000/2200/3000/4000mm | ||||
Width of bed | 400mm | ||||
Section of turning tool | 25*25 mm | ||||
Main spindle motor | 7.5kw(10HP) | ||||
Spindle | |||||
Spindle speed | 16--1400rpm(24step) | ||||
Spindle bore | 52mm (B: 80mm),(C: 105mm) | ||||
Spindle taper | No.6(MT6)(90 1:20)[113:20] | ||||
Feed | |||||
NO. of feed | (64 kinds)(for each) | ||||
Range of metric threads | (1-192mm) (44 kinds) | ||||
Range of inch threads | (1-24tpi) (21kinds) | ||||
Range of module threads | 0.25-48 (module 39 kinds) | ||||
Range of diametral pitch threads | 1-96DP (37 kinds) | ||||
Tailstock | |||||
Max. tailstock spindle travel | 150mm | ||||
Tailstock spindle diameter | 75mm | ||||
Taper of tailstock spindle centre hole | NO.5(MT5) | ||||
Packing dimensions (L*W*H) | |||||
Overall dimensions for 750mm | 2440*1140*1750mm | ||||
Overall dimensions for 1000mm | 2700*1140*1750mm | ||||
Overall dimensions for 1500mm | 3200*1140*1750mm | ||||
Overall dimensions for 2000mm | 3700*1140*1750mm | ||||
Overall dimensions for 2200mm | 4030*1140*1750mm | ||||
Overall dimensions for 3000mm | 4800*1140*1750mm | ||||
Overall dimensions for 4000mm | 5680*1140*1750mm | ||||
Weight (kg) | |||||
Overall dimensions for 750mm | 2100 | 2170 | 2300 | 2400 | 2520 |
Overall dimensions for 1000mm | 2200 | 2260 | 2380 | 2580 | 2720 |
Overall dimensions for 1500mm | 2380 | 2450 | 2577 | 2830 | 3000 |
Overall dimensions for 2000mm | 2750 | 2800 | 3000 | 3050 | 3300 |
Overall dimensions for 2200mm | 2800 | 3000 | 3150 | 3400 | 3500 |
Overall dimensions for 3000mm | 3300 | 3500 | 3600 | 4000 | 4220 |
Overall dimensions for 4000mm | 3500 | 3800 | 3950 | 4600 | 4900 |
Details

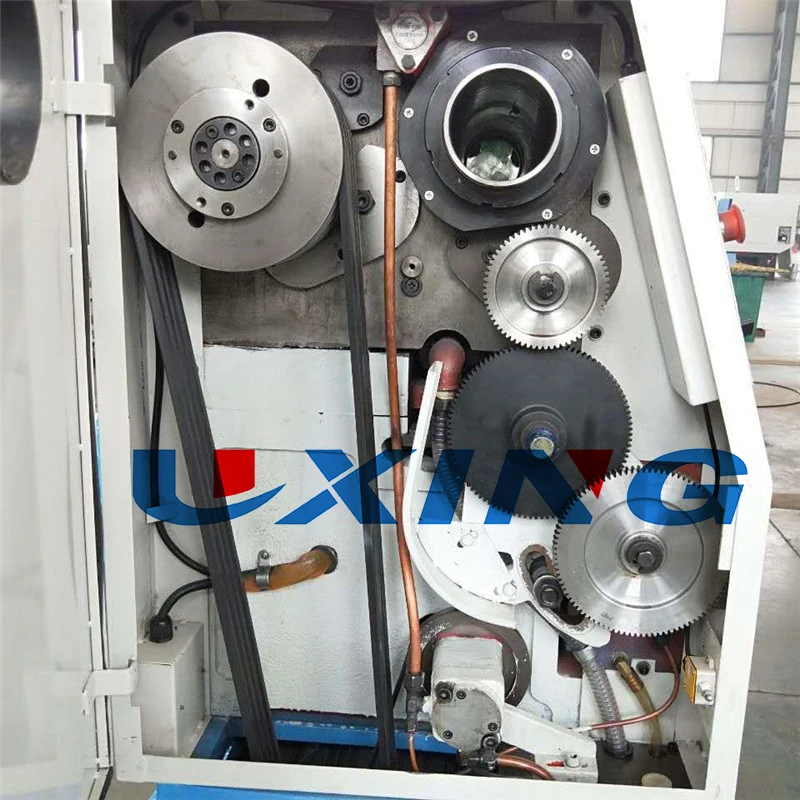

1).Spindle head box
Great quality gears make the spindle head box perform stable and precisely.
2).Spindle bore and chuck protect
Spindle bore:52,80,105mm.
Standard:3 jaw chuck
Optional:4 jaw chuck(need add extra cost).
3).400mm width Quenching bed
Width is bigger than normal lathe,with high hardness,wear quenching.

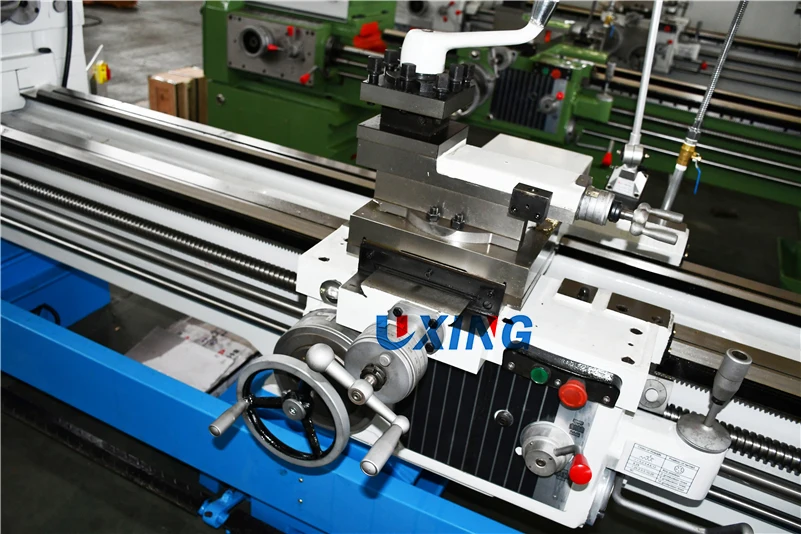

4).Tool Post Type
Standard Tool Post
Optional Tool Post:QuicK Change Tool Post(need add extra cost).
5).2 Axis DRO
2 Axis Digital Read Out need extra cost.
