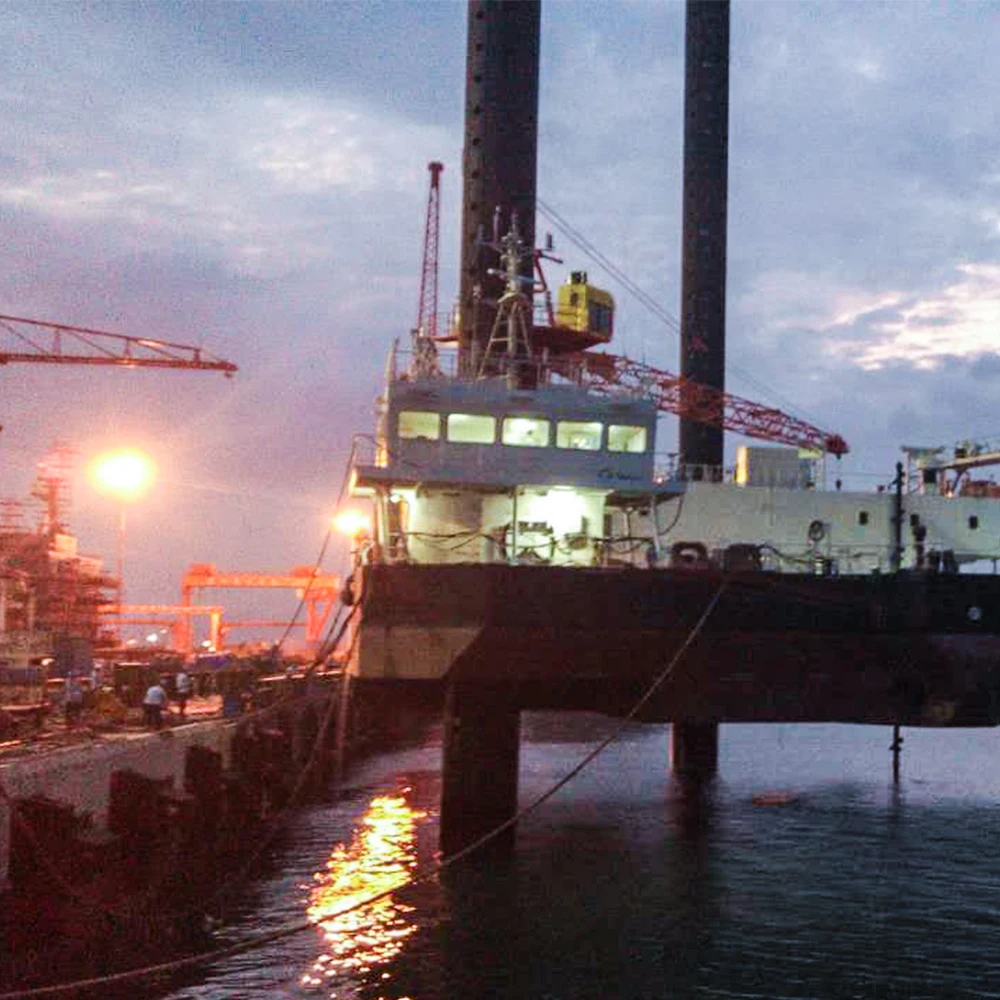

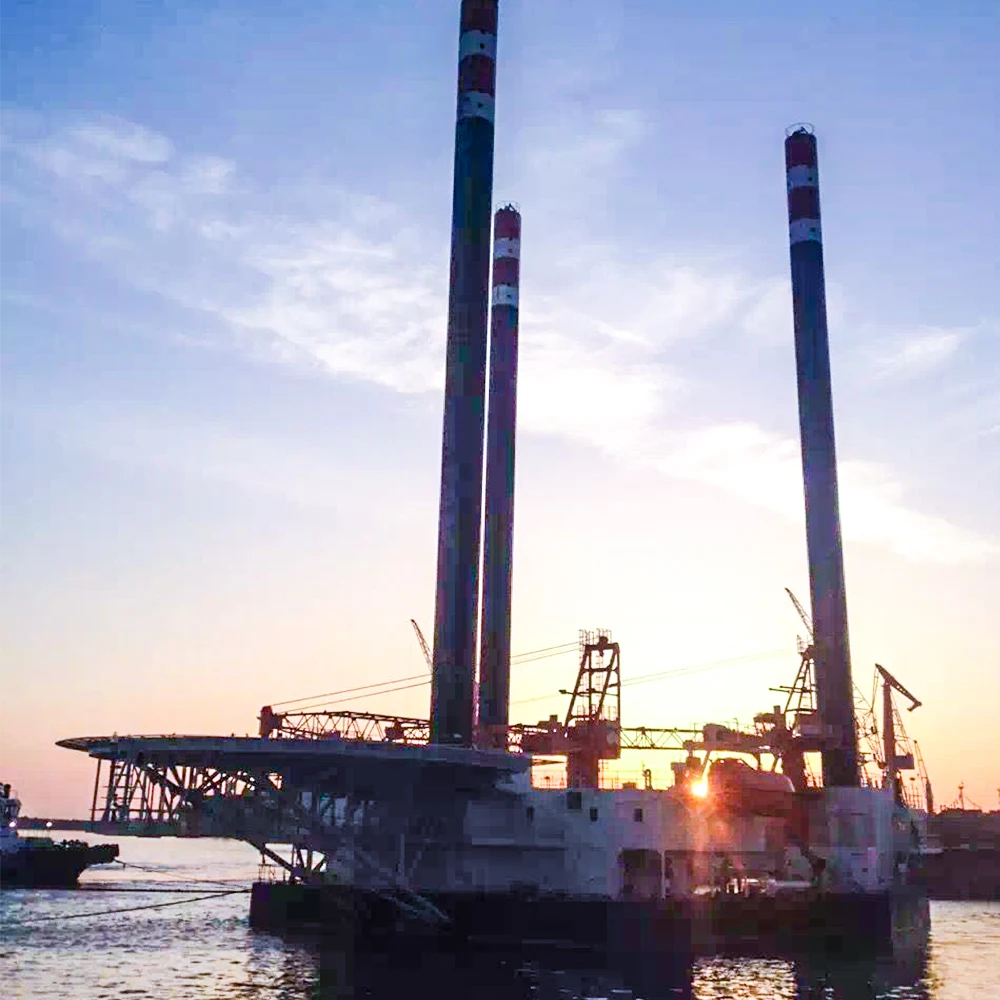

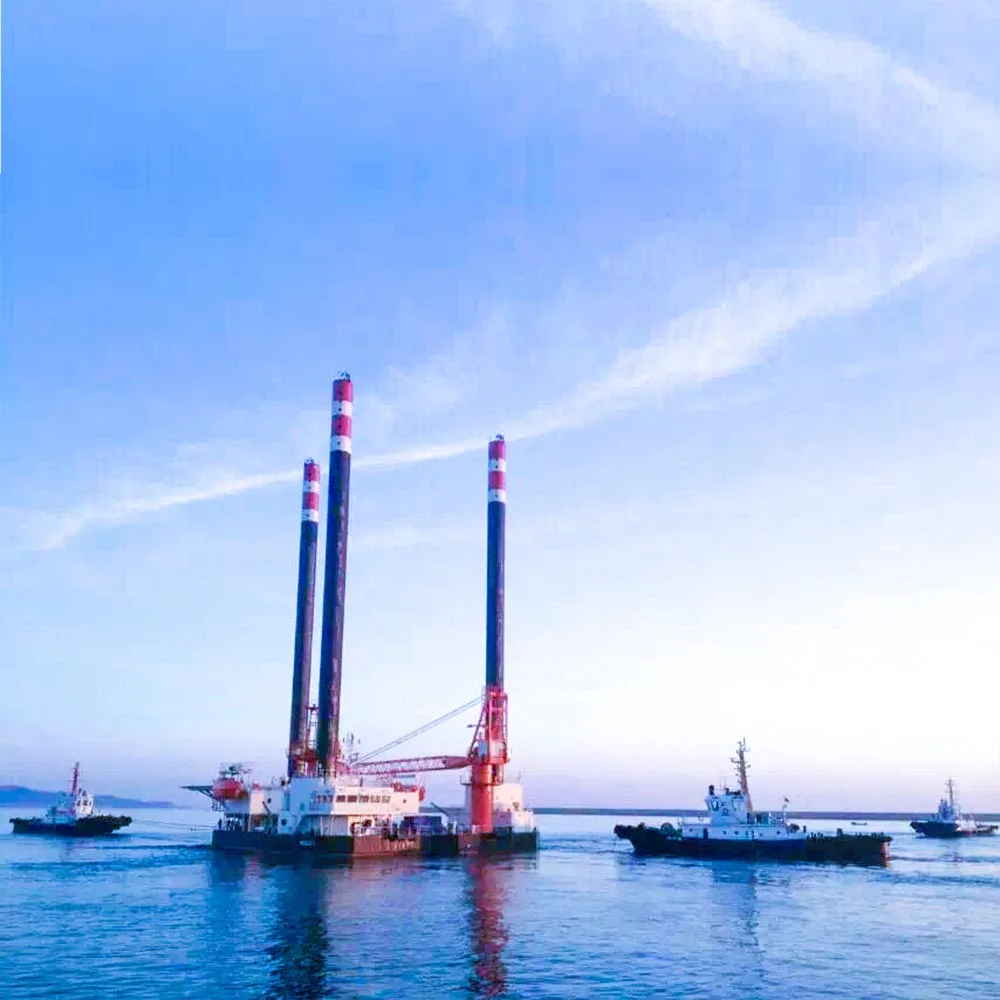

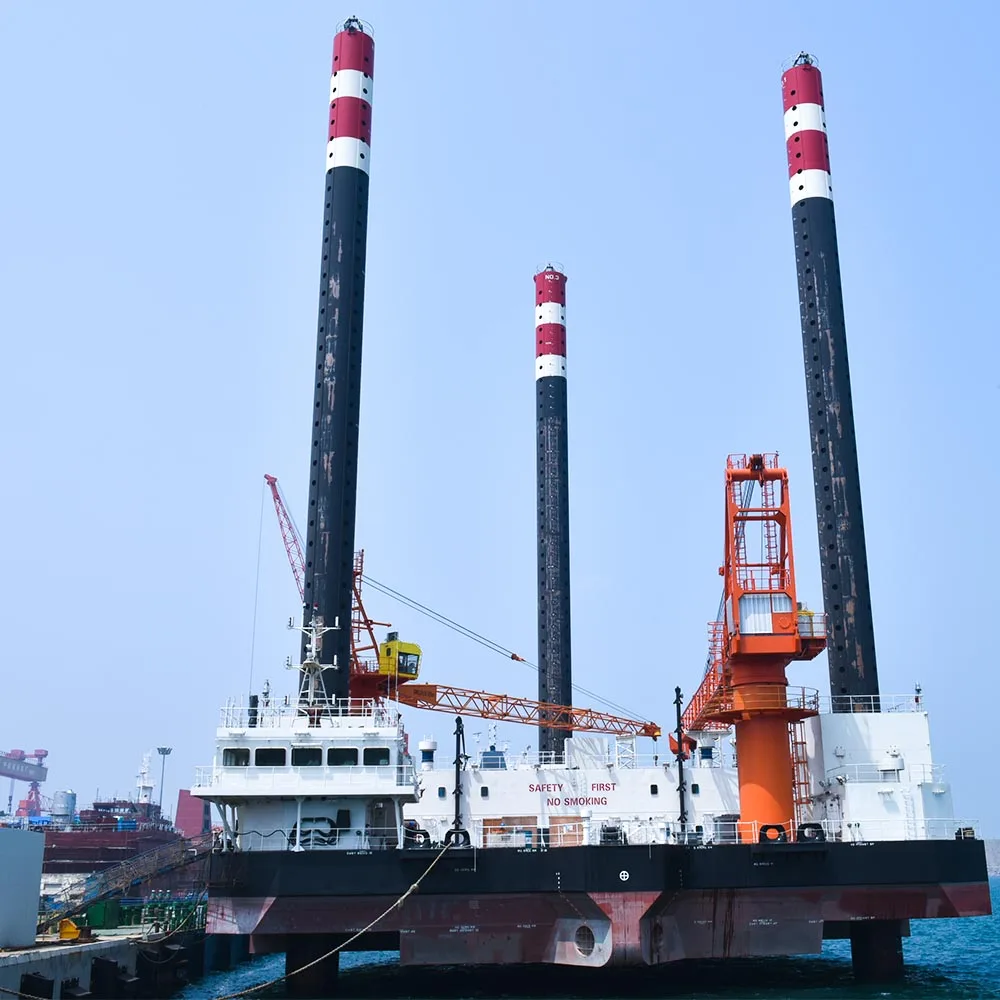

225FT SEU OFFSHORE AThree legged Self Elevating Modular Jack Up Barge

Class:

ABS, A1, Self-Elevating Unit, AMS-NP, DPS-1, CRC, CPS

Main Dimensions:

Length Overall

67.175m

Length

43.8m

Breadth

39.0m

Depth

5.2m

Draft Design

3.2m

Deck Area

500m²

Variable Load

800MT

Max. Water Depth

45m

Accommodations

55P

Jacking System:

Jacking Capacity:

3x1000MT

Jacking Speed:

12m/hr

Main Machinery:

Main Engine:

2x960kW-1000rpm

Bow Thruster:

450kW

Main Genset:

3x350kW

Em’cy Genset:

200kW

Main Crane:

45MT-8m 12MT-36.6m

Aux. Crane:

3MT-28m

Helideck:

BELL-212
